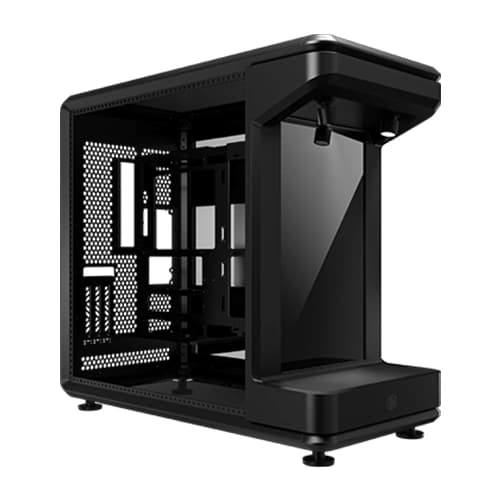

COOLER MASTER MASTER FRAME 360 Stage LCD ATX Mid Tower Cabinet ( Black )

Features of COOLER MASTER MASTER FRAME 360 Stage LCD ATX Mid Tower Cabinet ( Black )

• Dimensions (L x W x H): 549 x 291 x 581 mm (Incl. Protrusions), 511 x 291 x 581 mm (Excl. Protrusions)
• Volume: 86 L (w/o panel, protrusions and feet), 93 L (with panel, protrusions and feet)
• Power Supply Support: ATX
• Drive bay support - 3.5" Drive Bays: 0
• Drive bay support - 2.5" / 3.5" Drive Bays (or SSD): 1x HDD or 2x SSD
• Preinstalled Drive bay - 3.5" Drive Bay (remark Toolfree quantity) / 2.5" Drive Bay(or SSD)(remark Toolfree quantity): 1x HDD or 2x SSD
• Fan Support - Top: 6x 120mm, 2x 140mm,  2x 180mm, 2x 200mm
• Fan Support - Bottom: 6x 120mm, 2x 140mm,  2x 180mm, 2x 200mm
• Radiator Support - Top: 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)
• Radiator Support - Bottom: 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)
• Dust Filters: Mesh Only (Removable Filters)
• Other electronic components: 1x PCI-e 5.0 Riser / 2x ARGB spotlight
• Maximum Dimensions for Front Collectibles Display (H x W x D): 328 x 290 x 110 mm
• Toolbox: Yes
• Cable Routing - Behind Motherboard Tray: 110 mm

SHOWCASE WITHOUT COMPROMISE

Cooler Master MasterFrame 360 extends the FreeForm 2.0 design philosophy into a visual-first, showcase-ready platform. Featuring Cooler Master’s signature aluminum exo-structure and a new central cable management chamber, it delivers clean builds that put hardware center stage. STAGE LCD-the 360 series offers creators a refined platform to build, express, and be seen.

The Stage for Personal Expression

Open-frame design removes traditional enclosure constraints, allowing you to freely position figures, collectibles, and creative accessories without visual or spatial limits. Combined with the signature front-facing LCD, it creates a 360-degree display effect—reflecting every angle in vivid detail. This unique design transforms your build into a personal gallery, where story and style take center stage.

Massive Cooling Compatibility

Supports fan sizes ranging from 120 mm to 200 mm, with space for up to twelve 120 mm fans-six on the top and six on the bottom. It also supports radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.

Wide Component Compatibility

Accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without compromise. Also compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor.

PCIe 5.0 Riser Cable Included

Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen performance and an elevated presentation right out of the box.

Specifications of COOLER MASTER MASTER FRAME 360 Stage LCD ATX Mid Tower Cabinet ( Black )
