- COOLER MASTER G800 80 Plus Gold Non Modular Power Supply (800 W)
Description
Features of Cooler Master G800 80 Plus Gold Non Modular Power Supply (800 W):
More Power for Less
The G Gold Series marries high end performance standards with entry level pricing, delivering the essential features while also providing high efficiency. Every aspect of these models has been specifically tailored and balanced to hit the lowest possible price point without having to sacrifice important features that affect long-term reliability and continuous performance.
Efficiency is Non-negotiable
PSU units in the 80 PLUS Gold segment simply cost more by nature of marketing. This series delivers 80 PLUS Gold efficiency at a manageable price. It's already a legal requirement in a number of places around the world. The G Gold series PSU, like the Cooler Master G800 80+ Gold Non Modular Power Supply (800 W), was created to make this transition as easy as possible for system builders of any budget.
Modern Standards for Modern Systems
The G Gold series is affordable but by no means lacking by meeting the Intel ATX 2.52 standard requirements. It's one of the budget power supplies on the market currently meeting this standard.
Keep Cool, Stay Quiet

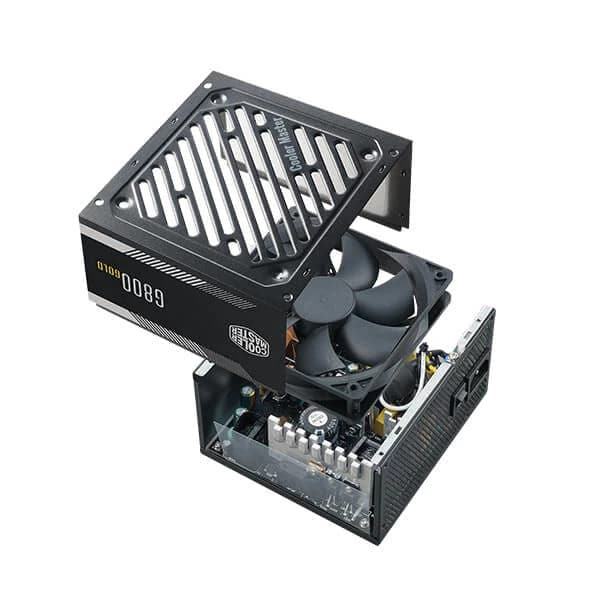

Hydrodynamic fan bearing in the Cooler Master G800 80+ Gold Non Modular 800W Power Supply delivers an effective cooling solution that are both quiet and reliable. 120mm fan size provides a reliable level of cooling with acceptable noise levels while maintain temperatures well within the safety guidelines without breaking the bank.
Heated but not Hot
With an operating temperature of 40℃, most system operations can be handled safely and reliably in a majority of settings.
5 Year Warranty
The Cooler Master Power Supply G800 80+ Gold Non Modular Power Supply (800 W) is a safe, reliable power supply unit that will power your system for years. With a 5 year warranty, you can rest assured that your PSU was built to last. With proper care and typical use, this unit can power a system for many years with no issues.
Get the best 80 Plus Gold psu power supply price from us today!
Specifications of Cooler Master G800 80 PLus Gold Non Modular Power Supply (800 W):
Model | Cooler Master G800 80+ Gold Non Modular Power Supply (800 W) (MPW-8001-ACAAG-IN) |
ATX Version | ATX 12V V2.52 |
PFC | Active PFC |
Input Voltage | 100-240V |
Input Current | 12-6A |
Input Frequency | 47-63Hz |
Dimensions (L x W x H) | 140 x 150 x 86 mm |
Fan Size | 120mm |
Fan Bearing | HDB |
Efficiency | ≥90% @ Typical Load |
80 PLUS Rating | 80 PLUS Gold |
ErP 2014 Lot 3 | Yes |
Operating Temperature | 0-40°C |
Power Good Signal | 100 - 150 ms |
Hold Up Time | ≥15ms at 100% load |
MTBF | 100,000 Hours"}">>100,000 Hours |
Protections | OVP, UVP, OPP, OTP, SCP, OCP |
Regulatory | CB, cTUVus, TUV, CE, RoHS2.0, FCC, CCC, BSMI, KC+KCC, BIS, EAC |
ATX 24-Pin Connectors | 1 |
EPS 4+4 Pin Connectors | 1 |
EPS 8 Pin Connector | 1 |
SATA Connectors | 6 |
Peripheral 4-Pin Connectors | 3 |
PCI-e 6+2 Pin Connectors | 4 |
Series | G Series |
80 Plus | Gold |
Modular | Non Modular |
Wattage | 800W |
Warranty | 5 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
