- COOLER MASTER Elite 750W 80+ Gold ATX 3.1 Fully Modular Power Supply ( 750W )
Description
Features of COOLER MASTER Elite 750W 80+ Gold ATX 3.1 Fully Modular Power Supply ( 750W )
ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS
Cooler Master Elite Gold 750 is designed for reliable everyday gaming builds. With full ATX 3.1 and PCIe 5.1 support, it ensures stable performance and compatibility with the latest and upcoming mid-range GPUs. Offering 80 Plus Gold efficiency, dependable operation at up to 40°C, and a quiet rifle bearing fan, it delivers efficient and quiet power. A compact 140mm form factor makes installation easy across a wide range of cases, while fully modular embossed cables simplify cable management. Backed by a 10-year warranty, the Elite Gold 750 provides lasting confidence and stability for your system.
HIGH TEMPERATURE RESILIENCE
Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.
Compatible with ATX 3.1 and PCIe Gen 5.1
ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of its rated output, making the Elite Gold 750 ready for the latest and upcoming mid-range GPUs.
RIFLE BEARING FAN
The rifle bearing fan offers a longer lifespan while providing better noise reduction for consistent, reliable cooling.
80 PLUS GOLD CERTIFIED EFFICIENCY
Cooler Master Elite Gold 750 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.
COMPACT FORM FACTOR
Unlike typical high-wattage PSUs that extend beyond 150mm, the Elite Gold’s compact design at 150mm or less ensures easy installation across a wide range of cases, making it ideal for space-conscious PC builds.

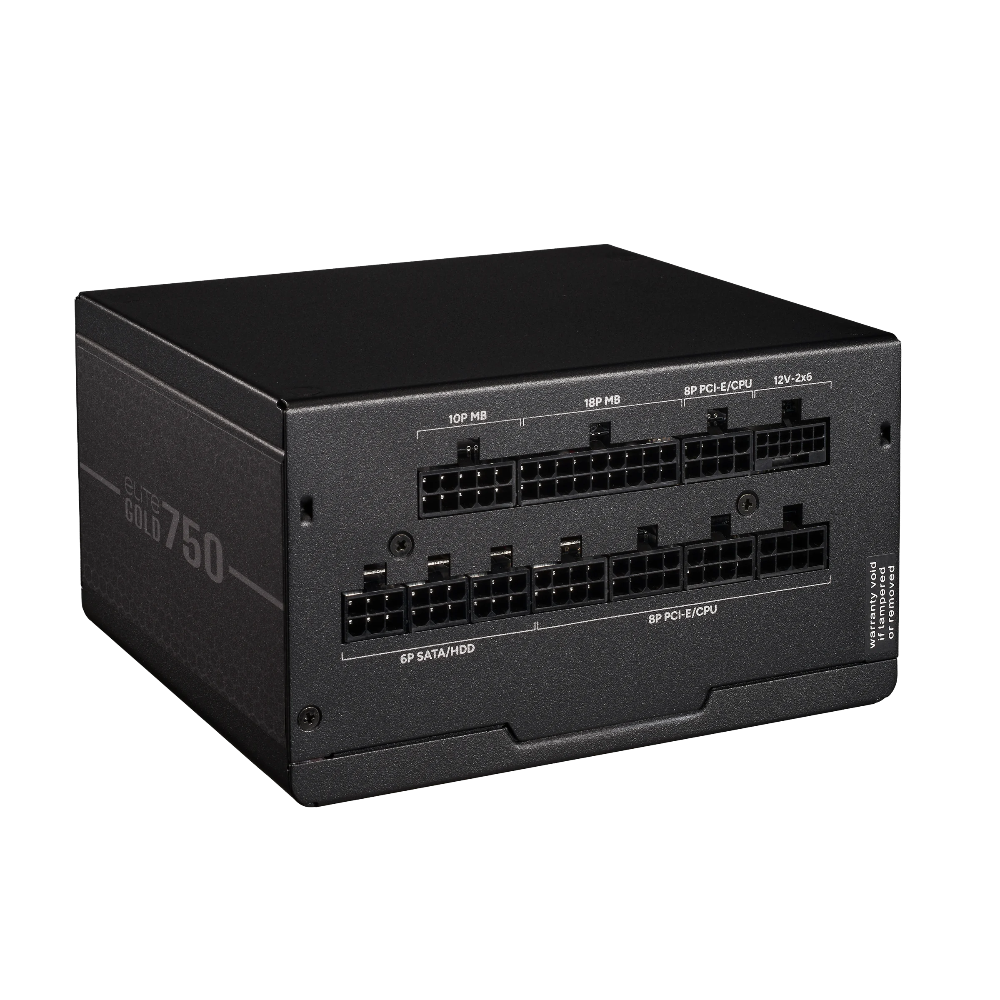

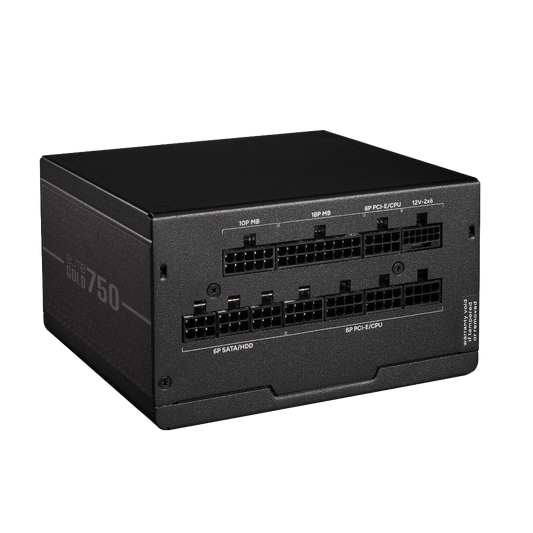

Fully Modular Embossed Cable Design
The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.

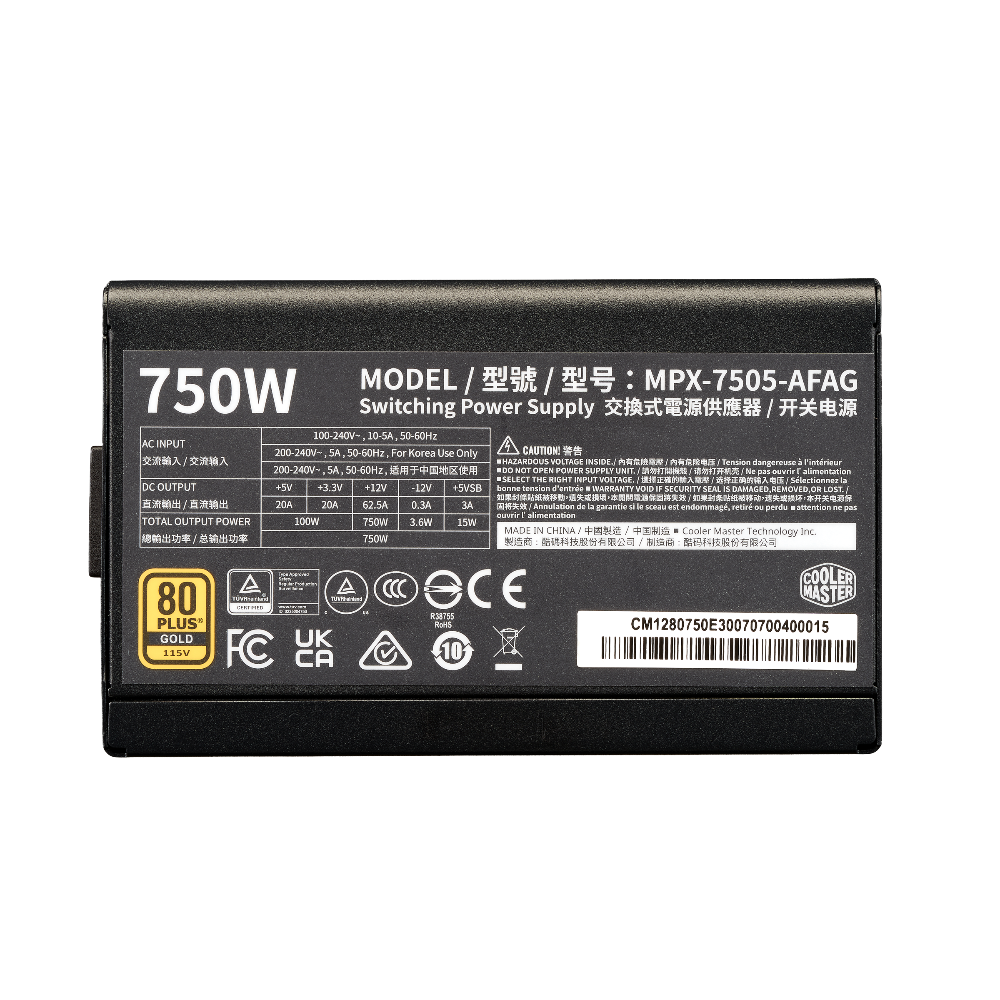

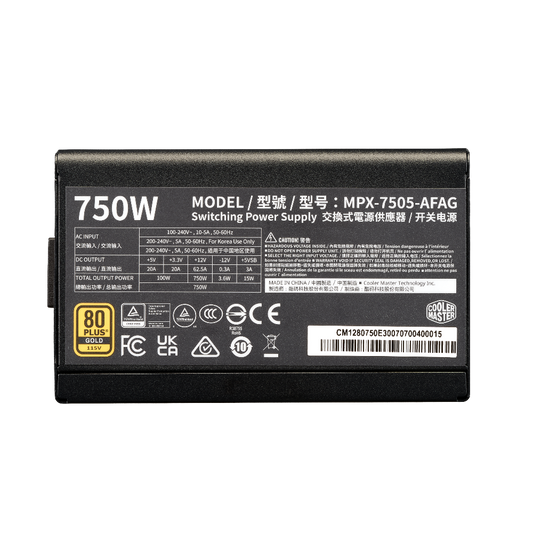

Specifications of COOLER MASTER Elite 750W 80+ Gold ATX 3.1 Fully Modular Power Supply ( 750W )
| Product Name | ELITE GOLD 750 |
| Model | MPX-7505-AFAG |
| Series | Elite Series |
| Form Factor | ATX |
| ATX Version | ATX 12V Ver. 3.1 |
| Watts | 750W |
| Modular | Fully Modular |
| PFC | Active PFC |
| Input Voltage | 100–240V |
| Input Current | 5 ~ 10A |
| Input Frequency | 50–60Hz |
| Dimensions (L × W × H) | 140 × 150 × 86 mm |
| Fan Size | 120mm |
| Fan Bearing | Rifle Bearing |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| 80 Plus Efficiency | Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0–40°C |
| Power Good Signal | 100–150 ms |
| Hold Up Time | ≥11ms @ 100% Load |
| MTBF | >100,000 Hours @ 25℃ Ambient |
| Protections | UVP / OVP / OPP / OTP / SCP |
| Regulatory | cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0 |
| ATX 24 Pin Connectors | x1 = 1 (550mm) |
| EPS 4+4 Pin / EPS 8 Pin Connectors | x2 = 1 (600+120mm) |
| SATA & Peripheral 4 Pin Connectors | X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm] |
| PCI-e 6+2 Pin Connectors | x2 = 1 (500+120mm) |
| 12+4 Pin Connectors | x1 = 1 (650mm) |
| Warranty | 10 Years |
