- COLORFUL H610M-D M.2 V20 DDR4 Intel Motherboard
Description
Feature of Colorful H610M-D M.2 V20 DDR4

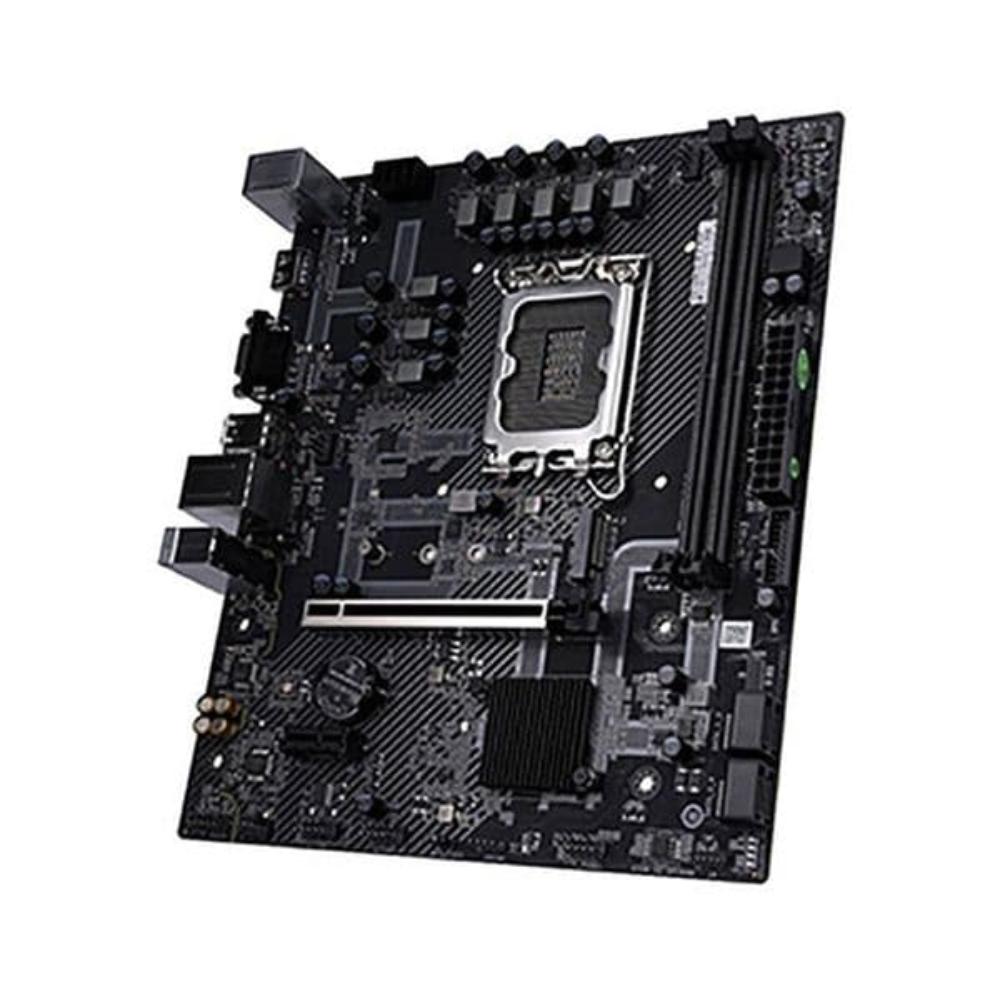

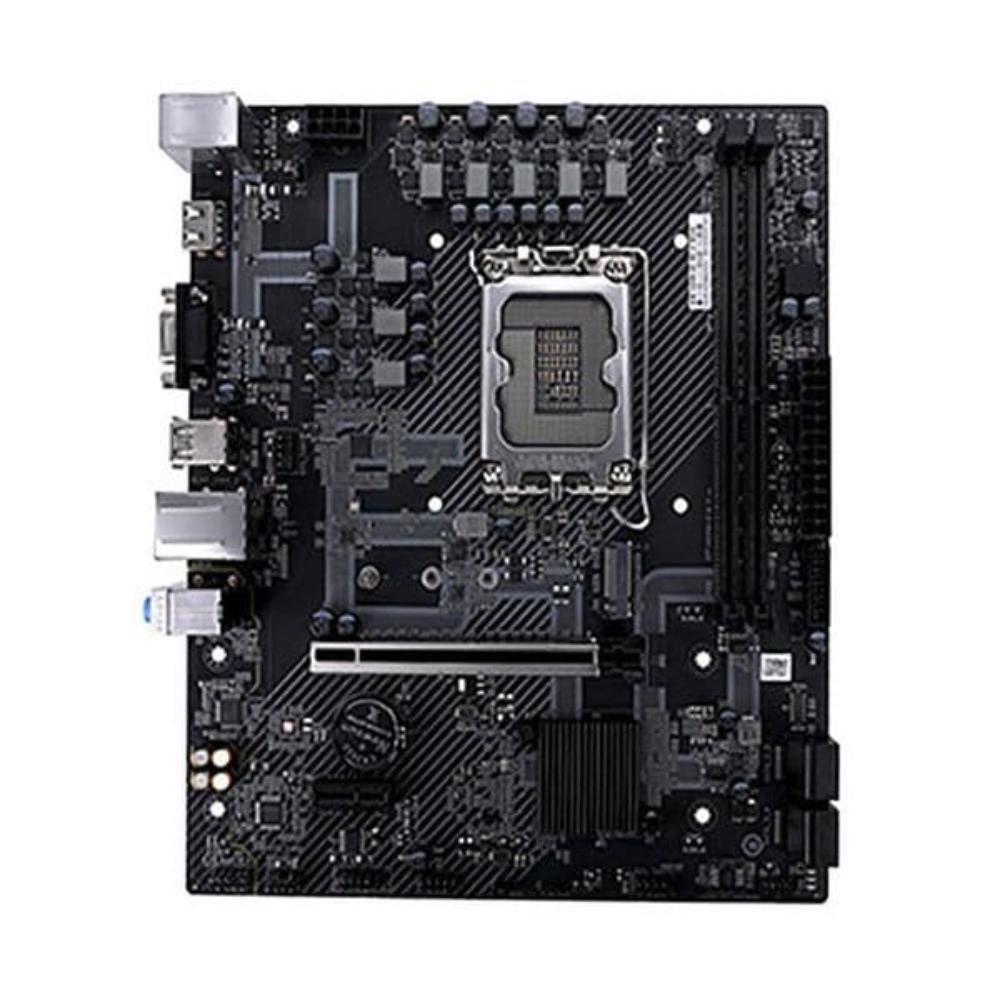

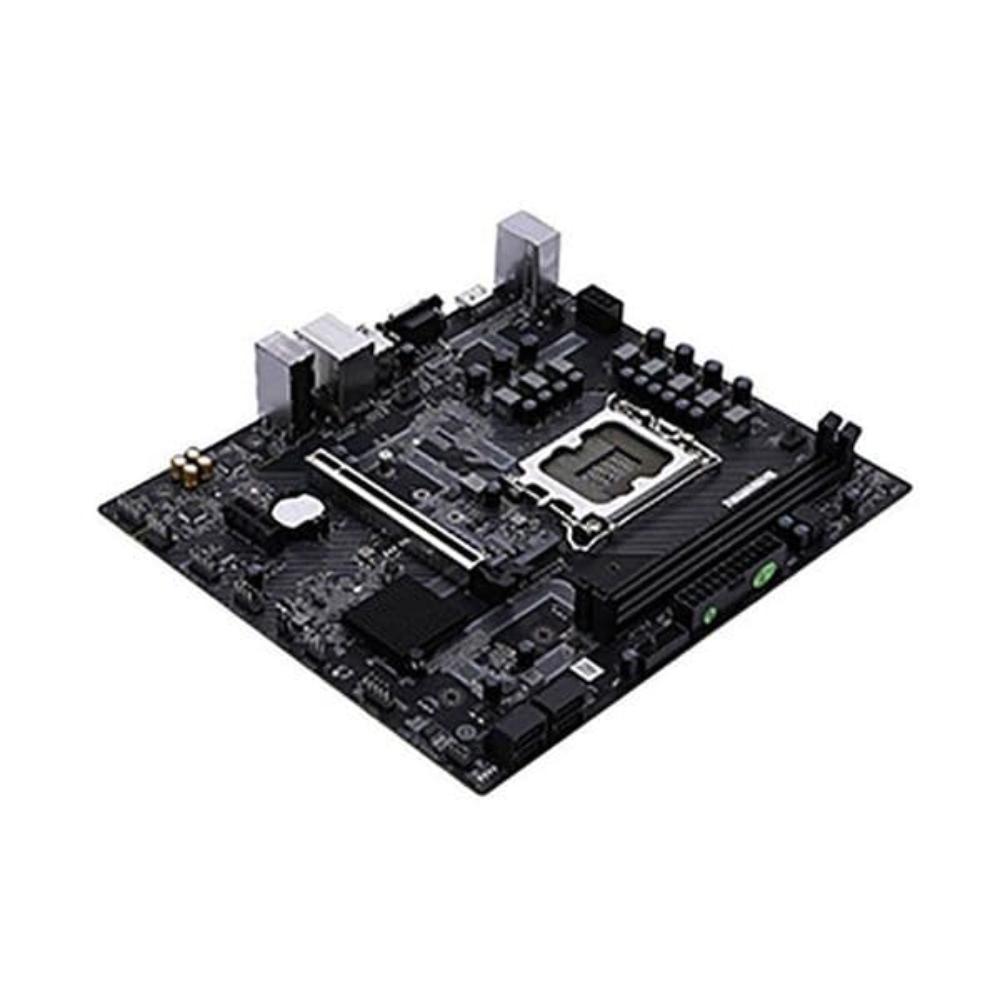

Colorful H610M-D M.2 V20 DDR4 Intel Motherboard
Motherboard Series Colorful Chipset Intel H610 Processor Supports 12th Gen Intel® Core Processors (Socket 1700) Memory 2 DIMM slots, support dual channel DDR4-3200/3000/2800/2666/2400 MHz; Graphics Support 1*PCI Express 4.0 x 16 slot SATA Ports 4*SATA 3.0 6Gb/s ports Board I/O 1*HDMI port, 1*VGA port; 4*USB 2.0 ports, 2*USB 3.2 Gen1 ports; 3*audio ports; Expansion Slots 1*PCI Express 4.0 x16 slot, 1*PCI Express 3.0X 1 slot, 1*M. 2 slot; BIOS 128M UEFI Hardware Monitor CPU Fan speed Controlled, SYSTEM Fan speed Monitoring, CPU Temperature Monitoring, System Temperature Monitoring, and Voltage monitoring LAN 1000Mbit LAN Audio 6-Channel High Definition audio Configuration 235mm x 205mm, M-ATX
Technical Detail
Brand : Colorful
Modal : H610M-D M.2 V20
Technical Spec
Motherboard Series : Colorful
Chipset : Intel H610
Processor : Supports 12th Gen Intel® Core™ Processors (Socket 1700)
Memory : 2 DIMM slots, support dual-channel DDR4-3200/3000/2800/2666/2400 MHz ;
Graphics Support : 1*PCI Express 4.0 x 16 slot
SATA Ports : 4*SATA3.0 6Gb/s ports
Board I/O : 1*HDMI port,1*VGA port; 4*USB 2.0 ports,2*USB 3.2 Gen1 ports; 3*audio ports;
Expansion Slots : 1*PCI Express 4.0×16 slot,1*PCI Express3.0X1 slot,1*M.2 slot;
BIOS : 128M UEFI
Hardware Monitor : CPU Fan speed Controlled, SYSTEM Fan Speed Monitoring, CPU Temperature Monitoring, System Temperature Monitoring, and Voltage monitoring
LAN : 1000Mbit LAN
Audio : 6-Channel High Definition audio
Configuration : 235mm x 205mm, M-ATX
Specifications of Colorful H610M-D M.2 V20 DDR4
Model | |
Brand | Colorful |
Model | H610M-D M.2 V20 |
Supported CPU | |
CPU Socket Type | LGA1700 |
CPU Type | Supports 12th Gen Intel® Core™ Processors |
Chipsets | |
Chipset | Intel H610 |
Memory | |
Number of Memory Slots | 2 x DDR4 |
Memory Standard | support dual channel DDR4-3200/2933/2666/2400MHz |
Maximum Memory Supported | 64GB |
Channel Supported | Dual Channel |
Expansion Slots | |
PCI Express x16 | 1*PCI Express4.0×16slot,1*PCIExpress3.0X1 slot,1*M.2 slot; 1*PCI Express 4.0 x 16 slot |
Storage Devices | |
SATA 3Gb/s | 4 x SATA3 6.0 Gb/s Connectors |
Onboard Video | |
Onboard Video Chipset | N/A |
Onboard Audio | |
Audio Channels | 6-Channel High Definition audio CODEC |
Onboard LAN | |
LAN Chipset | 1000M LAN, |
Rear Panel Ports | |
USB | 4*USB 2.0 ports,2*USB 3.2 Gen1 ports |
Audio Ports | 3 x audio jacks |
Video Ports | HDMI, VGA |
HDMI | 1 x HDMI |
Onboard USB | |
Onboard USB | N/A |
Onboard 1394 | |
Onboard 1394 | N/A |
Physical Spec | |
Form Factor | Micro ATX |
Power Pin | 1 x 24-pin Main Power connector |
Dimensions | 230X180mm |
