Description

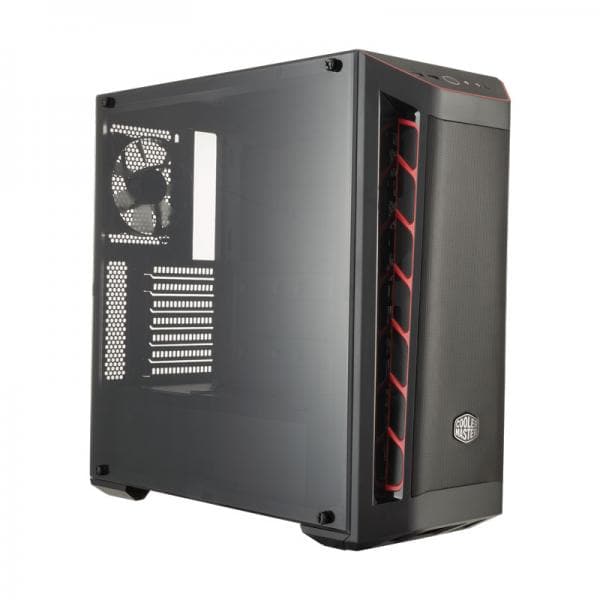

Features of COOLER MASTER MB511 Red Trim

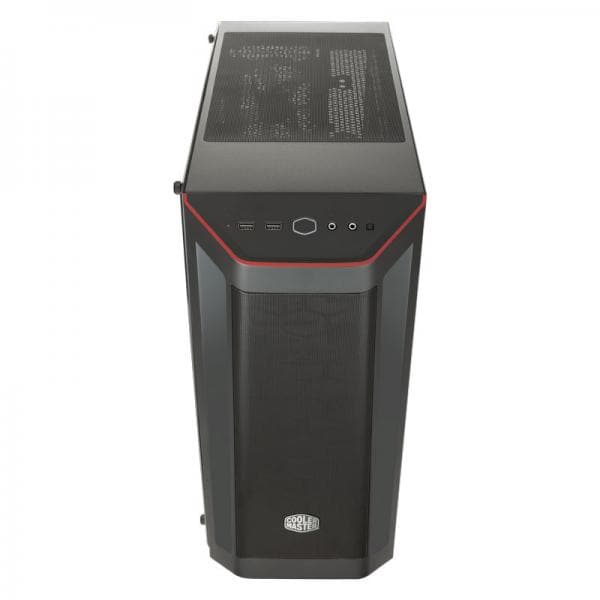

MESH FRONT PANEL
The COOLER MASTER MB511 Red Trim ATX Mid Tower computer cpu case (Black) has the fine mesh front panel filters dust while offering efficient airflow for demanding systems.
AGGRESSIVE INTAKES
This ATX Cabinet has Large intakes on each side of the front panel pay tribute to high performance cars.
EXCELLENT THERMAL PERFORMANCE
Optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case.
FAN AND RADIATOR SUPPORT
Front: Three 120mm or two 140mm* fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.
Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator.
Rear: One 120mm fan or radiator. All to ensure you don't have to compromise on performance.
EDGE-TO-EDGE TRANSPARENT SIDE PANEL
Showcase your build through the transparent side panel.
EXPANDING THE POSSIBILITIES

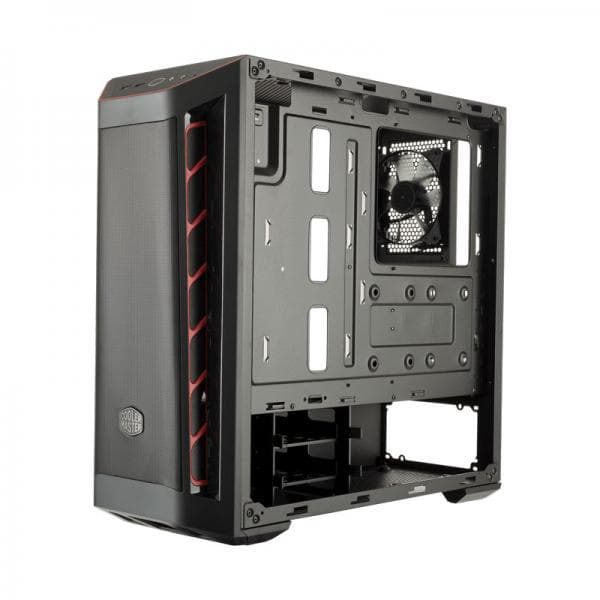

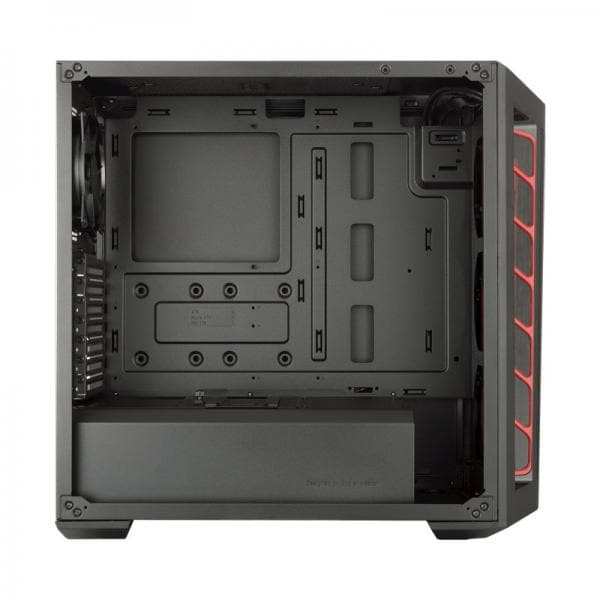

The spacious interior fits all standard motherboards for your gaming needs
MAIN COMPONENTS CLEARANCE
This cooler master cpu case supports CPU Coolers up to a height of 165mm, Graphic cards up to a length of 410mm and Power Supplies up to a length of 180mm
Specifications of COOLER MASTER MB511 Red Trim
Product Name | MasterBox MB511 |
Model number | MCB-B511D-KANN-S00 |
Available Color | Red |
Materials | Steel, Plastic |
Dimensions (L x W x H) | 496 x 217 x 469 mm |
Motherboard Support | ATX (up to 272mm width), Micro-ATX, Mini-ITX |
Expansion Slots | 7 |
5.25" Drive Bays | No |
Combo 3.5"/2.5" Drive Bays | 2 (Max. 2) |
SSD Drive Bays | 5 (Max. 6) |
I/O Panel | USB 3.0 x 2, Audio In / Out |
Pre-installed Fan(s) | Rear: 120mm x 1 |
Fan Support |
Top: 120mm x 2 / 140mm x 2
Front: 120mm x 3 / 140mm x 2 (can only mount behind the front plate) Rear: 120mm x 1 |
Liquid Cooling Support |
Front: 120 / 140 / 240 / 280 / 360mm radiator. (75mm clearance)
Top: 120 / 240mm Rear: 120mm |
Clearances |
CPU Cooler: 165mm / 6.49"
PSU: 180mm / 7.08" GFX: 410mm / 16.10" |
Cable Routing | Behind MB Tray: 19mm / 0.74" |
Dust Filters | Front, Top, Bottom |
Power Supply Support | Bottom mount, ATX |
Warranty | 2 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
