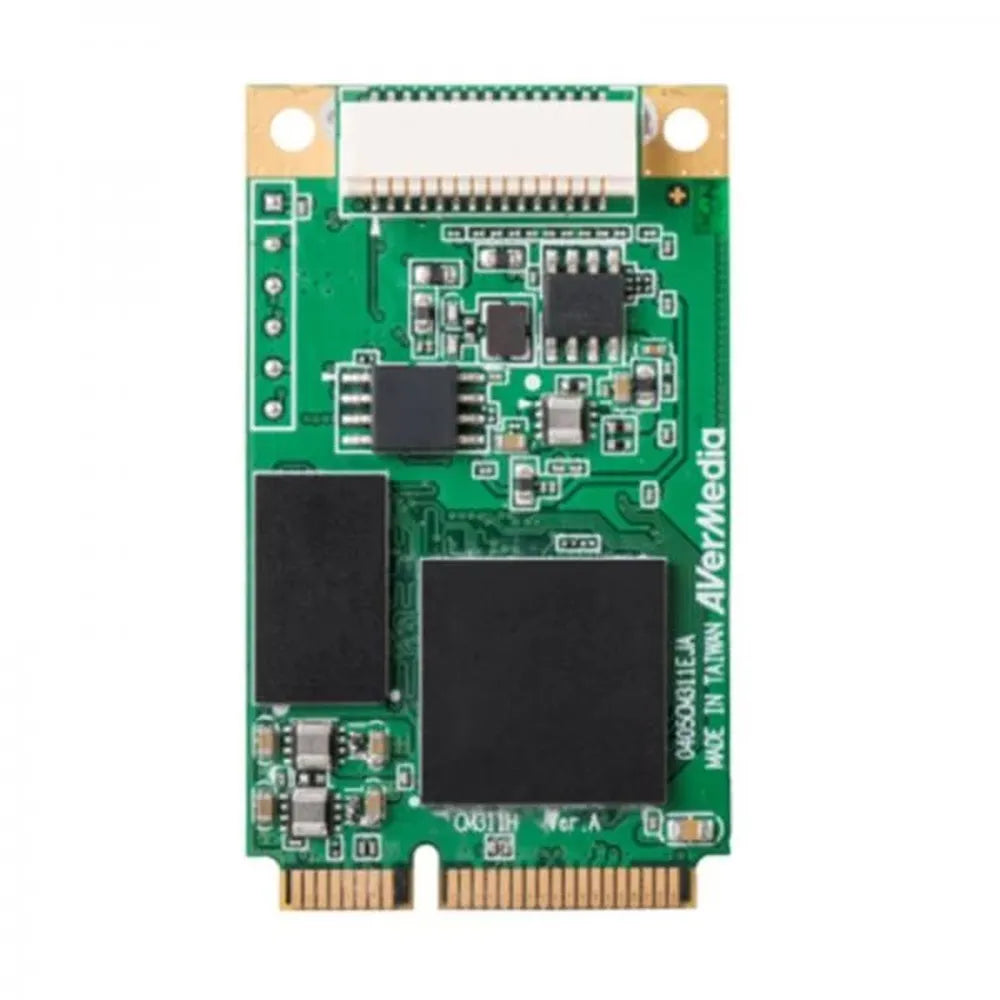

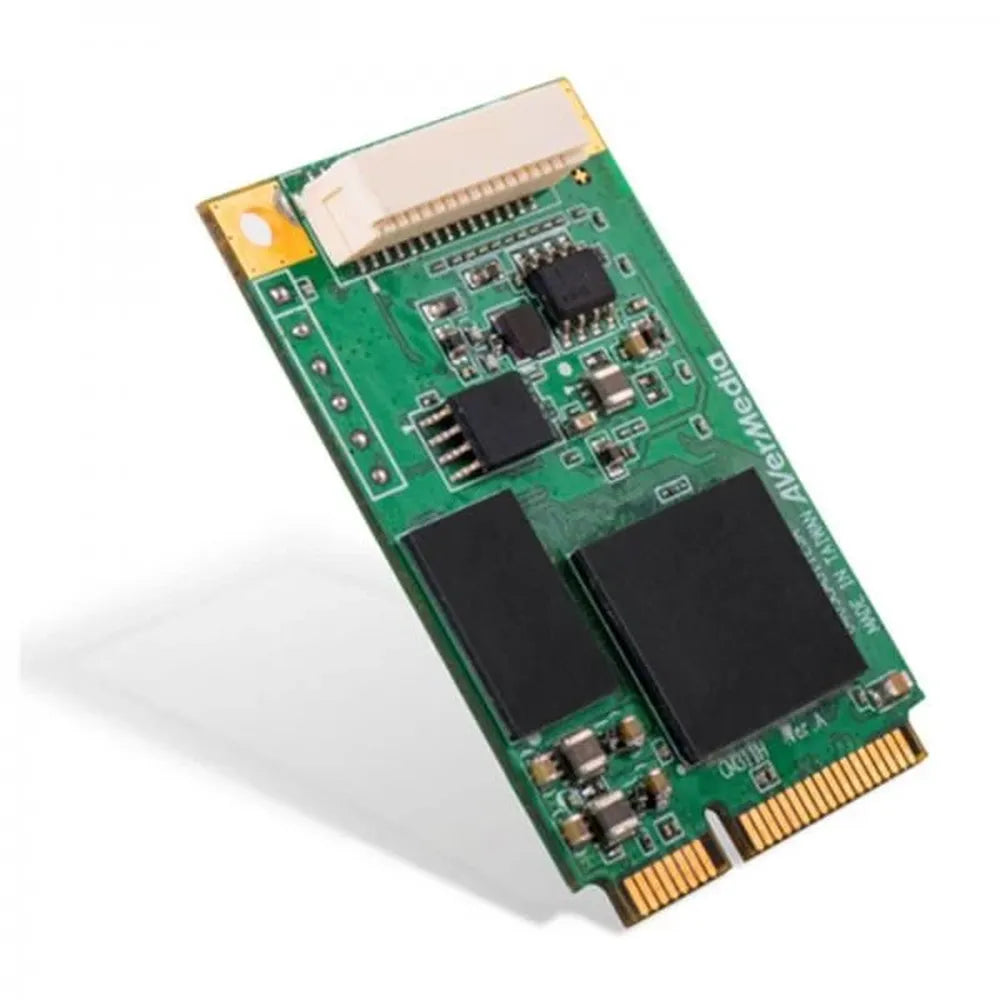

AVERMEDIA 1080p60 HDMI Mini-PCIe (CM311-H)

Feature of AVERMEDIA 1080p60 HDMI Mini-PCIe (CM311-H)

• Max capturing/ recording up to 1920 x 1080 60fps

• HDMI 1.4a input

• Mini PCI Express form factor

• Windows DirectShow compatible

• Specifically designed SDK

1080P 60 FPS HDMI Video Capture

CM311-H is a Mini-PCIe HDMI frame grabber capable of capturing videos up to 1080p@60. With AVerMedia Video Engine technology inside, it can perform various video processing tasks such as frame rate conversion, de-interlacing, scaling and so on without consuming the computing power of the target platform.

It is endowed with full functions that are required to capture Full HD video for industrial and commercial markets such as data recorders, medical imaging devices, machine vision or any industrial imaging applications. The CM311-H design is committed to shorten the development schedule and provide integrators with a complete and rugged solution towards building their own applications.

Mini PCIe Form Factor and Vibration-proof

The compact form factor design of a Mini PCIe card is perfect for small-footprint embedded systems. It is also ideal for solutions that need to be vibration-proof while the mounting holes make it suitable for in-vehicle, military and industrial applications.

Support up to 4:4:4 10-bit RGB and YUV

CM311-H can support up to 4:4:4 10 bit RGB and YUV, meaning it can capture colors across the full color spectrum for richer and brighter image quality. The 10-bit color depth support is especially useful in the medical imaging applications where images with the slightest color variation may indicate different conditions or stages of diseases. This in turn may assist doctors in accurately diagnosing patient conditions.

Specifications of AVERMEDIA 1080p60 HDMI Mini-PCIe (CM311-H)
