- ASUS WS X299 Sage DDR4 Intel Motherboard
Description

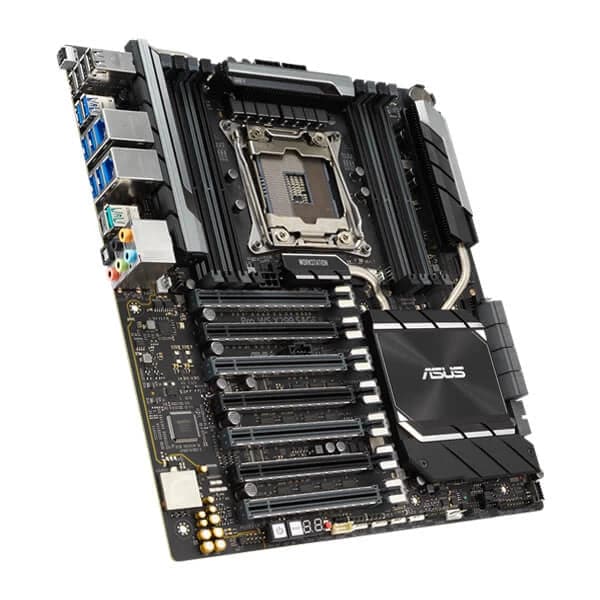

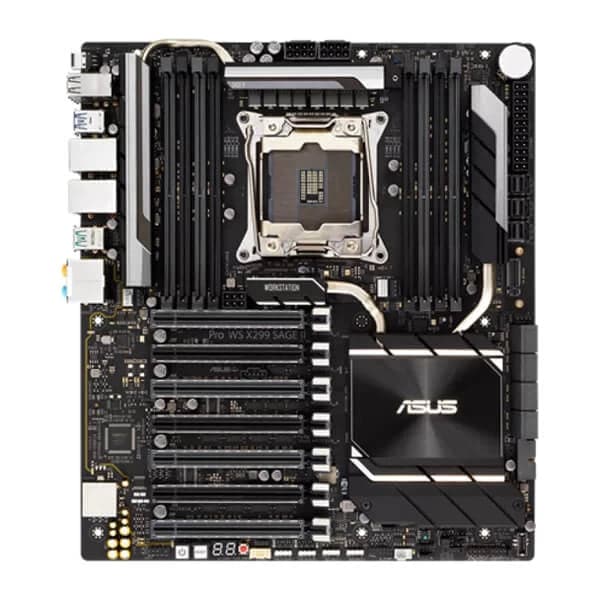

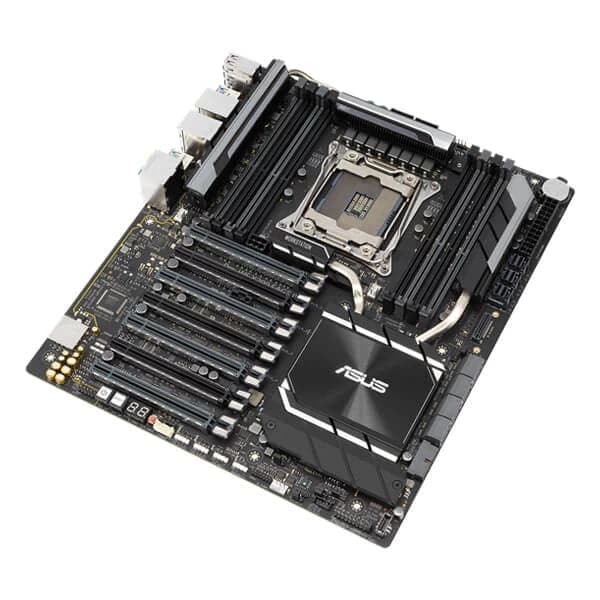

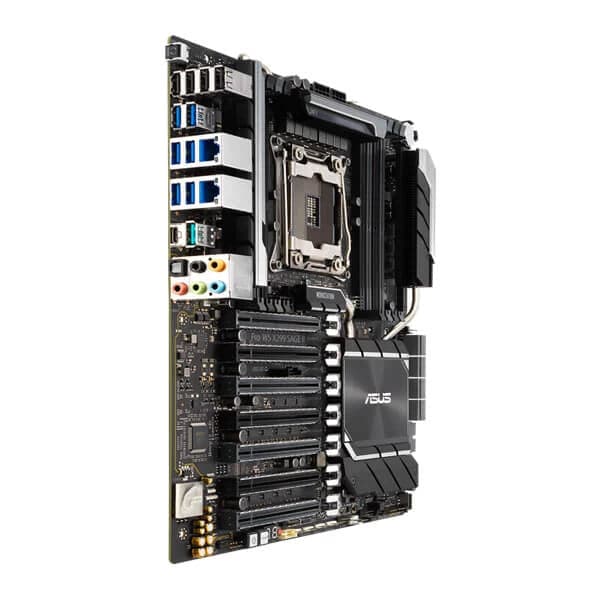

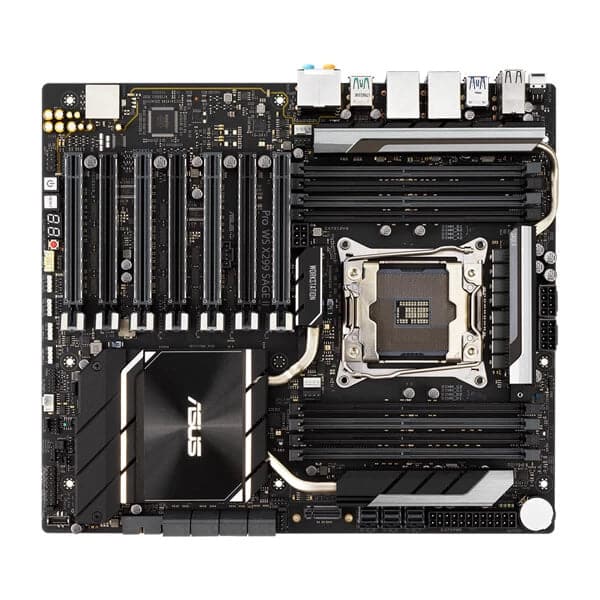

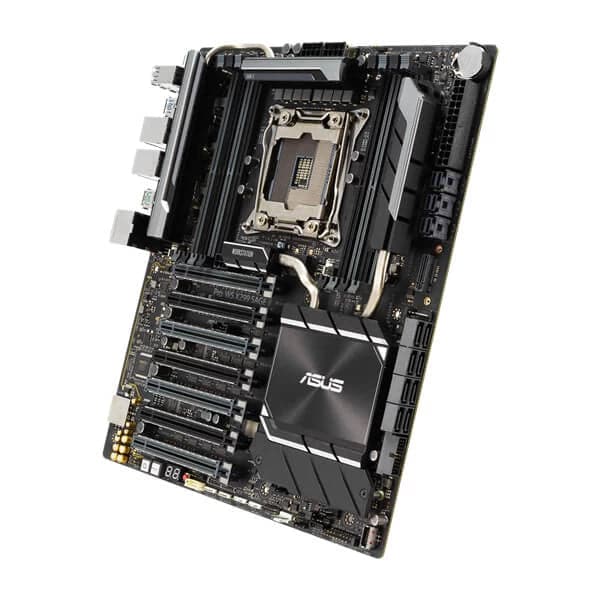

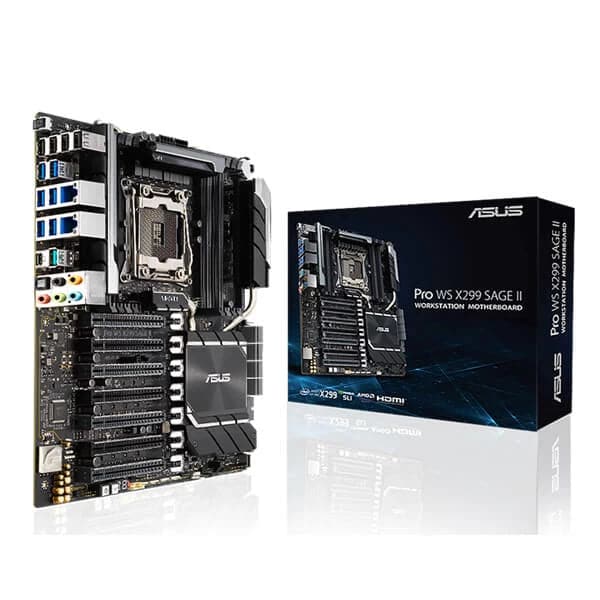

ASUS WS X299 SAGE Motherboard
Features
- Intel® Socket 2066 Core™ X-Series Processors
- Supports Intel® Virtual RAID on CPU (VROC)
- Supports Intel® Extreme Memory Profile (XMP)
- Hyper DIMM support is subject to the physical characteristics of individual CPUs.
- Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
- Only on Select SKUs, With 1 DIMM per channel. Additional DIMM loading on any channel may impact maximum memory speed by one bin.
Specifications:
| CPU | Intel® Socket 2066 Core™ X-Series Processors Supports Intel® Virtual RAID on CPU (VROC)* The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types |
| Chipset | Intel® X299 |
| Memory | Intel® Core™ X-series Processors (6-core above)8 x DIMM, Max. 128GB, DDR4 4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Intel® Core™ X-series Processors (4-core)4 x DIMM, Max. 64GB, DDR4 4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP)* Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| Multi-GPU Support | Supports NVIDIA® 4-Way SLI™ Technology Supports AMD 4-Way CrossFireX Technology |
| Expansion Slots | 7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) |
| Storage | Intel® X299 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)8 x SATA 6Gb/s port(s)2 x U.2 connector*1Support Raid 0, 1, 5, 10Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAIDSupports Intel® Smart Response TechnologyIntel® Rapid Storage Technology 15 supportIntel® Optane™ Memory Ready Intel® Virtual RAID (VROC) support for CPU RAID |
| LAN | Intel® I210-AT, 1 x Gigabit LAN Controller(s)Intel® I219-LM , 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC S1220A 7.1-Channel High Definition Audio CODEC - Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in)Audio Feature :- DTS Connect- DTS Headphone:X - Audio amplifier: Provides the highest-quality sound for headphone and speakers- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity- Unique de-pop circuit: Reduces start-up popping noise to audio outputsSeparate layer for left and right track, ensuring both sound deliver equal quality |
| USB Ports | Intel® X299 Chipset : 8 x USB 3.1 Gen 1 port(s) (6 at back panel, , 2 at mid-board)Intel® X299 Chipset : 4 x USB 2.0 port(s) (4 at back panel, )ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM)ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at mid-board) |
| Special Features | OC Design - ASUS PRO Clock II Technology5-Way Optimization by Dual Intelligent Processors 5- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core AppTPUFan Xpert4- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling controlASUS 5X Protection III :- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protectionASUS EPU :- EPU ASUS Digital Power Design :- Industry leading Digital 8 Phase CPU Power Design- Industry leading Digital 2 Phase DRAM Power DesignAURA :- Aura RGB Strip Headers- Aura Addressable Strip Header(s)ASUS Exclusive Features :- AI Suite 3- Ai Charger+- Crystal Sound 3ASUS EZ DIY :- ASUS CrashFree BIOS - ASUS EZ Flash - ASUS USB BIOS Flashback - Multi-language BIOSASUS Q-Design :- ASUS Q-Shield- ASUS Q-Code- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMM - ASUS Q-ConnectorM.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)Asus Control Center (ACC) IT management software supported |
| Operating System Support | Windows® 10 64-bit |
| Back I/O Ports | 2 x LAN (RJ45) port(s)1 x USB 3.1 Gen 2 (teal blue)Type-A1 x USB 3.1 Gen 2 (black)USB Type-CTM6 x USB 3.1 Gen 1 (blue) 4 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x Optical S/PDIF out1 x USB BIOS Flashback Button(s)1 x 8-channel Audio I/O |
| Internal I/O Ports | 1 x Aura Addressable Strip Header(s)2 x U.2 port1 x AAFP connector1 x Aura RGB Strip Header1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)1 x TPM header1 x COM port(s) connector(s)8 x SATA 6Gb/s connector(s)1 x VROC_HW_Key1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 6-pin ATX Power connector2 x 8-pin ATX 12V Power connector(s)1 x EZ XMP switch1 x 5-pin EXT_FAN(Extension Fan) connector1 x Power-on button(s)1 x Reset button(s)1 x Clear CMOS button(s)1 x Water Pump header (4-pin)1 x System panel connector1 x Thermal sensor connector1 x USB 3.1 Gen 2 front panel connector1 x CPU_OV jumper1 x MemOK! Button1 x M.2 Fan Header |
| Accessories | User's manualASUS Q-Shield1 x Vertical M.2 bracket set1 x COM port cable(s)8 x SATA 6Gb/s cable(s)1 x M.2 screws1 x Supporting DVD1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)1 x 3-Way SLI bridge(s)1 x 4-Way SLI bridge(s)1 x SLI HB BRIDGE(2-WAY-M)1 x Q-Connector |
| Form Factor | CEB Form Factor 12 inch x 10.5 inch ( 30.5 cm x 26.7 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
