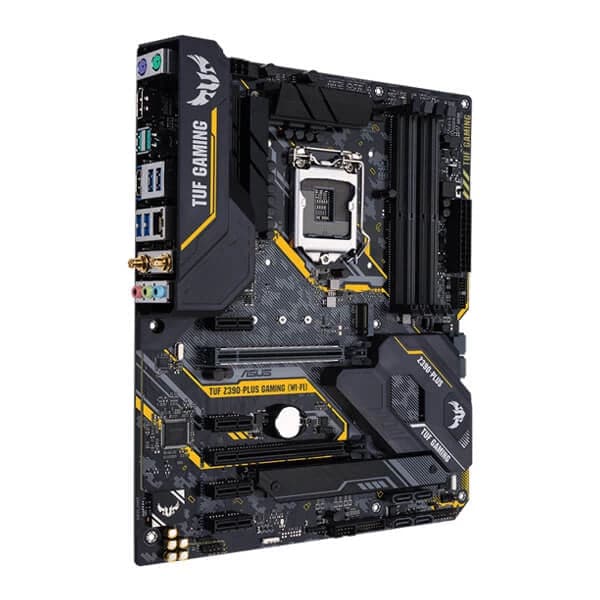

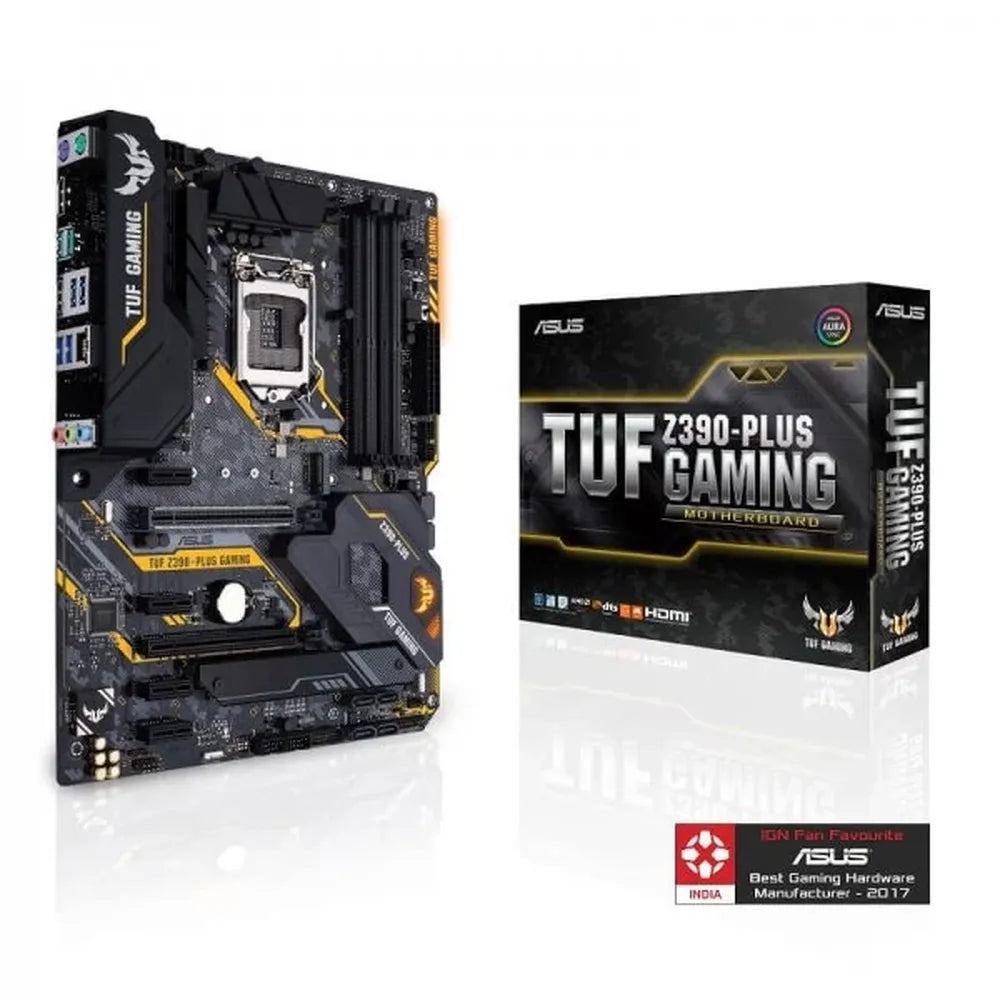

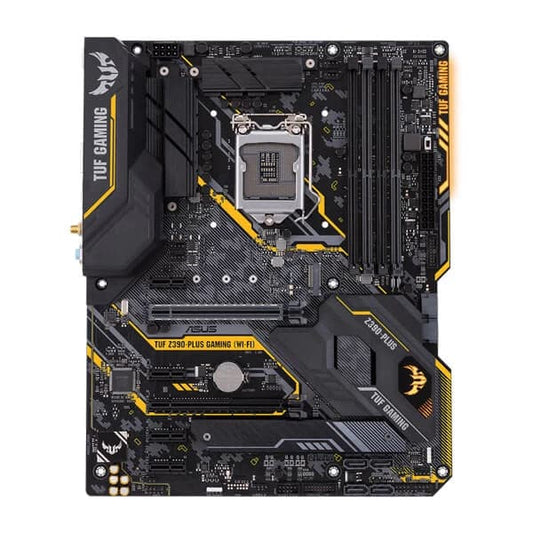

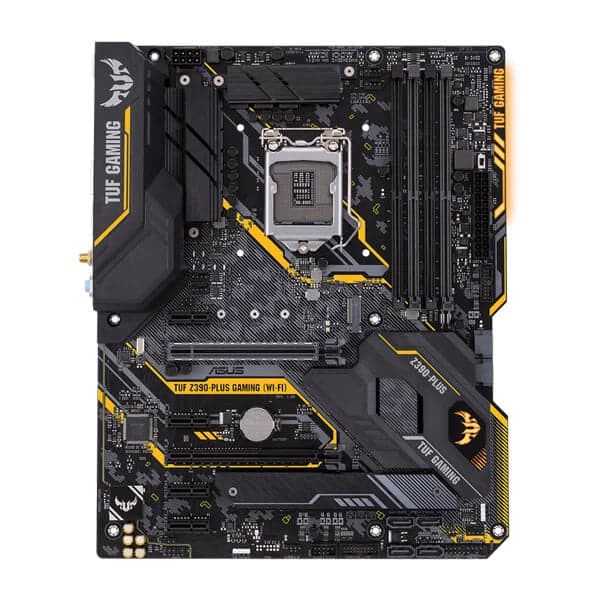

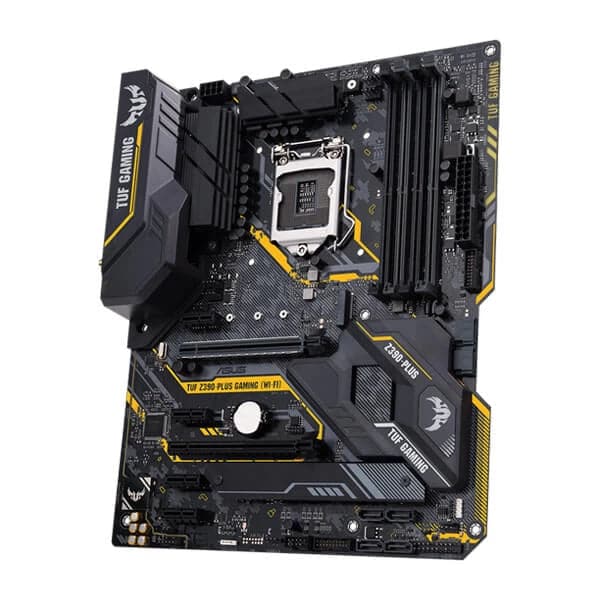

- ASUS TUF Z390-Plus Wifi Gaming DDR4 Intel Motherboard
Description
Feature of ASUS TUF Z390-Plus WiFi Gaming DDR4
Intel Z390 ATX gaming motherboard with OptiMem II, Aura Sync RGB LED lighting, DDR4 4266+ MHz support, 32Gbps M.2, Intel Optane memory ready,
and native USB 3.1 Gen 2.
- TUF Protection: SafeSlot, ESD guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
- Military-grade TUF Components: TUF LANGuard, TUF chokes, TUF capacitors, and TUF MOSFETs for maximum durability
- OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- MemOK! II: Automatically fixes boot failures that arise due to memory overclocking and instability
- Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
- Intel Wi-Fi: The latest 802.11ac Wireless-AC 9560 integrated adapter, with 2x2 MU-MIMO and wide 160MHz channels for up to 1.73Gbps transfers
- GPU Temperature Sensing & Fan Xpert 4: Ensures every fan achieves the best balance of cooling performance and acoustics
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear
Arm Your Battlestation
ASUS TUF Z390-Plus Wifi Gaming DDR4 motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
Easy PC DIY
TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
TUF gaming alliance
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
SETUP AND CONFIGURATION
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. With simplified CPU and memory overclocking to optimize and boost performance, intelligent cooling controls for better system stability, and helpful troubleshooting tools to get you up and running quickly if you encounter problems, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
GAMING PERFORMANCE AND ASTHETIC CUSTOMIZATION
TUF Gaming Z390 provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, immersive audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create the perfect gaming atmosphere.
INTEL Z390 CHIPSET
The Intel® Z390 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
READY FOR SOCKET 1151 FOR 9TH / 8TH GEN INTEL® CORE™, PENTIUM® GOLD AND CELERON® PROCESSORS
This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
Specifications of ASUS TUF Z390-Plus WiFi Gaming DDR4
| CPU |
Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 3.0 * The Intel® Turbo Boost Technology 3.0 Support Depends on the CPU types. |
| Chipset | Intel® Z390 |
| Memory |
4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/ 3866(O.C.)/3733(O.C.)/3600(O.C.)/ 3466(O.C.)/3400(O.C.)/3333(O.C.) /3300(O.C.)/3200(O.C.)/3000(O.C.)/ 2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * The maximum memory frequency supported varies by processor. |
| Graphic |
Integrated Graphics Processor- Intel® UHD Graphics support Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays |
| Multi-GPU Support | Supports AMD CrossFireX™ Technology |
| Expansion Slots |
1 x PCIe 3.0/2.0 x16 (x16 or x8 x4 x4) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1 4 x PCIe 3.0/2.0 x1 *1 *For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings. |
| Storage |
Intel® Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 6 x SATA 6Gb/s port(s), gray, *3 Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card*4 |
| LAN |
Intel® I219V, featuring Turbo LAN TUF LANGuard Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) |
| Audio |
Realtek® ALC S1200A 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports |
Intel® Z390 Chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 4 at mid-board) Intel® Z390 Chipset : 4 x USB 2.0/1.1 port(s) (4 at mid-board) |
| Special Features |
Fan Xpert4 - Advanced fan and liquid controls for ultimate cooling and quietness ASUS TUF PROTECTION - ASUS DIGI VRM: 8 1 Phase digital power design - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! ASUS Optimem II： - Optimem (Improved DDR4 stability) ASUS EPU : - EPU TUF ENGINE! Power Design : - TUF Components (Choke, Cap. & MOSFET; certified by military-standard) AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Turbo LAN - PC Cleaner - File Transfer - ASUS C.P.R.(CPU Parameter Recall) ASUS Quiet Thermal Solution : - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) MemOK! II - Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time) Q-Installer - Auto download driver and software. Friendly for first PC builder. |

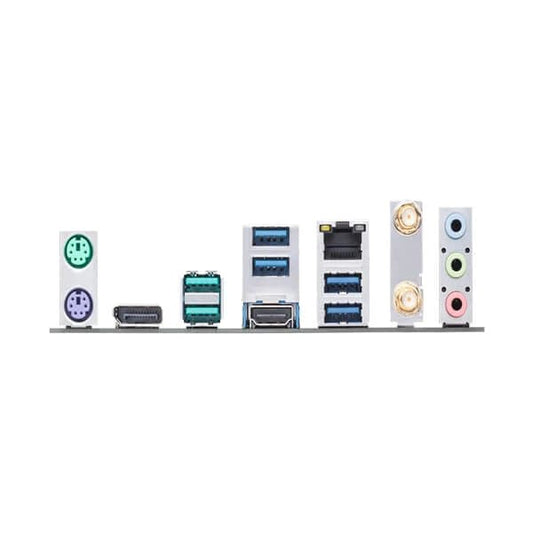

| Back I/O Ports |
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A, 4 x USB 3.1 Gen 1 Type-A 3 x 8-channel Audio I/O |
| Internal I/O Ports |
2 x Aura RGB Strip Header(s) 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 1-port connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x CPU OPT Fan connector(s) (4 -pin) 2 x Chassis Fan connector(s) (4 -pin) 1 x AIO_PUMP connector () 1 x S/PDIF out header(s) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector |

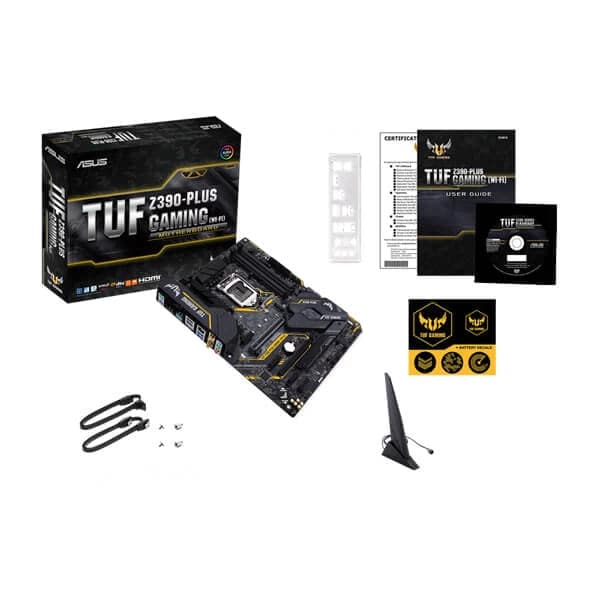

| Accessories |
User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x TUF Gaming Sticker 1 x TUF Certification card(s) 1 x SCD (by region) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Support Disc |
Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) |
| Operating System | Windows® 10 64-bit |
| Form Factor |
ATX Form Factor 30.5 cm x 24.4 cm (12.0 x 9.6 ) |
| Management Solution | WOL by PME, PXE |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
