ASUS TUF Gaming X570 Plus Motherboard
Features :
The ASUS TUF GAMING X570-PLUS MOTHERBOARD comes with the AM4 socket, and is made for AMD Ryzen processors. Specifically, for the 2nd and 3rd generation AMD Ryzen processors. Being an X570 motherboard, the ASUS TUF GAMING X570-PLUS can be used to overclock the compatible AMD Ryzen processors for improved performance. Overclock requires stable power, the enhanced power solution of the motherboard does just that. The TUF Gaming X570 Plus comes with premium components such as 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, solid TUF components, and Digi VRM. These features do not only ensure stable performance but also make it very durable.
As for cooling, this motherboard comes with various features such as an Active chipset heatsink, heatsink, for M.2 and VRM, hybrid fan headers, and Fan Xpert 4. High temperatures can lead to damages to the motherboard, these features are implemented to avoid that. In terms of connectivity, the motherboard comes with Dual PCIe 4.0 M.2, superfast USB 3.2 Gen 2 ports, Realtek L8200A Gigabit Ethernet, along with features such as TUF LANGuard and TurboLAN technology. The Realtek S1200A Codec is used for producing pristine audio quality. RGB and ARGB pins are also present which can be used to customize the lighting of various devices using Asus AURA Sync.
AMD AM4 X570 ATX gaming motherboard with PCIe 4.0, dual M.2, 14 Dr. MOS power stages, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting
- AMD AM4 Socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors

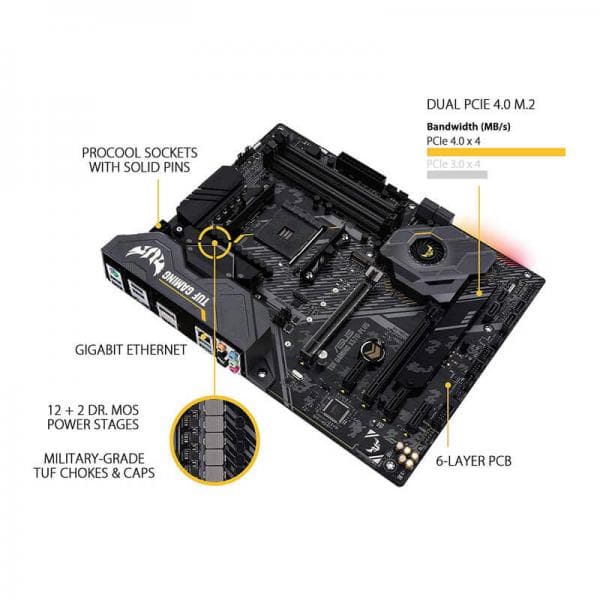

- Enhanced Power Solution: 12 2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi VRM for maximum durability

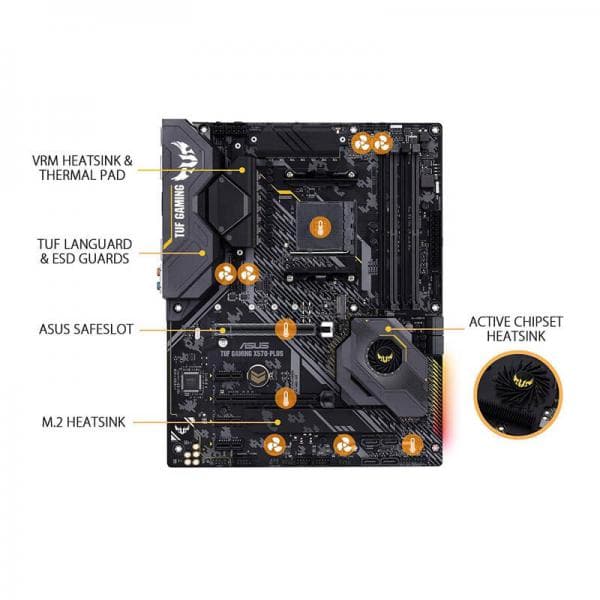

- Comprehensive Cooling: Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4

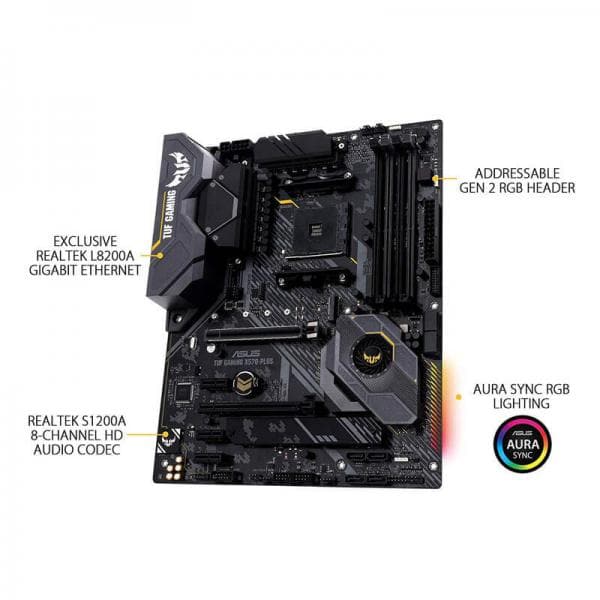

- Next-Gen Connectivity: Dual PCIe 4.0 M.2, USB 3.2 Gen 2 ports, exclusive Realtek® L8200A Gigabit Ethernet, TUF LANGuard and TurboLAN technology
- Realtek S1200A Codec: Pristine audio quality with unprecedented 108dB signal-to-noise ratio for stereo line-out and 103dB SNR for line-in
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
- TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
DURABLE. STABLE. RELIABLE.
TUF Gaming X570-Plus distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Plus is the perfect foundation for your next high-core-count AMD battle rig.
Dr. MOS
TUF Gaming X570-Plus' CPU VRM utilizes 12 2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.
EASY PC DIY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. From the TUF Gaming Alliance ecosystem that makes compatibility and part-picking easy to a one-stop software portal for all your configurations, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
TUF gaming alliance
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
Immersive Gaming
TUF Gaming X570-Plus provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
EXCLUSIVE GIGABIT ETHERNET
Experience ultra-fast gaming with the ASUS-exclusive Realtek®L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers.
TURBO FAN
NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION
Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X — with no expert knowledge. It even includes Game mode to prioritize game-related data transmissions, smoothing network operations every time you play!
Specifications :
| CPU |
AMD AM4 Socket 2nd and
1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/AMD Ryzen™ 2nd Generation /3rd Gen AMD Ryzen™ Processors |
| Chipset | AMD X570 |
| Memory |
3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/ 2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory /3000(O.C.)/2933(O.C.)/2800(O.C.) /2666/2400 /2133 MHz Un-buffered Memory with Radeon™ Vega Graphics Processors (O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/ 2666/2400/2133 MHz Un-buffered Memory |
| Graphic |
Integrated Graphics in the 2nd and
1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors HDMI/DisplayPort ports resolution 4096 x 2160 @ 24 Hz resolution 4096 x 2160 @ 60 Hz |
| Multi-GPU Support |
3rd and 2nd Gen AMD Ryzen™ Processors AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors Supports AMD CrossFireX™ Technology |
| Expansion Slots |
3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen™ Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1 |
| Storage |
3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support |
| LAN |
Realtek® L8200A ASUS Turbo LAN Utility TUF LANGuard |
| Audio |
Realtek® ALC S1200A 8-Channel High Definition Audio CODEC Audio Feature : Exclusive DTS Custom for GAMING Headsets. Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity the integrity of audio signals to ensure best quality. |
| USB Ports |
3rd and 2nd Gen AMD Ryzen™/2nd
and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 2 x Type-A 1 x USB Type-CTM) |
| Special Features |
ASUS TUF PROTECTION ASUS SafeSlot: Protect your graphics card Investment ASUS ESD Guard: Enhanced ESD protection ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! Precision control for stable power Protects against LAN surges, lightning strikes and static-electricity discharges! with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink VGA, Boot Device LED) |

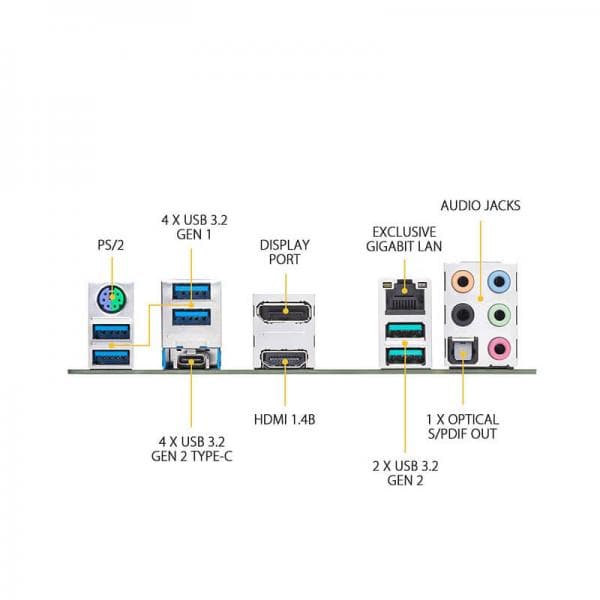

| Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A USB Type-CTM) |
| Internal I/O Ports |
2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) connector support additional 2 USB ports |
| BIOS |
256Mb Flash ROM, UEFI AMI BIOS,
PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor |
ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm) |
| Warranty | 3 Years |
| Note |
Features, Price and Specifications
are subject to change without notice. |
