- ASUS TUF Gaming RTX 4070 Ti Super 16GB OG NVIDIA Graphic Card
Description
Features of ASUS TUF Gaming RTX 4070 Ti Super 16GB OG NVIDIA Graphic Card
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
- 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Axial-tech fan design has been tuned with a reversed central fan direction for less turbulence
- Dual ball fan bearings last up to twice as long as conventional designs
- Military-grade capacitors rated for 20K hours at 105°C make the GPU power rail more durable
- Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

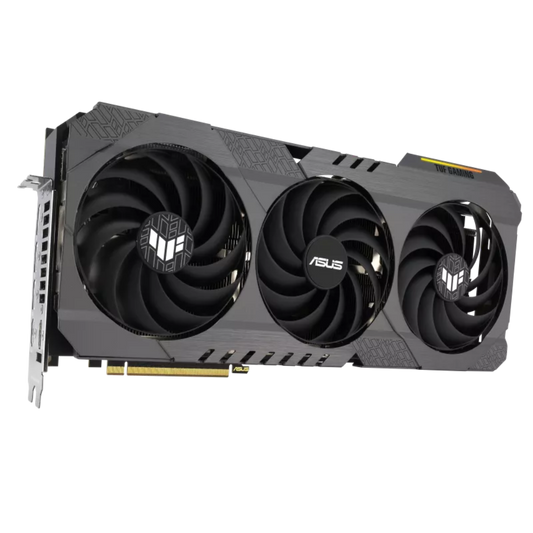

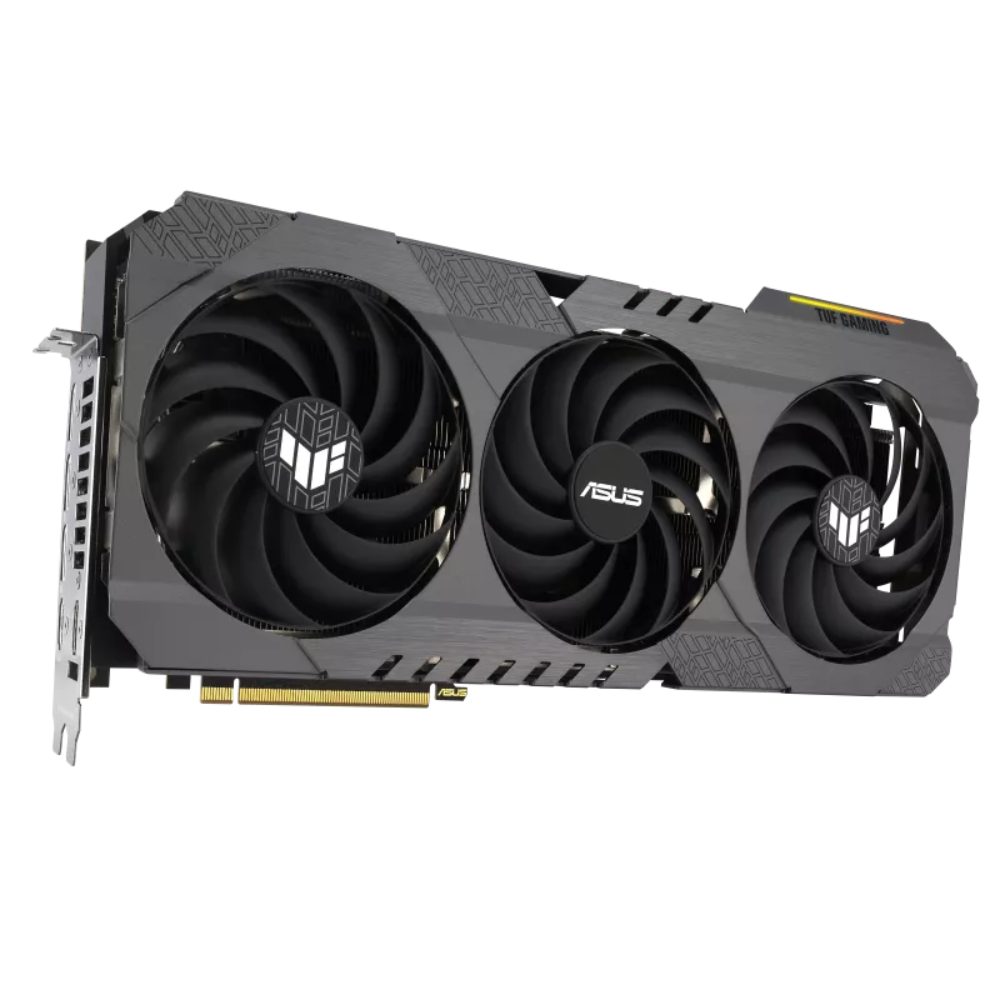

Axial-tech Upgrades
Air Superiority
TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA's new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.
New Direction
Well-maintained Formation
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.
3.2-SLOT DESIGN
Phase That Blaze
A generously sized heatsink efficiently soak up heat from the GeForce RTX 4070 TI SUPER GPU so that it can be whisked away by the three Axial-tech fans.
Military-grade 20K Capacitors
Resilient Squadron
A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.
Vented Exoskeleton
Stay Frosty

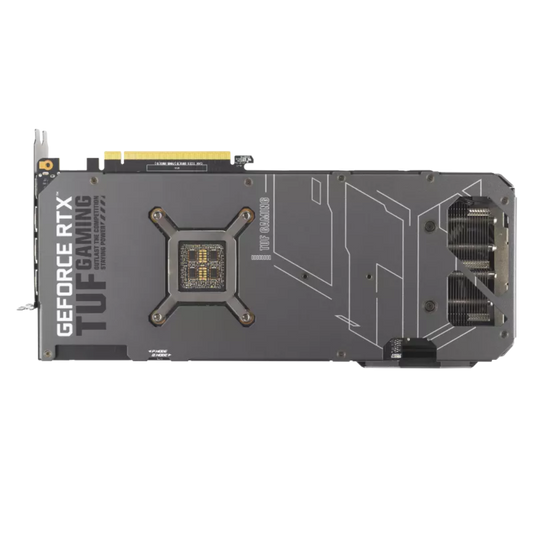

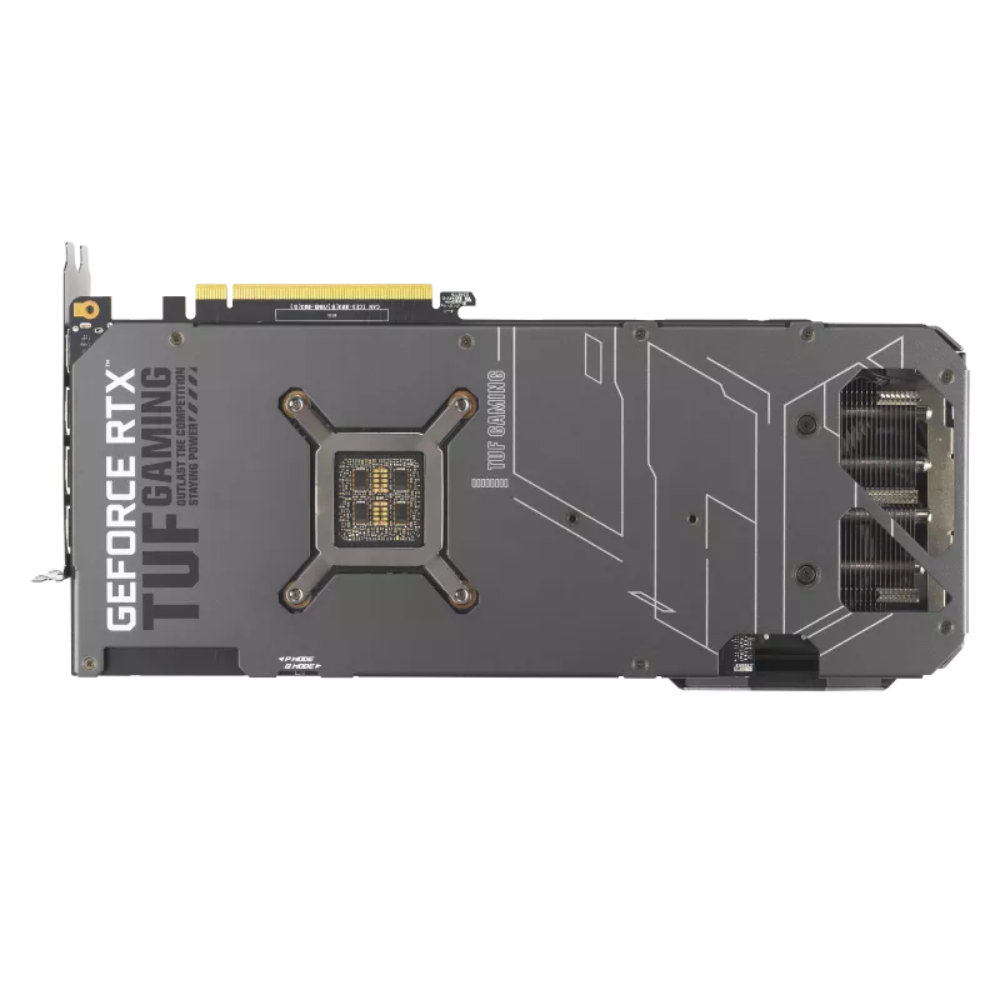

Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler.
Auto-Extreme Technology
Reliability Boost
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Specification of ASUS TUF Gaming RTX 4070 Ti Super 16GB OG NVIDIA Graphic Card
| Part No | 90YV0LA1-M0AA00 |
| Model | TUF-RTX4070TIS-16G-OG-GAMING |
| Graphic Engine | NVIDIA® GeForce RTX™ 4070 Ti SUPER |
| AI Performance | 706 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 16GB GDDR6X |
| Engine Clock | OC mode: 2640 MHz Default mode: 2610 MHz (Boost clock) |
| CUDA Core | 8448 |
| Memory Speed | 21 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface |
Yes x 2 (Native HDMI 2.1a) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support |
No |
| Accessories |
1 x Collection Card 1 x Speedsetup Manual 1 x Adapter Cable (1 to 3) 1 x TUF Velcro Hook & Loop 1 x Thank you Card 1 x TUF Gaming Certificate |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions |
325.9 x 140.2 x 62.8 mm 12.83 x 5.52 x 2.47 inches |
| Recommended PSU | 750W |
| Power Connectors | 1 x 16-pin |
| Slot | 3.2 Slot |
