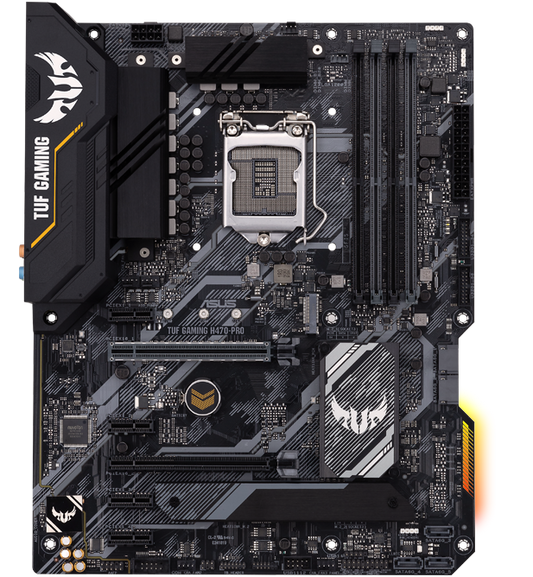

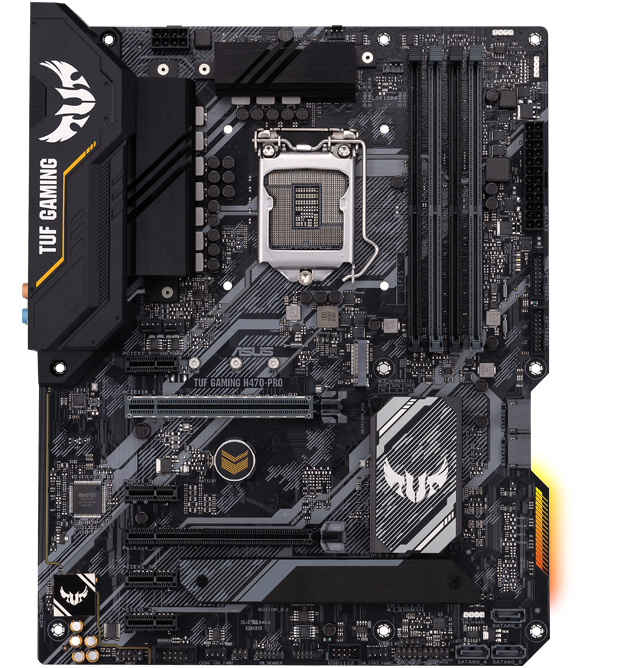

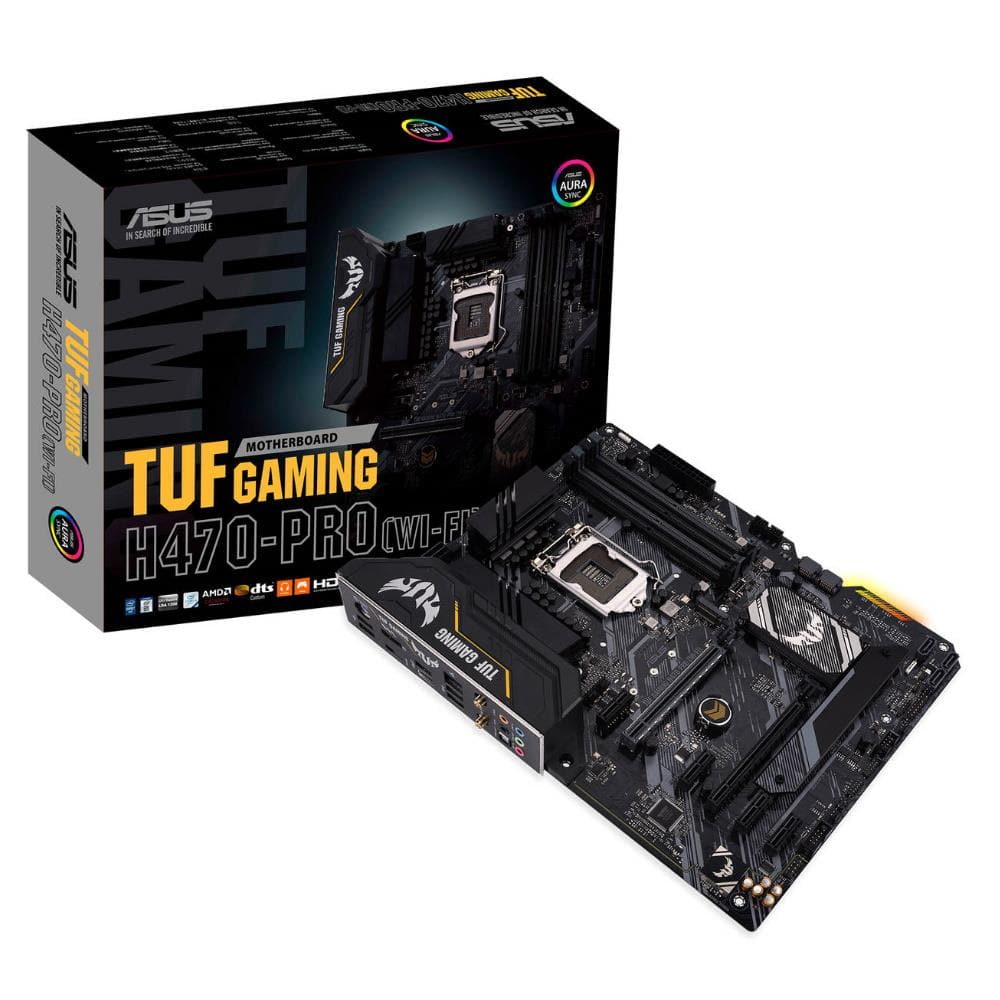

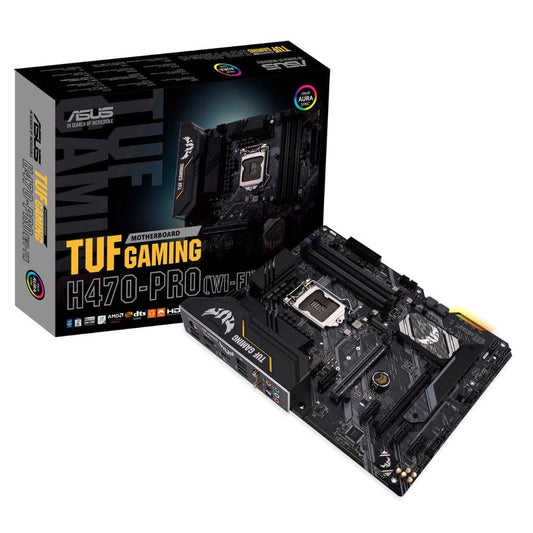

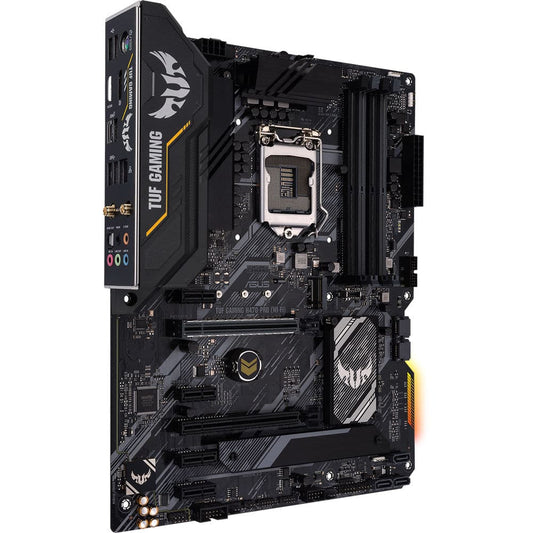

ASUS TUF Gaming H470 Pro Motherboard
Hear more footsteps with Realtek S1200A codec. 108 dB SNR for stereo line out and 103 dB SNR for line in. One of the best audio quality you can find. Now light up your PC with aura sync RGB lighting. Easily synchronize LED effects across various compatible PC components. Also comes with RGB strips.
Features:
- Build in Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Supports Intel® 14 nm CPU
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem
Specifications:
| CPU | Build in Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Build in Intel® H470 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots |
Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel® H470 Chipset 1 x PCIe 3.0 x16 (x4 mode) 4 x PCIe x1 |
| Storage |
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® H470 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 5 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready |
| LAN |
Intel® I219-V 1Gb Ethernet TUF LANGuard |
| Audio |
Realtek® ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| USB Ports |
Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s) Front USB Port ( Total 7 ) 2 x USB 3.2 Gen 1 port(s)(4 x Type-A) 1 x USB 2.0 port(s)(2 x Type-A) 1 x USB 2.0 port(s)(1 x Type-A) |
| Software Features |
ASUS Exclusive Software Armoury Crate - Aura Sync AI Suite 3: - Performance And Power Saving Utility Turbo V Evo EPU Digi+ VRM Fan Xpert 4 System information - EZ update AI Charger ASUS Turbo LAN DTS Custom for GAMING Headsets WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features |
ASUS Exclusive Software Armoury Crate - Aura Sync AI Suite 3: - Performance And Power Saving Utility EPU Digi+ VRM Fan Xpert 4 System information - EZ update AI Charger ASUS Turbo LAN DTS Custom for GAMING Headsets WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 2 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) |
| Internal I/O Ports |
1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s) 2 x M.2 Socket 3 5 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) |
| Accessories |
User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s) |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
