- ASUS TUF Gaming B650M Plus Wifi DDR5 AMD Motherboard
Description
Features of ASUS TUF Gaming B650M Plus WiFi

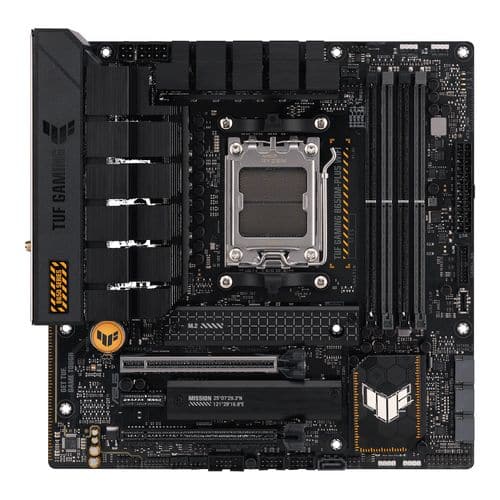

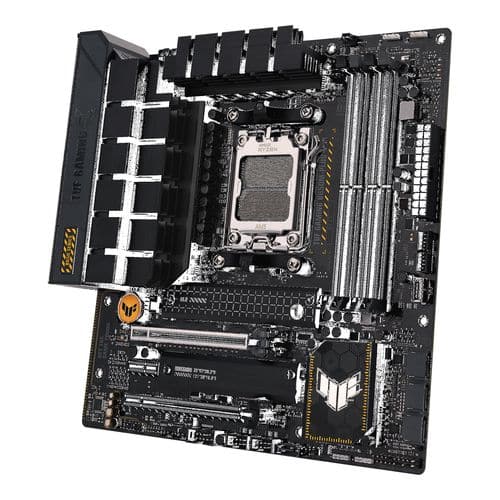

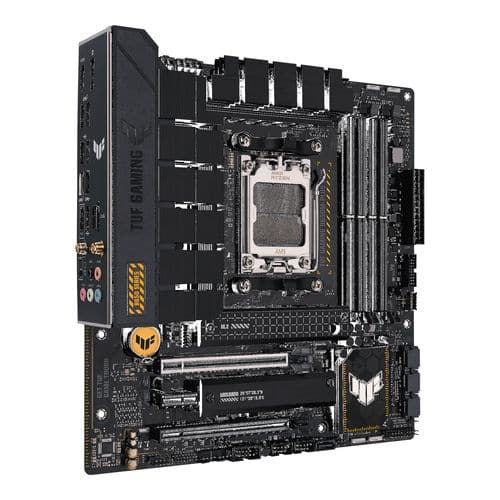

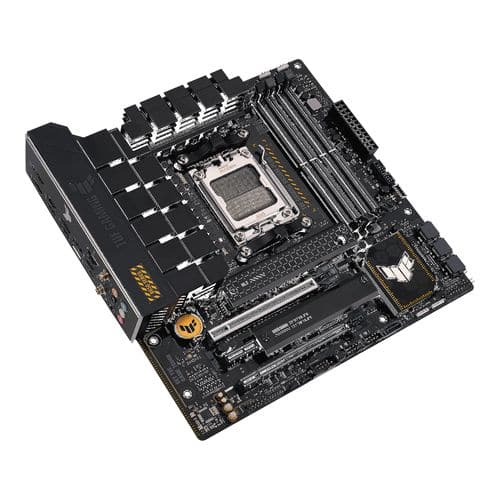

ASUS TUF GAMING B650M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.
TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
- The ASUS motherboard is designed to support latest AMD Socket AM5 for Ryzen 7000 series Processors.
- The board is PCIe 5.0 storage Ready supporting up to 128GB DDR5 6400MHz+(OC) of memory and EXPO technology to push your gaming experience to its peak. The board support PCIe 4.0 video-cards.
- Enjoy extended connectivity with the next-gen technology of WIFI6, PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 1 Type-C and Three M.2 slots.
- The motherboard comes with AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking and onboard audio. Intelligent software solutions help ensure that your system performs at its best.
DDR5 Overclocking
For those who want to fly past stock DDR5 speeds, the TUF Gaming B650 is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.
PCIe 5.0 M.2
TUF GAMING B650 motherboards also feature PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps, and all M.2 slots support for NVMe RAID configurations to take advantage of the latest available speeds.
WIFI 6
The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2 Gbps. It's optimized for more efficient operation on crowded networks with a lot of competing traffic.
2.5Gb Ethernet
2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. You can take advantage this networking upgrade to experience smoother, lag-free gaming
Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components like CPU, RAM, graphics card, storage devices are functioning normally during startup.
Realtek 7.1
The unique audio codec designed in close collaboration with Realtek for TUF GAMING B650 motherboards features an unprecedented 98 dB signal-to-noise ratio for the stereo line out.
Specifications of ASUS TUF Gaming B650M Plus WiFi
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series |
| Desktop Processors* | |
| * Refer to www.asus.com for CPU support list. | |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 |
| 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* | |
| Dual Channel Memory Architecture | |
| Supports AMD EXTended Profiles for Overclocking (EXPO™) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | |
| Graphics | 1 x DisplayPort* |
| 1 x HDMI® port** | |
| * Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| ** Supports 4K@60Hz as specified in HDMI 2.1. | |
| *** VGA resolution support depends on processors' or graphic cards' resolution. | |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors* |
| 1 x PCIe 4.0/3.0 x16 slot | |
| AMD B650 Chipset | |
| 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 4.0/3.0 x1 slot | |
| * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). | |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| AMD Ryzen™ 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| AMD B650 Chipset | |
| 4 x SATA 6Gb/s ports | |
| *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| TUF LANGuard | |
| Wireless & Bluetooth | Wi-Fi 6 |
| 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5GHz frequency band | |
| Bluetooth v5.2 | |
| USB | Rear USB (Total 8 ports) |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) | |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
| 1 x USB 3.2 Gen 1 port (1 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| - Audio Shielding | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |

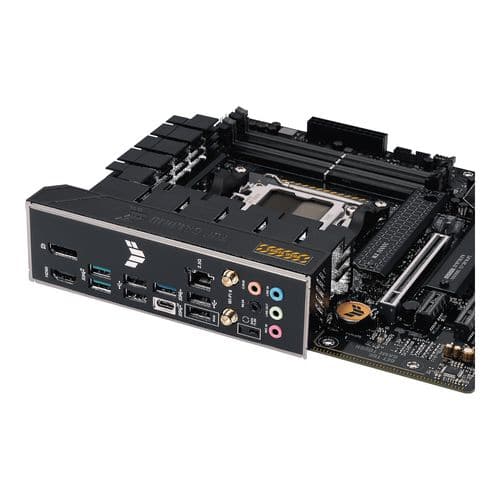

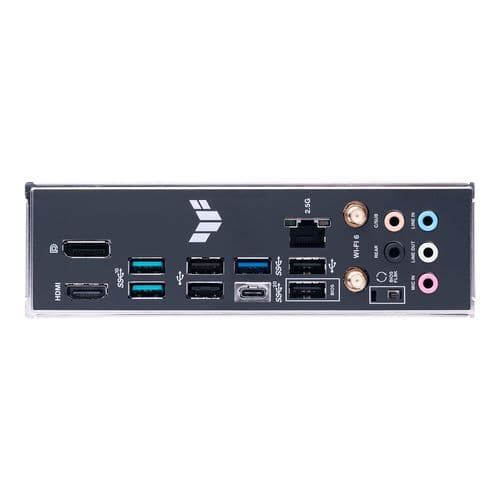

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
| 1 x USB 3.2 Gen 1 port (1 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI®port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x BIOS FlashBack™ button | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB Gen 1 connector (supports USB Type-C® ) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thunderbolt™ (USB4®) header | |
| Special Features | ASUS TUF PROTECTION |
| - DIGI+ VRM (- Digital power design with DrMOS) | |
| - Enhanced DRAM Overcurrent Protection | |
| - ESD Guards | |
| - TUF LANGuard | |
| - Overvoltage Protection | |
| - SafeSlot Core+ | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - Q-DIMM | |
| - Q-LED (CPU |
|
| - Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsink | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - BIOS FlashBack™ button | |
| - BIOS FlashBack™ LED | |
| - ProCool | |
| - Pre-mounted I/O shield | |
| - SafeDIMM | |
| Aura Sync | |
| - Aura RGB header | |
| - Addressable Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| - Aura Creator | |
| - Aura Sync | |
| - Fan Xpert 2+ | |
| - Power Saving | |
| - Two-Way AI Noise Cancellation | |
| AI Suite 3 | |
| -TurboV EVO | |
| -DIGI+ VRM | |
| -PC Cleaner | |
| TUF GAMING CPU-Z | |
| DTS Audio Processing | |
| MyAsus | |
| Norton Anti-virus software (Free Trial version) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows®11, Windows®10 64-bit |
| Form Factor | micro-ATX Form Factor |
| 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
