- Asus TUF Gaming B550M Plus Wifi II DDR4 AMD Motherboard
Description
Features of Asus TUF Gaming B550M Plus WiFi II
ASUS TUF GAMING B550M PLUS WIFI II micro ATX gaming Motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C®, BIOS FlashBack™, and Aura Sync RGB lighting support
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and DIGI+ VRM for maximum durability
- Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
- Ultrafast connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C® support
- Made for online gaming: Wi-Fi 6, Realtek 2.5Gb Ethernet, and TUF LANGuard
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Specifications of Asus TUF Gaming B550M Plus WiFi II
CPU | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
Chipset | AMD B550 Chipset |
Memory |
4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)
/4400(OC)/4333(OC)/4266(OC) /4200(OC)/4133(OC)/4000(OC) /3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC) /3200/3000/2933/2800 /2666/2400/2133, Un-buffered Memory* |
Graphics |
1 x DisplayPort** 1 x HDMI®port*** * Graphics specifications may vary between CPU types. ** Supports max. 4K@60Hz as specified in DisplayPort 1.2. *** Supports 4K@60Hz as specified in HDMI 2.1. |
Expansion Slots |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode)* AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode)* AMD B550 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)** 1 x PCIe 3.0 x1 slot** * Support PCIe bifurcation for RAID on CPU function. ** PCIEX16_2 will run x2 mode when PCIEX1 slot is used. |
Storage |
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
Ethernet |
1 x Realtek 2.5Gb Ethernet TUF LANGuard |
Wireless & Bluetooth | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2 |
USB |
Rear USB:Total 8 ports 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Rear optical S/PDIF out port Premium audio capacitors Dedicated audio PCB layers Audio cover |
Back Panel I/O Ports |

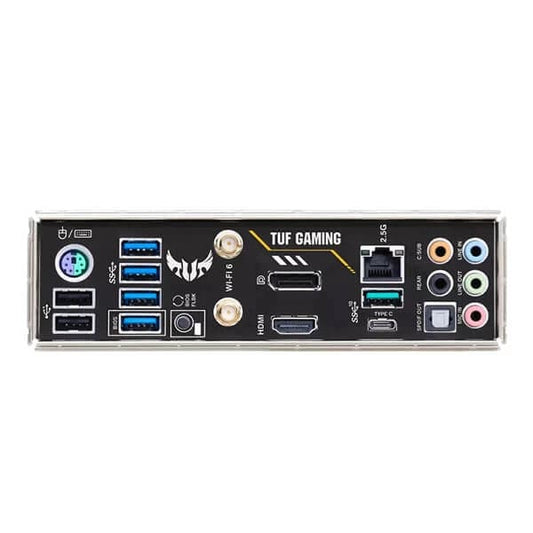

2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port |
Internal I/O Connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
Special Features |
ASUS TUF PROTECTION DIGI+ VRM (Digital power design with DrMOS) Enhanced DRAM Overcurrent Protection ESD Guards TUF LANGuard Overvoltage Protection SafeSlot Stainless-Steel Back I/O ASUS Q-Design Q-DIMM Q-LED (CPU Q-Slot ASUS Thermal Solution M.2 heatsink VRM heatsink design ASUS EZ DIY BIOS FlashBack™ button BIOS FlashBack™ LED ProCool AURA Sync AURA RGB headers Addressable Gen 2 header |
Software Features |
ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Two-Way AI Noise Cancelation AI Suite 3 Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ EZ update TUF GAMING CPU-Z AI Charger DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Accessories |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber package 1 x M.2 SSD screw package 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guide |
Operating System |
Windows® 11 ready Windows® 10 64-bit |
Form Factor |
microATX 24.4cm x 24.4cm |
Warranty | 3 Years |
Note | ***Features,Price and Specifications are subject to change without notice. |
