- ASUS TUF Gaming B550 Plus DDR4 AMD Motherboard
Description
Feature of ASUS TUF Gaming B550 Plus DDR4
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
- Enhanced power solution: 8 2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi VRM for maximum durability
- Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
- Made for online gaming: 2.5 Gb Ethernet, M.2 slot (Key E) for Wi-Fi module, TUF LANGuard, and Turbo LAN technology
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- AI noise-canceling microphone: provides crystal-clear in-game voice communication

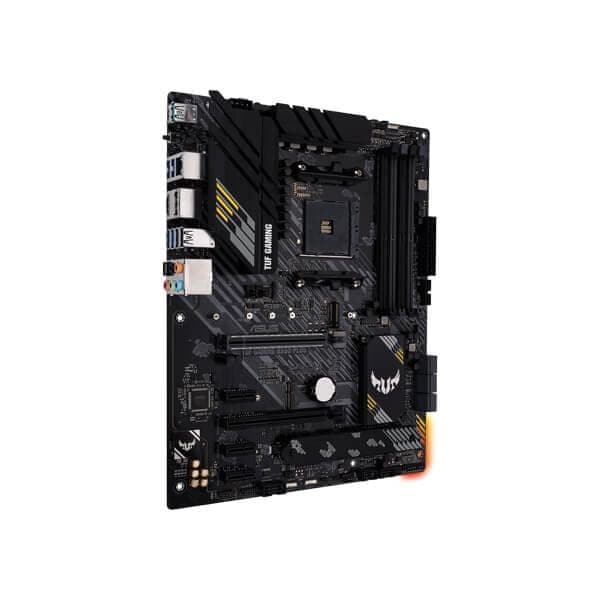

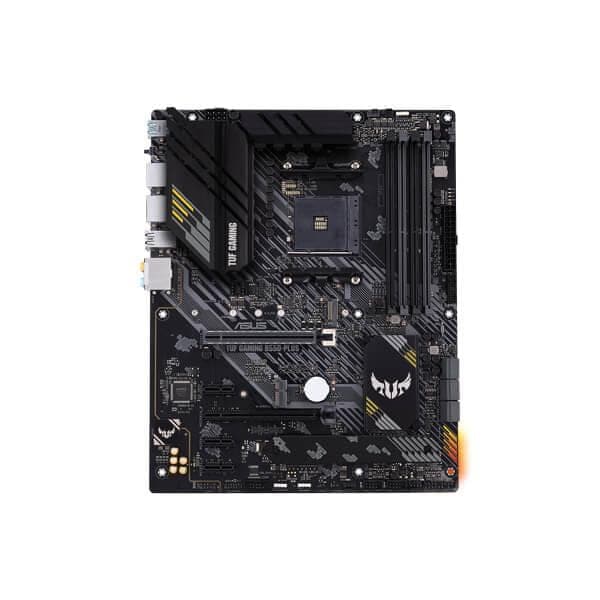

Experience high performance with the TUF Gaming B550-Plus Wi-Fi II AM4 ATX Motherboard from ASUS. Featuring the AMD B550 chipset, this ATX motherboard supports CPUs that are compatible with the AM4 socket. Four RAM slots support up to 128GB of dual-channel memory at speeds up to 4866 MHz when overclocking. Connect storage drives using six SATA III interfaces or two M.2 slots. Graphics cards can be installed using the PCIe 4.0 x16 and PCIe 3.0 x16 slots. Other adapter cards can be installed in three PCIe 3.0 x1 slots.

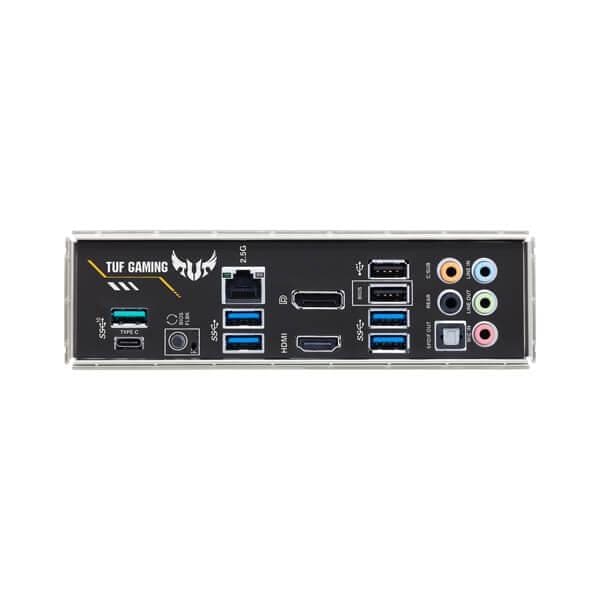

A rear I/O panel sports a USB 3.2 Gen 2 Type-A and Type-C port, as well as four USB 3.2 Gen 1 and two USB 2.0 Type-A ports. Connect to a display using either the DisplayPort or HDMI outputs, or connect audio using a S/PDIF port or five 3.5mm jacks. An RJ45 port supports 2.5 Gigabit Ethernet, and two Wi-Fi connectors enable Wi-Fi 6 connectivity. A BIOS flashback button is also present. The ASUS TUF Gaming B550-Plus Wi-Fi II AM4 ATX Motherboard supports 7.1-channel surround sound via the Realtek SC1200A audio codec and supports the Windows 10 (64-Bit) operating system.
This motherboard is designed with the AMD B550 chipset and is compatible with AMD CPUs using the AM4 socket.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550-Plus is the perfect foundation for your next high-core-count battle rig.
EASY PC DIY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
IMMERSIVE GAMING
ASUS TUF Gaming B550 Plus provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
EXCLUSIVE 2.5 GIGABIT ETHERNET
2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
Specifications of ASUS TUF Gaming B550 Plus DDR4
| CPU | Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors |
| Chipset | AMD B550 |
| Memory |
3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Next Generation AMD Ryzen PRO Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
| Graphic |
1 x DisplayPort 1.4 * 1 x HDMI 2.1(4K@60HZ) *Graphics specifications may vary between CPU types. |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots |
3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 *1 * Support PCIe bifurcation for RAID on CPU function. |
| Storage |
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN |
Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard |
| Wireless Data Network |
M.2 slot only (Key E) (Support PCIe interface)* *Wi-Fi module is sold separately. |
| Audio |
Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Unique de-pop circuit |
| USB Ports |
Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A 1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s)( x Type-A) 2 x USB 2.0 port(s)( x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
| Software Features |
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi VRM Fan Xpert 2 - EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features |
ASUS TUF PROTECTION - ASUS DIGI VRM (Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Procool AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header |
| Back I/O Ports |
1 x DisplayPort 1 x HDMI 1 x LAN (2.5G) port(s) 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A 1 x USB Type-C®) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x BIOS FlashBack™ Button(s) |
| Internal I/O Ports |
1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note |
*1 PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied. *2 M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.***Features, Price and Specifications are subject to change without notice. |
