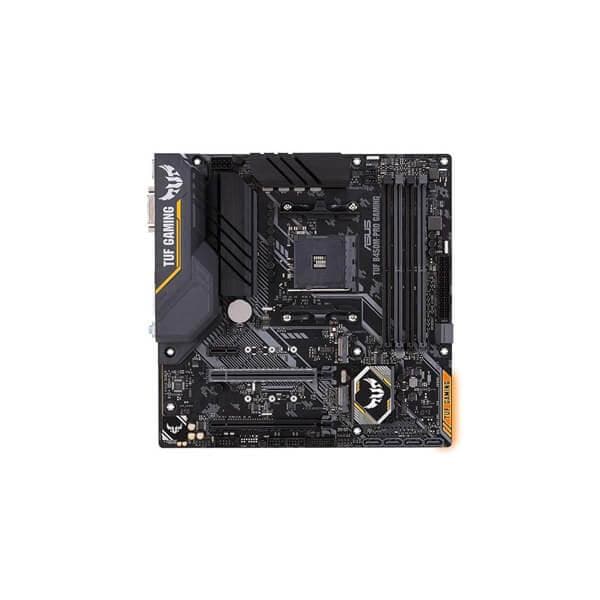

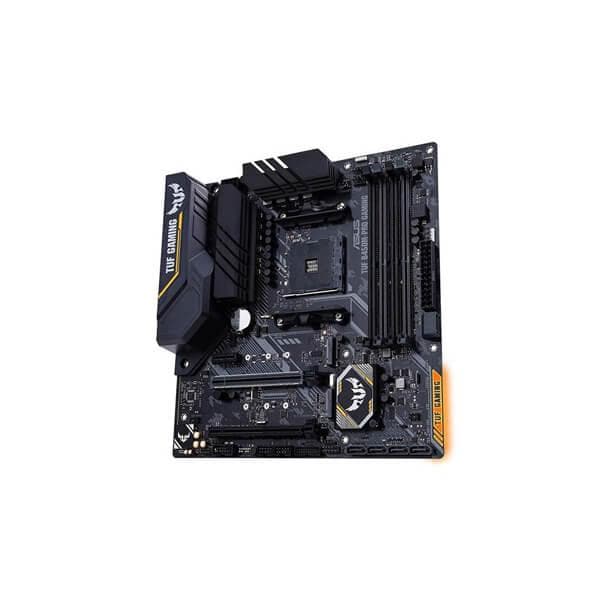

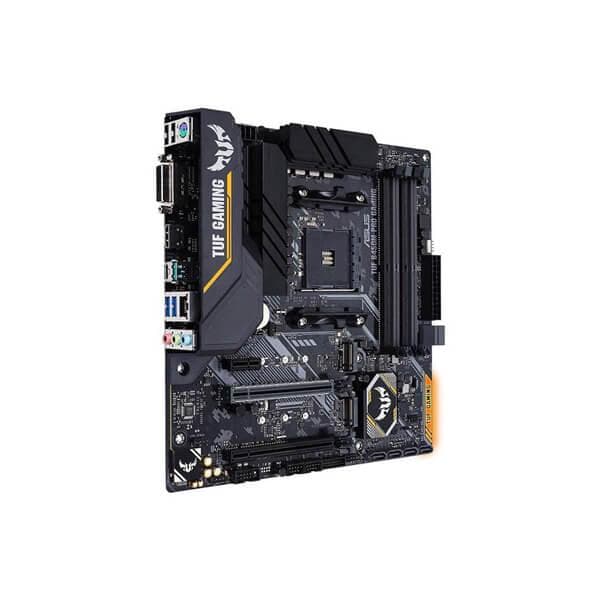

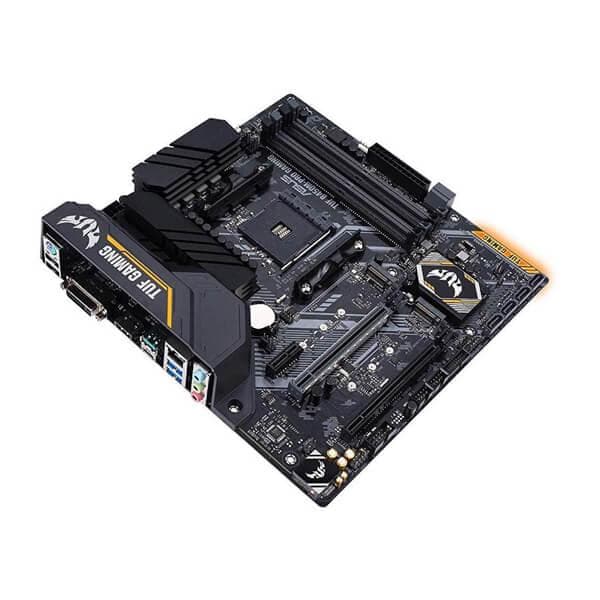

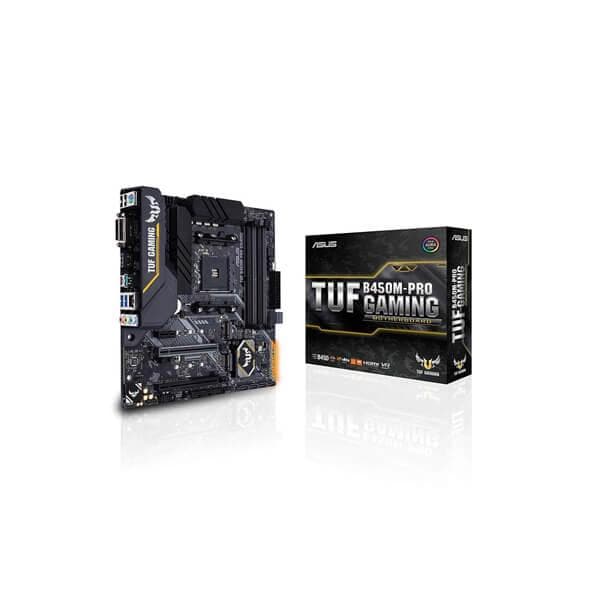

- ASUS TUF B450M Pro Gaming DDR4 AMD Motherboard
Description
Features of ASUS TUF B450M Pro Gaming DDR4
- Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
- Exclusive DTS® Custom audio: Delivers positional cues to stereo headphones, helping you to pinpoint enemies and action
- GPU Temperature Sensing & Fan Xpert 2 : Ensures every fan achieves the best balance of cooling performance and acoustics
- TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi VRM, and stainless-steel back I/O for long-term reliability
- Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear
Arm Your Battlestation
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
Easy PC DIY Experience
TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
TUF gaming alliance
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
TUF PROTECTION
SAFESLOT
Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
VRM THERMAL ENHANCEMENT
IMPROVED POWER DELIVERY, COOLING AND EFFICIENCY
TUF B450M-PRO GAMING has an enhanced VRM and heatsink to improve cooling performance. New alloy chokes provide higher power-conversion, lower power-dissipation and better temperature control for more efficient operation. Improved voltage tuning further increases performance. An optimized VRM layout and a larger VRM heatsink with bigger thermal pads that offer improved conductivity deliver increased heat dissipation, slower temperature build-up and better overall cooling efficiency.
FLEXIBLE COOLING CONTROLS
GPU TEMPERATURE SENSING
System temperatures are key to a stable gaming rig ― especially GPU temperatures. TUF Gaming motherboards include Fan Xpert 2+ software that's able to intelligently control system fans based upon the input of multiple sensors, including the temperature of ASUS graphics cards*. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play.
FAN XPERT 2+
The ASUS TUF B450M-PRO GAMING features the most comprehensive fan controls ever, configurable via FAN Xpert 2+ and our award-winning UEFI BIOS.
DDR4 SUPPORT
TUF Gaming motherboards are subjected to stringent tests to ensure they're ready for any gaming environment. That foundation is backed by extensive validation lists that include memory kits for a range of budgets. Whether you're building a gaming PC that hits the performance sweet spot or aiming for sensible specs, it's easy to pick the right kit for your TUF Gaming rig.
Gaming Audio
DTS CUSTOM FOR GAMING HEADSETS
Hone your battleskills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.
Gaming Audio - REALTEK S1200A CODEC FOR PRISTINE,POWERFUL AUDIO
ASUS TUF B450M-PRO GAMING motherboards utilize a unique audio codec designed in close collaboration with Realtek — the Realtek S1200A. It also features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality.
OUTSHINE THE COMPETITION
AURA SYNC
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
AMD StoreMI
AFFORDABLE ACCELERATION FOR ANY HARD DRIVE
AMD StoreMI technology is a software utility that accelerates any drive for better system responsiveness with reduced startup and software load times. It combines SSD performance with the affordability and capacity of an HDD by automatically moving frequently accessed data to dedicated SSD storage.
AMD CPU AND CHIPSET FEATURES
AM4 SOCKET FOR AMD RYZEN™ 2ND GENERATION / RYZEN™ WITH RADEON™ VEGA GRAPHICS / RYZEN™ 1ST GENERATION PROCESSORS
The AMD Ryzen™ processor is based on the innovative Zen core architecture and features up to eight cores and Radeon™ Vega integrated graphics. Together with dual-channel DDR4 memory, native 5Gbps USB 3.1 Gen 1 and 16 PCI Express® 3.0/2.0 lanes, these AMD AM4-socket processors deliver superb computing performance.
AMD B450 CHIPSET
The AMD B450 chipset delivers high performance and flexibility with the latest AMD® AM4-socket Ryzen™ processors. It offers AMD StoreMI storage acceleration technology and provides two 10Gbps USB 3.1 ports, two USB 3.0 ports, and four 6Gbps SATA ports for faster data retrieval.
Specifications of ASUS TUF B450M Pro Gaming DDR4
| CPU |
AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors Supports CPU up to 8 cores |
| Chipset | AMD B450 |
| Memory |
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors 4 x DIMM, Max. 64GB, DDR4 3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
| Graphic |
Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
| Expansion Slots |
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) 1 x PCIe 2.0 x1 |
| Storage |
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 AMD Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)*1 AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 2 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 AMD B450 chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*2 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| LAN | Realtek® RTL8111H TUF LANGuard |
| Audio |
Realtek® ALC S1200A 8-Channel High Definition Audio CODEC *3 Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
| USB Ports |
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A) AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM) AMD B450 chipset : 1 x USB 3.1 Gen 2 port(s) (1 at back panel, ) AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B450 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) |
| Special Features |
ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI VRM: Precision control for stable power - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 2 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |
| Operating System Support | Windows® 10 64-bit |
| Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 Type-A, 1 x USB 3.1 Gen 1 USB Type-CTM 2 x USB 3.1 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports |
2 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector |
| Accessories |
User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multilanguage BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite,Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Form Factor |
mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and specifications are subject to change without notice. |
