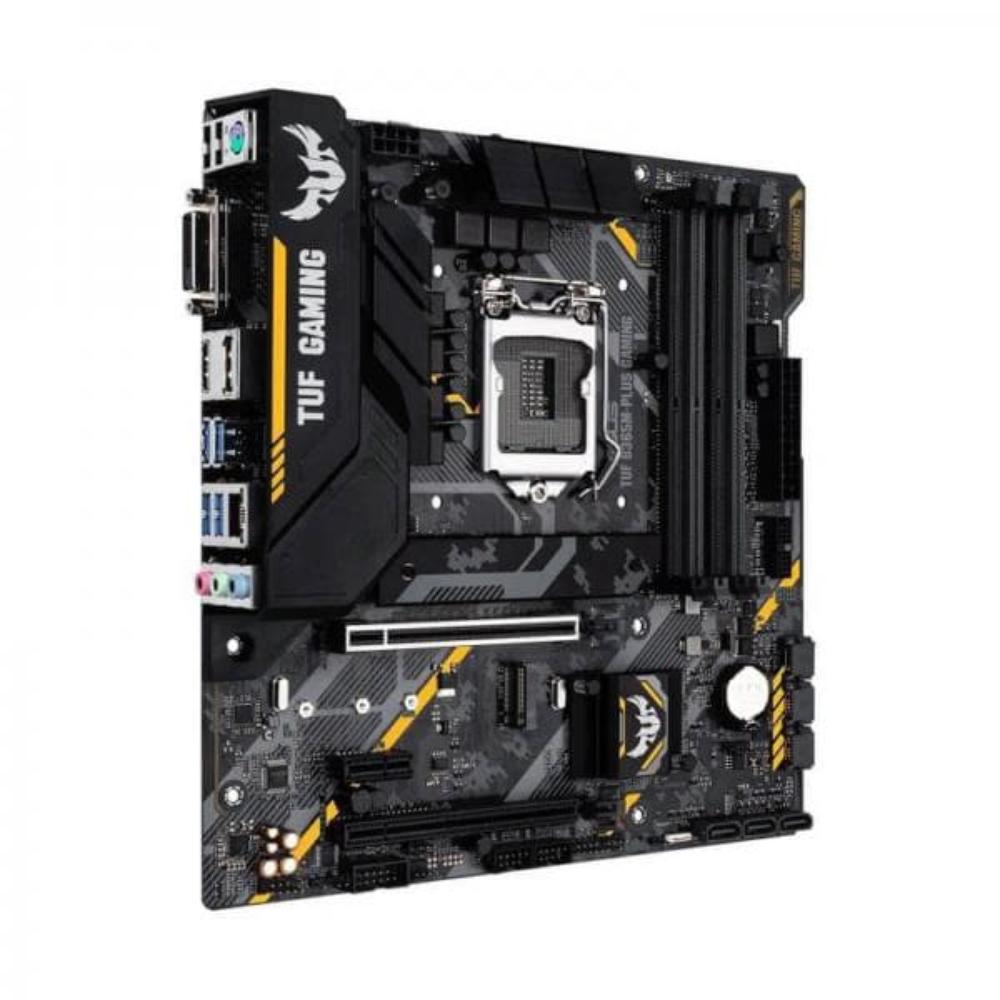

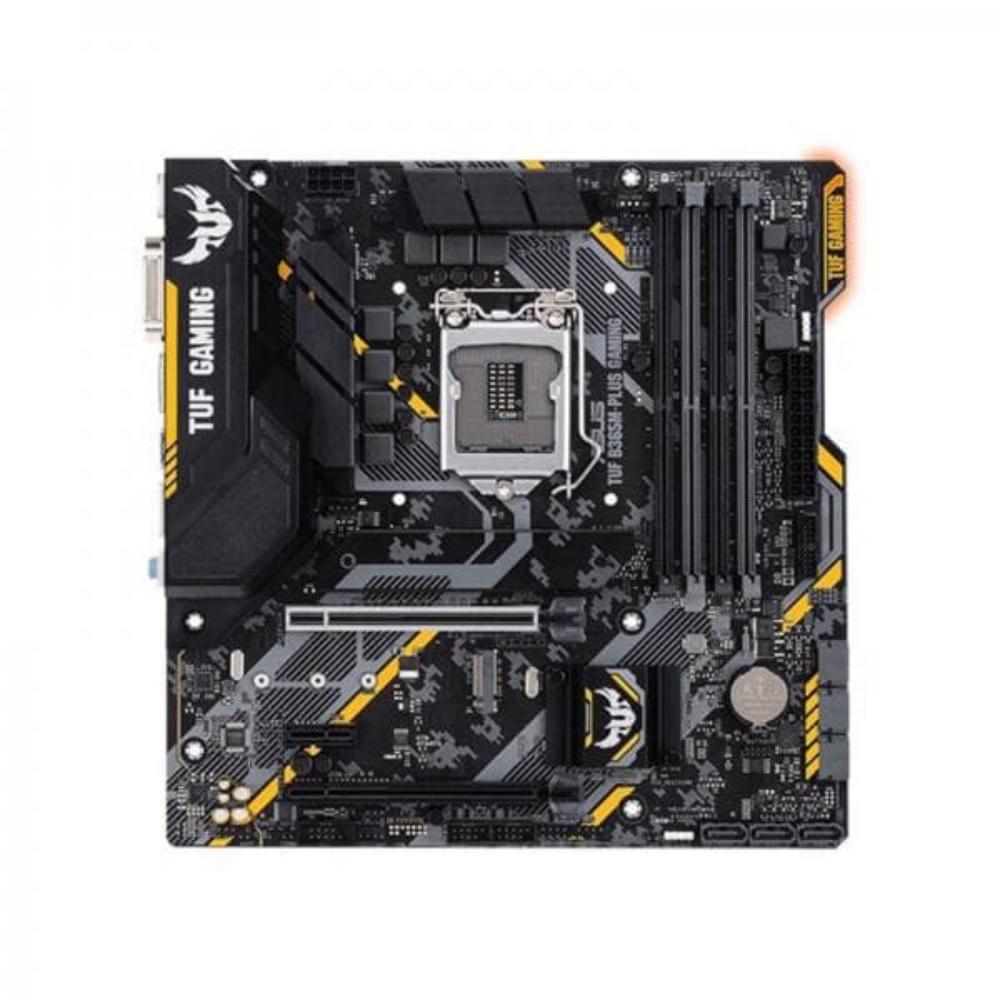

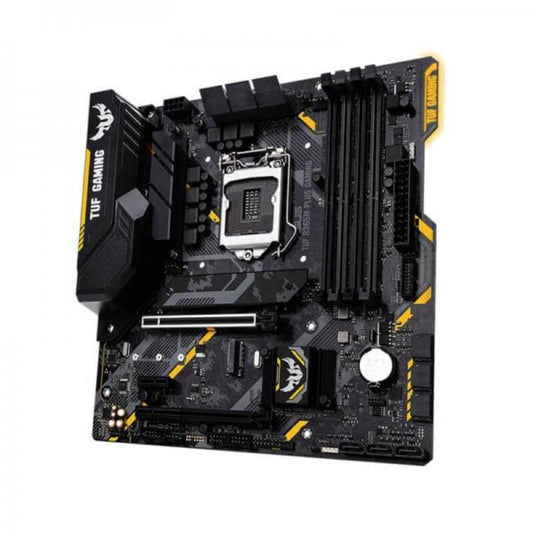

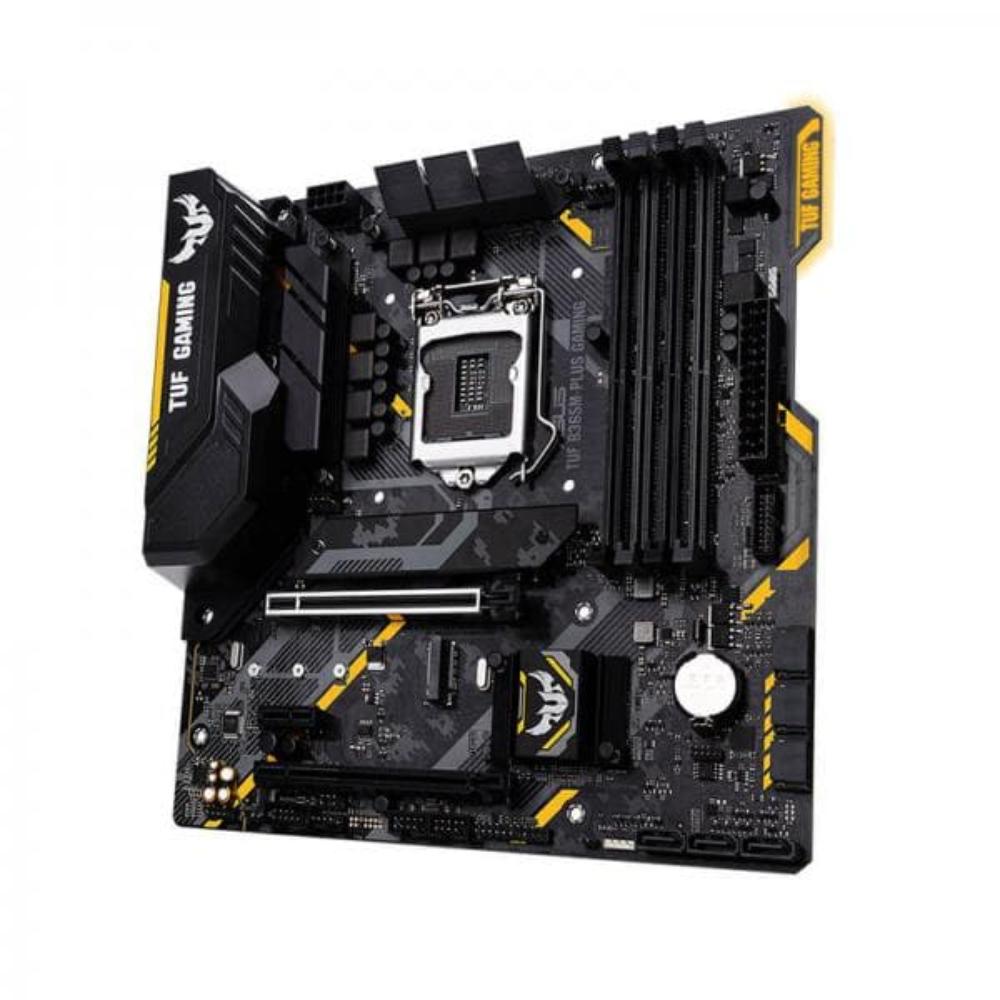

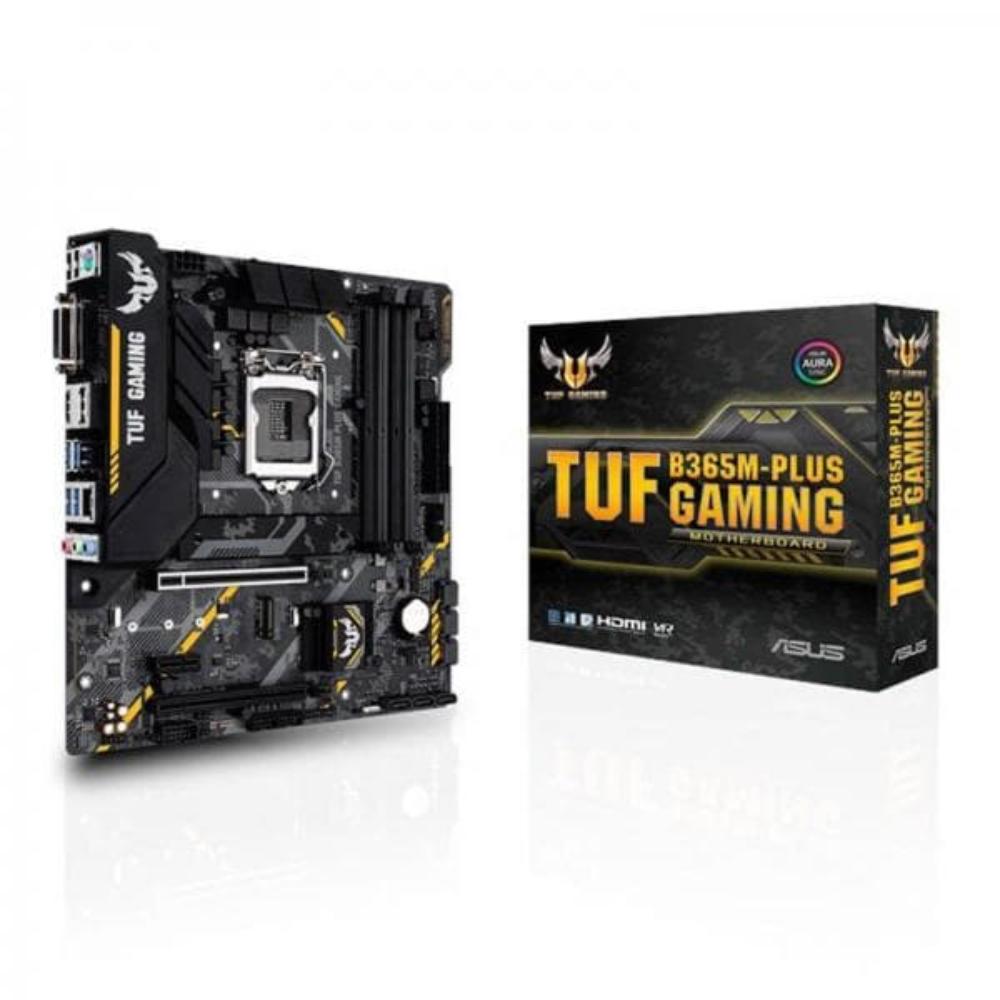

- ASUS TUF B365M Plus Gaming DDR4 Intel Motherboard
Description
Feature of ASUS TUF B365M Plus Gaming DDR4
The ASUS TUF B365M Plus Gaming motherboard is engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design and exacting standards to guarantee the quality and long-term durability of the motherboard.
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
Intel B365 chipset
The Intel B365 is a single-chipset design that supports 8th and 9th Generation Intel Core LGA1151 processors. It provides improved performance by utilising serial point-to-point links, allowing increased bandwidth and stability. Additionally, the B365 chipset provides a maximum of four USB 3.1, six SATA 6Gbps ports, and 32Gbps M.2 and PCIe 3.0 lane-speed support, for faster data retrieval. Intel B365 also supports integrated-graphics, so you’ll enjoy the very latest in onboard graphics performance.
Easy PC DIY Experience
TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
TUF gaming alliance
TUF Gaming Alliance is the marque of collaboration between ASUS and major PC-component manufacturers, including trusted brands like Ballistix, Cooler Master, Corsair, G.Skill, In Win and Themaltake. A growing range of compliant parts, from PC chassis and power supplies to CPU coolers and DRAM, guarantee both compatibility and aesthetic harmony. We’re also continually increasing our partnerships, making the TUF Gaming Alliance ever stronger.
SafeSlot Core+
SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
Flexible cooling controls
System temperatures are key to a stable gaming rig. TUF Gaming motherboards include FAN Xpert 2+ software that’s able to intelligently control system fans based upon the input of sensor. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play.
Dual Onboard M.2 and M.2 Heatsink
TUF B365M-PLUS GAMING features dual onboard M.2 slots, both operating at X4 PCI Express 3.0 to provide a scintillating 32Gbps of bandwidth. The primary slot, placed below the CPU socket and covered by a heatsink, uses the chassis airflow to keep drive temperatures under control, ensuring peak performance under all scenarios.
Specifications of ASUS TUF B365M Plus Gaming DDR4
| CPU | Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsSupports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel® B365 |
| Memory | Intel® B365 Chipset4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)* The maximum memory frequency supported varies by processor** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics supportMulti-VGA output support : HDMI/DVI-D/DisplayPort ports- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 HzMaximum shared memory of 1024 MB (for iGPU exclusively)Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™Supports up to 3 displays simultaneously |
| Multi-GPU Support | Supports AMD CrossFireX™ Technology |
| Expansion Slots | 1 x PCIe 3.0 x16 (x16 mode)1 x PCIe 3.0 x16 (max at x4 mode)1 x PCIe 3.0/2.0 x1 |
| Storage | Intel® B365 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)6 x SATA 6Gb/s port(s), graySupport Raid 0, 1, 5, 10Intel® Optane™ Memory Ready |
| LAN | Intel® I219V, 1 x Gigabit LANTUF LANGuard |
| Audio | Realtek® ALC1200 8-Channel High Definition Audio CODEC- Supports : Jack-detection, Front Panel Jack-retaskingAudio Feature :- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity* Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports | Intel® B365 Chipset :6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)Intel® B365 Chipset :6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) |
| Special Features | ASUS TUF PROTECTION- ASUS ESD Guard: Enhanced ESD protection- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI VRM: Precision control for stable power- ASUS Safe Slot core : PCIe slot fortified with a stainless-steel braceASUS OptiMem：- Optimem (Improved DDR4 stability)ASUS EPU :- EPUASUS Exclusive Features :- AI Suite 3- Ai Charger- PC CleanerASUS Quiet Thermal Solution :- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution- ASUS Fan Xpert 2ASUS EZ DIY :- ASUS CrashFree BIOS 3- ASUS EZ Flash 3ASUS Q-Design :- ASUS Q-Slot- ASUS Q-DIMMM.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) |

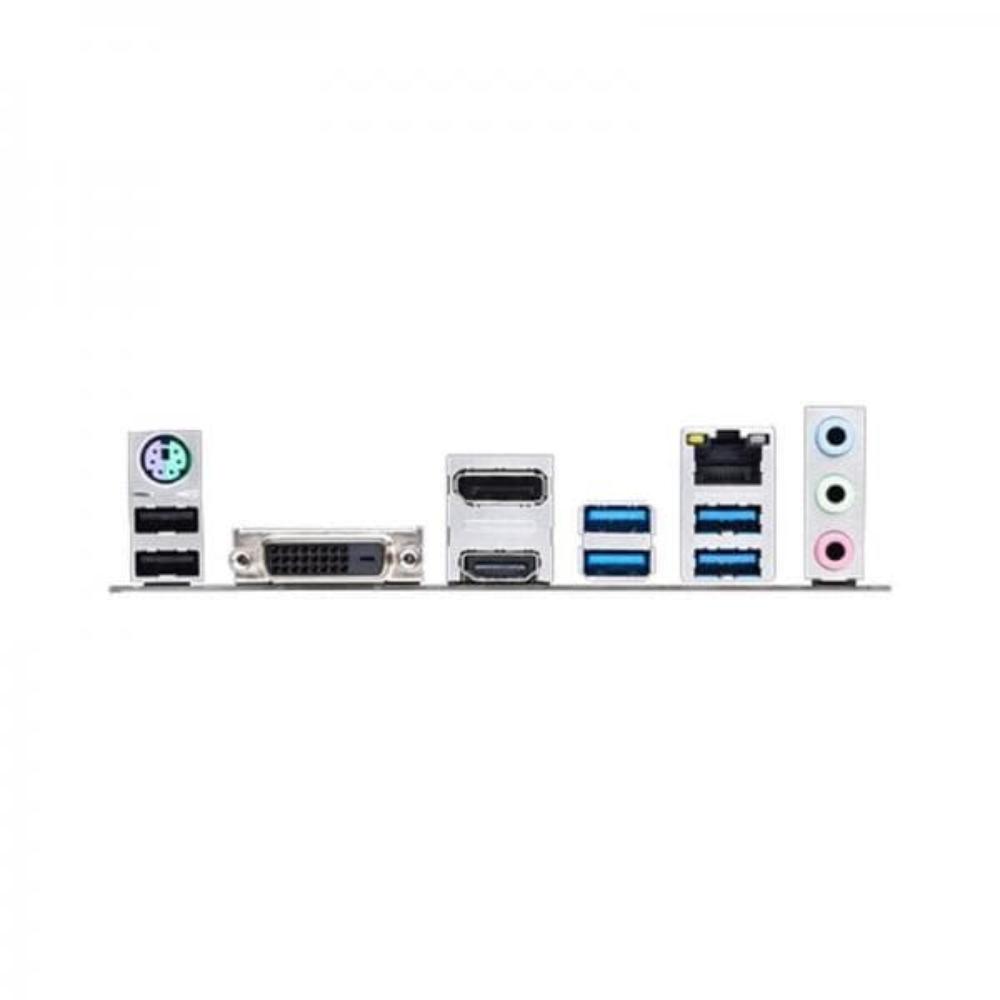

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s)1 x DVI-D1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)4 x USB 3.1 Gen 1 USB Type-CTM up to 5Gbps2 x USB 2.01 x 8-channel Audio I/O |
| Internal I/O Ports | 1 x Addressable RGB header1 x Aura RGB Strip Header1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices1 x COM port(s) connector(s)6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s)2 x Chassis Fan connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information |
| Operating System | Windows® 10 64-bit |
| Form Factor | mATX Form Factor9.6 inch x 9.5 inch ( 24.4 cm x 24.1 cm) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
