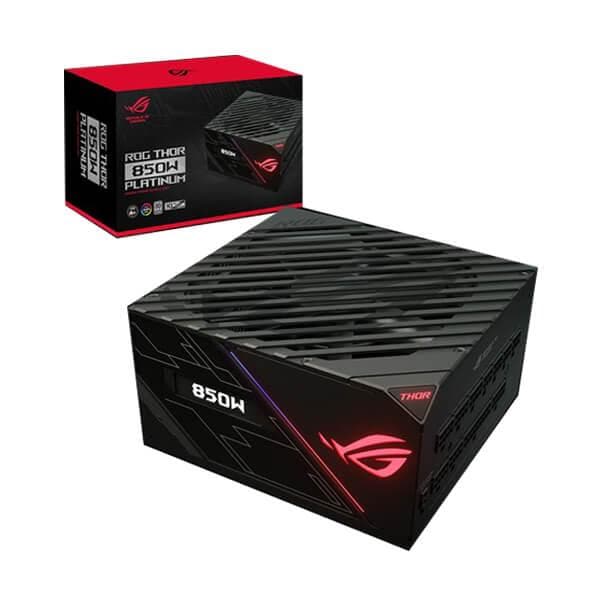

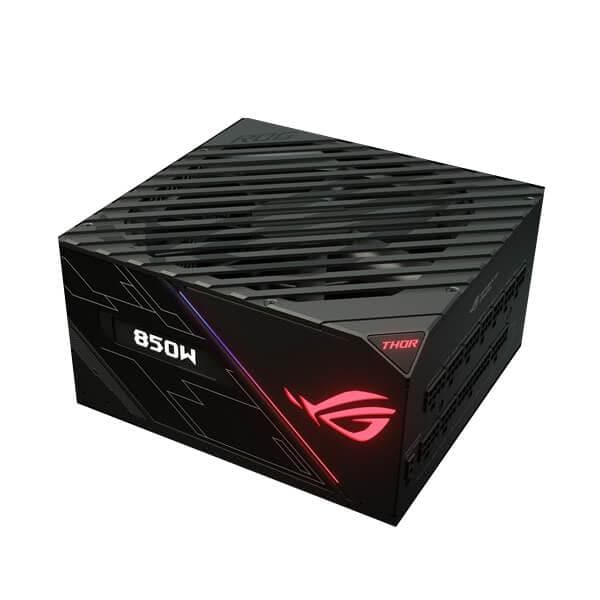

- ASUS ROG Thor 850P 850W 80 + Platinum Fully Modular ATX 2.0 Power Supply
Description
Features of ASUS ROG Thor 850P
Asus Power Supply Unit stands out with Aura Sync and an OLED display
- Aura Sync : Advanced customization with addressable RGB LEDs and Aura Sync compatibility
- OLED Power Display : Real-time power draw monitoring with OLED Power Display
- ROG Thermal Solution : 0dB cooling with dustproof IP5X Wing-blade Fan and ROG heatsink design
- 80 PLUS Platinum : Built with 100% Japanese capacitors and other premium components
- Sleeved Cables : For easy building and superior aesthetics
HARNESS THUNDER
Inside and out, our first PSU is packed with innovative ideas. Externally, Aura Sync RGB illumination and an integrated OLED information panel enable unique customization and monitoring options for your ROG gaming rig. Under the hood, high-quality capacitors, a 135mm Wing-blade fan, and large heatsinks allow the ROG Thor 850W to achieve LAMBDA A+ and 80 PLUS® Platinum certifications, making it ideal for PC enthusiasts who demand performance perfection.
Aura Sync - Outshine the competition
ASUS Aura Sync is an illumination ecosystem that lets you synchronize lighting effects across your gaming rig, components, and peripherals. The ROG Thor lets you take full control with internal Aura RGB LEDs that connect to the 4-1 addressable RGB header on select motherboards.
- Two included connector cables allow you to connect the ROG Thor to the addressable RGB header featured on select ASUS Motherboards or to create a daisy chain of ROG Addressable LED Strips.
- If the the connector cables are not used, the ROG Thor's default effect and color is static red.
OLED POWER DISPLAY
The ROG Thor 850W Power Supply Platinum is the first PC PSU in the world to feature an integrated OLED panel, offering a real-time display of power draw. Now you can see at a glance how much juice your rig is using.
WING-BLADE FAN
We've equipped the ROG Thor 850W Platinum with a 135mm patented Wing-blade fan to maximize component lifespan. IP5X dust-resistance keeps it spinning freely and 0dB technology utilizes thermal sensors to allow the fan to switch off completely at lower wattages — enabling totally silent operation.
ROG HEATSINK
The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in 20% lower temperatures inside the ROG Thor 850W Platinum. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise never exceeds 20dB, allowing ROG Thor to achieve LAMBDA A+ certification.
80 PLUS PLATINUM CERTIFICATION
The ROG Thor 850W Platinum utilizes top-end Japanese capacitors to ensure efficient operation. This has earned an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% at 50% load. The increased efficiency produces less heat, reducing fan noise and increasing reliability.
SLEEVED CABLES
We know you'll want to get building right away, so we've included high-quality sleeved and standard cables. The sleeved cables include one 24-pin, two 6+2-pin PCI-e cables and two 8-pin CPU cables. We've also included an RGB connector that plugs into the addressable RGB header on your ASUS motherboard.
*For something punchier than pure black, we've teamed up with CableMod to offer a 20% discount. Customize cable colors, length, and materials to match your rig.
The ROG Thor comes with two types of PCI-E power cables in the box: an individually sleeved set for showcase systems, and, to fuel heavily overclocked graphics cards, cables with embedded capacitors that reduce voltage ripple.
10-YEAR WARRANTY
We're so confident about the reliability of the ROG Thor 850W Platinum that we back it with a 10-year* warranty.
*Core product operation is guaranteed for 10 years. The OLED panel and RGB LEDs are subject to a 3-year warranty.
Get the best 80 Plus Gold psu power supply price from us today!
Specifications of ASUS ROG Thor 850P
| Intel Specification | ATX12V |
| Dimensions |
6.3 " x 5.9 " x 3.38 " Inch 16 x 15 x8.6 Centimeter |
| Efficiency | 80Plus Platinum |
| Protection Features | OPP/OVP/SCP/OCP/OTP |
| AC Input Range | 100-240Vac |
| DC Output Voltage | 3.3V 5V 12V -12V 5Vsb |
| Maximum Load | 20A 20A 71A 0.3A 3A |
| Total Output | 850W |

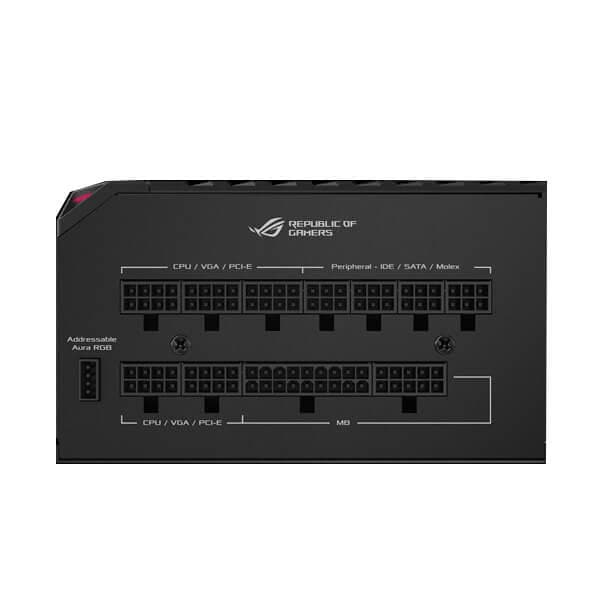

| Connectors |
MB 24/20-pin x 1 CPU 8/4-pin x 2 PCI-E 8/6-pin x 4 SATA x 12 Peripheral 4-pin x 5 Floppy x 1 |
| Package Contents |
Power Cord x 1 Motherboard Power Cable (24-pin) x 1 (610mm) CPU Cable (4 4-pin) x 2 (650mm) PCI-E Cable (6 2-pin) x 3 (675mm) SATA Cable x 3 (760mm/570mm) Peripheral x 2 (690mm/470mm) SATA to Peripheral Cable x 1 (300mm) Floppy Cable x 1 (101mm) Addressable RGB Cables x 2 (950mm) ROG Sticker x 1 ROG Cable Tie x 4 Sleeved Cable Combs (6-pin) x 2 Sleeved Cable Combs (8-pin) x 6 Sleeved Cable Combs (24-pin) x 2 Chassis Screws Package x 1 Cable Tie x 10 User Manual x 1 |
| Warranty | 10 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
