Description

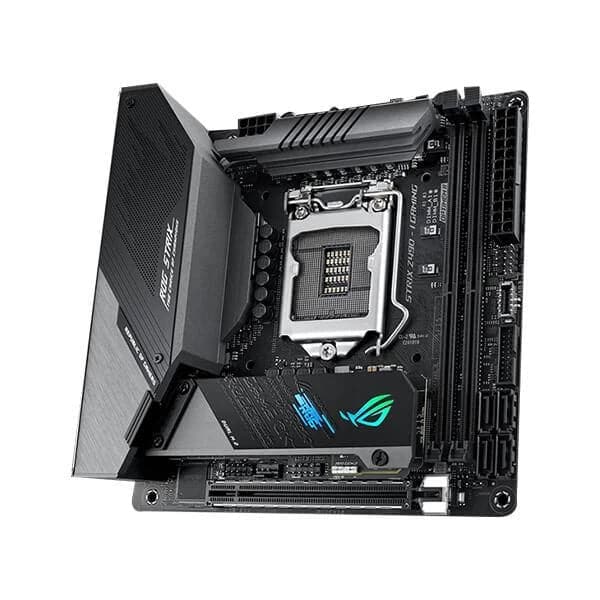

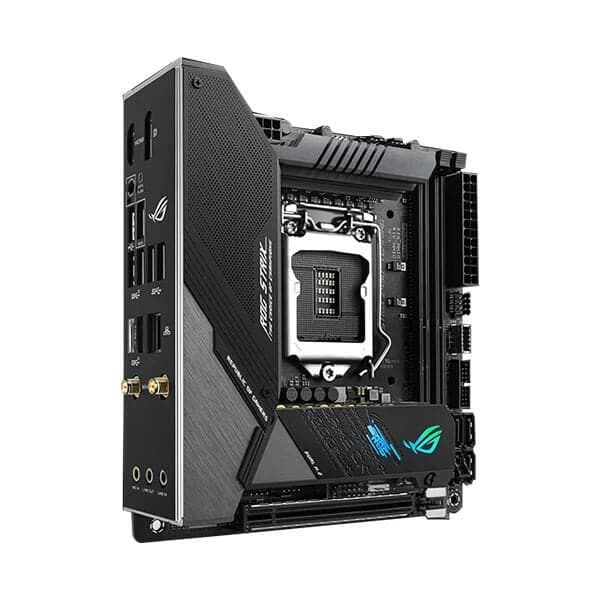

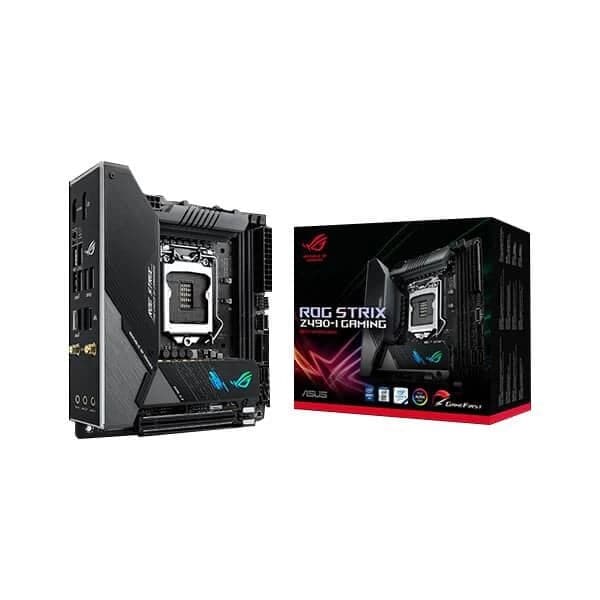

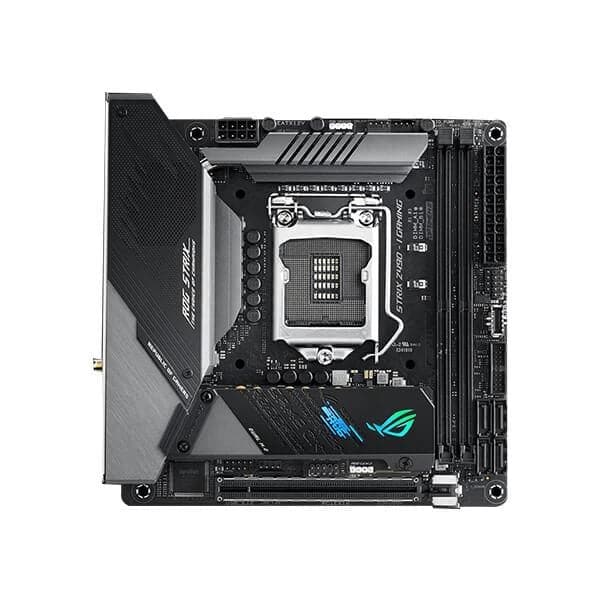

ASUS ROG Strix Z490-I Gaming Motherboard
Features :
- Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Supports Intel® 14 nm CPU
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP) OptiMem II
Specifications :
| CPU |
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® Z490 |
| Memory |
2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.) /4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000/2933/2800(O.C.)/ 2666/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic |
Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 2.0a *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. |
| Expansion Slots |
Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) *1 |
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Z490 Chipset : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready |
| LAN |
Intel® I225-V 2.5Gb Ethernet ASUS LANGuard |
| Wireless Data Network |
Intel® Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface |
| Bluetooth |
Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later. |
| Audio |
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback * LED-illuminated audio jacks Audio Feature : - Audio Shielding - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| USB Ports |
Rear USB Port ( Total 8 ) 4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x USB Type-C®) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 5 ) 1 x USB 3.2 Gen 2 front panel connector port(s) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) |
| Software Features |
ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU Digi+ VRM Xpert 4 Turbo app - EZ update WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
| ASUS Special Features |
ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Procool II - Pre- mounted I/O shield - SafeSlot AURA Sync - Standard RGB header - Addressable Gen 2 RGB header |
| Back I/O Ports |
1 x Intel® I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C®) 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™) 1 x USB BIOS FlashBack™ Button(s) 1 x ASUS Wi-Fi Module 3 x LED-illuminated audio jacks |
| Internal I/O Ports |
1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Aura RGB Strip Header 1 x Addressable Gen 2 header(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x Thermal sensor connector 1 x USB 3.2 Gen 2 front panel connector 1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) |
| Accessories |
User's manual 4 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD 1 x CABLE TIE BLACK 1 x ROG Strix stickers 1 x Extension cable for Addressable LED 1 x Panel cable 1 x ROG Thank you card 1 x Wi-Fi moving antenna 1 ROG key chain |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor |
Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
| Warranty | 3 Years |
| Note |
*1 Support PCIe bifurcation for RAID on CPU function. *2 When the M.2_2 Socket is operating in SATA mode, SATA port 2 will be disabled.*Features, Price and Specifications are subject to change without notice. |
