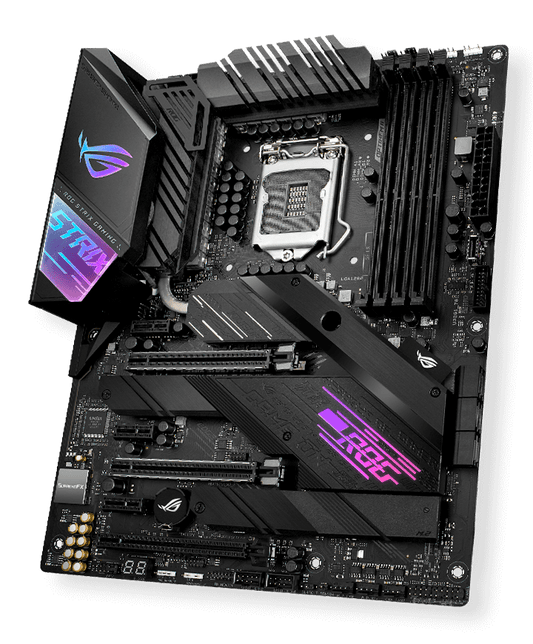

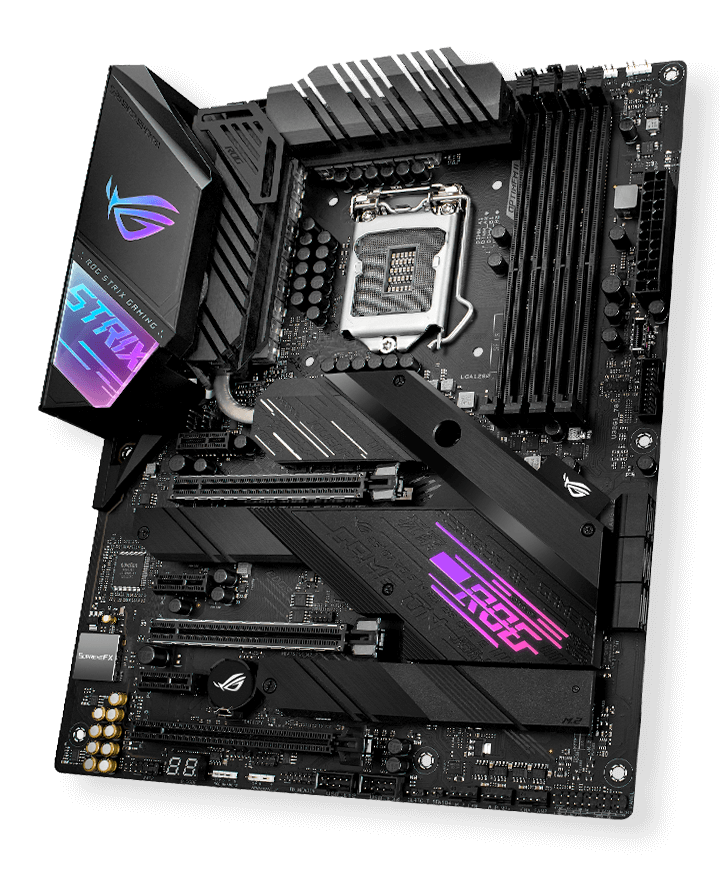

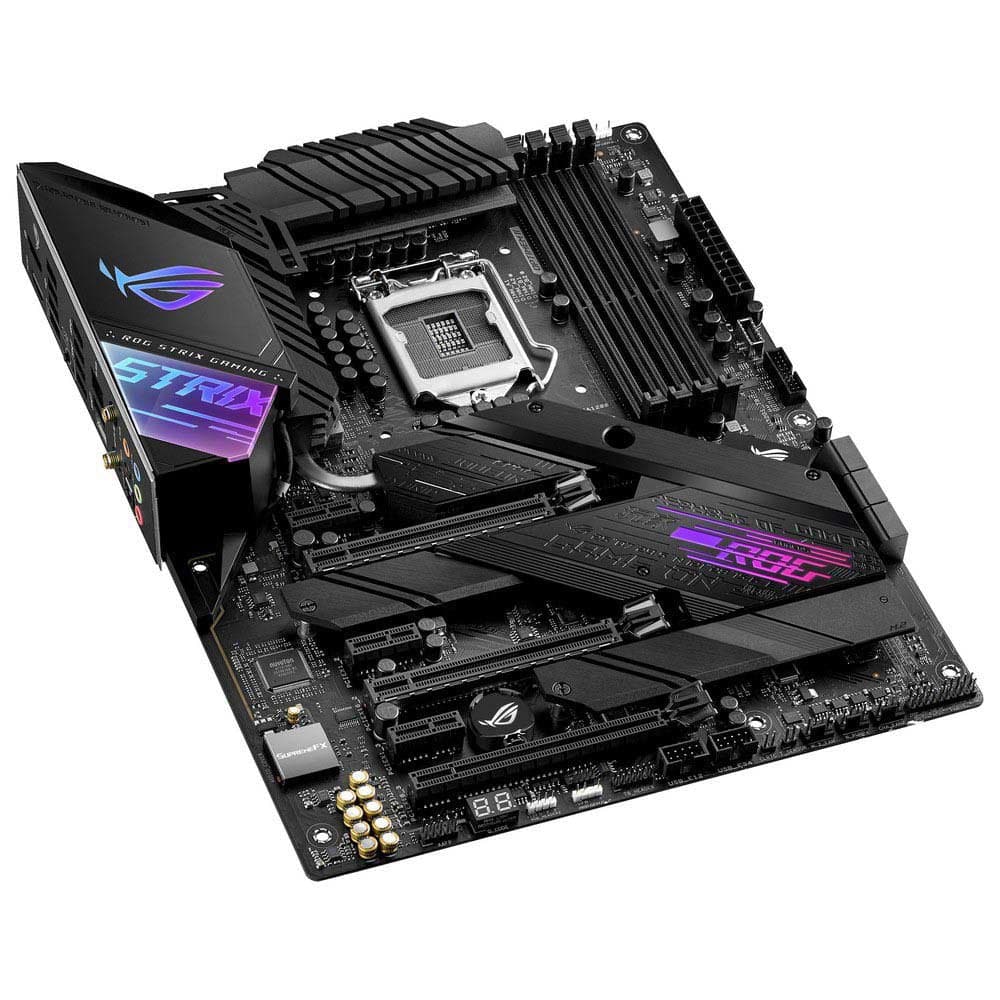

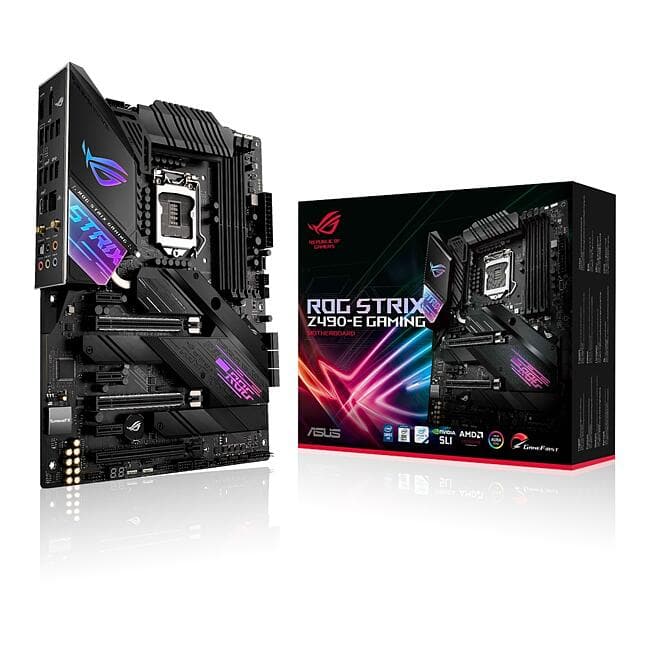

- ASUS ROG Strix Z490-E Gaming DDR4 Intel Motherboard
Description
Feature of ASUS ROG Strix Z490-E Gaming DDR4
The ROG Strix Z490-E Gaming motherboard is designed to cope with the demands of 10th Generation Intel® Core™ processors, with boosted power delivery and an optimized cooling design providing more surface area for heat dissipation. ROG Strix Z490-E Gaming features AI enhancements and intuitive dashboards to help you overclock and tweak various parameters easily. Performance aside, ROG Strix Z490-E Gaming catches the eye, sporting cyberpunk inspired aesthetics including a mirrored stainless steel finish.
Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors.
Optimal Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors.
Optimized Thermal Design: MOS Heatsink with U-shaped heatpipe, extended VRM heatsink, dual onboard M.2 heatsinks, including a bundled fan bracket and additional MOS fan for improved cooling.
High-performance Networking: On-board Intel® WiFi 6 AX201 (802.11 ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard.
Best Gaming Connectivity: Supports HDMI 1.4 and DisplayPort 1.4 output, and featuring dual M.2 and USB 3.2 Gen 2 Type-A and Type-C® connectors.
Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling and AI Networking, helping you configure your gaming build easily.
DIY Friendly Design: Pre-mounted I/O shield, BIOS Flashback, Q-Code and FlexKey.
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers.
Industry-leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action.
ALL-ROUND PERFORMANCE
ASUS ROG Strix Z490-E Gaming helps you get the most out of your gaming build with up-rated power delivery and optimized cooling. Intelligent controls lets you manage overclocking, cooling and networking settings easily, giving you everything you need to harness the full potential of your build for top-tier gaming performance.
LEADING CONNECTIVITIY
ROG Strix Z490-E Gaming provides you with the latest connectivity for supersmooth online experiences and blisteringly-fast file transfers. Superior audio performance gives you a massive advantage, allowing you to pick up on the smallest audio cues for a completely Immersive gaming experience.
DDR4 OC 4600MHz
ROG Strix Z490-E Gaming supports up to 128GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk to enhance memory stability and compatibility, giving memory kits higher frequency margins.
Dual PCIe 3.0 M.2
Two M.2 slots are available, with one supporting both SATA and PCIe 3.0 x4 modes, and the other supporting PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.
UNDENIABLY ROG STRIX
ROG Strix Z490-E Gaming is unmistakably ROG, it features a mirror-like stainless steel finish, complete with diagonal lines across the I/O shield and futuristic cyber-text.
5-WAY OPTIMIZATION
Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same onboard intelligence as AI Overclocking,but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the get-go.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
Specifications of ASUS ROG Strix Z490-E Gaming DDR4
| CPU |
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to Asus website for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® Z490 |
| Memory |
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/
3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/ 3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
| Graphic |
Integrated Graphics Processor 1 x DisplayPort 1.4 * 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to Asus website for any update. |
| Multi-GPU Support |
Supports NVIDIA 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology |
| Expansion Slots |
Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) Intel® Z490 Chipset 1 x PCIe 3.0 x4 (x4 mode) 3 x PCIe 3.0 x1 |
| Storage |
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® Z490 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready |
| LAN |
Intel® I225-V 2.5Gb Ethernet ASUS LANGuard |
| Wireless Data Network |
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface |
| Bluetooth |
Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later. |
| Audio |
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback * Audio Feature : - SupremeFX Shielding™ Technology - Gold-plated jacks - Optical S/PDIF in port(s) at back panel - LED-lit Audio Shielding - Premium Japanese audio capacitors - Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| USB Ports |
Rear USB Port ( Total 10 ) 4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x USB Type-C®) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s) Front USB Port ( Total 7 ) 1 x USB 3.2 Gen 2 port(s)(1 x USB Type-C®) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| Special Features |
AURA : - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS EZ DIY : - ASUS USB BIOS FlashBack™ ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM DIY Friendly Design - ProCool II - SafeSlot |
| Software Features |
ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync AI Suite 3: - 5-way Optimization with AI Optimization. TPU EPU DIGI+ VRM Fan Xpert 4 Turbo APP - EZ update WinRAR UEFI BIOS AI Optimization Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
| Back I/O Ports |
1 x Intel® I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C®) 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x Optical S/PDIF out 1 x USB BIOS FlashBack™ Button(s) 5 x Gold-plated audio jacks ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) |
| Internal I/O Ports |
1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 2 x Addressable RGB header 1 x AAFP connector 2 x Aura RGB Strip Headers 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x CPU_OV jumper 1 x Q-Code 1 x VRM_HS_FAN Header |
| Accessories |
User's manual 1 x ASUS Fan Holder 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan) 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x Thermistor cable(s) 1 x ROG Thank you card 1 x 2-in-1 Rubber pad 1 x Wi-Fi moving antenna 1 M.2 SSD screw package(s) 1 ROG key chain |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
