- ASUS ROG Strix Z390-E Gaming Wifi DDR4 Intel Motherboard
Description
Feature of ASUS ROG Strix Z390-E Gaming Wifi DDR4
- LGA1151 socket for 9th/ 8th Gen Intel® Core™ desktop processors
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
- Comprehensive cooling: Dual onboard M.2 heatsink, water-pump header, fan-extension header and a MOS fan with bracket
- 5-Way Optimization: Automated system-wide tuning, providing AI overclocking and cooling profiles tailor-made for your rig
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C connectors
- Gaming networking: Intel Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, LANGuard and GameFirst
- Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action
- Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance
ROG Strix Z390-E Gaming amps the power delivery and stacks a comprehensive set of cooling options to tame Intel's latest CPUs. Together with a wealth of enhancements, including one-click optimization, the latest connectivity and futuristic styling with onboard illumination, ROG Strix Z390-E Gaming makes a formidable foundation for ATX gaming builds that go above and beyond.
SOLID HARDWARE SPECS FOR GAMING AND MORE
With comprehensive cooling options and upgraded power delivery to fuel CPUs with more cores, plus support for faster memory and storage, ROG Strix Z390-E Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.Power Design
Digital power control and an array of DrMOS power stages ensure the ROG Strix Z390 Gaming has the muscle to control Intel's latest CPUs.ProCool Power Connector
Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. The lower impedance helps to prevent hotspots and connector failure.Digi+ Power Control
The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.DrMOS
The ASUS ROG Strix Z390-E Gaming Wifi CPU VRM utilizes DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that Intel's latest processors demand.Thermal Solution
The Strix Z390-E Gaming uses high-quality thermal pads to help transfer heat from the inductor and phase array to a heatsink that has ample surface area to deal with the power demands of all Coffee Lake processors. And for those who want to push their rig to the limit, the ROG Strix Z390-E Gaming bundles an additional fan and bracket that helps keep temperatures under tight control.High Quality Choke and Caps
Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.COOLER BY DESIGN
ROG Strix Z390 Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.AIO Pump Fan Header
A dedicated PWM/DC header for self-contained water-cooling setups.Water Pump Header
A dedicated header that can supply over 3A to high-performance PWM or DC water pumpsWater Pump Header
A dedicated header that can supply over 3A to high-performance PWM or DC water pumps
4-pin PWM/DC Fan Header
Every onboard header supports auto-detection of PWM or DC fans.Fan Extension Header
Use the fan extension card to get three additional DC or PWM fan headers, plus three thermal-probe headers.* ASUS Fan Extension Card is a separate purchase.SupremeFX
Shielded Audio, Superior SoundImmerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.
Specifications of ASUS ROG Strix Z390-E Gaming Wifi DDR4
| CPU | Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsSupports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel® Z390 |
| Memory |
4 x DIMM, Max. 64GB,DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/
3400(O.C.)/3333(O.C.)/3300(O.C.)/ 3200(O.C.)/3000(O.C.) /2800(O.C.)/ 2666/2400/2133 MHAz Non-ECC, Un-buffered MemoryDual Channel Memory Architecture |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics supportMulti-VGA output support : HDMI/DisplayPort ports- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| Multi-GPU Support | Supports NVIDIA® 2-Way SLI™ TechnologySupports AMD 3-Way CrossFireX™ Technology |
| Expansion Slots | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)1 x PCIe 3.0/2.0 x16 (max at x4 mode)3 x PCIe 3.0/2.0 x1 |
| Storage | Intel® Z390 Chipset :1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*21 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)6 x SATA 6Gb/s port(s)Support Raid 0, 1, 5, 10Intel® Optane™ Memory Ready |
| LAN | Intel® I219VAnti-surge LANGuardROG GameFirst Technology |
| Wireless Data Network | Intel® Wireless-AC 9560Wi-Fi 802.11 a/b/g/n/acSupports dual band frequency 2.4/5 GHzSupports MU-MIMO |
| Bluetooth | Bluetooth® 5.0 |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A- Dual OP Amplifiers- Impedance sense for front and rear headphone outputs- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- SupremeFX Shielding Technology- Supports up to 32-Bit/192kHz playback *2Audio Feature :- SupremeFX Shielding™ Technology- Optical S/PDIF out port(s) at back panel- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity- Sonic Radar III- Sonic Studio III Sonic Studio Link |
| USB Ports | Intel® Z390 Chipset :1 x USB 3.1 Gen 2 front panel connector port(s)Intel® Z390 Chipset :4 x USB 3.1 Gen 2 port(s) (3 x Type-A 1 x USB Type-CTM)Intel® Z390 Chipset :4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)Intel® Z390 Chipset :6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
| ROG Exclusive Features | ROG Exclusive Software- RAMCache III- CPU-Z- GameFirst V- Sonic Studio III Sonic Studio Link- Sonic Radar III |
| Special Features | OC Design - ASUS PRO Clock Technology- Full BCLK range for extreme overclocking performance5-Way Optimization by Dual Intelligent Processors 5- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI VRM, Fan Expert 4, and Turbo AppAI OverclockingASUS Optimem II：- Improved DDR4 StabilityAURA :- Aura Lighting Control- Aura RGB Strip Headers- Aura Lighting Effects Synchronization with compatible ASUS ROG devices- Aura Addressable Strip Header(s)ASUS Exclusive Features :- MemOK! II- AI Suite 3- Ai Charger- Armoury Crate- Pre-mounted I/O Shield- ASUS NODE: hardware control interfaceASUS EZ DIY :- ASUS CrashFree BIOS 3- ASUS EZ Flash 3ASUS Q-Design :- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMMGaming Aesthetics :- 3D printing friendly- AURA-RGB LightingDigi VRMM.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)DIY Friendly Design- Procool- SafeSlot- Digi VRM- DRAM Overcurrent Protection- Highly Durable components- ESD Guards |

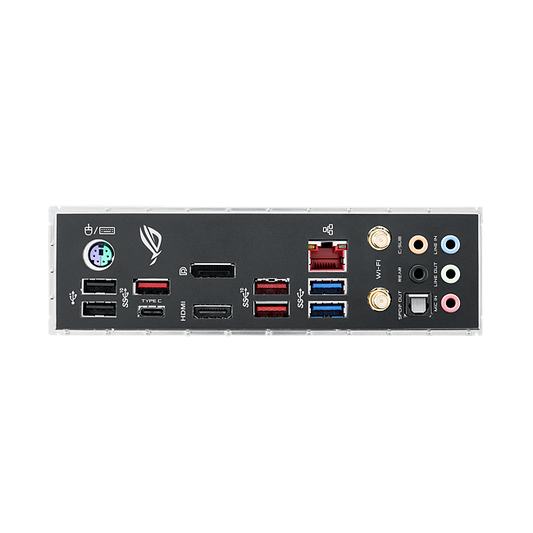

| Back I/O Ports | 1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)4 x USB 3.1 Gen 2 (3 x Type-A 1 x USB Type-CTM)2 x USB 3.1 Gen 12 x USB 2.01 x Optical S/PDIF out5 x Audio jack(s)1 x ASUS Wi-Fi Module |
| Internal I/O Ports | 1 x Aura Addressable Strip Header(s)1 x AAFP connector2 x Aura RGB Strip Header(s)1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)6 x SATA 6Gb/s connector(s)1 x M.2_FAN connector1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)1 x W_PUMP connector1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x System panel(s) (Chassis intrusion header is inbuilt)1 x 5-pin EXT_FAN(Extension Fan) connector1 x MemOK! II switch(es)1 x Thermal sensor connector(s)1 x CPU OV1 x Clear CMOS jumper(s)1 x Node Connector(s)1 x 14-1 pin TPM connector1 x COM port header1 x AIO PUMP Header1 x USB 3.1 Gen 2 front panel connector |
| Accessories | User's manual4 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)1 x CABLE TIE BLACK1 x SLI HB BRIDGE(2-WAY-M)1 x ROG Strix stickers1 x Assistant Fans(40mm)1 x screws for Assistant Fan(s)1 x ROG Door Hanger(s)1 x Extension Cable for RGB strips (80 cm)1 x Extension cable for Addressable LED1 x Thermistor cable(s) |
| BIOS | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1 |
| Manageability | WOL , PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
