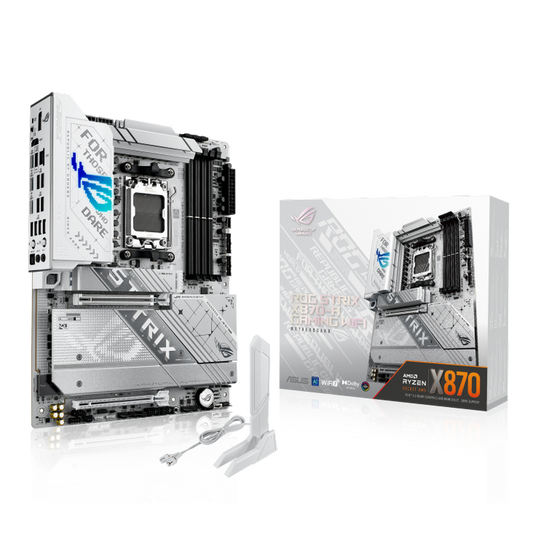

- ASUS ROG Strix X870-A Gaming Wifi DDR5 AMD Motherboard
Description
Features of ASUS ROG Strix X870-A GAMING WIFI DDR5 AMD Motherboard
Elevate your build with the ROG Strix X870-A Gaming WiFi. Featuring a sleek white PCB and support for AMD Ryzen™ 9000 Series processors, this motherboard delivers the power and connectivity needed for advanced AI applications. With DDR5 support, full PCIe 5.0 capabilities, dual USB4® ports, and WiFi 7, it's the ultimate blend of style and performance.
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
For next-level frequency flexibility, the ROG Strix X870-A features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
Specification of ASUS ROG Strix X870-A GAMING WIFI DDR5 AMD Motherboard
Model | |
CPU | AMD Socket AM5 for AMD Ryzen™ 9000, 8000, & 7000 Series Desktop Processors* *Refer to www.asus.com for CPU support list. |
Chipset | AMD X870 |
Memory |
4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000, 8000, & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports AMD EXPO™, ASUS AEMP |
Graphics | 1 x DisplayPort** 1 x HDMI™ port*** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs**** *Specifications vary depending on CPU and memory configuration. **Supports max. 8K@30Hz as per DisplayPort 1.4. |
Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870 Chipset: 1 x PCIe 4.0 x16 slot |
Storage | 4 x M.2 slots and 2 x SATA 6Gb/s ports* M.2_1 slot (PCIe 5.0 x4 mode), M.2_2 slot (PCIe 5.0 x4 mode)<br>AMD X870 Chipset: M.2_3 slot (PCIe 4.0 x4 mode)*, M.2_4 slot (PCIe 4.0 x4 mode) |
Ethernet | 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard |
Wireless & Bluetooth | Wi-Fi 7*, 2×2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band** Bluetooth® v5.4*** |
USB (Rear) | 2 x USB4® (40Gbps) ports (2 x USB Type-C® with DP Alt mode)* 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) |
USB (Front) | 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* Impedance sense, Jack-detection, Multi-streaming, 32-Bit/384 kHz playback |

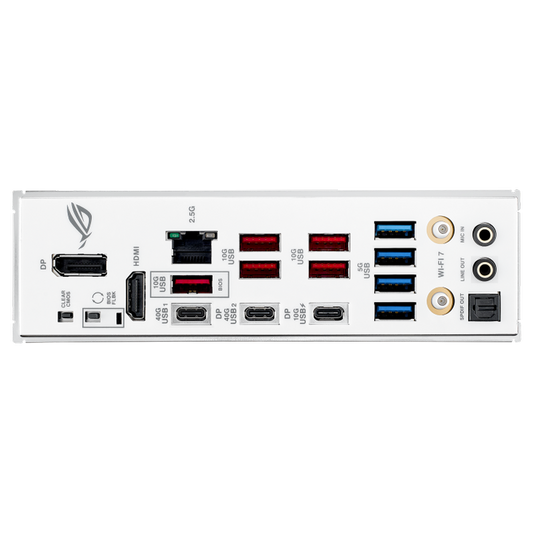

Back Panel I/O Ports | 2 x USB4® (40Gbps) ports (2 x USB Type-C® with DP Alt mode) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) 1 x DisplayPort, 1 x HDMI™ port, Wi-Fi module |
Internal I/O Connectors | Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers Power Related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors |
Special Features | Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync |
Software Features | ROG Exclusive Software: ROG CPU-Z, Dolby Atmos ASUS Exclusive Software: Armoury Crate, AIDA64 Extreme, Aura Creator, Aura Sync, Fan Xpert 4, GameFirst, HWiNFO, Power Saving, ASUS Driver Hub, ASUS GlideX, USB Wattage Watcher, TurboV Core |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS AI Overclocking Guide, ASUS EZ DIY, Dynamic OC Switcher, FlexKey |
Manageability | WOL by PME, PXE |
Accessories | 2 x SATA 6Gb/s cables, Thermal pad for M.2 22110, ASUS WiFi Q-Antenna, Cable ties package, M.2 Q-Latch package, M.2 Q-Slide package, ROG key chain, ROG Strix stickers, 4 x M.2 rubber packages |
Operating System | Windows 11 |
Form Factor | ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
