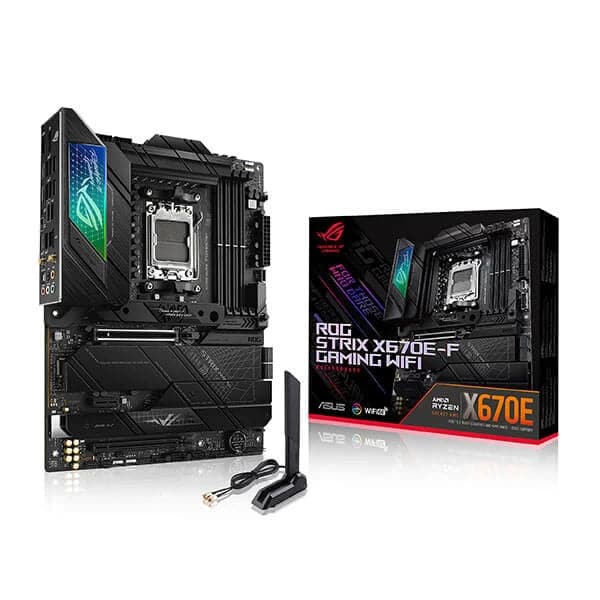

Asus Rog Strix X670E-F Gaming Wi-Fi Motherboard
Features:
ROG STRIX X670E-F GAMING WiFi
The ROG Strix X670E-F Gaming WiFi is the stealthy alter ego of the Strix X670E-A. A substantial power buff relays its inner demon, giving exclusive ROG overclocking utilities even more headroom to unleash the potential of AMD Ryzen™ 7000 Series processors. And its black PCB and dark metallic heatsinks aesthetically match a wider variety of system hardware and build themes, while a dash of customizable color on its shroud subtly announces an ROG presence in your AM5 build.
PCIe 5.0
Blazing fast storage is at your command with two PCIE 5.0 M.2 slots and two PCIE 4.0 M.2 slots. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to the top x16 extension slot, which includes SafeSlot to support heavy graphics cards and Q-release for easy upgrades.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments
Intel 2.5G Ethernet
Onboard Intel® 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.
UNDENIABLY ROG STRIX
The ROG Strix X670E-F is the stealthiest in the lineup, pairing perfectly with most system hardware. A jet black PCB and matching metallic heatsinks give it a brooding aesthetic overall, while a splash of RGB lighting on the I/O shroud gives you the choice to blend into the shadows or announce your presence
Specifications:
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD X670 |
| Memory |
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
| Graphics |
1 x DisplayPort 1 x HDMI® port *Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots |

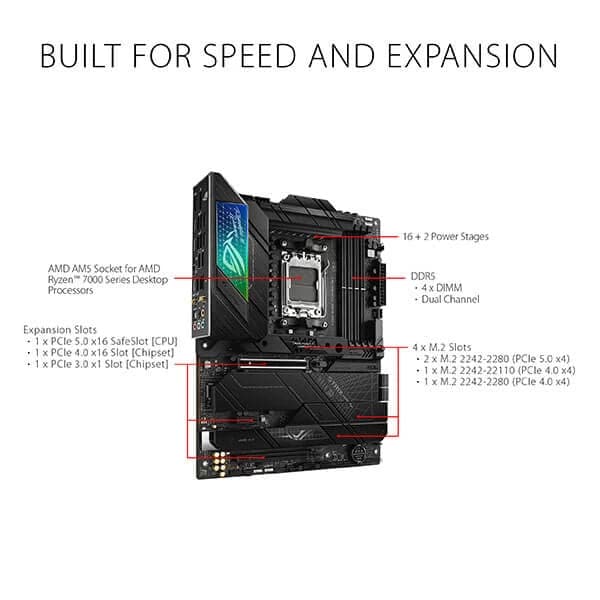

AMD Ryzen™ 7000 Series Desktop Processors 2 x PCIe 5.0 x16 slots (supports x16 modes) AMD X670 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot |
| Storage |
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10 |
| Ethernet |
1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth |
Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. |
| USB |
Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C®) 2 x USB 2.0 ports Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio |

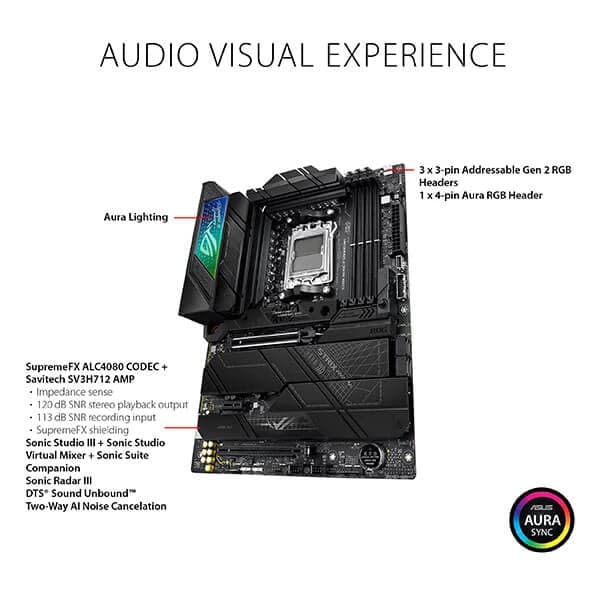

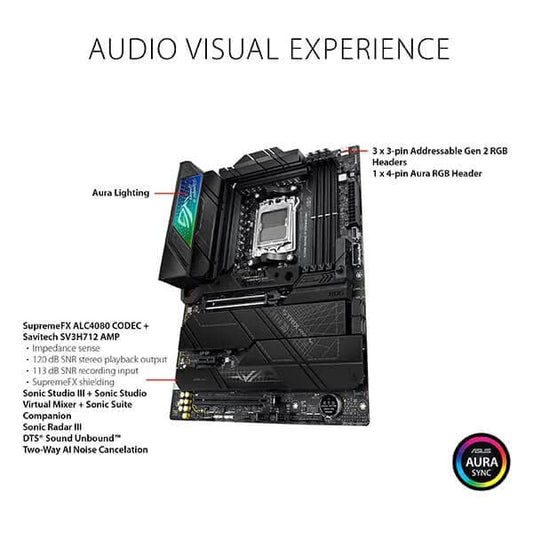

"ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input Supports up to 32-Bit/384 kHz playback" Audio Features Audio Shielding Savitech SV3H712 AMP Gold-plated audio jacks Rear optical S/PDIF out port Premium audio capacitors Audio cover |
| Back Panel I/O Ports |

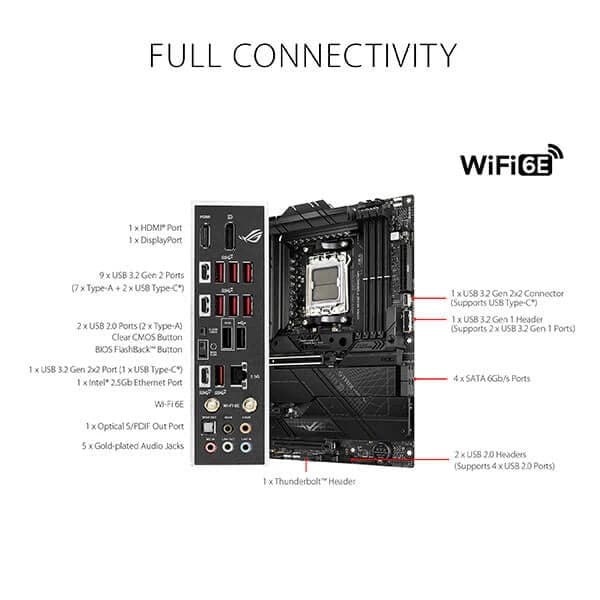

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 9 x USB 3.2 Gen 2 ports (10 x Type-A, 2 x USB Type-C®) 2 x USB 2.0 ports 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Fold Plated Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal I/O Connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| Special Features |

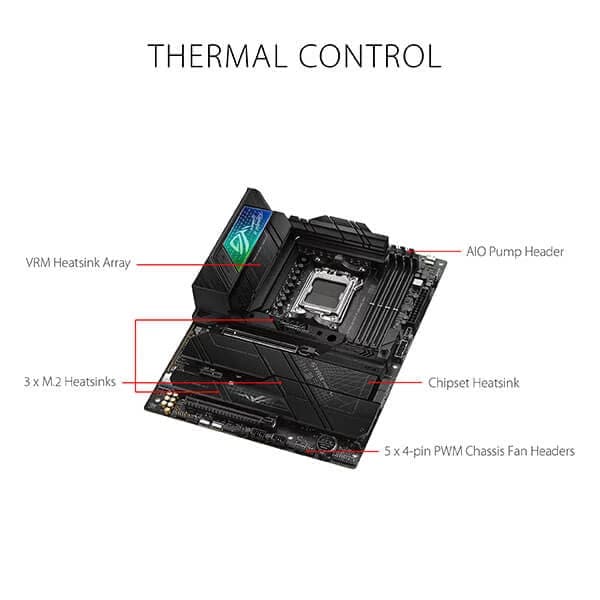

Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design M.2 Q-Latch PCIe Slot Q-Release Q-DIMM Q-LED (CPU Q-Slot ASUS Thermal Solution M.2 heatsink backplate M.2 heatsink VRM heatsink design ASUS EZ DIY BIOS FlashBack™ button BIOS FlashBack™ LED Clear CMOS button ProCool II Pre-mounted I/O shield SafeSlot SafeDIMM AURA Sync AURA RGB header Addressable Gen 2 headers |
| Software Features |
ROG Exclusive SoftwareGameFirst VI ROG CPU-Z Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion Sonic Radar III DTS® Sound Unbound Anti-virus software ASUS Exclusive Software Armoury Crate AIDA64 Extreme (60 days free trial) AURA Creator AURA Sync Fan Xpert 4 (with AI Cooling II) Power Saving Two-Way AI Noise Cancellatio AI Suite 3 TPU DIGI+ VRM Turbo app PC Cleane MyAsus WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode FlexKey Dynamic OC Switcher |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |

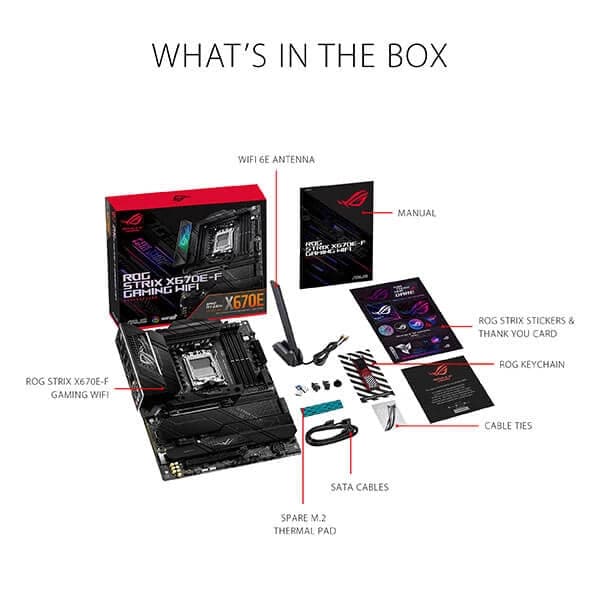

Cables2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch packages for M.2 backplate 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix sticker 1 x ROG Strix thank you card 2 x Rubber Packages for M.2 1 x Rubber Package for M.2 backplate Documentation 1 x User guide |
| Operating System | Windows® 11 64-bit |
| Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
