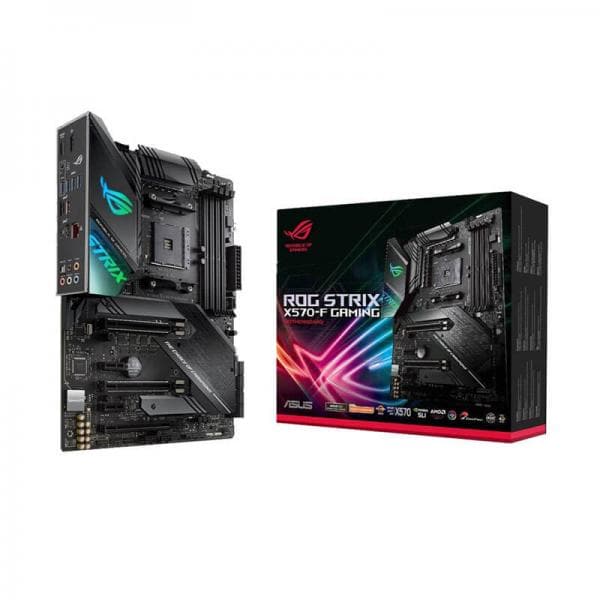

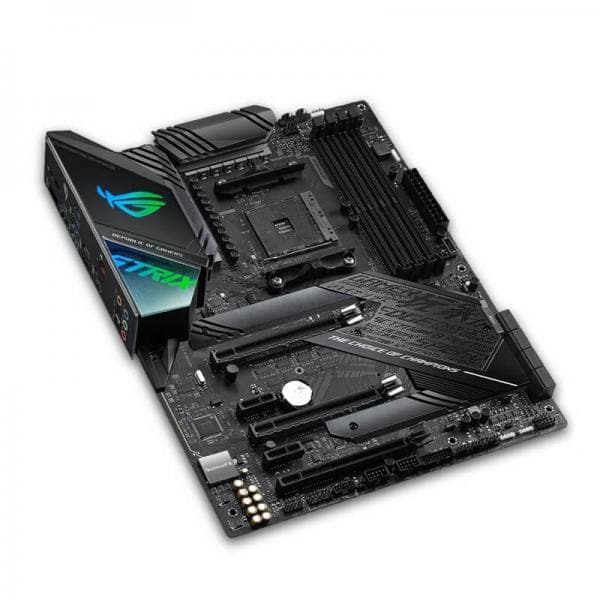

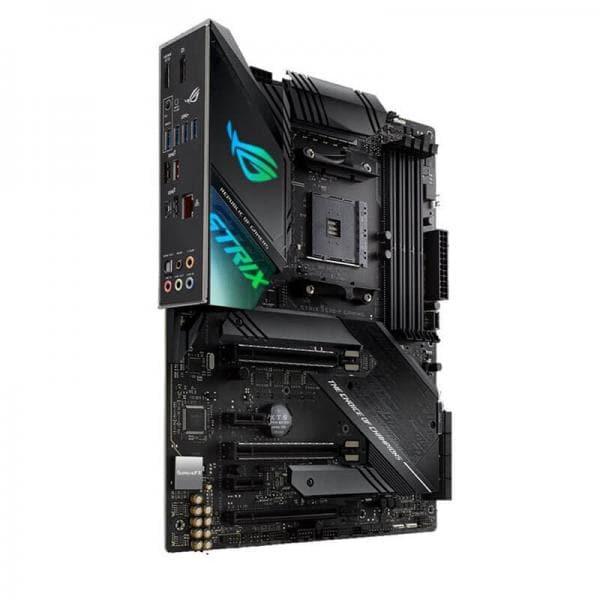

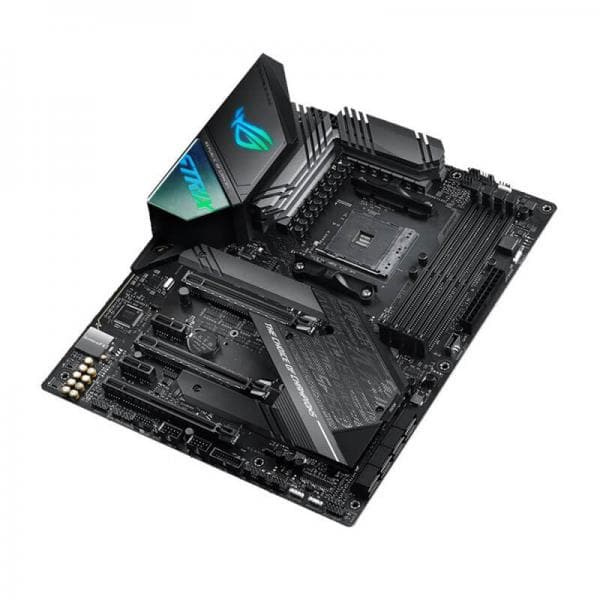

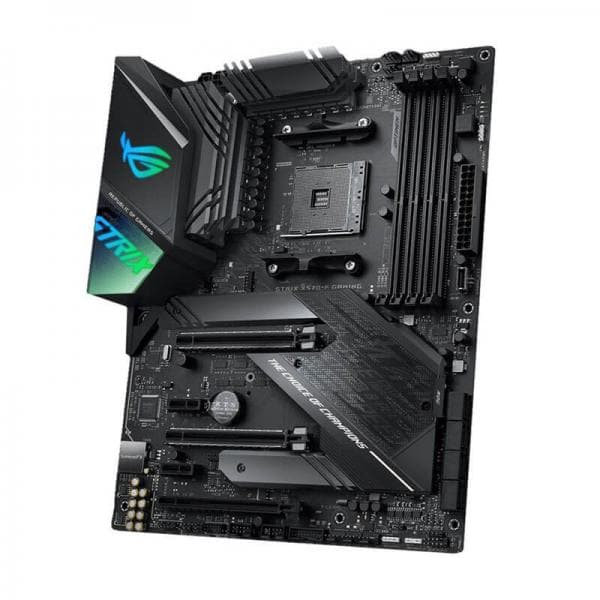

- ASUS ROG Strix X570-F Gaming DDR4 AMD Motherboard
Description
Feature of ASUS ROG Strix X570-F Gaming DDR4
AMD X570 ATX gaming motherboard with PCIe 4.0, Intel Gigabit Ethernet, 14 power stages, dual M.2 with heatsinks, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting
- AM4 socket: X570-F Ready for 2nd and 3rd Gen AMD Ryzen™ processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
- Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 GRB headers
- Optimal Power Solution: 12+2 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
- Comprehensive cooling: Active chipset heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
- Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
- Gaming networking: Intel Gigabit Ethernet, ASUS LANGuard and GameFirst
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
- Gaming audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
- Easy DIY: ROG-patented pre-mounted I/O shield, ASUS SafeSlot, ASUS Node connector and BIOS Flashback™ for a friendlier building experience
The ASUS ROG Strix X570-F Gaming motherboard delivers the quintessential ROG experience with a compelling mix of features, comprehensive cooling options and undeniable style that provide the ideal foundation for building a powerful ATX gaming system. Topped off with a futuristic new design aesthetic with on-board RGB lighting and a cyber-text pattern, ROG Strix X570-F Gaming equips you with all you need to build a formidable weapon to rise above the rest.
SOLID HARDWARE SPECS
With comprehensive cooling options and upgraded power delivery to fuel Ryzen CPUs with more cores, plus faster storage and networking, ROG Strix X570-F Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.
DESIGN & CUSTOMIZATION
The arrival of ROG Strix X570-F Gaming brings a brand-new design that features unique rainfall and cyber-text patterns. Together with the most diverse ecosystem of components in the industry, ROG Strix X570-F Gaming makes creating and customizing a gaming rig that reflects your personal style wonderfully easy.
TUNE YOUR RIG YOU WANT
The ROG Strix X570-F Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.
Specifications of ASUS ROG Strix X570-F Gaming DDR4
| CPU | AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
| Chipset | AMD X570 |
| Memory |
3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory * 2nd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory * 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory Dual Channel Memory Architecture |
| Graphic |
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
| Multi-GPU Support |
3rd and 2nd Gen AMD Ryzen™ Processors Supports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Supports AMD 2-Way CrossFireX™ Technology |
| Expansion Slots |
3rd Gen AMD Ryzen™ Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen™ Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) *1 2 x PCIe 4.0 x1 |
| Storage |
3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN |
Intel® I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst Technology |
| Audio |
SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III Sonic Studio Link |
| USB Ports |
3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A 1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board) |
| ROG Exclusive Features |
ROG Exclusive Software - RAMCache III - CPU-Z - GameFirst V - Sonic Studio III Sonic Studio Link - Sonic Radar III - Overwolf |
| Special Features |
5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost Gamer's Guardian: - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI VRM - SafeSlot - ESD Guards on LAN, Audio,and USB ports ASUS EPU : - EPU AURA : - Aura Lighting Control - Addressable Gen 2 Header ASUS Exclusive Features : - USB BIOS Flashback® - AI Suite 3 - Ai Charger - ASUS NODE : hardware control interface - BIOS Flashback® Button ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics : - AURA-RGB Lighting |

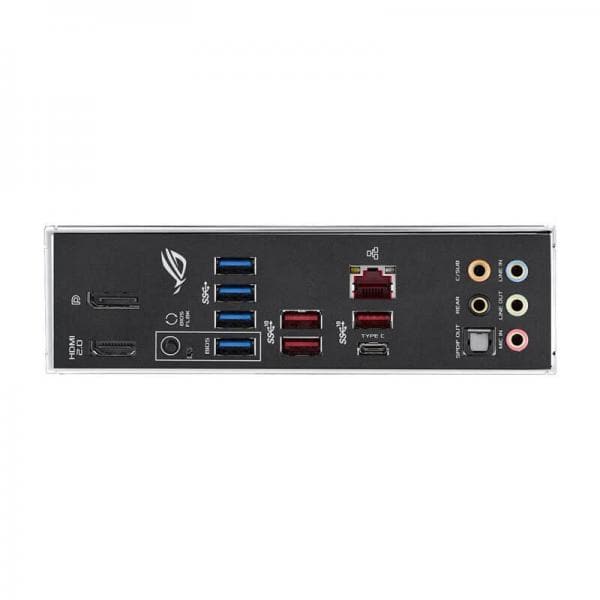

| Back I/O Ports |
1 x DisplayPort 1 x HDMI 5 x USB 3.1 Gen 1 Type-A 8 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS Flashback® Button(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) Anti-surge LAN (RJ45) port |
| Internal I/O Ports |
1 x PCH_FAN 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x T_Sensor Connector 1 x M.2 Fan Header 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. |
| Manageability | WOL, PXE |
| Support Disc |
Overwolf Anti-virus software (OEM version) WinRAR |
| Operating System | Windows® 10 64-bit |
| Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
