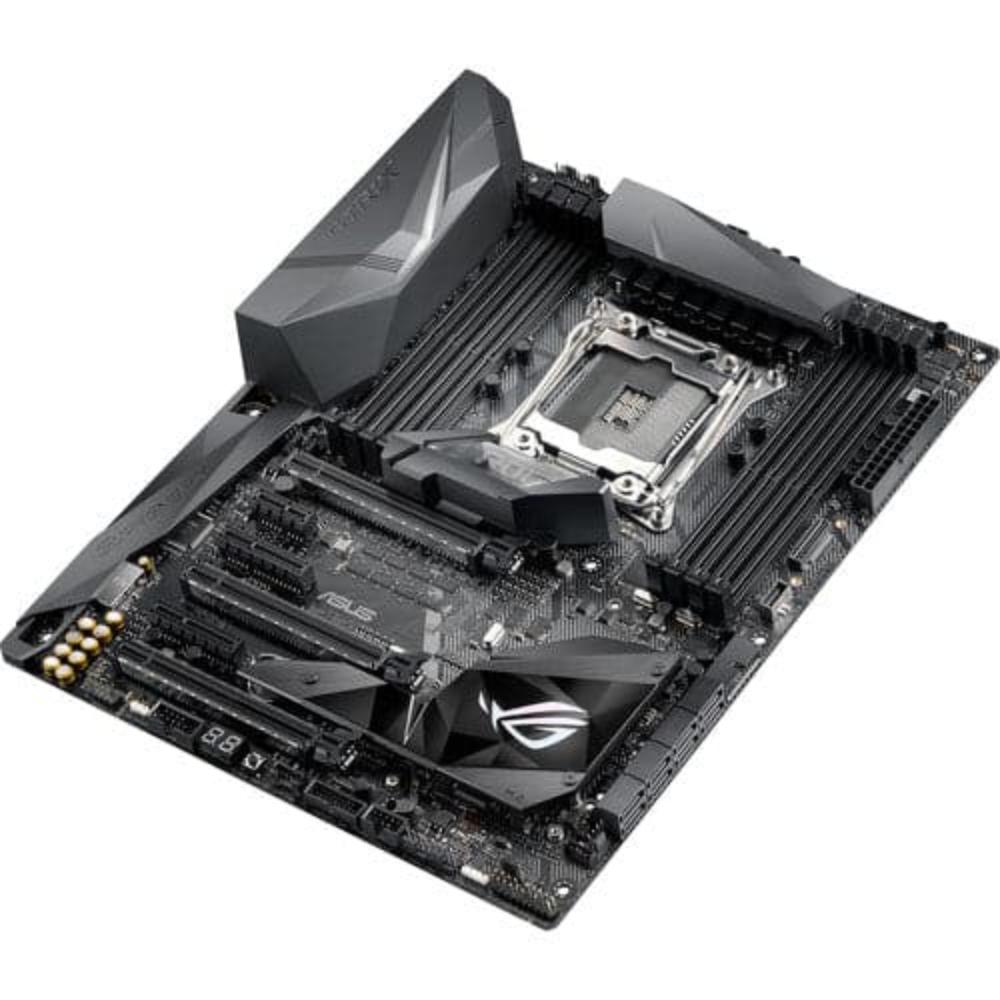

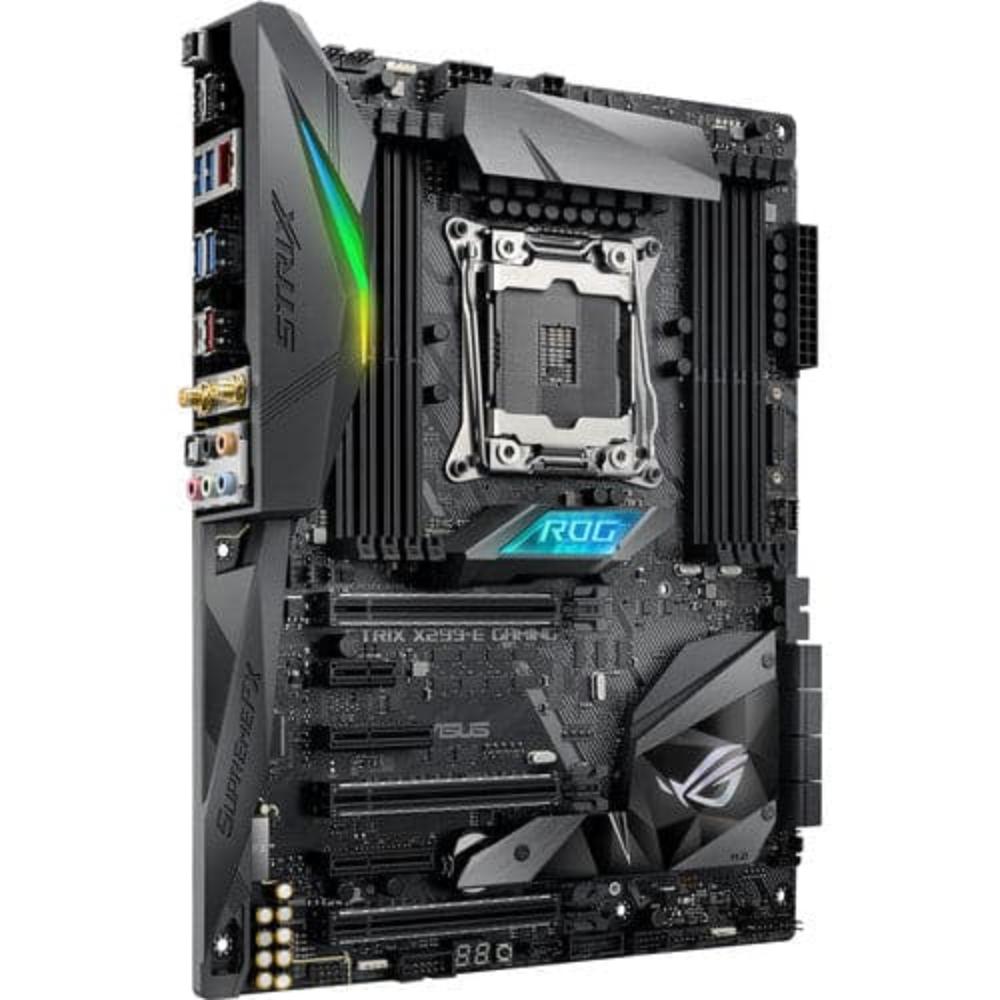

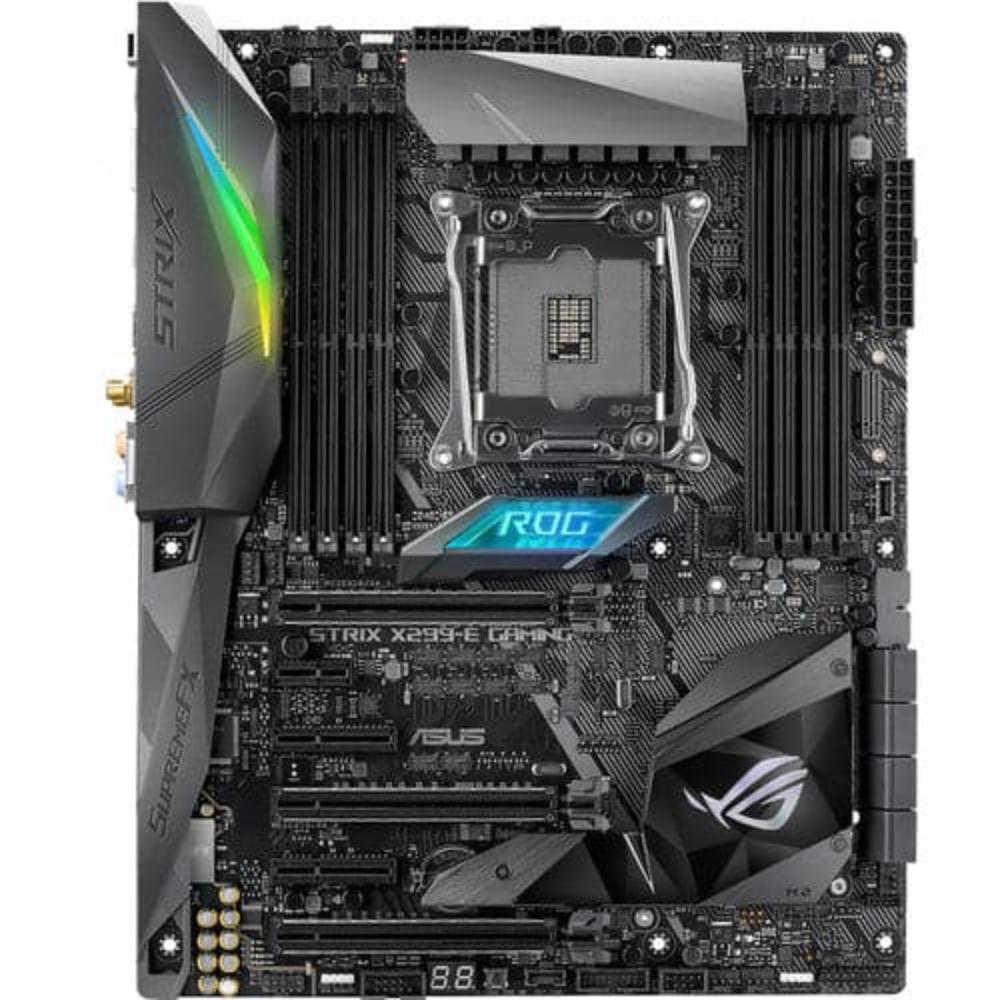

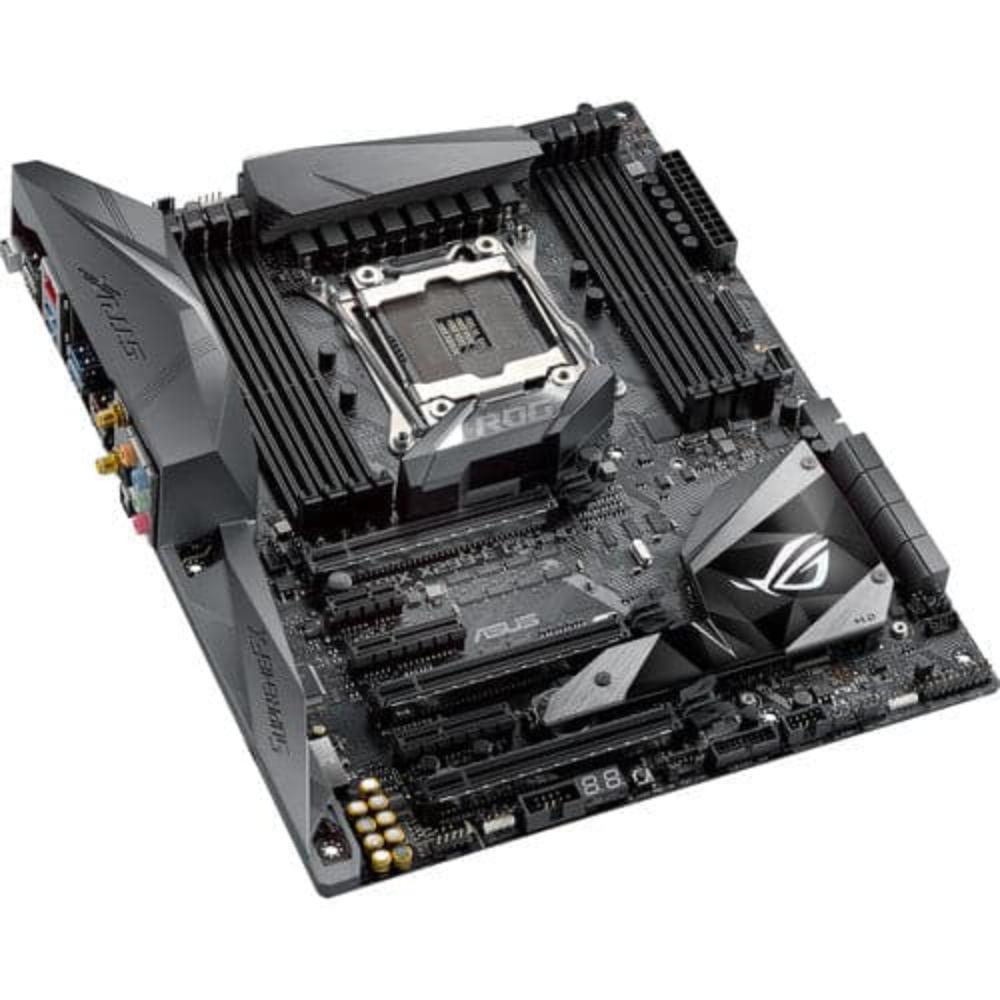

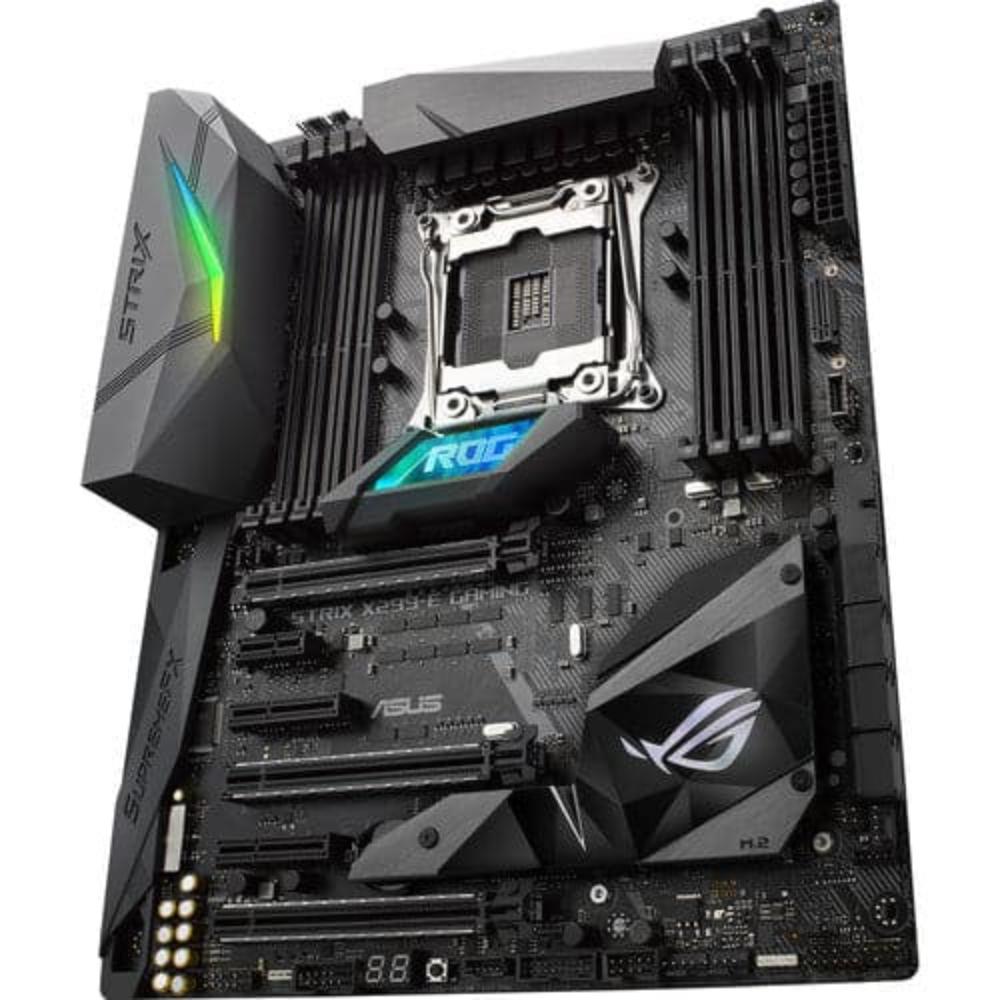

- ASUS ROG Strix X299-E Gaming DDR4 Intel Motherboard
Description
Feature of ASUS ROG Strix X299-E Gaming DDR4
- Designed for 7th generation LGA2066 socket Intel® Core™ X-Series processors to maximize connectivity and speed with dual M.2, front panel USB 3.1, onboard 802.11AC WIFI, Intel® VROC , and Intel® Optane™ Memory compatibility
- 5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling
- Patent-pending SafeSlot (3X) feature an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
- Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting, three additional RGB headers and 3D-printing mounts to customize your build
- Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220A driven by Japanese capacitors citors
ASUS ROG Strix X299-E Gaming is loaded with powerful tuning, overclocking, cooling and personalization innovations to make your next build as agile as your ambitions. We've channeled ROG engineering ingenuity into Strix X299-E Gaming to create a standout ATX motherboard that's tricked out with superior SupremeFX audio for deeper in-game immersion, Aura Sync lighting with an all-new addressable-RGB-strip header to unleash infinite illumination possibilities, and special mounts that make it easy to create your own 3D-printed upgrades. Infused with the essential gaming spirit that is ROG, Strix X299-E Gaming is hungry for high-performance Intel® Core™ X Series processors — and ready to satisfy your desire for X299.
ASUS Aura Sync takes RGB lighting beyond the checkbox, combining and controlling the LEDs across all of your Aura-enabled products from a single application to achieve perfect, synchronized harmony. From motherboards and RGB strips to graphics cards and beyond, Aura Sync enables a veritable symphony of light for ultimate personalization.
AURA ADDRESSABLE HEADER RGB LIGHTING PERFECTED
Strix X299-E Gaming motherboard now includes a dedicated addressable RGB header* that connects to compatible lighting strips, fans, coolers, and compatible PC cases, creating a new world of illumination possibilities. Our Aura software contains an array of effects for addressable gear, and the Aura SDK takes things to the next level — allowing developers to control each LED individually, unleashing infinite lighting possibilities! Strix X299-E Gaming motherboard includes a convenient 80cm extension cable, making it easy to fit an addressable RGB strip wherever you want, and we've worked with strip, fan, and chassis vendors to ensure an ever-growing choice of compatible addressable gear.
INFINITE LIGHTING POSSIBILITIES
ASUS Aura SDK allows developers to take full advantage of the vast eco-system of Aura Sync-capable PC gear. From in-system illumination to peripherals and beyond, the SDK provides an evolving toolkit of options to enhance games and software with RGB lighting. Game effects, alerts, and audio can all be portrayed via Aura-compatible hardware, creating subtle or dazzling visual cues to augment the action. There's also scope to map system parameters such as temperatures to lighting, giving enthusiasts new ways to monitor vital information.
PERFECTED COOLING FOR UNLEASHING PERFORMANCE
Strix X299-E Gaming motherboards are equipped with an M.2 heatsink integrated into the PCH heatsink. With a huge cooling surface, the M.2 heatsink perfectly chills an inserted M.2 SSD — for consistent performance and reliability. Featuring a stylish angular design, the M.2 heatsink adds a beautiful touch to the build, while the T-sensor detects temperatures in the vital M.2 area for instant monitoring.
M.2 FAN HOLDER
The ASUS 3D-printed M.2 fan holder keeps temperatures low for improved performance and longevity.
EXCLUSIVE 3D MOUNT FOR EASY INSTALLATION
Dedicated 3D Mounts on the motherboard makes fitting 3D-printed parts easy. Using the same screws as M.2 drives and standard motherboard mounting holes, you can easily add an M.2 fan holder. *Products with the 3D Printing Friendly logo feature the specialized 3D Mount and are also bundled with an extra 3D mount kit.
DDR4 OVERCLOCKING STRENGTH IN NUMBERS
With support for DDR4 memory, Strix X299-E Gaming lets you drive memory frequencies to 4133MHz — and even beyond when overclocked! ASUS-exclusive T-Topology circuit design plus OC Socket provides superb memory-overclocking capability to unleash the full power of DDR4 by minimizing coupling noise and signal reflection. With innovative equidistant memory channels, T-Topology delivers balanced control and powerful overclocking compatibility.
ASUS PRO CLOCK II TECHNOLOGY
A dedicated base-clock (BCLK) generator designed for Intel Core X series processors allows overclocked base-clock frequencies up to or beyond 400MHz*. This custom solution works in tandem with the ASUS TurboV Processing Unit (TPU) to enhance voltage and base-clock overclocking control, providing an exciting new way to boost performance to extreme heights.
5-WAY OPTIMIZATION
GET PERFORMANCE, EFFICIENCY, DIGITAL POWER, FAN CONTROL AND EVEN NETWORKING AND AUDIO TUNING TAILORED FOR YOU — AND THE WAY YOU PLAY!
INSTANT CPU PERFORMANCE BOOST
Crank up your PC instantly with the ASUS AI Suite 3 utility! The TurboV Processing Unit offers precise voltage control and advanced monitoring for the CPU and the graphics card, enabling great freedom to adjust CPU frequencies and ratios for optimized performance and for exploiting the potential out of your graphics card*
ALL-ROUND ENERGY EFFICIENCY
With the Energy Processing Unit (EPU) you'll enjoy real-time, system-wide power savings — for gaming kicks that won't cost the earth! EPU automatically detects and adjusts power consumption according to your rig's needs, so you save money without compromising on thrills. EPU will also reduce CPU wattage to a set level and deliver even more savings with Away mode, creating an extreme energy-saving scenario that shuts down unused extra I/O controllers and reduces the power level of the graphics card. That means full power for your gameplay — and then total energy efficiency when you step away!
Specifications of ASUS ROG Strix X299-E Gaming DDR4
CPU | Intel® Socket 2066 Core™ X-Series Processors |
Chipset | Intel® X299 |
Memory |
(Intel® Core™ i9 10000 X-Series CPU) 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory (Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU) 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Quad Channel Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
Multi-GPU Support |
Supports NVIDIA® 3-Way SLI® Technology Supports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology Supports AMD 2-Way CrossFireX Technology |
Expansion Slots |
48-Lane CPU- (Intel® Core™ i9 10000 X-Series CPU) 3 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x8) 44-Lane CPU- (Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU) 3 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x4) 28-Lane CPU- (Intel® Core™ i7 7000 X-Series CPU) 3 x PCIe 3.0 x16 ( x16, x16/x8, x16/x8/x4) Intel® X299 Chipset 1 x PCIe 3.0 x4 1 x PCIe 3.0 x1 *1 |
Storage |
Intel® Core™ X-Series Processors Family : 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2 Intel® Virtual RAID on CPU(VROC) Intel® X299 Chipset : 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode), 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready *3 |
LAN |
Intel® I219V Realtek® RTL8125-CG 2.5G LAN Anti-surge LANGuard ROG GameFirst Technology |
Wireless Data Network | Intel® Wi-Fi 6 AX200 |
Bluetooth | Bluetooth® 5.0 |
Audio |
SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR stereo playback input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *4 Audio Feature : - SupremeFX Shielding™ Technology - DTS® Sound Unbound - Optical S/PDIF out port(s) at back panel - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Sonic Radar III - Sonic Studio III + Sonic Studio Virtual Mixer |
USB Ports |
ASMedia® USB 3.2 Gen 2 controller : 1 x USB 3.2 Gen 2 front panel connector port(s) ASMedia® USB 3.2 Gen 2 controller : 4 x USB 3.2 Gen 2 (up to 10Gbps) port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) Intel® X299 Chipset : 6 x USB 3.2 Gen 1 (up to 5Gbps) port(s) (2 at back panel, , 4 at mid-board) Intel® X299 Chipset : 8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board) |
ROG Exclusive Features |
ROG CPU-Z Overwolf USB BIOS FlashBack™ ROG Exclusive Software - GameFirst V - Overwolf - Sonic Studio III + Sonic Studio Virtual Mixer |
Special Features |
OC Design - ASUS PRO Clock II Technology ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App AI Overclocking LiveDash OLED AURA : - Aura Lighting Control - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS Exclusive Features : - USB BIOS FlashBack™ - AI Suite 3 - Ai Charger - Onboard Button : Power - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Armoury Crate - ASUS NODE: hardware control interface ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS USB BIOS FlashBack™ - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector |

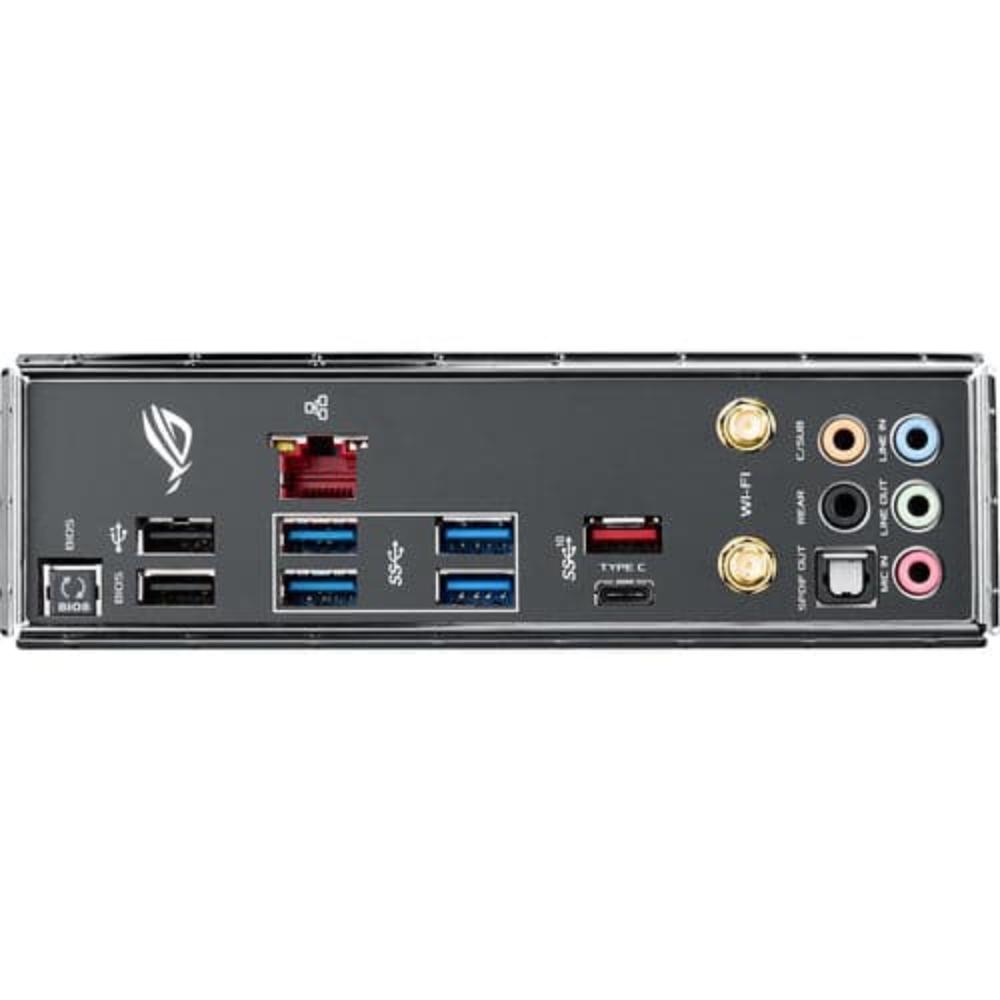

Back I/O Ports |
1 x LAN (RJ45) port(s) 4 x USB 2.0 (one port can be switched to USB BIOS FlashBack™) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x Anti-surge 2.5G LAN (RJ45) port 1 x Wi-Fi antenna port(s) 1 x USB BIOS FlashBack™ Button(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM) |
Internal I/O Ports |
1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s connector(s) 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x System panel(s) (Q-Connector) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x CPU_OV jumper 1 x M.2 Fan Header 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports |
Accessories |
User's manual 1 x Vertical M.2 bracket set 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ROG Strix stickers 1 x Q-Connector 1 x M.2 screw kit (long screw and mount) 1 x Cable ties pack(s) 1 x Wi-Fi Antenna(s) 1 x ROG Door Hanger(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x Thermistor cable(s) 1 x ROG Thank you card |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
Manageability | WOL, PXE |
Support Disc |
Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
Operating System | Windows® 10 64-bit |
Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
