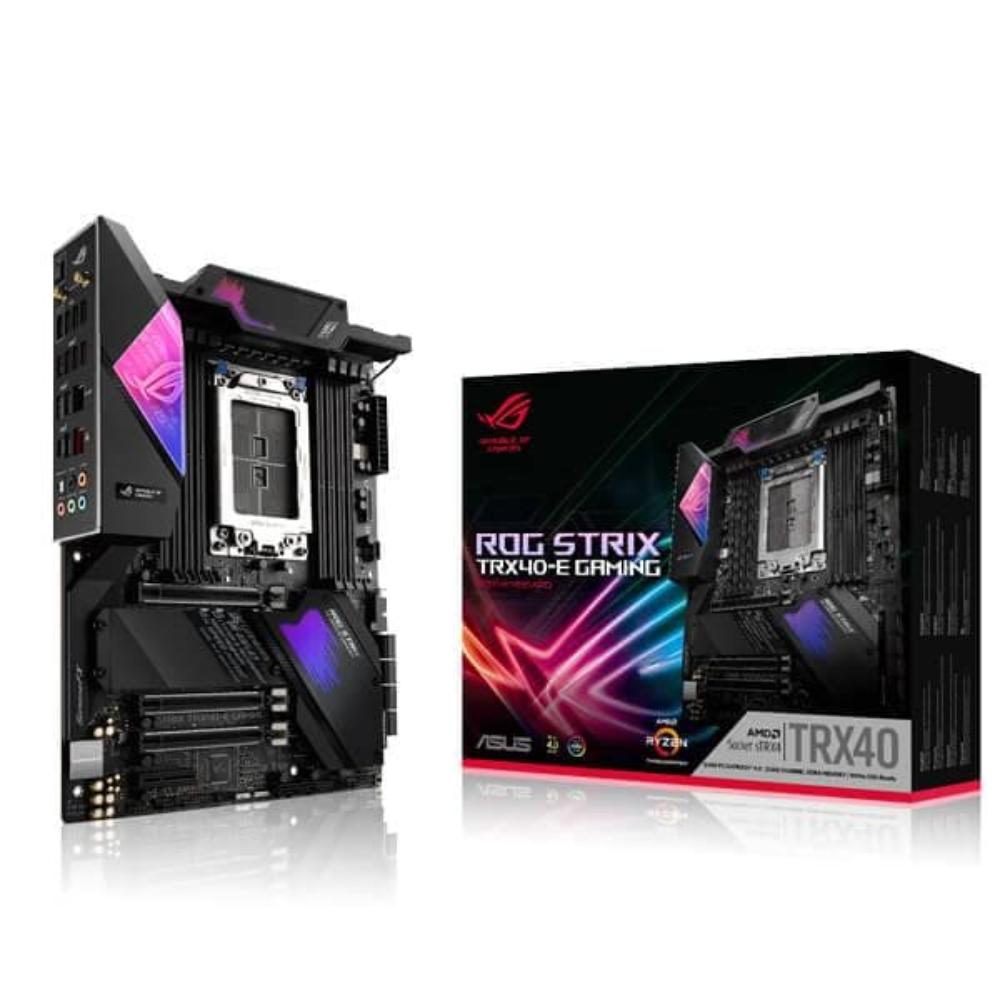

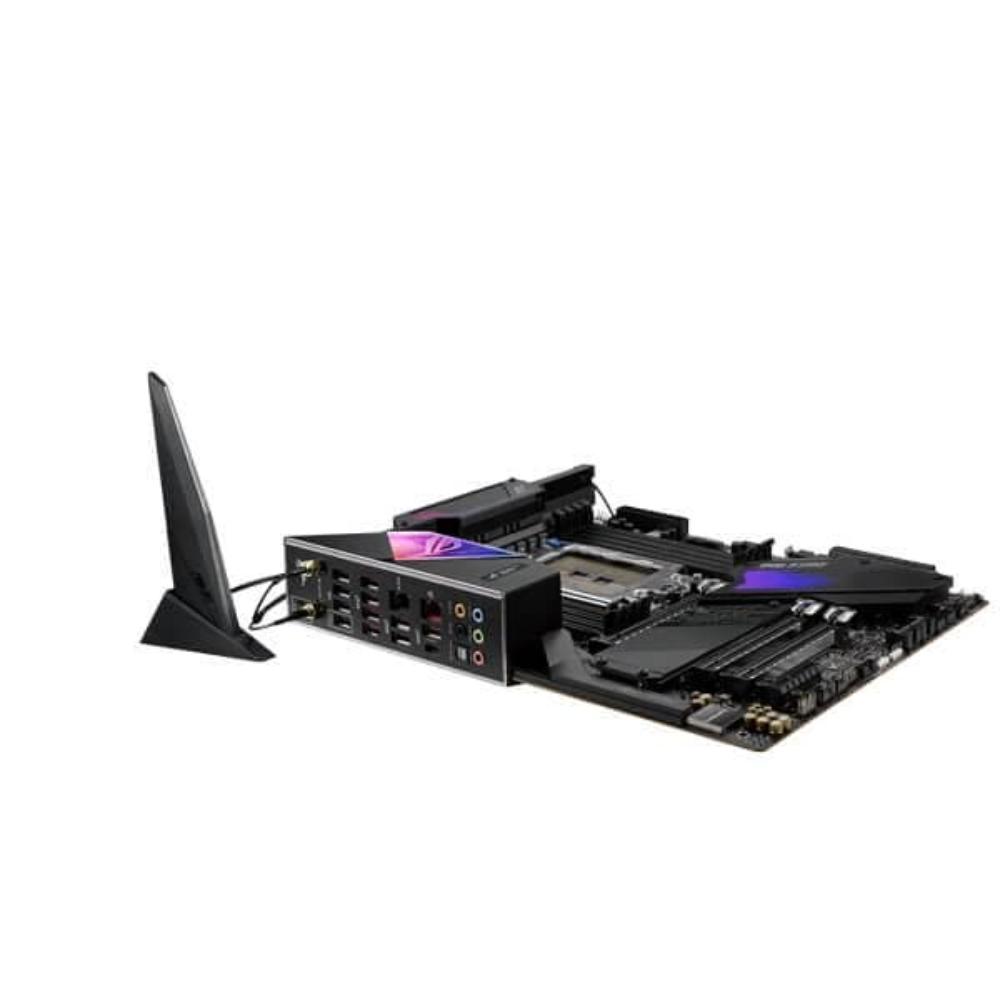

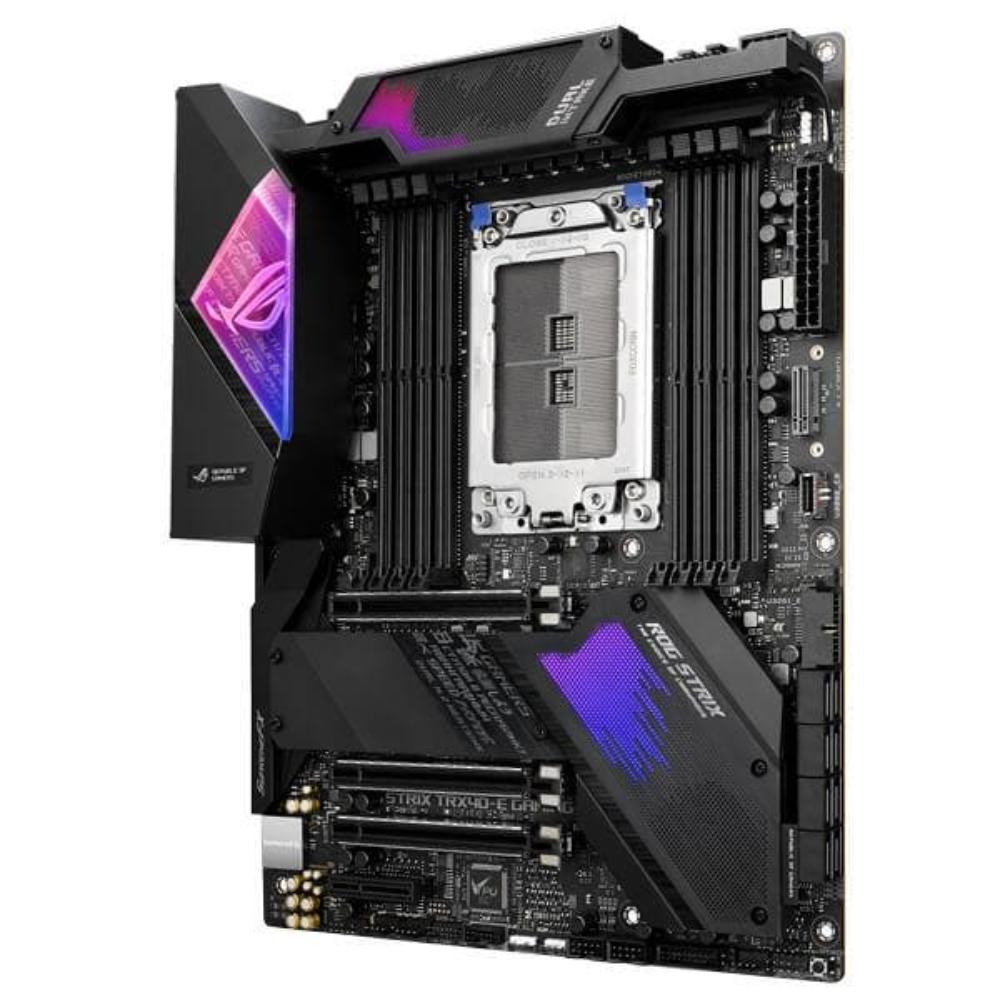

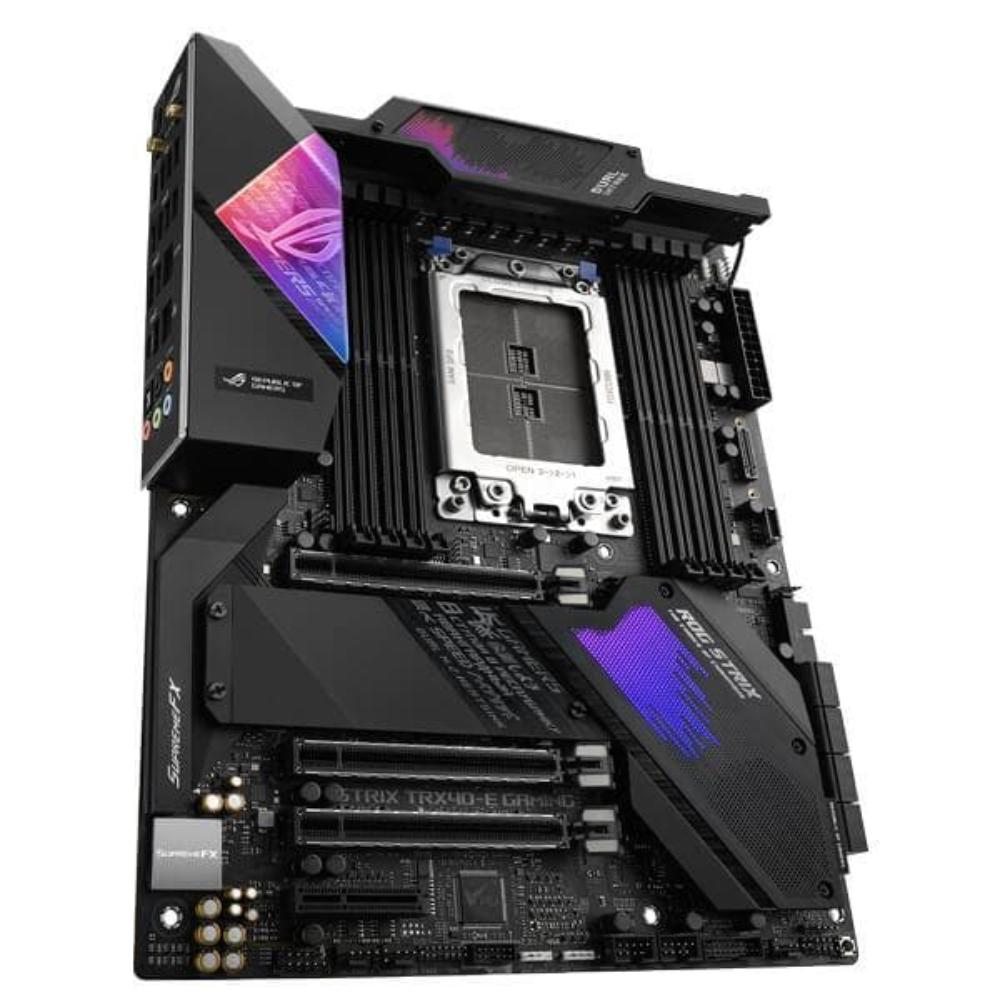

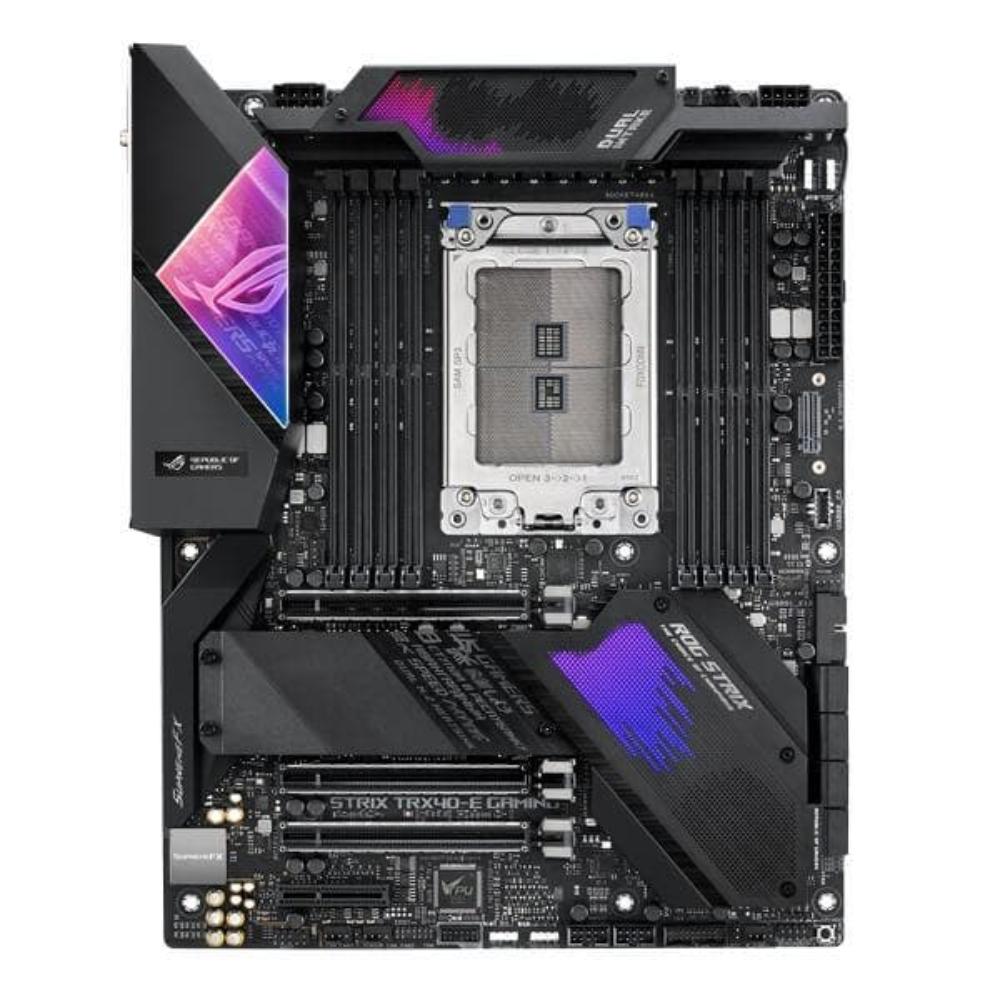

ASUS ROG Strix TRX40-E Gaming DDR4 AMD Motherboard

Feature of ASUS ROG Strix TRX40-E Gaming DDR4

• Ready for the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors to maximize connectivity and speed with up to three M.2 drives, USB 3.2 Gen 2
• Unmatched personalization: OLED and Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
• Optimal Power Solution: 16 power stages with ProCool II power connector, high-quality chokes and durable capacitors to support multi-core processors
• Comprehensive cooling: Active cooling VRM and Chipset heatsink, stacked-fin heatsink, with on-board dual M.2 heatsinks and a water pump+ header
• Gaming connectivity: Three M.2, USB 3.2 Gen 2 Type-C port and Type-C front panel connector
• Gaming networking: 2.5Gbps LAN and Intel® Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO, and gateway teaming via GameFirst V
• Gaming audio: High fidelity audio with SupremeFX S1220, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
• Easy DIY: ROG-patented pre-mounted I/O shield, Flexkey, ASUS SafeSlot, ASUS Node connector and BIOS FlashBack™ for a friendlier building experience

SOLID HARDWARE SPECS

With comprehensive cooling options and robust power delivery to fuel CPUs with more cores, plus faster storage and memory, ROG Strix TRX40-E Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.

POWER DESIGN

Digital power control and an array of power stages ensures ROG Strix TRX40-E Gaming has the muscle to control the latest Threadripper CPUs.

COOLING INNOVATION

An active VRM heatsink provides a large contact area for the MOSFETs and chokes, enabling more efficient cooling of the MOS heatsink for better performance and wattage resistance. A backplate on the rear of the board helps balance MOSFET temperatures while providing structural reinforcement. A high-quality thermal pad helps transfer heat from the inductor and phase array to the heatsink. Closely-packed, multi-layered fins maximize the surface area to speed heat dissipation from the controller, improving cooling. PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. ROG Strix TRX40-E Gaming features an actively cooled heatsink to prevent throttling during sustained transfers.The M.2 heatsink keeps the Dual M.2 SSD at the optimum operating temperature for consistent performance and reliability.

GAMING ENHANCEMENT

ROG Strix TRX40-E Gaming is engineered with the latest connectivity for the best gaming experiences. Transfer files faster and banish lag as you secure more victories.

DDR4 OC 4666MHz+

The TRX40 platform delivers ample bandwidth on multiple fronts. Its quad-channel memory controller supports up to 256 GB of DDR4 memory across eight slots and an optimized trace layout enables DDR4 memory overclocking with maxed-out speeds for your build.

Triple PCIe 4.0 M.2

ROG Strix TRX40-E Gaming features triple M.2 slots. The M.2_3 slot supports both SATA and PCIe 4.0 x4 modes, and the other slots support PCIe 4.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available

NEXT-GEN CONNECTIVITY

ROG Strix TRX40-E Gaming amps up networking with 2.5G Ethernet and next-gen Intel® Wi-Fi 6 (802.11ax) that surpasses gigabit speeds to take your LAN to the next level. With ROG GameFirst software that offers multi-gate teaming, you'll enjoy the very best online gaming experience.The latest 802.11ax standard delivers high efficiency wireless connectivity for better gaming enjoyment. As well as providing better network pings in multi-user environments, 802.11ax also greatly improves throughput and coverage over earlier standards. 2.5G on-board Ethernet kicks your Ethernet connection up a notch with an up to 2.5X bandwidth improvement. Using your existing Ethernet cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.ROG Strix TRX40-E Gaming features Intel Ethernet (I211-AT), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.

SUPREMEFX

Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset

DESIGN & CUSTOMIZATION

A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix TRX40-E Gaming wonderfully easy.

TUNE YOUR RIG YOU WANT

The ROG Strix TRX40-E Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.

Specifications of ASUS ROG Strix TRX40-E Gaming DDR4
