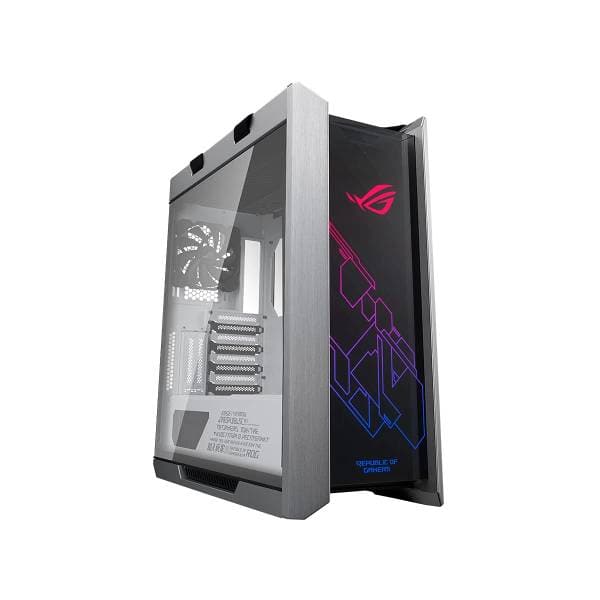

Asus ROG Strix Helios GX601 RGB Mid Tower Cabinet (White)
Features:

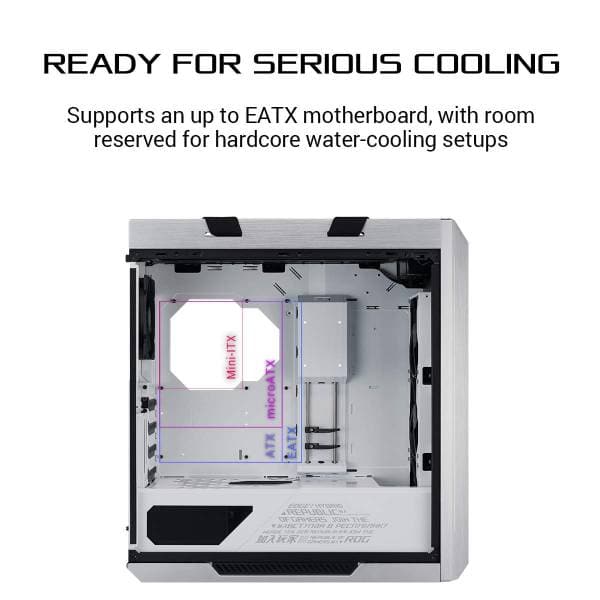

Display your build or take it on the go with the white ROG Strix Helios GX601 Mid-Tower Case from ASUS. Utilizing a mid-tower design, this case supports E-ATX, ATX, micro-ATX, and mini-ITX boards. A drive cage supports two 2.5/3.5″ drives. Four drive plates allow 2.5″ drives to be installed on the side of the case, and an internal mounting position accommodates a fifth 2.5″ drive. Users can also install up to two or four more optional 2.5/3.5″ or 2.5″ bays, respectively, for even greater storage capabilities. This case also features eight horizontal and two vertical expansion slots, and GPUs up to 17.72″ are supported. ATX PSUs and CPU coolers up to 8.66 and 7.48″, respectively, are also supported.
The ROG Strix Helios comes with four preinstalled 140mm fans, including three at the front and one at the rear. Users can install additional fans at the top of the case for improved airflow, or go the liquid cooling route by installing radiators. Radiators up to 140, 360, and 420mm are supported at the rear, top, and front of the case. If installing radiators at the top or front of the case, the combined thickness of the radiator and fan should not exceed 2.36 and 3.54″, respectively.

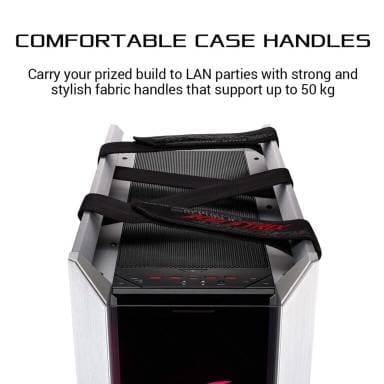

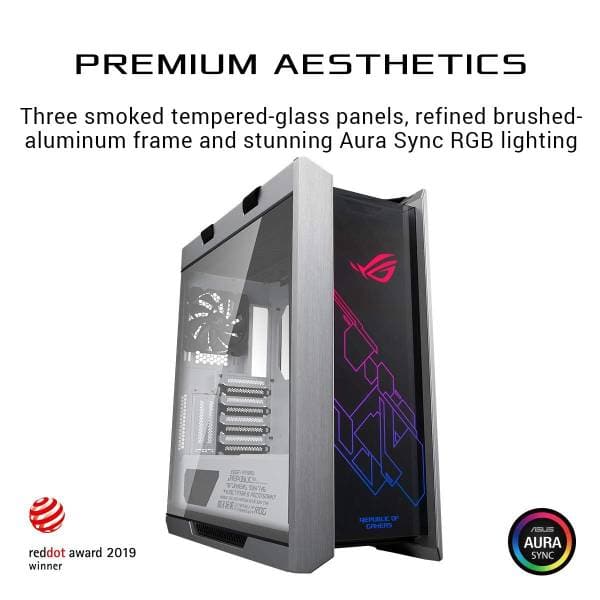

Featuring an aluminum and steel construction, the Helios sports a tempered glass panel with quick-release switches. An integrated fan controller allows you to adjust fan speed and the case lighting effect, including the RGB logo on the front of the case. Removable filters at the front, top, and bottom of the case prevents dust from getting inside the case and keeps your build looking clean. Further facilitating a clean look, a 1.30″ cable routing space helps keep extra wiring out of sight. On the top I/O panel, users can take advantage of a USB 3.1 Gen 2 Type-C port and four Gen 1 Type-A ports, as well separate 3.5mm ports for audio input and output. The ASUS ROG Strix Helios features fabric handles for easy transport.
Aura Sync RGB Lighting
Featuring integrated addressable RGB LEDs in the front panel that can be customized using a dedicated control button or with Aura software, the ROG Strix Helios can use millions of colors and a range of effects.
Translucent Rear Cover
A translucent rear cover conceals unsightly wiring and allows illumination from the optional ROG Aura Terminal, SSDs, or other devices with RGB lighting to shine through.
Two-Piece PSU Shroud
The flexible two-piece PSU shroud has a front cut-out to enable compatibility with ROG Thor or other OLED-integrated power supplies, available separately.
Multifunction Cover

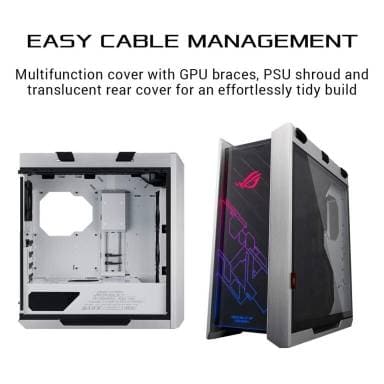

A multifunction cover with GPU braces hides cabling, provides support to graphics cards, and allows for an SSD to be mounted for display. Its position can be adjusted to accommodate an ATX or E-ATX motherboard.
Removable Mounting Brackets
Two removable brackets let you easily mount fans and radiators before installing the whole unit into the case, simplifying your building experience.
Side-Panel Release Buttons
One push of the release buttons at the rear of the case lets you swing down the side panels for toolless access to the interior. The tempered-glass panels are bottom-hinged, meaning they will remain supported at an angle until you’re ready to detach them completely.
Multi GPU Support
Fit up to three graphics cards in standard orientation, or two vertically for extra showcase flair using the included bracket.
Specifications:
| Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX |
| External Drive Bays | None |
| Internal Drive Bays | 2 x 2.5/3.5″ |
| And | |
| 4 x 2.5″ | |
| Expansion Slots | 8 x Full Height + 2 |
| Maximum GPU Length | 17.72″ / 450 mm |
| CPU Cooler Height | 7.48″ / 190 mm |
| Supported PSU Size | ATX |
| Maximum PSU Length | 8.66″ / 220 mm |
| PSU Mounting Location | Bottom |
| Fan Mounting (Front) | 3 x 120 mm |
| Or | |
| 3 x 120 mm | |
| Fan Mounting (Rear) | 1 x 120 mm |
| Or | |
| 1 x 140 mm | |
| Fan Mounting (Side) | None |
| Fan Mounting (Top) | 3 x 120 mm |
| Or | |
| 2 x 140 mm | |
| Fan Mounting (Bottom) | None |
| Fans Included (Front) | 3 x 140 mm |
| Fans Included (Rear) | 1 x 140 mm |
| Fans Included (Top) | None |
| Maximum Radiator Size (Front) | 420 mm |
| Maximum Radiator Size (Rear) | 140 mm |
| Maximum Radiator Size (Top) | 360 mm |
| Fan Controller Included | Yes |
| Filter Locations | Bottom, Front, Top |
| Connections | 1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2) |
| 4 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) | |
| Media/Memory Card Slot | None |
| Audio Connections | 1 x 3.5 mm Input |
| 1 x 3.5 mm Output | |
| Display Connections | None |
| Windowed Panel | Yes |
| Material | Aluminum, Steel, Tempered Glass |
| Certifications | REACH, RoHS, as per Manufacturer |
| Built-In Lighting | Yes |
| Tool-Less Design | Thumbscrews |
| Cable Management Space | 1.30″ / 33 mm |
| Dimensions (W x H x D) | 9.84 x 23.27 x 22.24″ / 250 x 591 x 565 mm |
| Weight | 39.68 lb / 18 kg |
| Warranty Length | Limited 2-Year Warranty |
| Package Weight | 47.5 lb |
| Box Dimensions (LxWxH) | 29 x 28 x 15.25″ |
