- Asus ROG Strix Geforce RTX 4070 Super OC 12GB NVIDIA Gaming Graphics Card
Description
Feature of Asus ROG Strix Geforce RTX 4070 Super OC 12GB NVIDIA Gaming Graphics Card
- Asus Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- OC mode: 2670 MHz (OC mode)/ 2640 MHz (Default mode)
- Axial-tech fans scaled up for 31% more airflow
- 3.12-slot design: massive fin array optimized for airflow from the three Axial-tech fans
- Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
WITH THE INCREDIBLE SUM OF ITS PARTS
The ROG Strix GeForce RTX™ 4070 SUPER brings a whole new meaning to going with the flow.
Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance.
The unleashed reign of the NVIDIA Ada Lovelace architecture is here.
NVIDIA Ada Lovelace Architecture
Designed to Give You Superpowers
New Streaming Multiprocessors
Up to 2X performance and power efficiency
Fourth-Gen Tensor Cores
Up to 4X performance with DLSS 3
vs. brute-force rendering
Third-Gen RT Cores
Up to 2X ray tracing performance
Axial-tech Upgrades
A Fresh Spin
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 31% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Reverse Rotation and 0dB Technology
Orchestrated Chill
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55°C, referencing a speed curve that balances performance and acoustics for work or play.
3.12-slot Design
Through Thick and Fin
The custom sink is generously sized and structured to soak up heat from the GeForce RTX 4070 SUPER GPU so that it can be efficiently whisked away by the three Axial-tech fans.
Premium Power Delivery
1st Responder
Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.
Compact PCB
Packs a Punch
Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent.
Metal Exoskeleton
Ultra-rigid

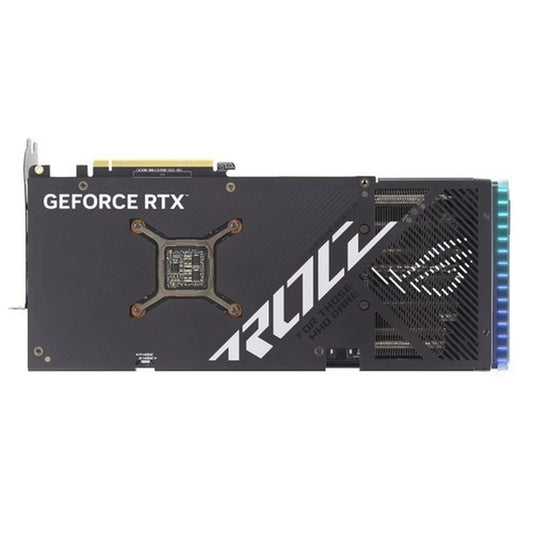

A high-quality diecast frame, shroud, and backplate tightly brace the PCB and strategically steer airflow.
GO WITH THE FLOW
It all comes together to effortlessly drive GeForce RTX™ 4070 SUPER performance to the max.
FanConnect II
Hook up
Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly attached to the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.
Reinforcements
Additional Perks

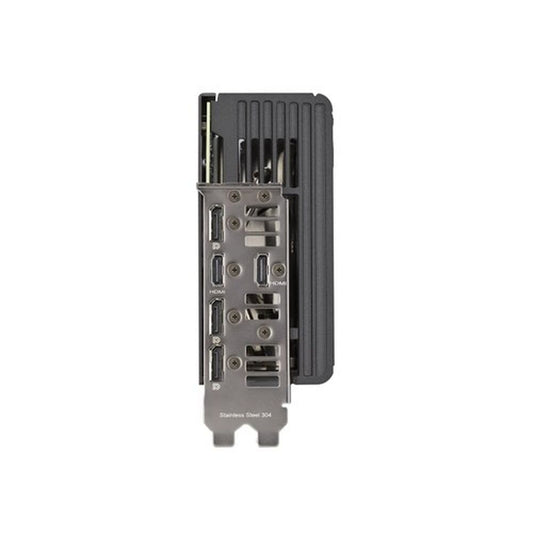

A GPU bracket provides extra stability to the critical connection between die and heat spreader. The rear I/O bracket is made from stainless steel to prevent corrosion in humid climates and provide a more resilient mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” speed profiles for the Axial-tech fans.
Specifications of Asus ROG Strix Geforce RTX 4070 Super OC 12GB NVIDIA Gaming Graphics Card
Graphic Engine | Asus ROG Strix Geforce RTX 4070 Super OC 12GB |
Bus Standard | PCI Express 4.0 |
OpenGL | OpenGL®4.6 |
Video Memory | 12GB GDDR6X |
Engine Clock | OC mode : 2670 MHz (Boost Clock) |
Default mode : 2640 MHz (Boost Clock) | |
CUDA Core | 7168 |
Memory Speed | 21 Gbps |
Memory Interface | 192-bit |
Resolution | Digital Max Resolution 7680 x 4320 |
Interface | Yes x 2 (Native HDMI 2.1a) |
Yes x 3 (Native DisplayPort 1.4a) | |
HDCP Support Yes (2.3) | |
Maximum Display Support | 4 |
NVlink/ Crossfire Support | No |

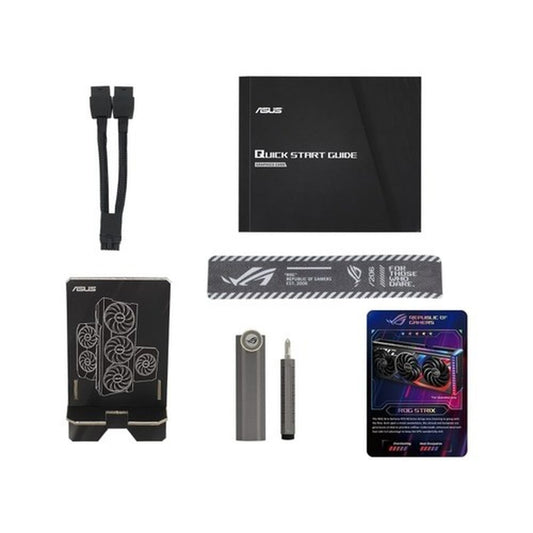

Accessories | 1 x Collection Card |
1 x Speedsetup Manual | |
1 x Thank you Card | |
1 x ROG Velcro Hook & Loop | |
1 x ROG Graphics card holder | |
1 x Adapter cable (1 to 2) | |
Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
Dimensions | 338.9 x 149.4 x 62.4 mm |
13.34 x 5.88 x 2.46 inch | |
Recommended PSU | 750W |
Power Connectors | 1 x 16-pin |
Slot | 3.12 slot |
AURA SYNC | ARGB |
