Features of ASUS ROG STRIX B860-G Gaming Wifi7 DDR5 Intel Motherboard

ROG STRIX B860-G gaming wifi Featuring Thunderbolt 4, PCIe 5.0, and Aura Sync lighting, the ROG Strix B860-G offers blazing-fast data transfers, outstanding connectivity, and a flexible aesthetic that adapts to bold or subtle preferences. Designed to meet the demands of elite gaming and advanced AI PC applications, it delivers the performance and speed you need.

ROBUST POWER SOLUTION: 14 + 1 + 2 + 1 power solution rated for up to 80A per stage

AI Networking II
WiFi 7
Thunderbolt 4
PCIe GEN 5 SUPPORT
DDR5: 9066+ MT/s,  MAX. 256GB, DIMM FIT, AEMP III
DIY-FRIENDLY DESIGN

ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7

NPU BOOST

The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%

Asynchronous Clock

For next-level frequency flexibility, the ROG Strix B860-G features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains.
Separate CPU BCLK from other domains for unfettered overclocking.

DDR5 DOMINATION

Enhanced signal routing can push enthusiast-grade kits well beyond the 9 GT/s threshold on the Strix B860-G.

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

DIMM Fit / DIMM Fit Pro

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues; whereas DIMM Fit Pro is an advanced option that provides more

News & Updates

Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below:

•Intel Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).

•Intel Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.

Specifications of ASUS ROG STRIX B860-G Gaming Wifi7 DDR5 Intel Motherboard

Model	ROG-STRIX-B860-G-GAMING-WIFI
CPU	Support Intel® Core™ Ultra Processors (Series 2)* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B860 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort 1 x HDMI™ port* 1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1. **Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. *** VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slots	Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2230/2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4* Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor’s website for details. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB	Rear USB (Total 10 ports) 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 1 x USB 20Gbps ports (1 x USB Type-C®) 1 x USB 10Gbps ports (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header supports 3 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers – Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

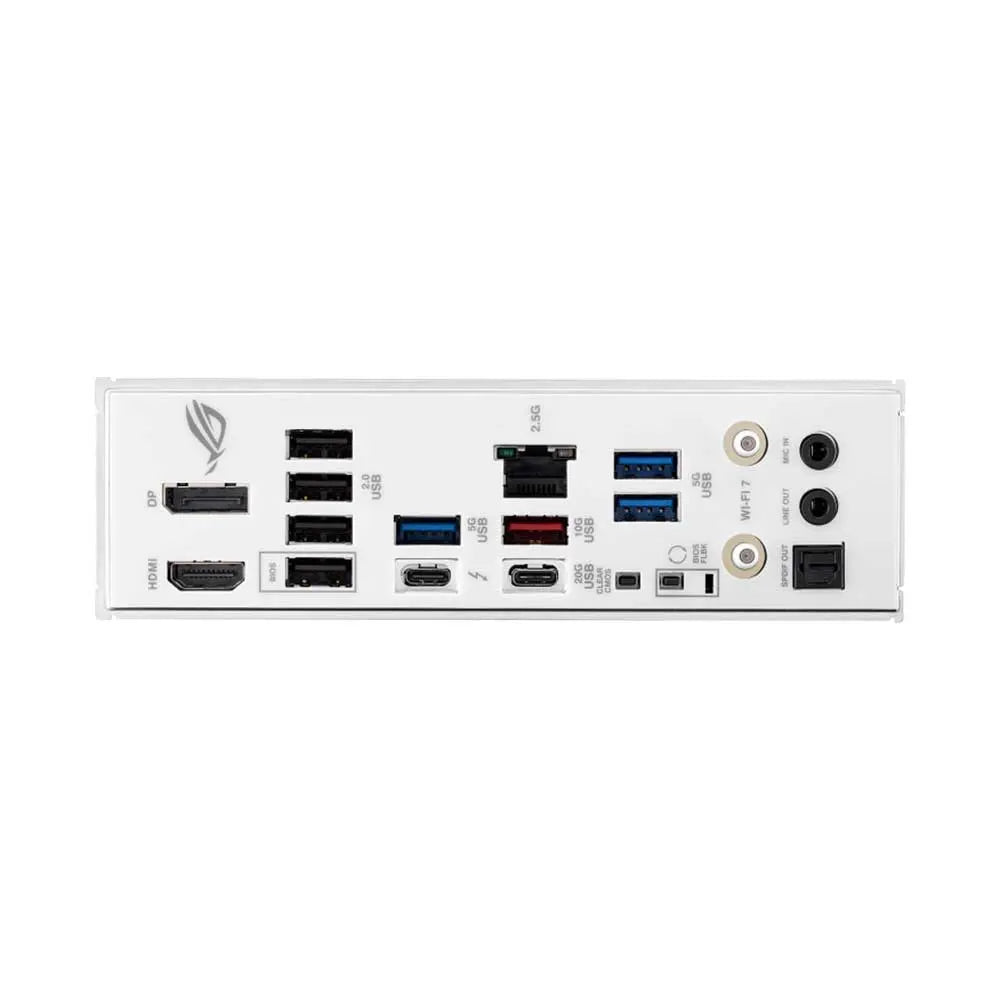

Back Panel I/O Ports	1 x Thunderbolt™ 4 USB Type-C® port(s) 1 x USB 20Gbps port(s) (1 x USB Type-C® with DP Alt mode) 1 x USB 10Gbps port(s) (1 x Type-A) 3 x USB 5Gbps port(s) (3 x Type-A) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header supports 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 header(s) 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header
Special Features	Extreme Engine Digi+ – 5K Black metallic capacitors ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – PCIe Slot Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – CPU Socket lever protector – ProCool – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Addressable Gen2 headers
Software Features	ROG Exclusive Software – ROG CPU-Z – Dolby Atmos ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 – GameFirst – Power Saving AIDA64 Extreme (60 days free trial) HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud 30 Days Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey NPU Boost
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, UEFI PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch 1 x M.2 Q-Slide 1 x ROG key chain 1 x ROG Strix stickers 3 x M.2 rubbers 1 x M.2 backplate rubber package(s) Documentation 1 x Quick start guide
Operating System	Windows 11 (22H2 & later)
Form Factor	micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Warranty	3 Years
Note**	**Prices, Specifications & Features are subject to change without notice
