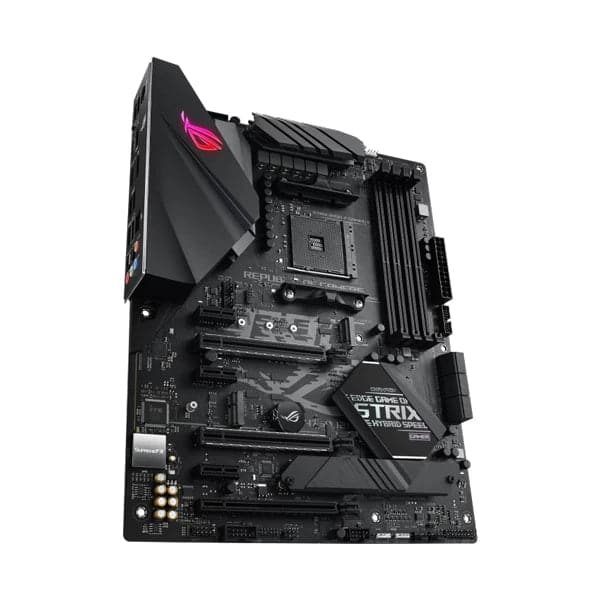

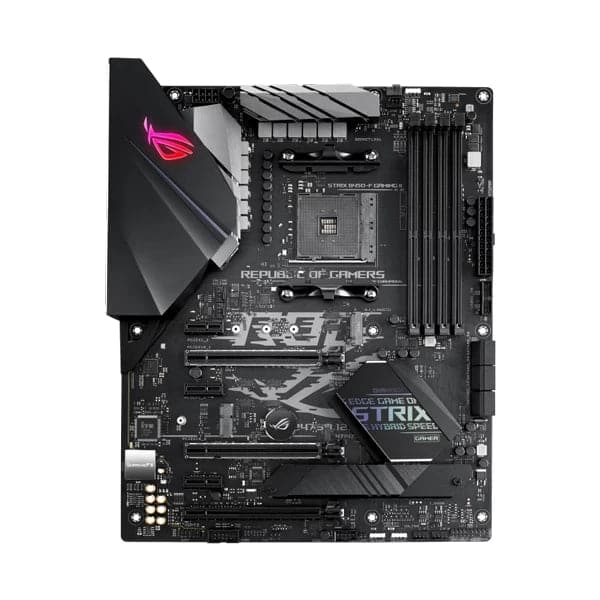

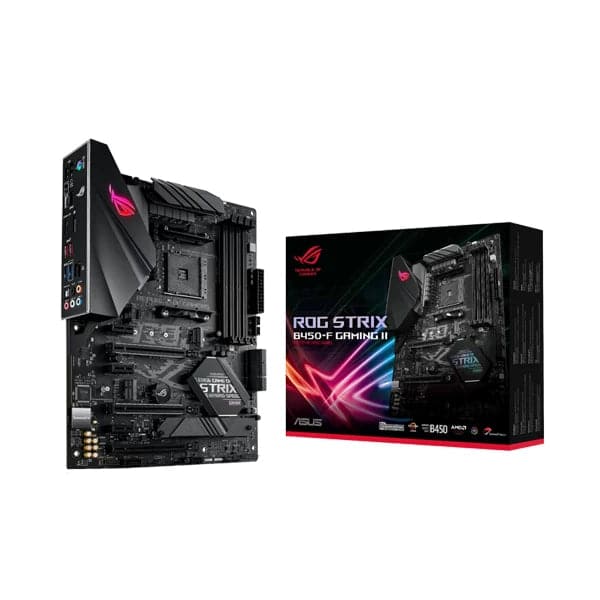

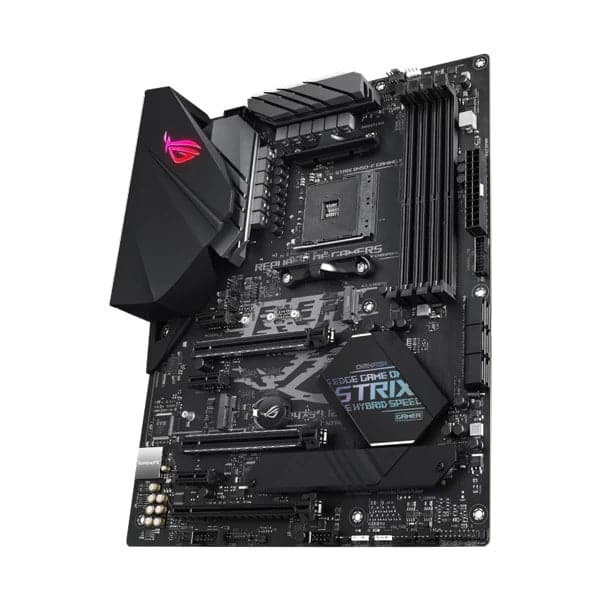

- ASUS ROG Strix B450-F Gaming II DDR4 AMD Motherboard
Description
Feature of ASUS ROG Strix B450-F Gaming II
Asus ROG Strix Gaming Series B450 Chipset Based AMD Ryzen Motherboard Relying on AM4 Socket, it comes with Ryzen 5000 Series CPU Support, Gigabit LAN, Realtek S1220A Audio Codec and A Solid VRM To Support Top Tier AMD CPU's
ASUS ROG Strix B450-F Gaming II delivers all the essentials needed for a well-balanced build. Designed to handle the latest 3rd Gen AMD Ryzen™ processors, ROG Strix B450-F Gaming II features amped-up power delivery, optimized thermal design and more stable DDR4 memory. BIOS FlashBack™ makes upgrading easy to give any dream build a head start, and intuitive ROG software ensures a superior gaming experience.
Amped Performance
With a robust power design to drive multi-core Ryzen processors, plus cooling, storage, connectivity and audio options for a wide range of hardware, ROG Strix B450-F Gaming II offers gamers everything they need for a budget or high-performance build.
VRM Thermal Design
The ROG Strix B450-F Gaming II uses new alloy chokes that deliver better efficiency, and high-quality thermal pads to help transfer heat from the VRM array to a sink that has ample surface area for the latest processors. And to ensure critical components always make optimal contact, there's a backplate on the rear of the board that helps balance MOSFET temperatures while providing structural reinforcement.
M.2 Heatsink
An integrated heatsink keeps the M.2 SSD at optimum operating temperature for consistent performance and reliability.
Build Smart
Packed with intuitive software and DIY-friendly options for convenient setup and use, cyberpunk inspired aesthetics, plus a diverse ecosystem of components, ROG Strix B450-F Gaming II is the key to any outstanding gaming build.
5-Way Optimization
Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics.
Pre-mounted I/O Shield
Patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.
BIOS FlashBack™
Users can place a BIOS file onto a FAT32-formatted USB drive and simply plug it into the USB BIOS FlashBack™ port and press a button to update the (UEFI) BIOS. Updates can be made even if memory or CPU aren't present.
Q-LEDs
Four onboard LEDs indicate power status, and any problem with the CPU, memory, graphics card or boot device for quick diagnosis.
SafeSlot
The reinforced ASUS SafeSlot provides stronger PCIe device retention and greater shearing resistance.
ROG Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.
Sonic Studio III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
AI Networking
The proprietary ROG GameFirst VI utility is designed to help all users — beginners, experts, and everyone in between — optimize network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technology to ensure faster and smarter network optimization.
Armoury Crate
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. You can also use Armoury Crate to download the user manual, drivers and software. In addition, Armoury Crate features a dedicated product registration page as well as a news feed to help you stay in touch with the gaming community.
RAMCache III
RAMCache lll software turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express® storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.
Specifications of ASUS ROG Strix B450-F Gaming II
| CPU | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors Processors |
| Chipset | AMD B450 |
| Memory |
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)
/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory |
| Graphic |
1 x HDMI 2.0b 1 x DisplayPort 1.2 *Graphics specifications may vary between CPU types. Integrated Graphics Processor |
| Multi-GPU Support | Supports AMD 3-Way CrossFireX™ Technology |
| Expansion Slots |
2 x PCIe 3.0 x16 (x16 or x8/x4) 1 x PCIe 2.0 x16 (x4 mode) * 3rd/2nd/1st Gen AMD Ryzen™ Processors 1 x PCIe 3.0 x16 (x4 mode) AMD B450 chipset 3 x PCIe 2.0 x1 1 x PCIe 3.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors |
| Storage |
3rd/2nd/1st Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)* 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)* 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 2 x SATA 3Gb/s port(s), 2 x SATA 6Gb/s port(s) 2 x SATA 6Gb/s port(s), AMD B450 chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN |
Intel® I211-AT 1Gb Ethernet ASUS LANGuard |
| Audio |
- Audio Shielding ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A - Premium Japanese audio capacitors - Audio Cover - Optical S/PDIF out header(s) at mid-board - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback * Audio Feature : - SupremeFX Shielding™ Technology * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| USB Ports |
4 x USB 3.2 Gen 1 port(s)(3 x Type-A +1 x USB Type-C®) Front USB Port ( Total 4 ) 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) |
| Software Features |
ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync Ai noise cancelling microphone AI Suite 3: - 5-Way Optimization by Dual Intelligent Processors 5 TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app - EZ update AI Charger UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features |
Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack™ button -BIOS FlashBack™ LED -Clear CMOS header -Pre-mounted I/O shield - SafeSlot |
| Back I/O Ports |

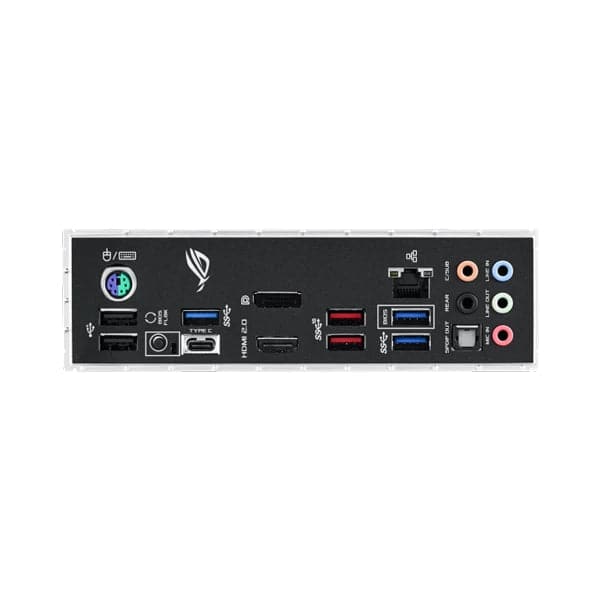

1 x Intel® I211-AT 1Gb Ethernet 2 x USB 3.2 Gen 2 3 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 1 USB Type-C® 1 x BIOS FlashBack™ Button(s) 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) |
| Internal I/O Ports |
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Addressable RGB header 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) |
| Accessories |
1 x M.2 SSD screw package(s) 1 x M.2 Rubber Package(s) User´s manual 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG Thank you card |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Important Info |
* PCIe x16_3 slot share bandwidth with PCIe x1_1, PCIe x1_2 and PCIe x1_3 * When the M.2_1 Socket 3 is operating in SATA or PCIE mode, SATA6G_5/6 ports will be disabled. *When the M.2_2 is occupied by M.2 device, PCIe x16_1 will run at x8 mode. |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
