- ASUS ROG Strix B365-G Gaming DDR4 AMD Motherboard
Description

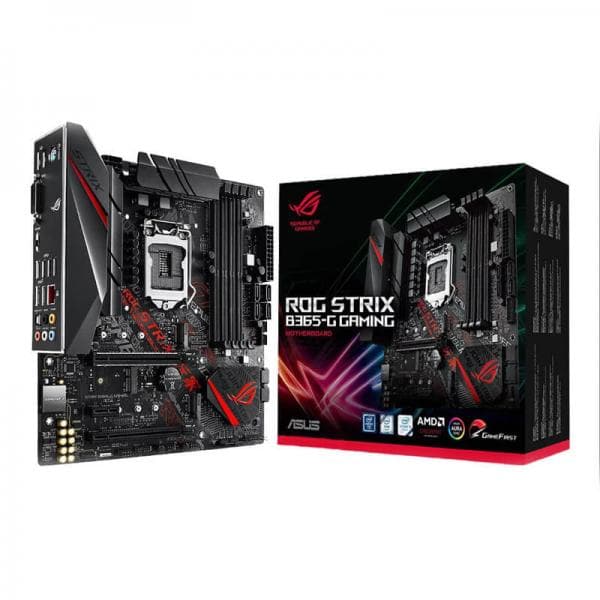

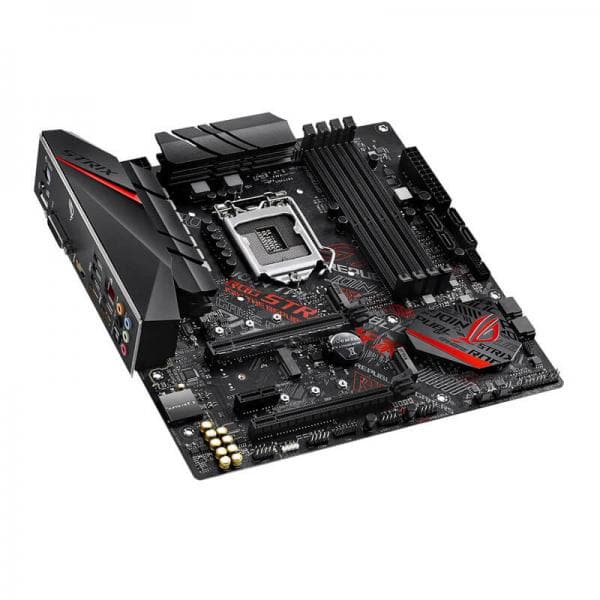

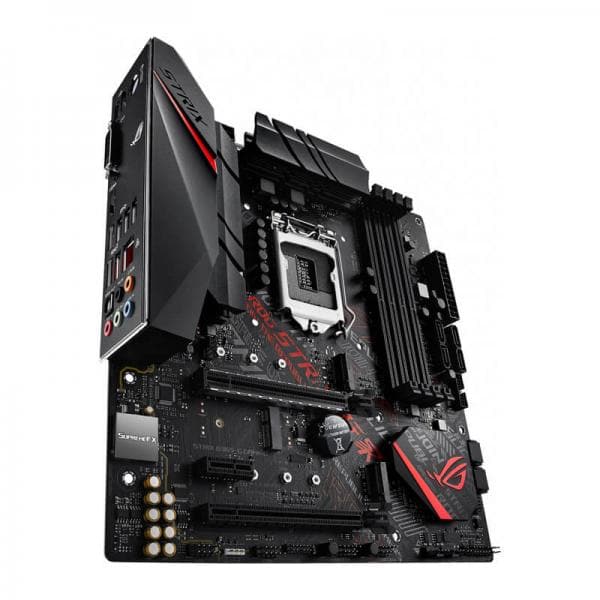

Feature of ASUS ROG Strix B365-G Gaming DDR4
Intel LGA-1151 B365 mATX gaming motherboard with Aura Sync RGB, pre-mounted I/O shield, dual M.2, HDMI, DVI, SATA 6 Gbps and USB 3.1 Gen 2
- LGA1151 socket: Ready for 9th/8th Gen Intel® Core™ desktop processors.
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including RGB strips.
- Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.
- Gaming connectivity: Dual M.2, USB 3.1 Gen 2 Type-A connectors, HDMI and DVI.
- Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer and lag-free online play.
- Gaming audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.
- Advanced cooling: Automated system-wide tuning and cooling profiles that are tailor-made for your rig.
PERFORMANCE
Experience great performance through comprehensive cooling controls, fast storage, and exclusive technologies to enhance memory reliability and speed.
Power Design
Digit+ power control together with an efficient thermal solution ensure ROG Strix B365-G Gaming has the muscle to control Intel's latest CPUs.
Digi+ Power Control
The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.
Thermal Solution
The ASUS ROG Strix B365-G Gaming uses high-quality thermal pads to help transfer heat from the driver and MOSFET to a heatsink that has ample surface area to deal with the power demands of all Coffee Lake processors.
MicroFine Alloy Chokes
High-permeability alloy-core chokes significantly reduce power loss to further improve efficiency and performance.
AESTHETIC
Up your aesthetic horizons with a new cyber-text design and Aura illumination — to create a personalized gaming with immersion that extends from the inside out.
Cyber Outlook
The distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. But it’s not all about arresting looks: the all-new ROG Strix motherboards exude material excellence, with a high-quality metal heatsink that adds a premium touch.
DIY FRIENDLY DESIGN
DIY-friendly design simplify your PC-building experience, so installation is easier, compatibility assured, and all-around protection to keep you and your rig safe.
Specifications of ASUS ROG Strix B365-G Gaming DDR4
| CPU | Intel® 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 |
| Chipset | Build in Intel® B365 |
| Memory | Intel® B365 Chipset4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP) |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics supportMulti-VGA output support : HDMI/DVI-D ports- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | 1 x PCIe 3.0 x161 x PCIe 3.0 x16 (max at x4 mode) *11 x PCIe 3.0 x1 |
| Storage | Intel® B365 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*21 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)6 x SATA 6Gb/s port(s)Support Raid 0, 1, 5, 10Intel® Rapid Storage Technology supportsIntel® Optane™ Memory Ready * |
| LAN | Intel® I219VAnti-surge LANGuardROG GameFirst Technology |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A- Dual OP Amplifiers- Impedance sense for front and rear headphone outputs- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB (Line-out at rear) 113 dB SNR recording inputAudio Feature :- SupremeFX Shielding™ Technology- Optical S/PDIF out port(s) at back panel- LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity- Sonic Radar III- Sonic Studio III Sonic Studio Link |
| USB Ports | Intel® B365 Chipset :2 x USB 3.1 Gen 2 port(s)Intel® B365 Chipset :6 x USB 3.1 Gen 1 port(s)Intel® B365 Chipset :6 x USB 2.0 port(s) |
| ROG Exclusive Features | Pre-mounted I/O Shield ROG Exclusive Software - RAMCache III- CPU-Z- GameFirst V- Sonic Studio III Sonic Studio Link- Sonic Radar III- Overwolf |
| Special Features | Gamer's Guardian:- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports- DRAM Overcurrent Protection- 10K Black Metallic Capacitors- Stainless Steel Back I/O- Highly Durable Components- DIGI VRM- SafeSlotAURA :- Aura Lighting Control- Aura RGB Strip HeadersASUS Exclusive Features :- GPU Boost- AI Suite 3- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interfaceASUS Quiet Thermal Solution :- ASUS Fan Xpert 4 CoreASUS EZ DIY :- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS MyLogoASUS Q-Design :- ASUS Q-Slot- ASUS Q-DIMMArmoury Crate |

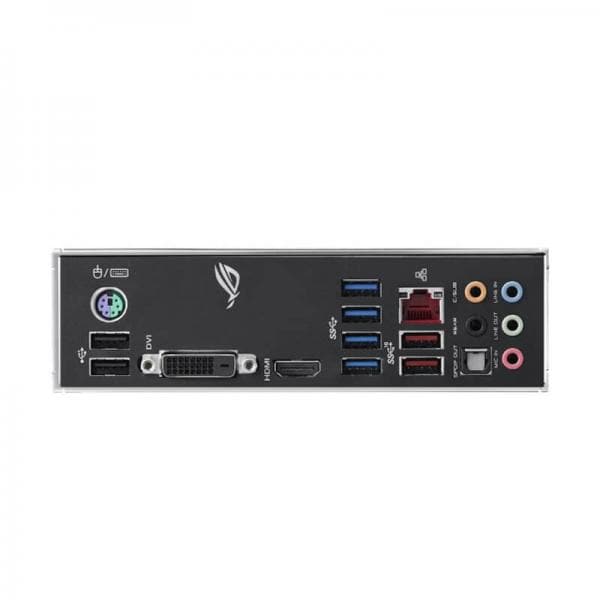

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s)1 x DVI1 x HDMI2 x USB 3.1 Gen 2 (red)Type-A4 x USB 3.1 Gen 1 (blue) Type-A2 x USB 2.01 x Optical S/PDIF out5 x Audio jack(s)Anti-surge LAN (RJ45) port |
| Internal I/O Ports | 1 x AAFP connector1 x Aura RGB Strip Header1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)1 x M.2 with E key for Wi-Fi module1 x TPM header1 x COM port(s) connector(s)6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s)2 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel connector(s)1 x Clear CMOS jumper(s) |
| BIOS | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI6.1 |
| Manageability | WOL, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | mATX Form Factor9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
