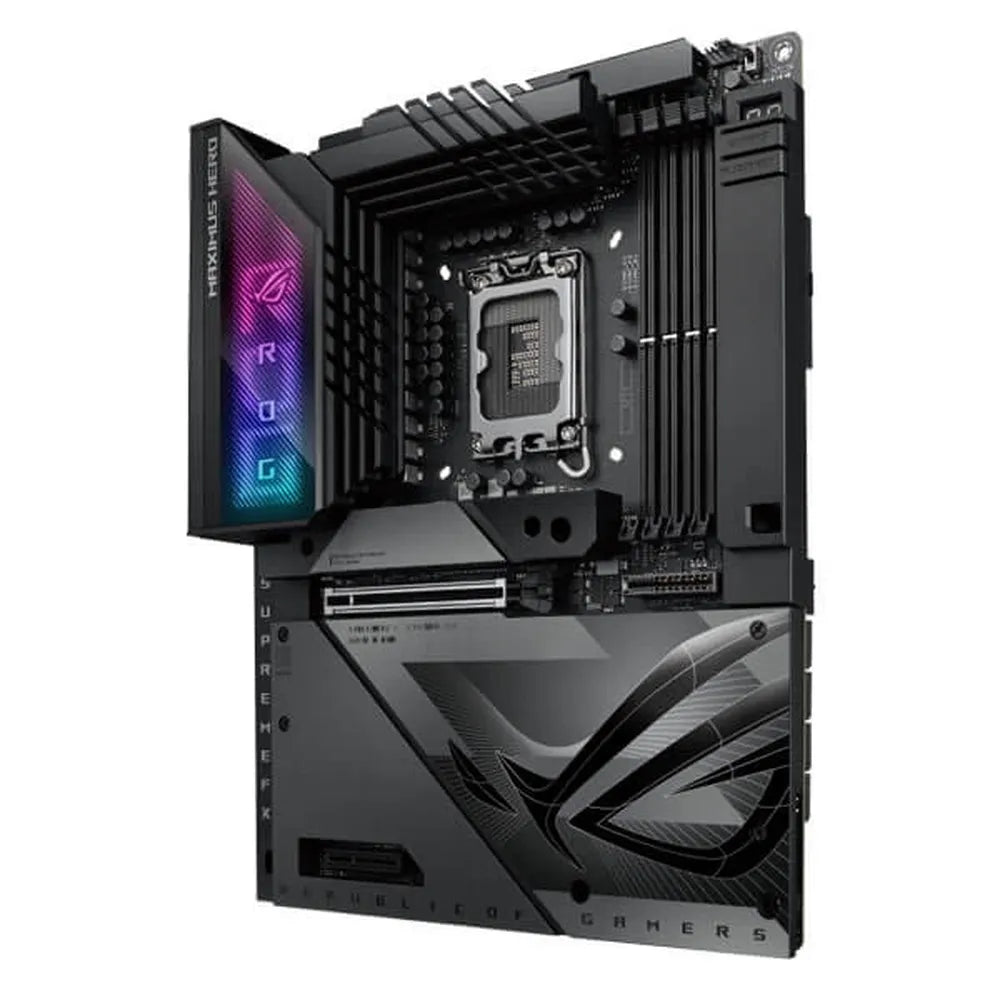

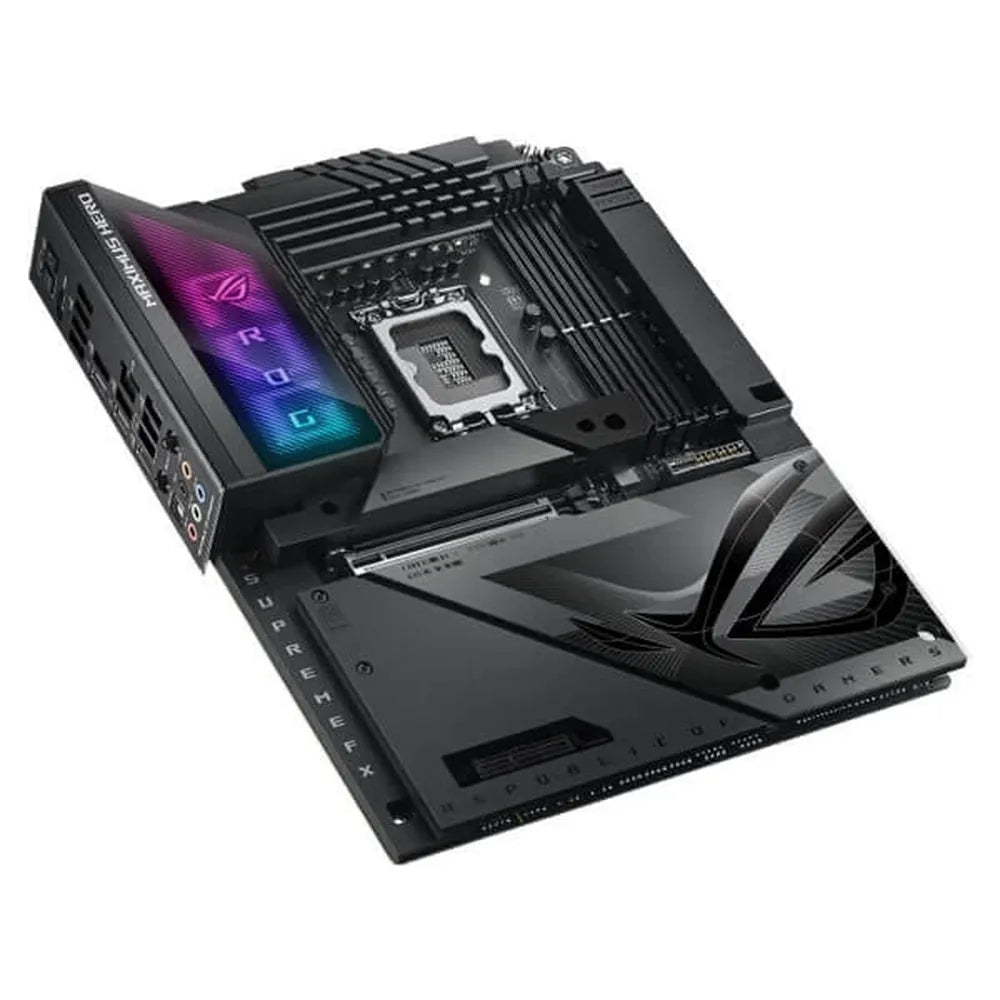

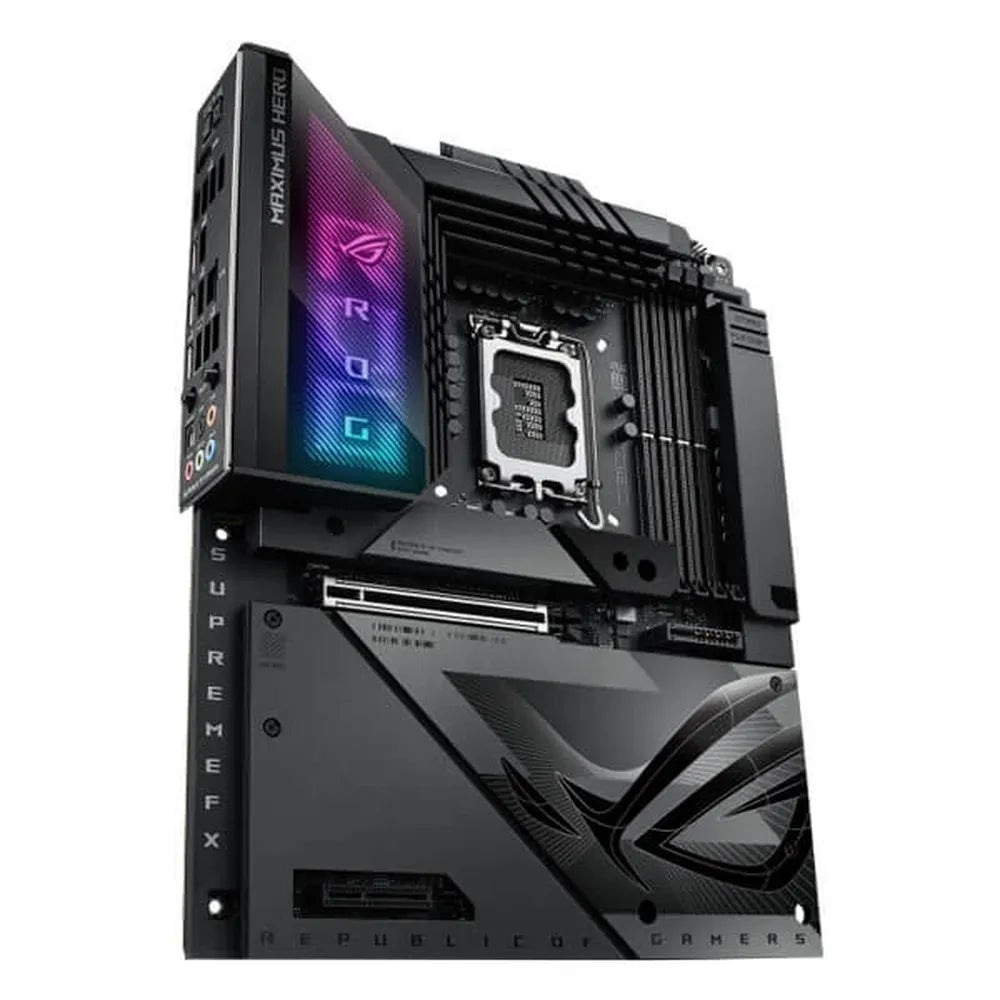

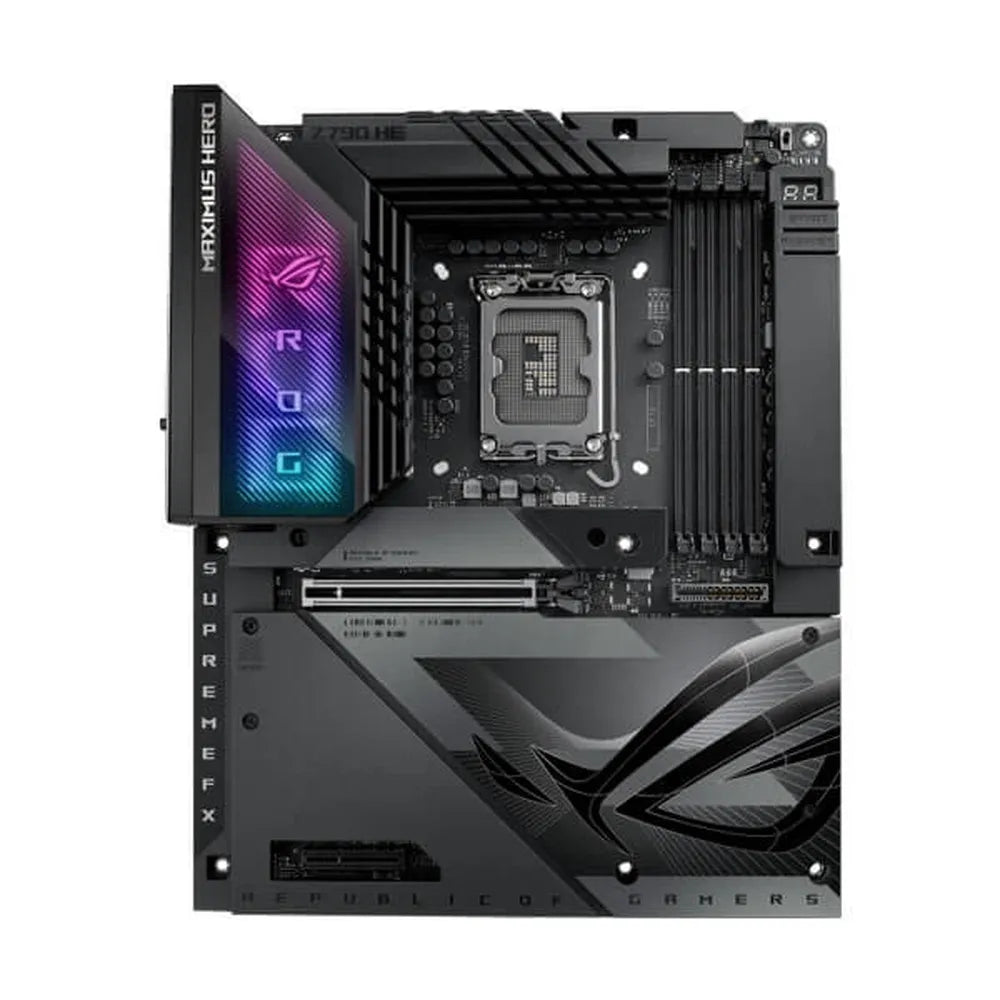

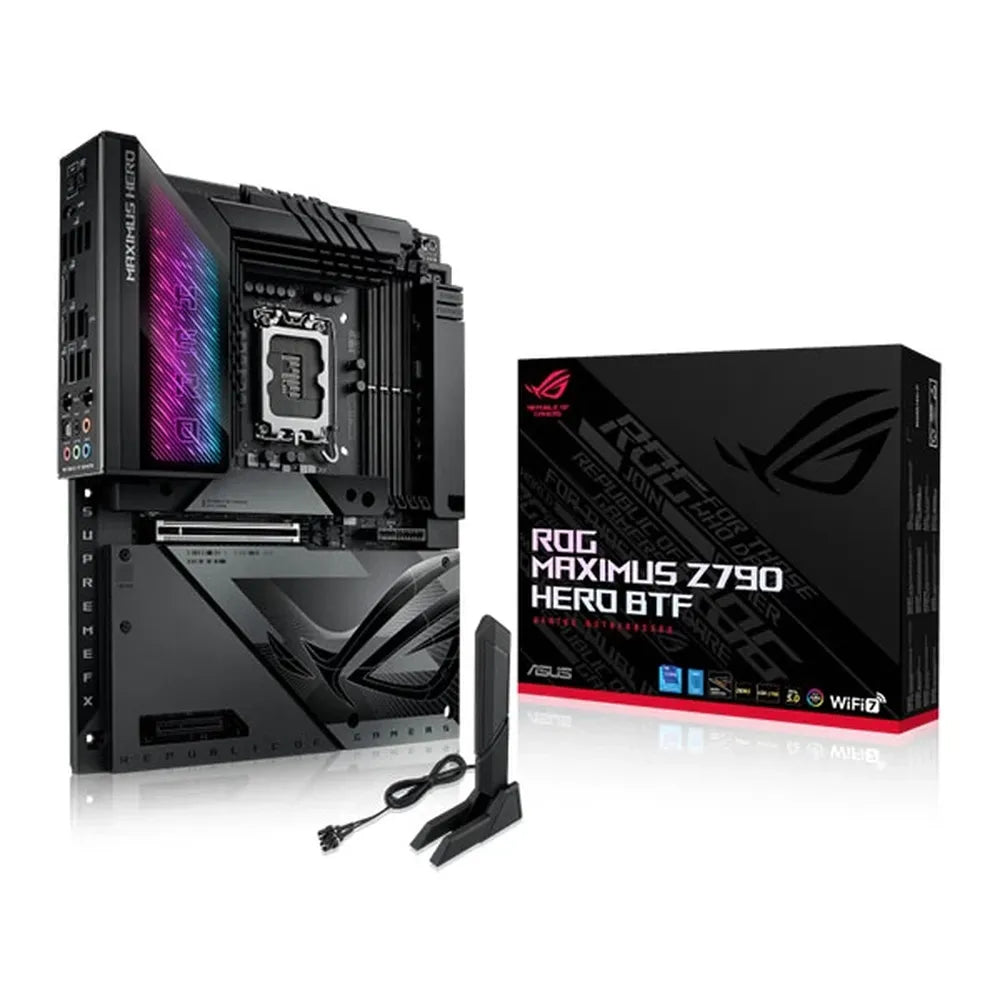

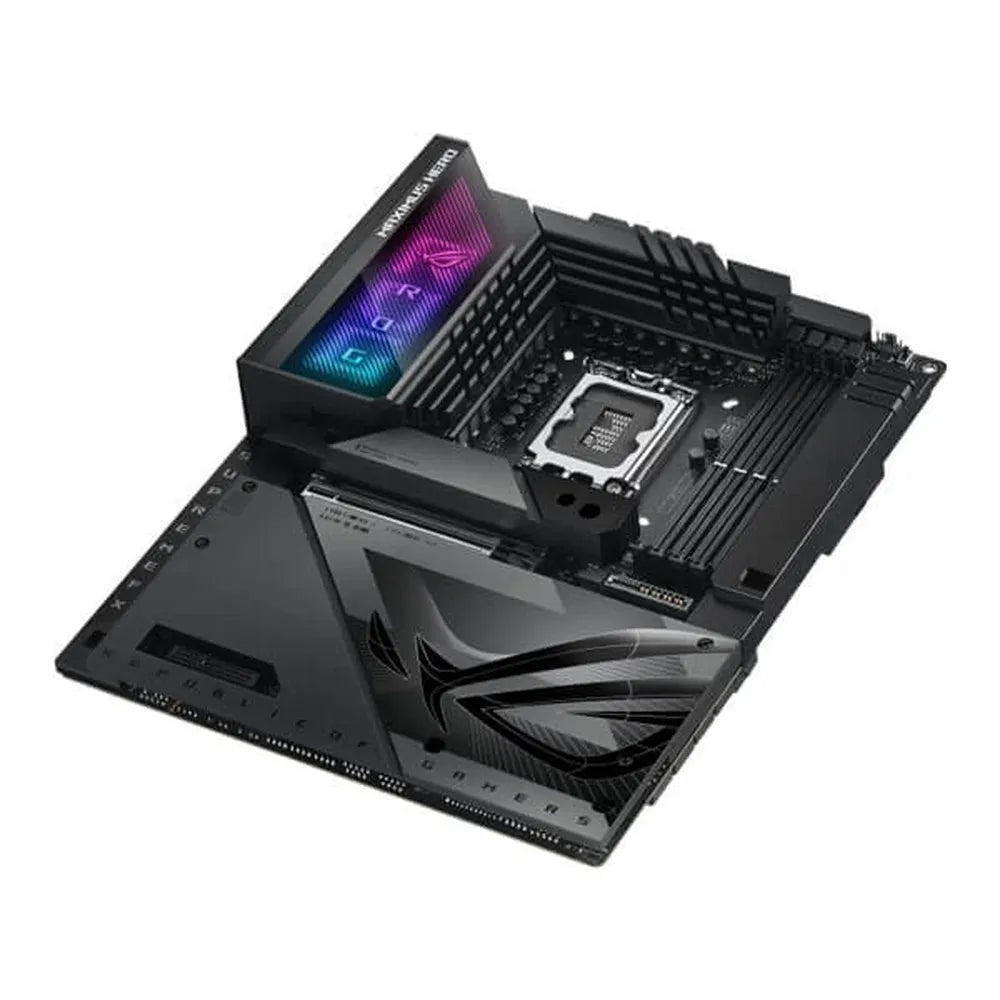

- ASUS ROG Maximus Z790 Hero BTF Wifi DDR5 Intel Motherboard
Description
Features of ASUS ROG Maximus Z790 Hero BTF Wifi DDR5 Intel Motherboard
Intel® Z790 LGA 1700 ATX motherboard with hidden-connector design and graphics card high-power slot for clean cable management, 20+1+2 power stages, DDR5 support with AEMP II & DIMM Flex, five M.2 slots, PCIe® 5.0 NVMe® SSD slot onboard, PCIe® 5.0 x16 SafeSlot with PCIe® Slot Q-Release Slim, Intel® Wi-Fi 7 with ASUS WiFi Q-Antenna, two Thunderbolt™ 4 ports, AI Overclocking, AI Cooling II, AI Networking, Two-way AI Noise Cancelation, and Aura Sync RGB lighting
- Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

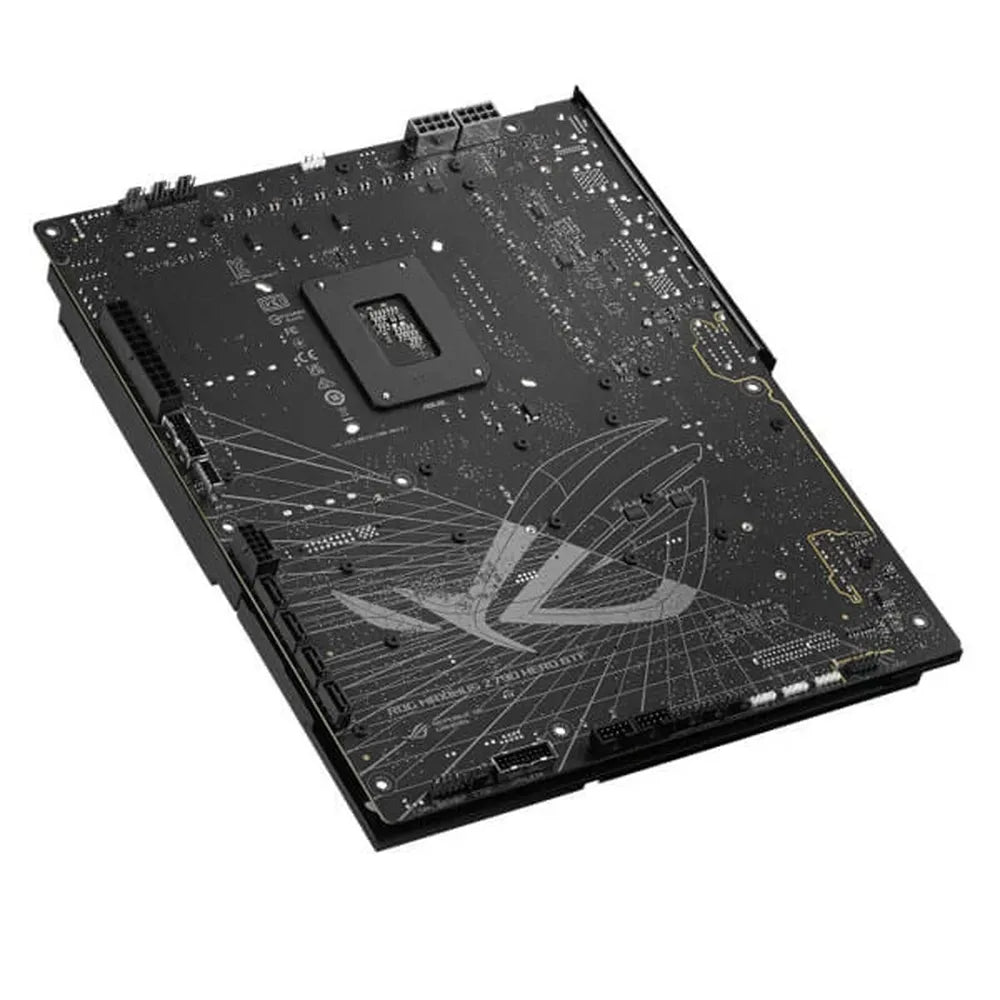

- Hidden-Connector Design: Delivers an unprecedented level of cable management to PC DIY enthusiasts
- Graphics Card High-Power Slot: Compatible with the PCIe® high-power connector on the graphics card, delivering up to 600 watts through the motherboard
- Robust Power Solution: 20+1+2 power stages with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
- Optimized VRM Thermals: Massive heatsinks integrated with the I/O cover, joined by an L-shaped heatpipe, and connected to the power stages with high-conductivity thermal pads
- Latest M.2 Support: Onboard PCIe® 5.0 M.2 slot, and four PCIe® 4.0 M.2 slots all with premium cooling solutions
- Abundant Connectivity: Dual Thunderbolt™ 4 USB Type-C® ports, USB 20Gbps Type-C® front-panel connector, six additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI™ 2.1
- High-Performance Networking: On-board Intel® Wi-Fi 7 (802.11be) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, Two-Way AI Noise Cancelation, AEMP II, and DIMM Flex to simplify setup and improve performance
- Immersive Audio: ROG SupremeFX ALC4082 codec with ESS® ES9218 Quad DAC for up to 32-Bit/384 kHz playback
- Unmatched Personalization: I/O cover with Polymo Lighting, three addressable Gen 2 headers and one RGB header, all configurable with ASUS-exclusive Aura Sync RGB lighting
- DIY Friendly Design: PCIe® Slot Q-Release Slim, M.2 Q-Latch, Q-Antenna, pre-mounted I/O shield, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, and Clear CMOS button
- Renowned Software: Bundled 1-year AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
Make your gaming experience better with the ASUS ROG Maximus Z790 Hero BTF Wifi DDR5 Intel Motherboard
Specifications of ASUS ROG Maximus Z790 Hero BTF Wifi DDR5 Intel Motherboard
Model | ROG MAXIMUS Z790 HERO BTF |
CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset | Intel Z790 Chipset |
Memory | 4 x DIMM slots, max. 192GB, DDR5 8000+(OC)/7800+(OC)/ 7600(OC)/7400(OC)/7200(OC)/7000 (OC)/6800(OC)/6600(OC)/6400(OC) /6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
Graphics | 1 x HDMITM port 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs * Graphics specifications may vary between CPU types. ** Support 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors’ or graphic cards’ resolution. |
Expansion Slots | Intel CoreTM Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot (support x16 or x8 modes) Intel Z790 Chipset 1 x PCIe 4.0 x4 slot * Please check the PCIe bifurcation table on the support site ** When M.2_1 is enabled, PCIEX16(G5)_1 will run x8 only. To ensure compatibility of the device installed |
Storage | Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.) Intel® Z790 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. ** When M.2_1 is enabled, PCIEX16(G5)_1 will run x8 only. |
Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
Wireless & Bluetooth | Intel® Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band*** Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate. Bluetooth® v5.4**** * Compatible with Windows 11 or later. ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
USB | Rear USB (Total 12 ports) 2 x Thunderbolt 4 ports (2 x USB Type-C) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS® ES9218 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors *The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |

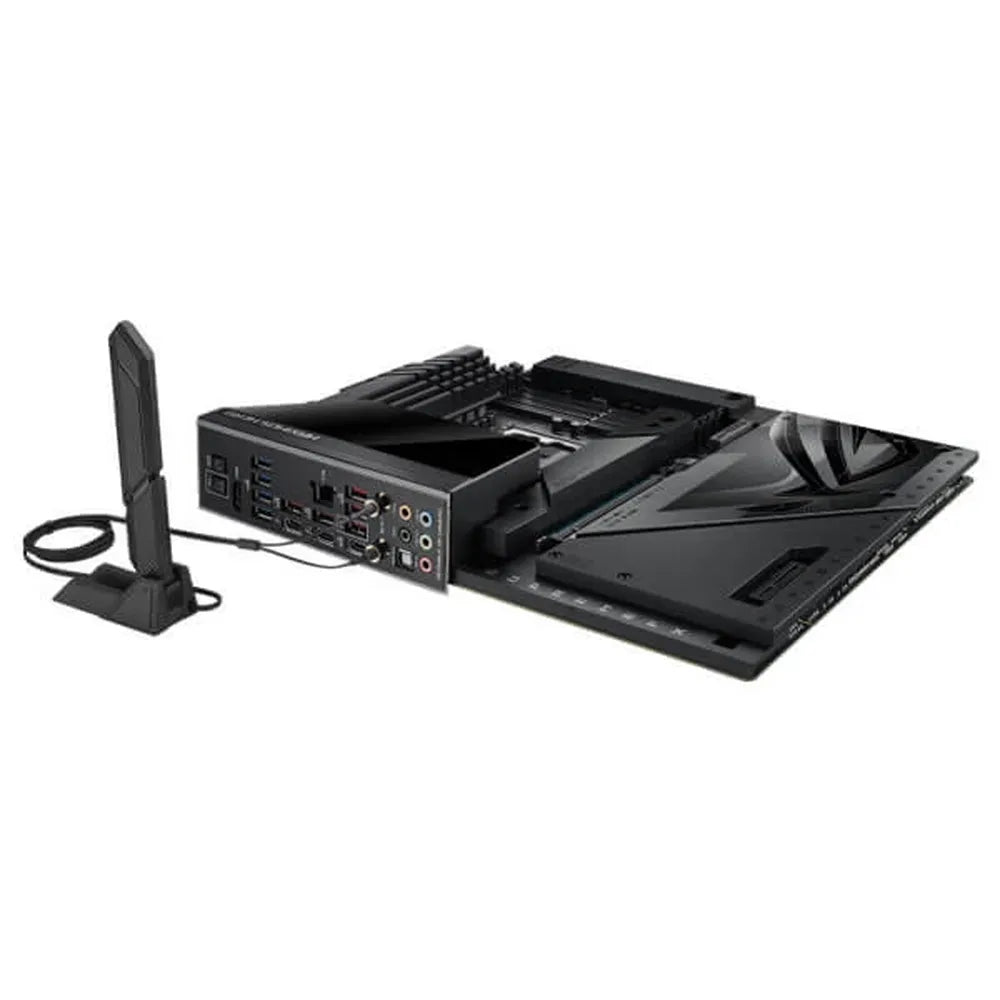

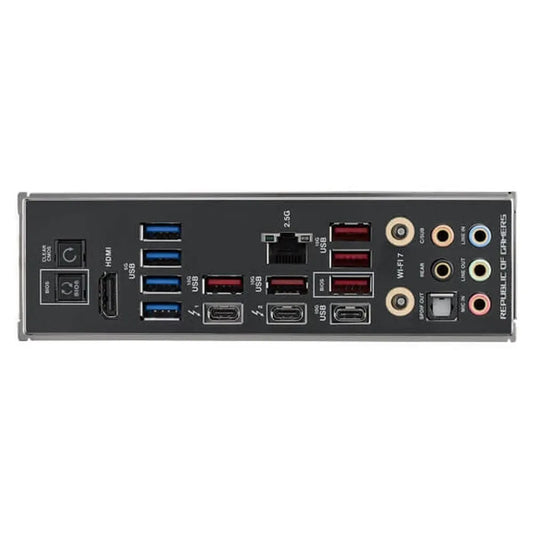

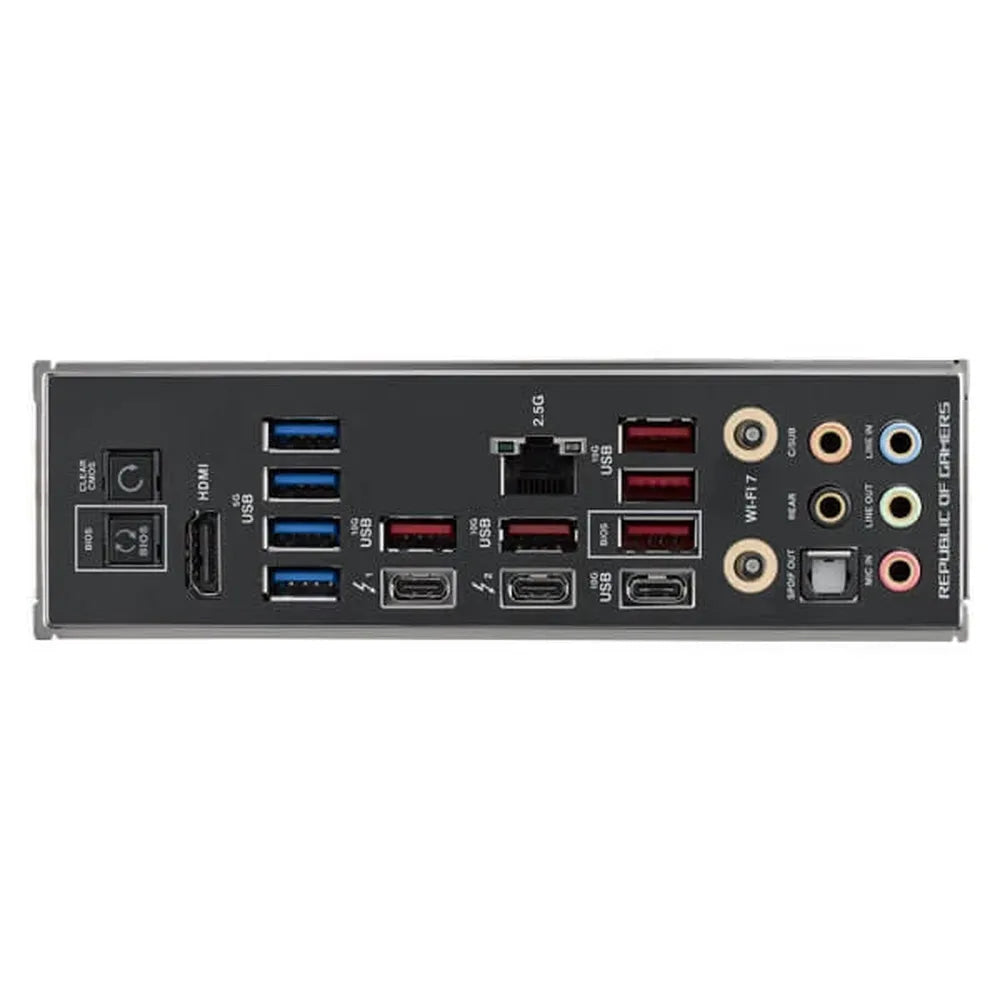

Back Panel I/O Ports | 2 x Thunderbolt 4 USB Type-C ports 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMITM port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin main power connector 2 x 8-pin +12V power connector 1 x Graphics card high-power slot 1 x 12V-2X6 Auxiliary power connector Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor header |
Special Features | Extreme OC Kit - FlexKey button - Start button Extreme Engine Digi+ - 10K Black metallic capacitors - MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release Slim - Q-Antenna - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) |
Software Features | ROG Exclusive Software - ROG CPU-Z - DTS® Sound Unbound - Internet Security (1 year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - Two-Way AI Noise Cancelation - Power Saving - Sonic Studio AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ Power Control - Turbo app - PC Cleaner MyAsus USB Wattage Watcher Intel® Unison™ Adobe Creative Cloud (Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey MemTest86 |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |

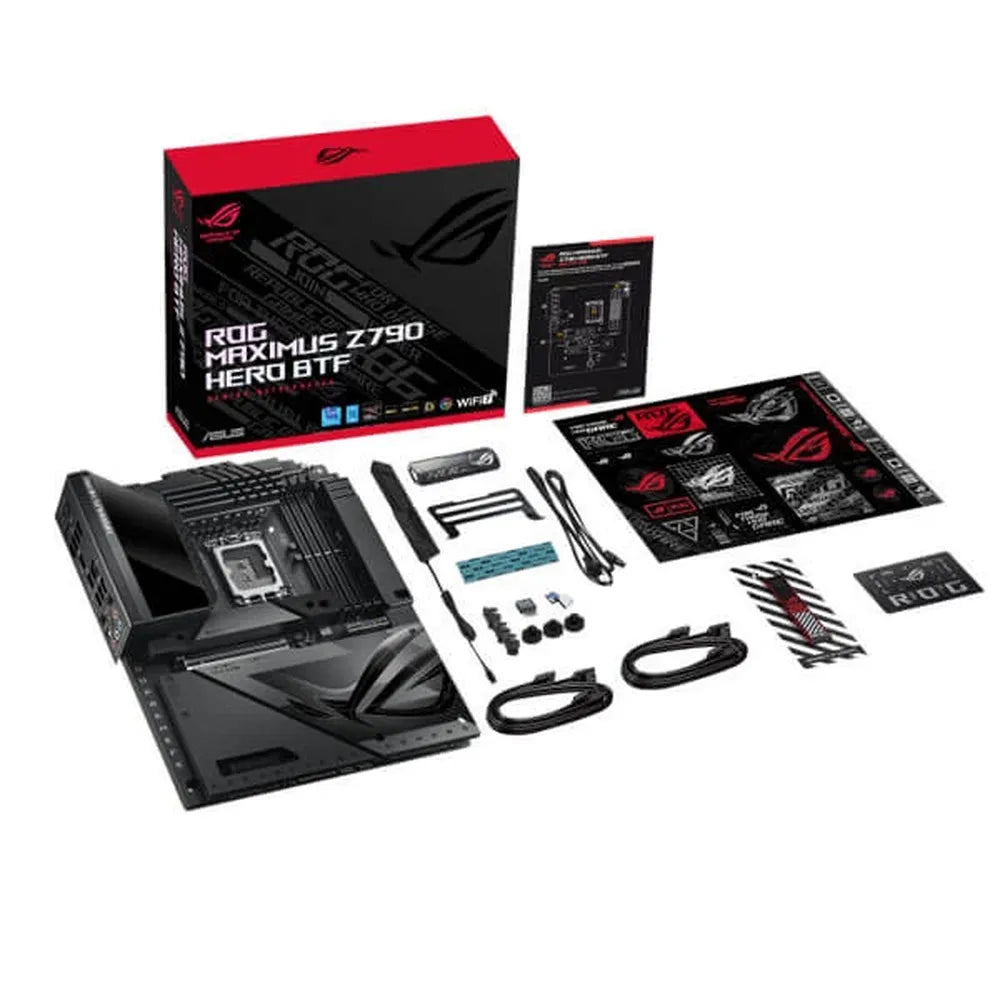

Accessories | Cables 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 1 x DDR5 fan holder Miscellaneous 1 x ASUS WiFi Q-Antenna 3 x M.2 backplate Q-Latch packages 3 x M.2 backplate Rubber Packages 1 x Q-connector 1 x ROG stickers 1 x ROG key chain 1 x M.2 rubber package 1 x ROG VIP card Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide |
Operating System | Windows 11, Windows 10 64-bit |
Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Warranty | 3 Years |
Note | *** Image use as reference only *** Features, Price, Specifications are subject to change without notice. |
