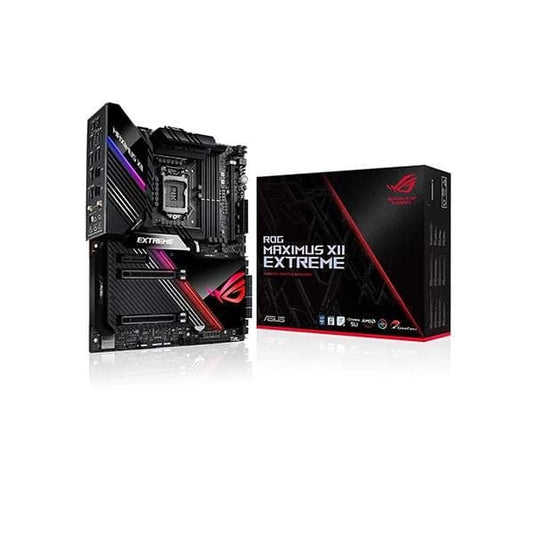

- ASUS ROG Maximus XII Extreme DDR4 Intel Motherboard
Description
Feature of ASUS ROG Maximus Xll Extreme DDR4
Expertly tuned by our ROG Engineers to bring you the ultimate performance. Made to be extreme as the name suggested, is positioned for max performance water-cooling enthusiasts. Combining hardware and software, to achieve optimized overclocking, high-speed memory support and comprehensive water and fan cooling controls, Maximus XII Extreme delivers ultimate performance combined with efficient, reliable operation.
PERFORMANCE
ASUS ROG Maximus XII Extreme is the ideal foundation for your dream gaming build. An intelligent voltage-regulator module (VRM) design and high-quality components ensure that you'll get the most out of demanding latest-generation Intel processors. More firepower and an overclocking edge are yours with Maximus XII Extreme.
Teamed Power Architecture
Today's CPU architectures place incredible demands on motherboard power design by transitioning from deep power saving modes , going from lower-power mode to full load in an instant. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
ASUS Optimem III
Boasting proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, ASUS OptiMem III is more compatible with 3600 MHz+ memory kits, allowing them to run at higher frequencies. You can opt to optimize memory for high frequency settings, or low latency settings. With higher capacity memory kits, OptiMem III enables you to run at maximum frequency, whereas other motherboards will trade off frequency for capacity. Stack Maximus XII Extreme with your favorite modules and maximize throughput of the new 10th Generation Intel® Core™ Comet Lake-S processor for applications that demand massive bandwidth.

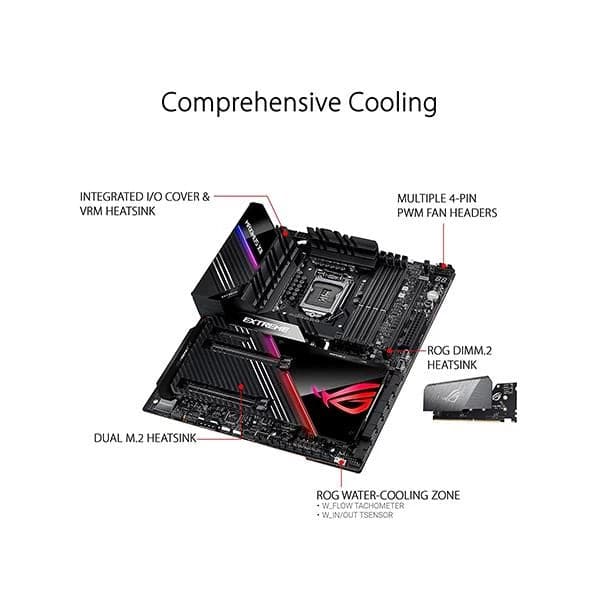

COOLING
Featuring premium components, multiple fan headers and a bundled fan extension card, Maximus XII Extreme is fully equipped to enable higher performance at lower temperatures. To ensure system stability under heavy CPU loads, Maximus XII Extreme employs large VRM and chipset heatsinks that strike the right balance between surface area and mass. The extra-large heatsinks also cover multiple M.2 slots.
CONNECTIVITY
ROG Maximus XII Extreme offers advanced connectivity, including WiFi 6 (AX201) and dual Ethernet with intel® 2.5G Ethernet and 10G port to eliminate bottlenecks so you can enjoy exceptionally smooth online and LAN play. Additionally, the M.2 supports Intel® VROC technology to maximize the speed of your SSD for faster load times, and SupremeFX on-board audio provides superb sound, while saving a PCIe slot.

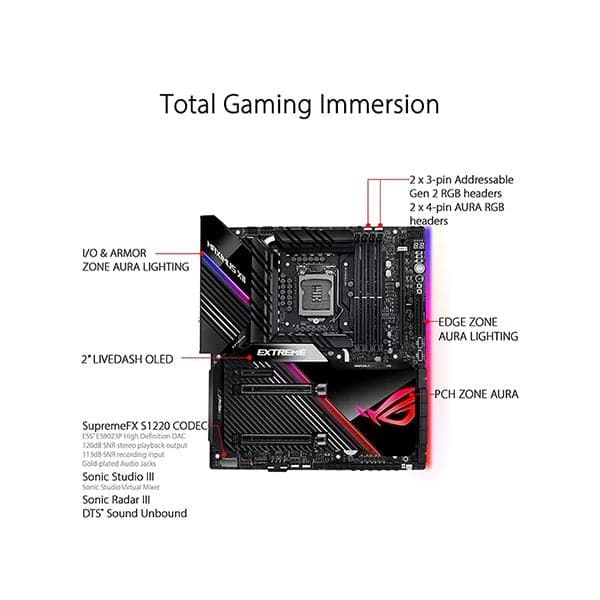

Personalize
In addition to extraordinary performance, Maximus XII Extreme provides extensive styling and customization options to let you build a system that truly stands apart.
Specifications of ASUS ROG Maximus Xll Extreme DDR4
| CPU |
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® Z490 |
| Memory |
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/
3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/ 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * |
| Multi-GPU Support |
Supports NVIDIA 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology |
| Storage |
Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel® 10th Gen Processors : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2 Intel® Z490 Chipset : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*3 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready |
| Expansion Slots |
Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) Intel® Z490 Chipset 1 x PCIe 3.0 x4 *1 |
| LAN |
Intel® I225-V 2.5Gb Ethernet Marvell® AQtion AQC107 10Gb Ethernet ASUS LANGuard |
| Wireless Data Network |
Intel® Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface |
| Bluetooth |
Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later. |
| Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - ESS™ ES9023 DAC + RC4580 OP AMP - Supports up to 32-Bit/192kHz playback LED-illuminated audio jacks Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel - Premium Japanese audio capacitors - Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| USB Ports |
Rear USB Port ( Total 12 ) 1 x USB 3.2 Gen 2x2 port(s) 3 x USB 3.2 Gen 2 port(s)(2 + Type-A +1 + USB Type-CTM) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 10 ) 2 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| Software Features |
ROG Exclusive Software - Mem Tweakit - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - OLED Display AI Suite 3: - 5-Way Optimization with AI Overclocking TPU EPU Digi+ Power Control Fan Xpert 4 Turbo app - EZ update AI Charger WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
| ASUS Special Features |
ROG Extreme OC kit - EZ PLUG - FlexKey button - LN2 Mode - Probelt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - 10K Black Metallic Capacitors - Infineon TDA21490 Power Stage - MicroFine Alloy Choke ASUS Q-Design - ASUS Q-Code - ASUS Q-Connector - ASUS Q-DIMM - ASUS Q-LED (CPU - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink cover - Steel backplate ASUS EZ DIY - BIOS Flashback™ button - Clear CMOS button - Procool II - Pre-mounted I/O shield - SafeSlot AURA Sync - ROG Aura sync backplate - Standard RGB header(s) - Addressable Gen 2 RGB header(s) LiveDash OLED 2" |
| Back I/O Ports |
1 x LAN (2.5G) port(s) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 6 x USB 3.2 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS FlashBack™ Button(s) 1 x ASUS Wi-Fi Module 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port |
| Internal I/O Ports |
1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x W_PUMP+ connector 1 x WB_SENSOR 8 x Radiator Fan Headers 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Node Connector(s) 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen2 connector support additional USB ports 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 8 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x 4-pin EZ_PLUG Power connector(s) 1 x Slow Mode switch(es) 8 x ProbeIt Measurement Points 1 x Thermal sensor connector(s) 1 x BIOS Switch button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x Speaker connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 2 x RSVD Switch 1 x Start button 1 x FlexKey button |

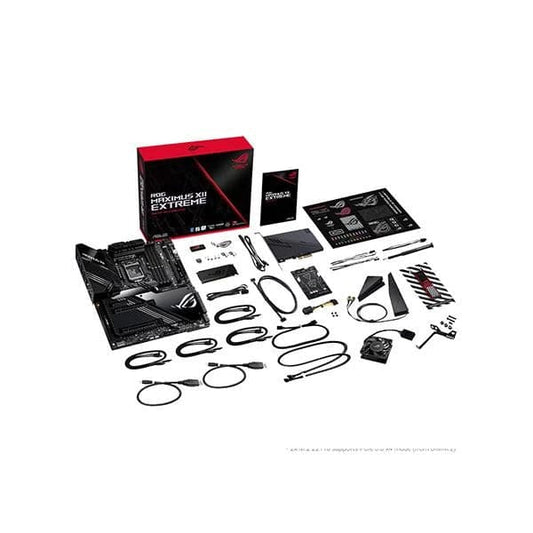

| Accessories |
User's manual 1 x ROG logo plate sticker 3 x M.2 Screw Package 1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan) 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header) 1 x Fan Extension Card II power cable 1 x Fan Extension Card II NODE connector cable 1 x Fan Extension Card II screw package 2 x mini DisplayPort Cable 1 x ROG big sticker 1 x Q-Connector 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 3 x Thermistor cable(s) 1 x USB drive with utilities and drivers 8 x ROG weave SATA 6G cable 1 x ROG DIMM.2 with heatsink 1 x M.2 Pad for ROG DIMM.2 2 x 2-in-1 Rubber pad 1 x ROG Multi-Bit screwdriver 1 x THUNDERBOLTEX 3-TR Card 1 x ASUS TB header cable 1 x USB2.0 Cable ROG key chain |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Form Factor |
Extended ATX Form Factor 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm ) |
| Warranty | 3 Years |
| Note |
*1 PCIEx4 slot shares bandwidth with SATA6G_56 and PCIEx4 slot is default set at x2 mode. Please adjust BIOS settings to enable Thunderbolt card. *2 The DIMM.2 Slots are disabled by default. Please adjust BIOS settings to enable DIMM.2 Slots. *3 When M.2_1 is operating in SATA mode, SATA6G_2 will be disabled. *4 USB 3.2 Gen 2x2 works at PCIe 3.0 x2 speeds***Features, Price and Specifications are subject to change without notice. |
