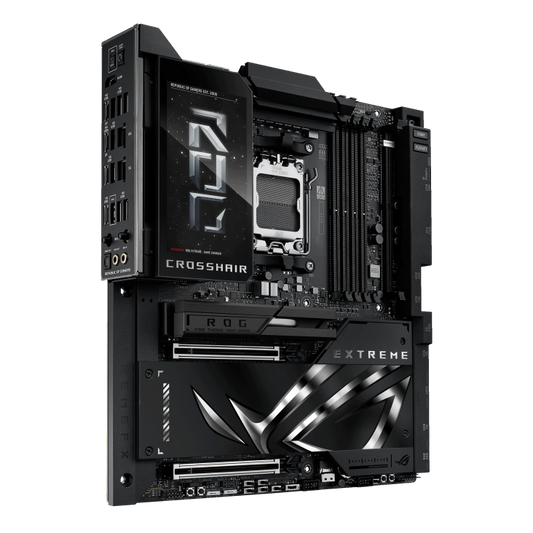

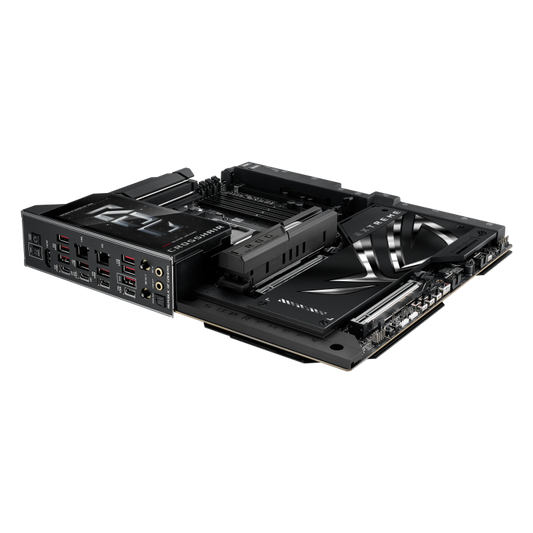

- ASUS ROG Crosshair X870E Extreme Wifi7 DDR5 AMD Motherboard
Description
Features of ASUS ROG Crosshair X870E Extreme Wifi7 DDR5 AMD Motherboard

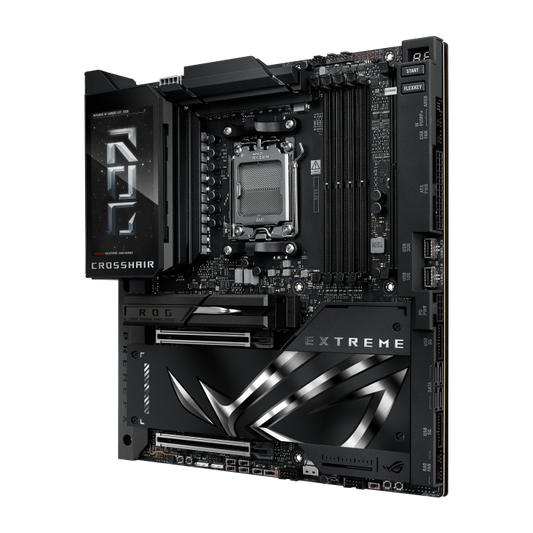

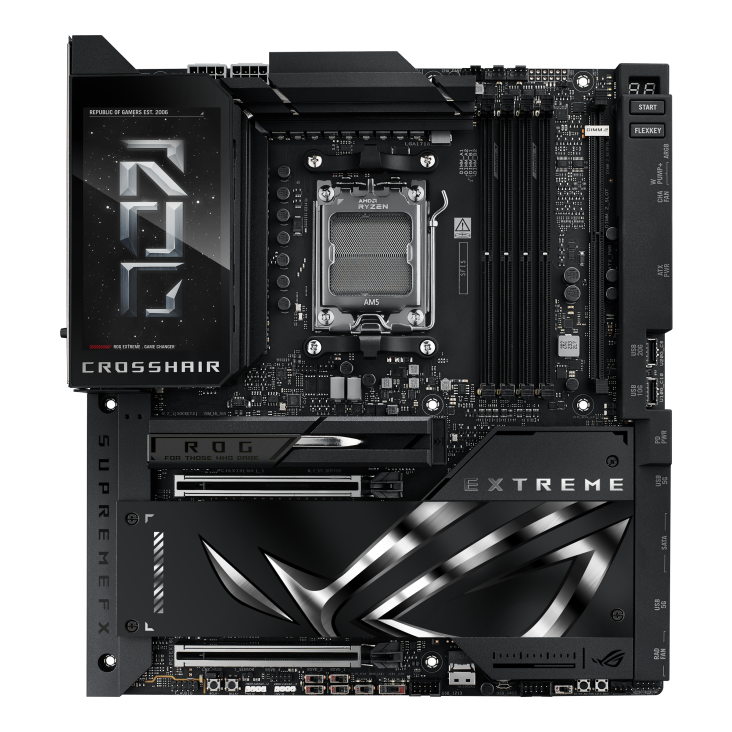

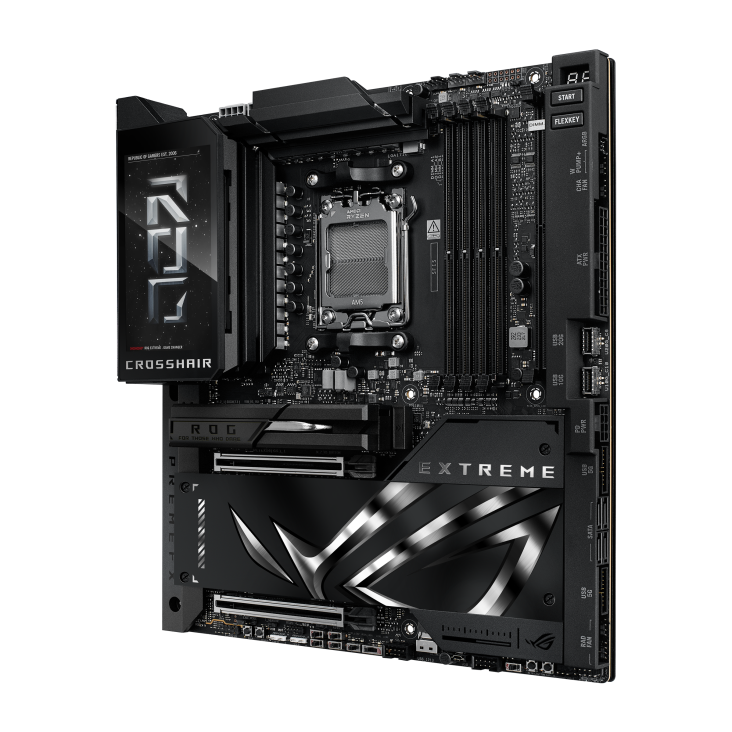

ROG Crosshair X870E Extreme
The ROG Crosshair X870E Extreme is the flagship AMD Ryzen 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.
ASUS AI CACHE BOOST
Supercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen™ 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks
AI OVERCLOCKING
Tuning is now faster and smarter than ever before
AI COOLING II
Balance the thermals and acoustics of any build with a single click
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of >WiFi 7
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
pcie 5.0
Fully embracing the new standard, the ROG Crosshair X870E Extreme offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
Specifications of ASUS ROG Crosshair X870E Extreme Wifi7 DDR5 AMD Motherboard
| Product Code | ROG-CROSSHAIR-X870E-EXTREME |
| Model Name | ROG CROSSHAIR X870E EXTREME |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 9000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) NitroPath DRAM Technology *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under theSupport tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x HDMITM port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a **** VGA resolution support depends on processors’ or graphic cards’ resolution. |
| Expansion Slot | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) ** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, PCIEX16(G5)_1 and PCIEX16(G5)_2 will run x8. ***When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4. **** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled. AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported |
| Storage | Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports) AMD X870E Chipset DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately. 4 x SATA 6Gb/s ports * When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled. ** When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4, M.2_2 will be disabled. AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Ethernet | 1 x Realtek 5Gb Ethernet 1 x Marvell® AQtion 10Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth® v5.4****Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor’s website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
| USB | Rear USB (Total 12 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®) Front USB (Total 10 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)* 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A *USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel Audio Features – SupremeFX Shielding Technology – ESS® ES9219 QUAD DAC – LED-illuminated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |

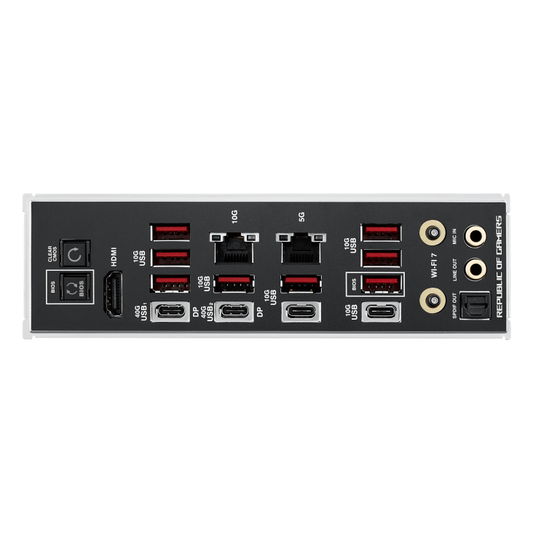

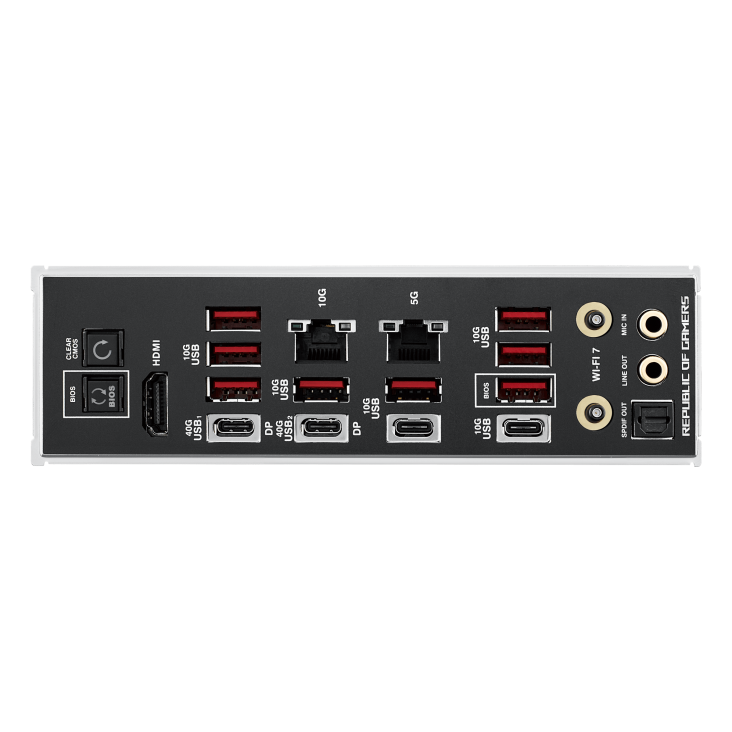

| Back Panel I/O Ports | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®) 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet port 1 x Marvell® AQtion 10Gb Ethernet port 2 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x VRM Heatsink Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 1 x SlimSAS connector 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 2 x Addressable Gen 2 header 1 x Alteration PCIe mode switch 2 x BCLK button 1 x BIOS Switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 12 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switchs 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Pause switch |
| Special Features | Extreme OC Kit – FlexKey button – LN2 Mode – ProbeIt – ReTry button – Safe boot button – Start button – Slow Mode Extreme Engine Digi+ – 10K Black Metallic Capacitors – MicroFine Alloy Choke ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Code – Q-Connector – Q-Dashboard – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot – Q-DIMM.2 ASUS Thermal Solution – Fan bracket – M.2 heatsink backplate – M.2 heatsink – Metal backplate – VRM heatsink design – 3D VC M.2 Heatsink ASUS EZ DIY – Backplate – BIOS FlashBack™ button – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Addressable Gen 2 headers Dual BIOS Full Color 5″ LCD Display Front Panel USB 20Gbps with Quick Charge 4+ Support – Support: up to 60W fast charging and USB Wattage Watcher* – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A – Compatible with PD3.0 and PPS * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported. |
| Software Features | ROG Exclusive Software – ROG CPU-Z – Dolby Atmos – Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (1 year full version) – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – GameFirst – HWiNFO – Power Saving – LCD Display ASUS AI Advisor ASUS DriverHub Turbo Vcore ASUS GlideX USB Wattage Watcher WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey FlexKey |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME |

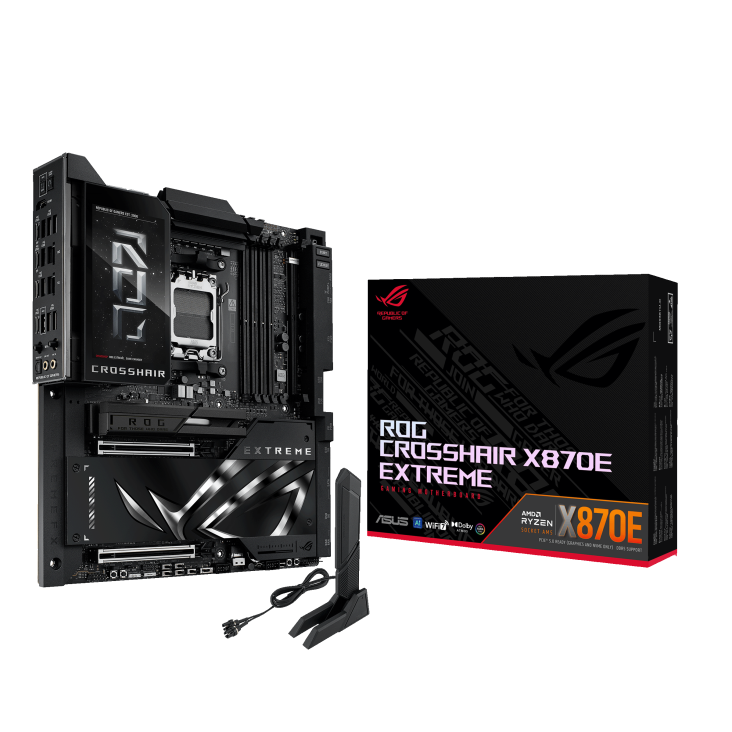

| Accessories | Cables 1 x 1-to-3 ARGB splitter cable 1 x 1-to-2 ARGB splitter cable 2 x 1-to-4 fan splitter cable 2 x ROG weave SATA 6G cable packages 1 x 3-in-1 Thermistor cables pack ROG Q-DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad package for ROG Q-DIMM.2 2 x Thermal pad for ROG Q-DIMM.2 Additional Cooling Kit 2 x Thermal pad for M.2 22110 1 x DDR5 Fan holder 1 x ROG Fan Kit Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x ROG logo plate sticker 1 x ROG screwdriver 1 x ROG stickers 1 x ROG VIP card 1 x M.2 Q-Slide package 5 x M.2 backplate rubber packages 1 x ROG Bottle Opener Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide |
| Operating System | Windows 11 |
| Form Factor | E-ATX Form Factor 12 inch x 10.9 inch (30.5 cm x 27.7 cm) |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
