Description

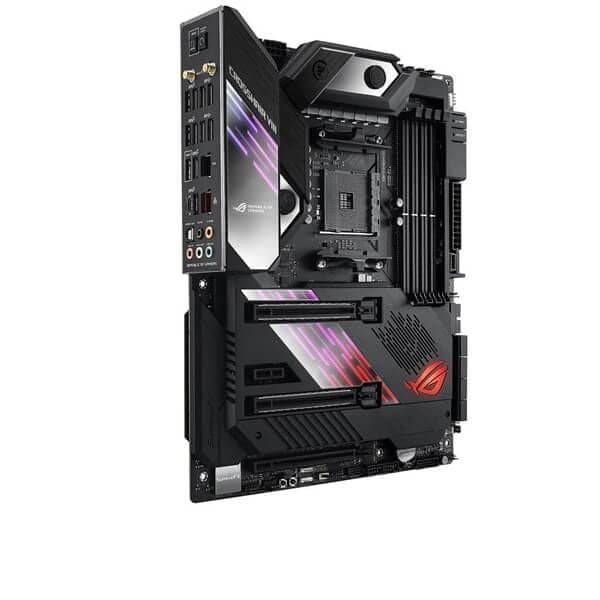

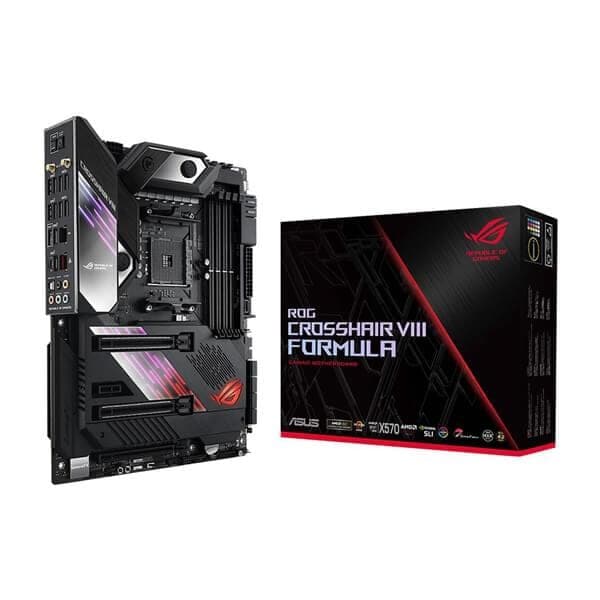

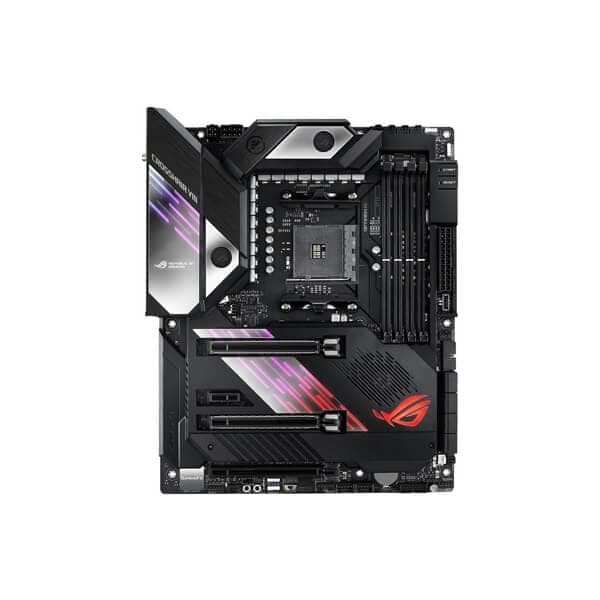

ASUS ROG CrossHair VIII Formula Motherboard
Features:
- AMD AM4 socket: Ready for 2nd, and 3rd Gen AMD Ryzen™ processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximize connectivity and speed.
- Comprehensive thermal design: Integrated Crosschill EK III, active chipset heatsink, M.2 aluminum heatsink, and ROG Cooling Zone.
- Robust power delivery: Designed power solution with 14 2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
- High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 5G and Gigabit Ethernet courtesy of Aquantia and Intel, both with ASUS LANGuard protection and support for GameFirst V software.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
- DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack™ and premium components for maximum endurance.
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
- Industry-leading ROG audio: SupremeFX S1220 and ESS® ES9023P for enthusiast-grade audio performance driven by Japanese capacitors.
Specifications:
| CPU |
AMD AM4 Socket 3rd and 2nd AMD
Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
| Chipset | AMD X570 |
| Memory |
3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266 (O.C.)/4133(O.C.) /4000(O.C.) /3866(O.C.)/3733 (O.C.)/3600 (O.C.)/3466(O.C.) /3200/3000/2933/2800/2666/2400/2133 MHz Memory Ryzen™ Processors 128GB, DDR4 3600 (O.C.)/3466(O.C.)/3200(O.C.) /3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory with Radeon™ Vega Graphics Processors DDR4 3200(O.C.)/3000 (O.C.)/2933/2800/2666/2400/2133 MHz Memory Architecture |
| Multi-GPU Support |
3rd and 2nd Gen AMD
Ryzen™ Processors 2-Way SLI® Technology CrossFireX™ Technology with Radeon™ Vega Graphics Processors CrossFireX™ Technology |
| Expansion Slots |
3rd Gen AMD
Ryzen™ Processors (x16 or dual x8) Ryzen™ Processors (x16 or dual x8) Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
| Storage |
3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support |
| LAN |
Intel® I211-AT Aquantia AQC111C 5G LAN ASUS LAN Guard ROG GameFirst V Technology |
| Audio |
ROG SupremeFX 8-Channel
High Definition Audio CODEC S1220 Front Panel Jack-retasking stereo playback output and 113 dB SNR recording input Technology ESS® ES9023P playback * at back panel 32-Bit/192kHz is not supported for 8-Channel audio. |
| USB Ports |
3rd Gen AMD RyzenTM
Processors : (4 at back panel, red, Type-A) and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : (4 at back panel, red, Type-A) connector port(s) (3 at back panel, red, Type-A, 1 x Type-C) (4 at back panel, blue, 4 at mid-board) |
| ROG Exclusive Features |
ROG RGB Armor Start Button Reset Button ROG Aura Aura Lighting Control Aura RGB Strip Headers Extreme Engine Digi : IR3555 PoweIRstage® MicroFine Alloy Chokes 10K Black Metallic Capacitors ROG Extreme OC kit : Safe Boot button Slow Mode LN2 Mode UEFI BIOS features : Tweakers' Paradise ROG SSD Secure Erase Graphic Card Information Preview USB BIOS FlashBack™ Crosschill EK III ROG Patented Pre-mounted I/O Shield ROG Exclusive Software Mem Tweakit RAMCache III RAMDisk CPU-Z GameFirst V Sonic Studio III Sonic Studio Link Sonic Radar III Overwolf |
| Special Features |
ASUS Dual Intelligent Processors
5-Way Optimization by Dual Intelligent Processors 5 : key perfectly consolidates TPU, EPU, DIGI VRM, Fan Expert 4, and Turbo App Overcurrent Protection and USB ports graphics card Investment control interface (CPU, DRAM, VGA, Boot Device LED) |

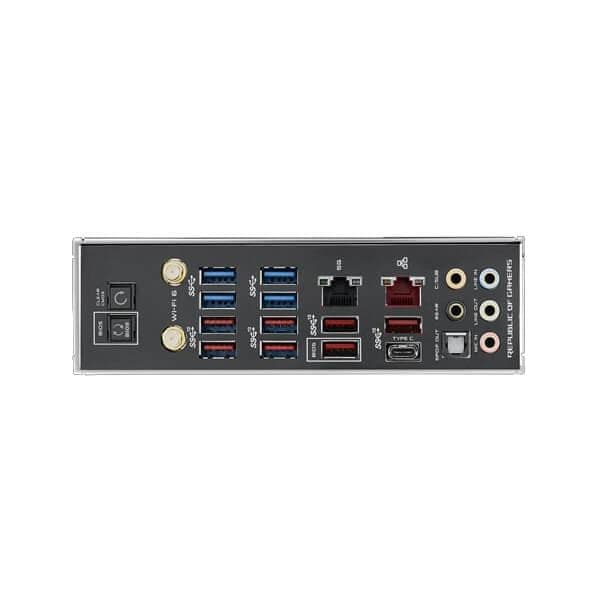

| Back I/O Ports |
1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS FlashBack™ Button(s) 1 x ASUS Wi-Fi Module 1 x Gold-plated audio jacks 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 8 x USB 3.2 Gen 2 (up to 10Gbps) ports () Anti-surge LAN (RJ45) port 1 x AQC-111C 5G LAN port |
| Internal I/O Ports |
1 x PCH_FAN 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) (AAFP) (up to 10Gbps) connector connector support additional 4 USB ports |
| Accessories |
User's manual 1 x ROG logo plate sticker 4 x SATA power cable 1 x M.2 Screw Package 1 x Supporting DVD 1 x ROG big sticker 1 x Q-Connector 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s) 2 x ROG weave SATA 6G cable 1 x ROG Thank you card |
| Wireless Data Network |
Intel® Wi-Fi 6 AX200 Supports channel bandwidth:HT20/HT40/HT80/HT160 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz Up to 2.4Gbps transfer speed |
| Bluetooth | Bluetooth® 5.0 |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS,
PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Manageability | WOL, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note |
***Features, Price and Specifications
are subject to change without notice. |
