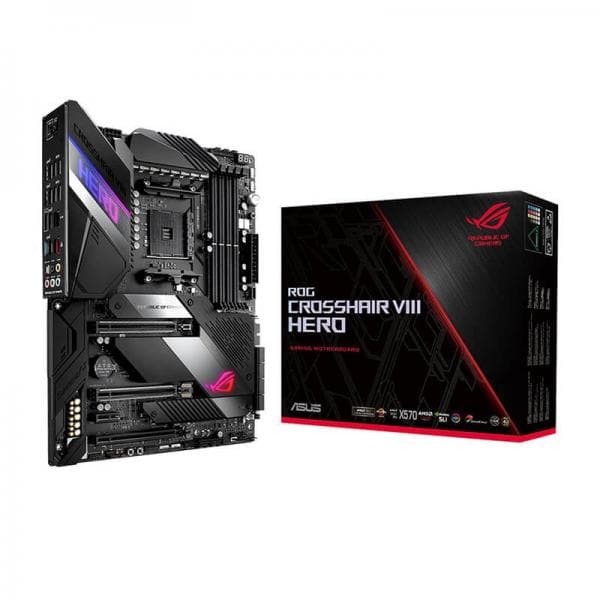

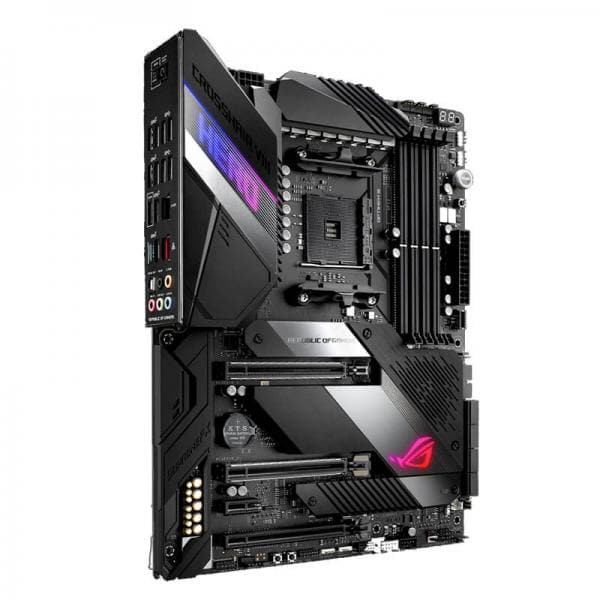

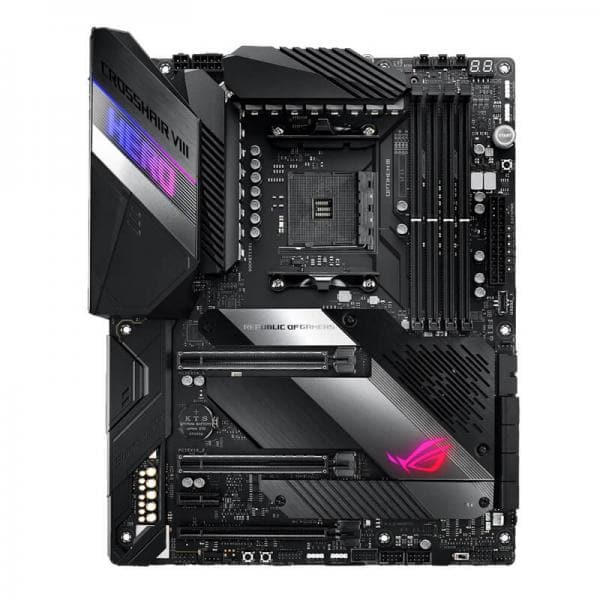

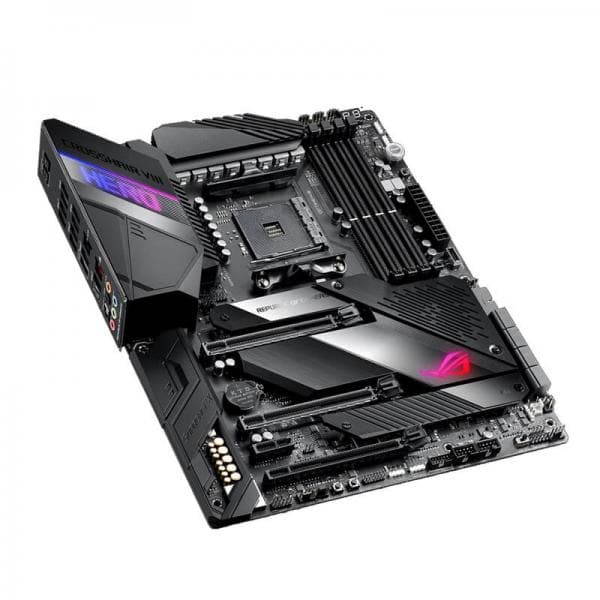

- ASUS ROG Crosshair VIII Hero DDR4 AMD Motherboard
Description
Feature of ASUS ROG Crosshair Vlll Hero DDR4
ROG CROSSHAIR VIII DARK HERO
Upgraded power delivery, passive chipset cooling, and stealthy aesthetics allow the Crosshair VIII Dark Hero to strike from the shadows and form a menacing duo with AMD Zen 3.
PERFORMANCE
ROG Crosshair VIII Dark Hero boasts an optimized power design layout and all the cooling headers you need to handle the prodigious power of the latest AMD Ryzen processors.
COOLING
Maintaining system stability is paramount under high load, so Crosshair VIII Dark Hero employs passive chipset cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Featuring premium components and multiple fan headers, Crosshair VIII Dark Hero is fully armed to provide the bes foundation for gaming systems.
Cooler by design
ROG Crosshair VIII Dark Hero features the most comprehensive cooling options ever.
-
Multiple temperature sources
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4 or UEFI. -
4-pin PWM/DC fan
Every onboard header supports auto-detection of PWM or DC fans. -
AIO PUMP
A dedicated PWM/DC header for self-contained water-cooling setups.
ROG Water-Cooling Zone
Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop.
-
Water pump+
A dedicated header can supply over 3 amps to high-performance PWM or DC water pumps. -
Water in/out
A dedicated header enables monitoring of temperatures at the input/output points of any component. -
Water flow
A dedicated header enables constant monitoring of flow rate throughout the entire loop.
OPTIMIZATION
ROG Crosshair VIII Dark Hero is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want.
Performance Level Up
The dashboard-style control panel of AI Suite 3 lets you fine-tune almost every aspect of your ROG Crosshair VIII Dark Hero system with ease between performance, cooling, stability, and efficiency via one simple and intuitive interface.
CONNECTIVITY
ASUS ROG Crosshair VIII Hero DDR4 offers advanced connectivity, including WiFi 6 (AX200) and dual Ethernet with Intel® 1Gb and Realtek 2.5Gb Ethernet port to eliminate bottlenecks so you can enjoy exceptionally smooth online and LAN play. Additionally, the M.2 supports AMD StoreMI technology to maximize the speed of your SSD for faster load times, and SupremeFX on-board audio provides superb sound, while saving a PCIe slot+
NETWORKING
- WiFi 6 (AX200) - Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense WiFi environments, providing exceptional online gaming experiences. *Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6. Find out more about ASUS WiFi 6 solutions:
- REALTEK 2.5G LAN - 2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
- Intel® 1Gbps Ethernet - ROG Crosshair VIII Dark Hero features the latest Intel® Ethernet (I211-AT) ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.
STORAGE
- UNTHROTTLED TRANSFER SPEED : Dual PCIe 4.0 M.2 Slot support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the AMD Ryzen™ 5000 and 3000 Series desktop processors.
- PCIe 4.0 READY - AMD STOREMI : AMD StoreMI technology is a software utility that accelerates any drive for better system responsiveness with reduced startup and software load times. It combines SSD performance with the affordability and capacity of an HDD by automatically moving frequently accessed data to dedicated SSD storage.
AUDIO
ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide best-ever recording quality. There's also a low-dropout regulator for cleaner power delivery to the SupremeFX S1220 codec, an ESS® ES9023P digital-to-analog converter for superior front-panel output, and a Texas Instruments® RC4580 op amp for high gain with low distortion — all to produce unmatched audio quality.
- Audio Line Shielding : Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.
- ESS® ES9023P : The ESS® ES9023P digital-to-analog converter creates a perfect balance for top-tier audio clarity capable of 112db DNR /-94dB THD+N for superior front-panel output
- S1220 Codec : 10 DAC channels provide simultaneous 7.1-channel playback, independent 2.0-channel, multiple-stream stereo to front-panel outputs
- Switching MOSFETS : Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone output
- Nichicon® CAPS : Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity
PERSONALIZE
In addition to extraordinary performance, ROG Crosshair VIII Dark Hero provides extensive styling and customization options to let you build a system that truly stands apart.
Specifications of ASUS ROG Crosshair Vlll Hero DDR4
CPU | AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
Chipset | AMD X570 |
Memory | 3rd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/ 4600(O.C)/4400(O.C)/4266(O.C.)/ 4133(O.C.)/4000(O.C.)/3866(O.C.)/ 3733(O.C.)/3600(O.C.)/ 3466(O.C.)/3400(O.C.)/3200/ 3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory2nd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/ 3400(O.C.)/3200(O.C.)/3000(O.C.)/ 2933/2800/2666/2400/2133 MHz Un-buffered Memory2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/ 2666/2400/2133 MHz Un-buffered MemoryDual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU. |
Multi-GPU Support | 3rd and 2nd Gen AMD Ryzen™ ProcessorsSupports NVIDIA® 2-Way SLI® TechnologySupports AMD 3-Way CrossFireX™ Technology2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics ProcessorsSupports AMD 2-Way CrossFireX™ Technology |
Expansion Slots | 3rd Gen AMD Ryzen™ Processors2 x PCIe 4.0 x16 (x16 or dual x8)2nd Gen AMD Ryzen™ Processors2 x PCIe 3.0 x16 (x16 or dual x8)2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0 x16 (x8 mode)AMD X570 chipset1 x PCIe 4.0 x161 x PCIe 4.0 x1 |
Storage | 3rd Gen AMD Ryzen™ Processors :1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)AMD X570 chipset :1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support8 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 |
LAN | Intel® I211-ATRealtek® RTL8125-CG 2.5G LANASUS LAN GuardROG GameFirst Technology |
Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC- Impedance sense for front and rear headphone outputs- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- SupremeFX Shielding Technology- ESS® ES9023P- Supports up to 32-Bit/192kHz playbackAudio Feature :- Sonic Studio III Sonic Studio Virtual Mixer- DTS® Sound Unbound- Optical S/PDIF out port(s) at back panel- Sonic Radar III* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
USB Ports | 3rd Gen AMD RyzenTM Processors :4 x USB 3.2 Gen 2 port(s)2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :4 x USB 3.2 Gen 1 port(s)AMD X570 chipset :1 x USB 3.2 Gen 2 front panel connector port(s)AMD X570 chipset :4 x USB 3.2 Gen 2 port(s)AMD X570 chipset :6 x USB 3.2 Gen 1 port(s)AMD X570 chipset :4 x USB 2.0 port(s) |
ROG Exclusive Features | Extreme Engine Digi :- IR3555 PoweIRstage®- MicroFine Alloy Chokes- 10K Black Metallic CapacitorsROG Extreme OC kit :- OptiMem III- Safe Boot button- Slow Mode- LN2 ModeExtreme TweakerROG Patented Pre-mounted I/O ShieldROG Exclusive Software- Sonic Studio III Sonic Studio Virtual Mixer- RAMCache III- RAMDisk- CPU-Z- GameFirst V- Sonic Radar III |
Special Features | ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI VRM, Fan Expert 4, and Turbo AppAURA :- Aura Lighting Effects Synchronization with compatible ASUS ROG devicesASUS Exclusive Features :- USB BIOS Flashback®- AI Suite 3- Ai Charger- ASUS CrashFree BIOS 3- Armoury Crate- ASUS NODE: hardware control interface- ASUS EZ Flash 3- ASUS C.P.R.(CPU Parameter Recall)- Clear CMOS Button- Reset Button- Start Button- ReTry buttonASUS Q-Design :- ASUS Q-Code- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMM- ASUS Q-Connector |

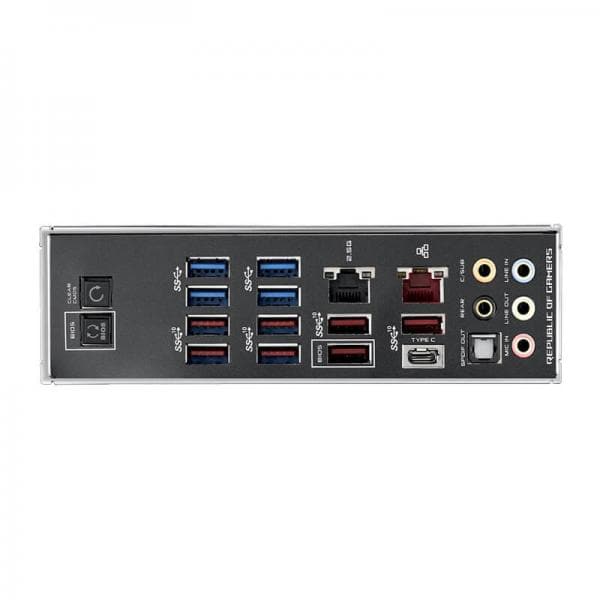

Back I/O Ports | 1 x Optical S/PDIF out1 x Clear CMOS button(s)1 x Anti-surge 2.5G LAN (RJ45) port1 x USB BIOS Flashback® Button(s)5 x Gold-plated audio jacks4 x USB 3.2 Gen 1 (up to 5Gbps) ports8 x USB 3.2 Gen 2 (up to 10Gbps) ports ()Anti-surge LAN (RJ45) port |
Internal I/O Ports | 2 x Aura RGB Strip Headers2 x Addressable Gen 2 header(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support1 x TPM connector(s)8 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x H_AMP fan connector1 x W_PUMP connector1 x 4-pin EATX 12 V Power connector1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Slow Mode switch(es)1 x Reset button(s)1 x Node Connector(s)1 x LN2 Mode jumper(s)1 x Safe Boot button1 x ReTry button1 x System panel connector1 x T_Sensor Connector1 x W_IN header1 x W_OUT header1 x W_FLOW header1 x Start button1 x Speaker connector1 x USB 3.2 Gen 2 (up to 10Gbps) connector1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
Manageability | WOL, PXE |
Operating System | Windows® 10 64-bit |
Form Factor | ATX Form Factor12 inch x 9.6 inch ( 20.5 cm x 24.4 cm) |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
