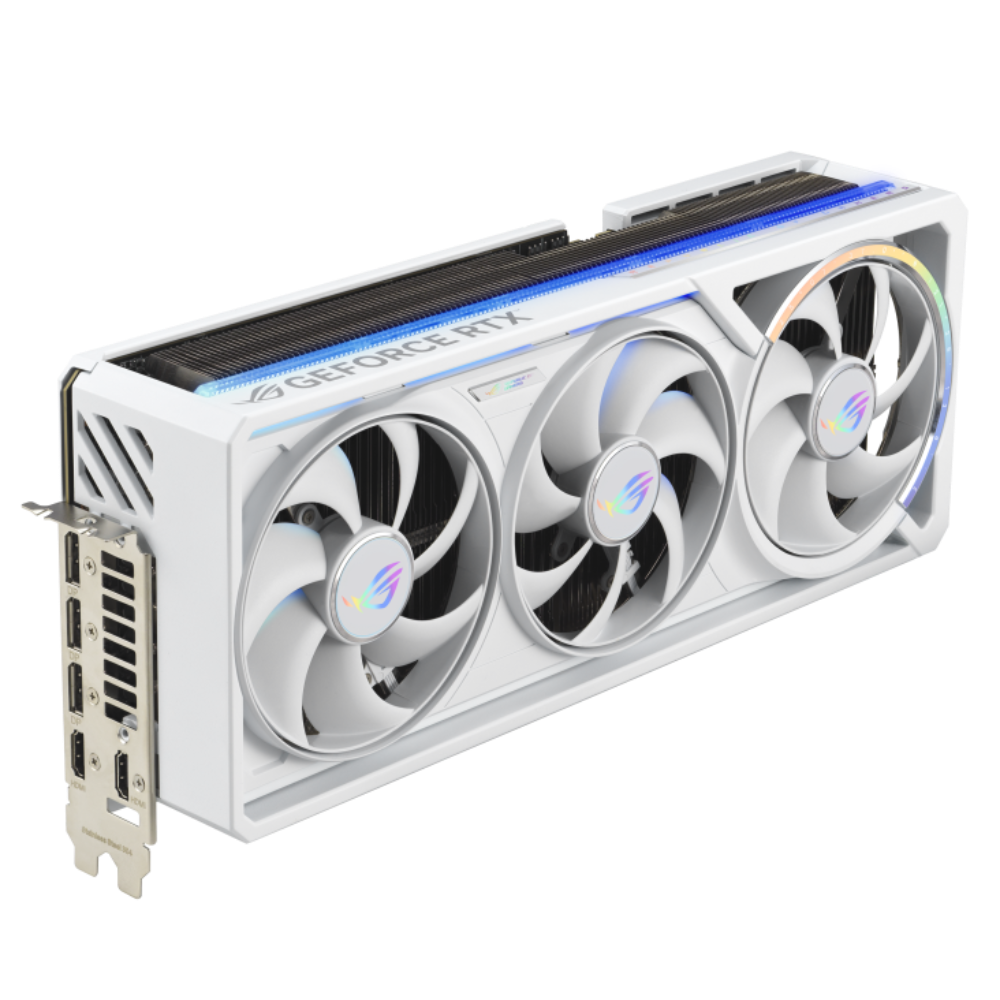

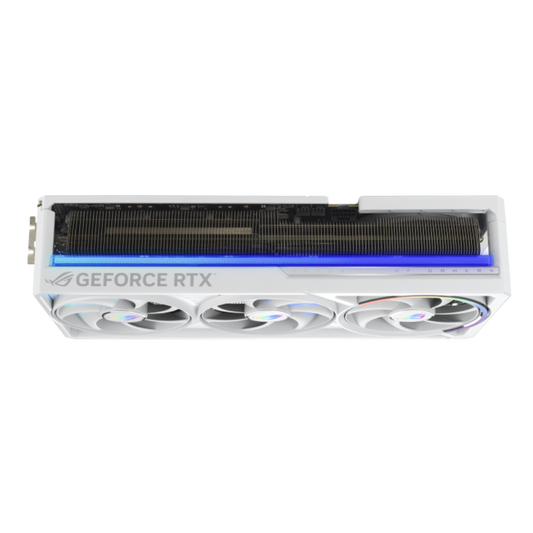

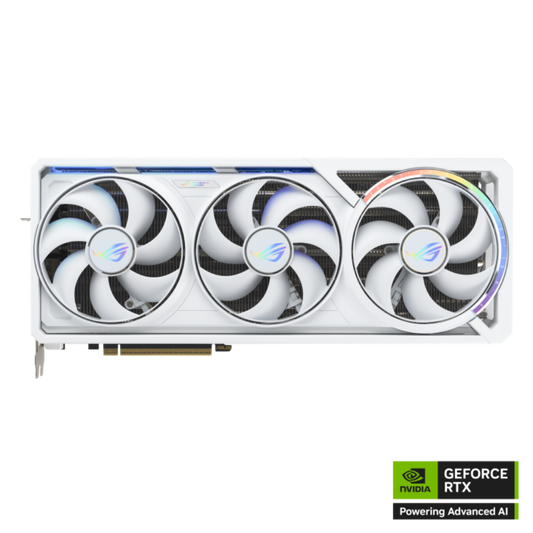

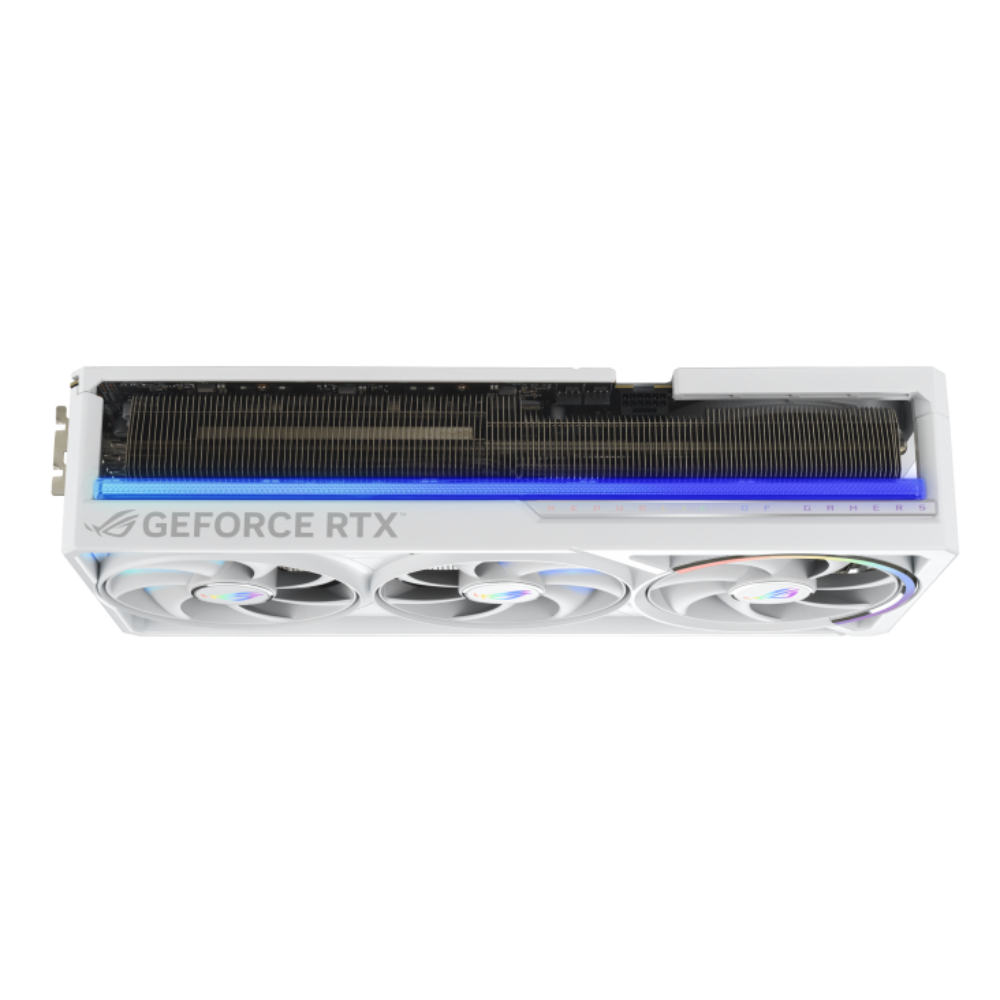

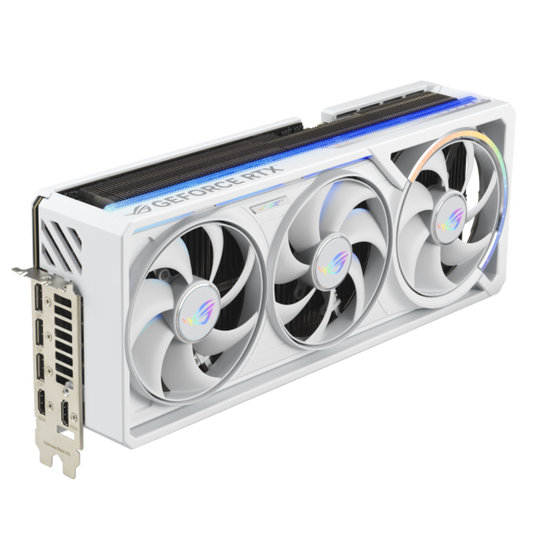

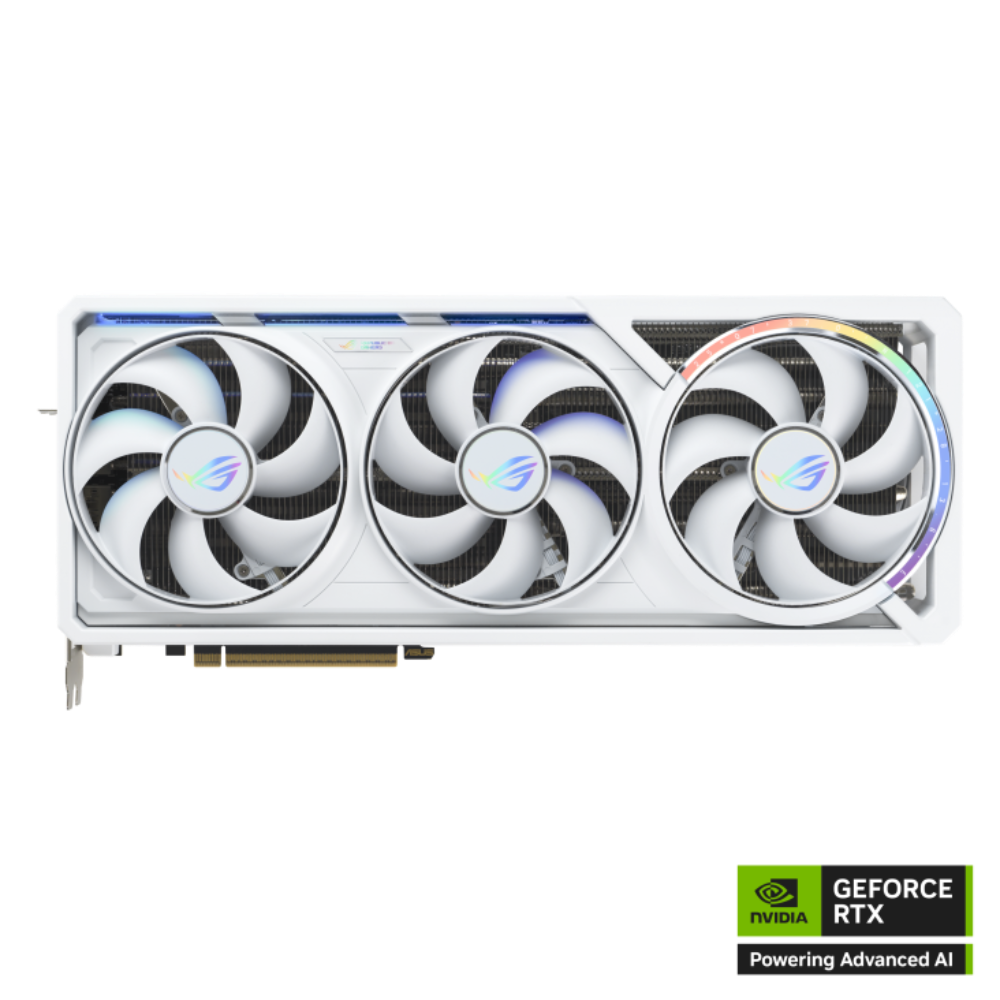

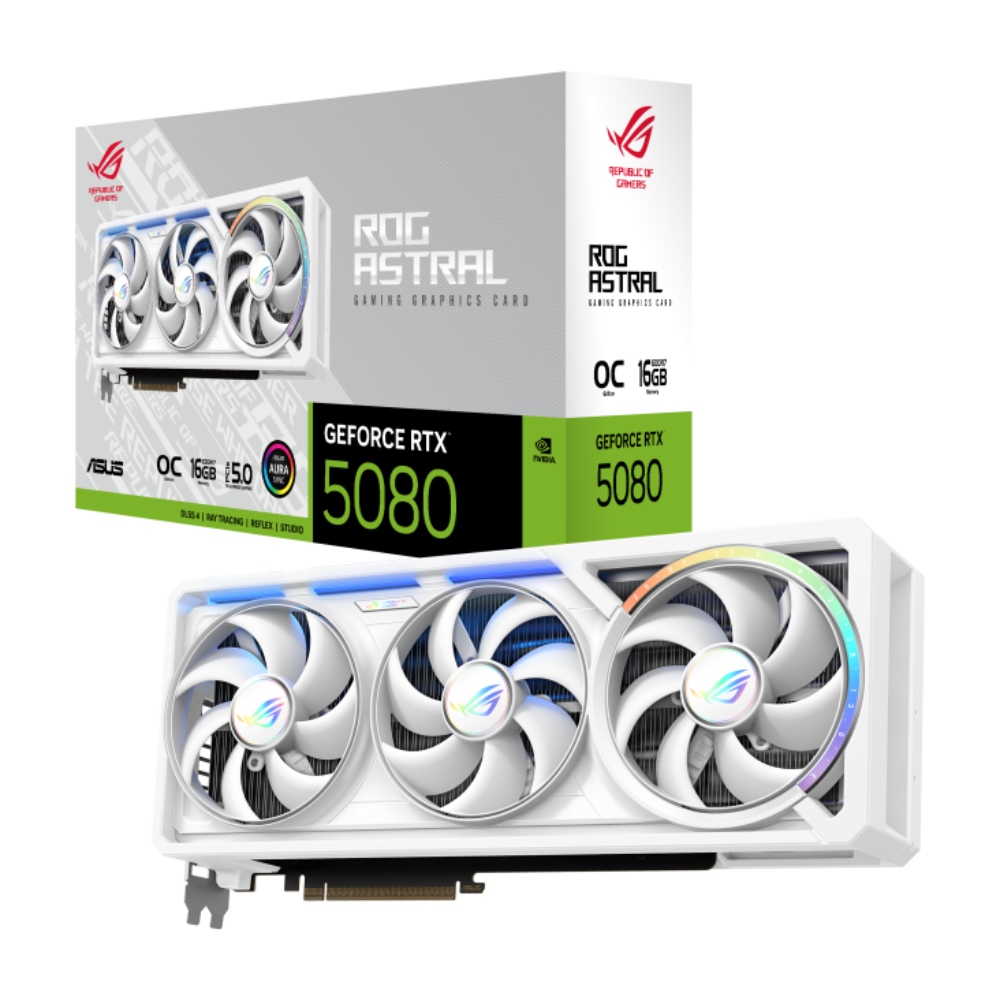

- ASUS ROG Astral GeForce RTX 5080 OC 16GB White Edition NVIDIA Graphic Card
Description
Features of ASUS ROG Astral GeForce RTX 5080 OC 16GB White Edition NVIDIA Graphic Card
Cooling Expertise Quad-Fan Force
A revolutionary four-fan design creates a powerful vertical airflow channel that boosts air pressure by up to 20%. This results in premium thermal performance that dramatically lowers GPU temperatures and minimizes hotspots, enabling unprecedented clock speeds.
Optimized Fin Spacing
The addition of a fourth fan permits more densely packed heatsink fins, increasing cooling potential.
Patented Vapor Chamber
A patented vapor chamber designed with milled pathways allows heatpipes to sink in without flattening, boosting heat dissipation efficiency. This innovative combo maximizes contact surface and improves thermal performance by over 10%.
MaxContact Design
MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Premium Power Delivery
Powerful 50-amp MOSFETs with extra power phases to deliver over 25% more headroom compared to the reference design. This helps ensure enhanced performance, stability and higher overclocking potential.
ASUS GPU Guard & Bracket
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.
Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
Ultra Rigid Metal Case

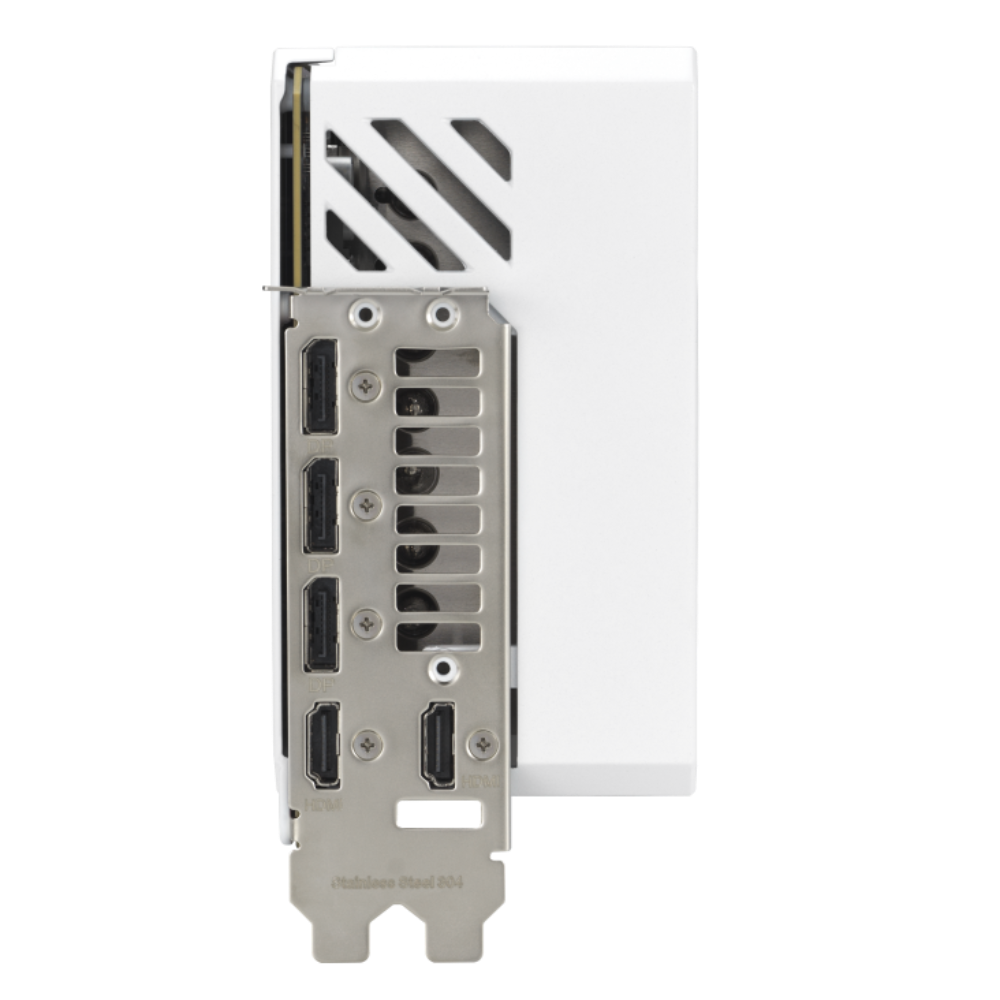

A high-quality diecast frame, shroud, and backplate tightly brace the PCB for rigidity, and a 304 stainless steel I/O bracket plus bundled graphics card holder ensures stable mounting.
Fan Connect II
Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly synced with the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.
Dual BIOS
Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at medium temperatures.
Pair with the ROG Thor III and ROG Strix Platinum Series PSU and enjoy reliable power for your graphics card. GPU-First enhances voltage stability by up to 45%, even during demanding gaming sessions and overclocking scenarios, helping to ensure peak performance for a more consistent gaming experience. Additionally, the integration of a GaN MOSFET boosts power efficiency by up to 30%.
Specification of ASUS ROG Astral GeForce RTX 5080 OC 16GB White Edition NVIDIA Graphic Card
Graphic Engine | NVIDIA® GeForce RTX™ 5080 |
AI Performance | 1899 TOPs |
Bus Standard | PCI Express 5.0 |
OpenGL | OpenGL®4.6 |
Video Memory | 16GB GDDR7 |
Engine Clock |
OC mode: 2790 MHz Default mode: 2760 MHz (Boost Clock) |
CUDA Core | 10752 |
Memory Speed | 30 Gbps |
Memory Interface | 256-bit |
Resolution | Digital Max Resolution 7680 x 4320 |

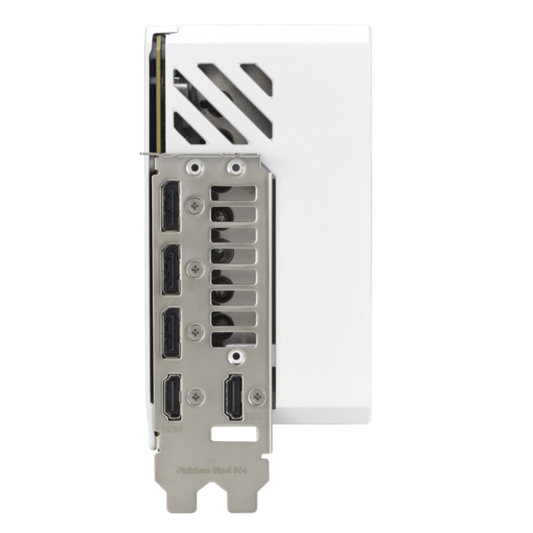

Interface | Yes x 2 (Native HDMI 2.1b) Yes x 3 (Native DisplayPort 2.1b) HDCP Support Yes (2.3) |
Maximum Display Support | 4 |
NVlink/ Crossfire Support | No |
Accessories |
1 x Speedsetup Manual 1 x ROG White Graphics Card Holder 1 x ROG White Velcro Hook & Loop 1 x ROG White Magnet 1 x ROG White Graphics Card Keycap 1 x ROG White PCB Ruler 1 x ROG Ring 1 x Thank You Card 1 x Adapter Cable (1 to 3) |
Software | ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
Dimensions |
357.6 x 149.3 x 76 mm 14.1 x 5.9 x 3 inch |
Recommended PSU | 850W |
Power Connectors | 1 x 16-pin |
Slot | 3.8 Slot |
AURA SYNC | ARGB |
