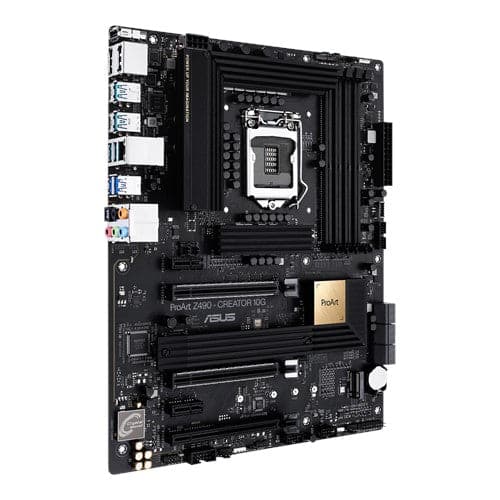

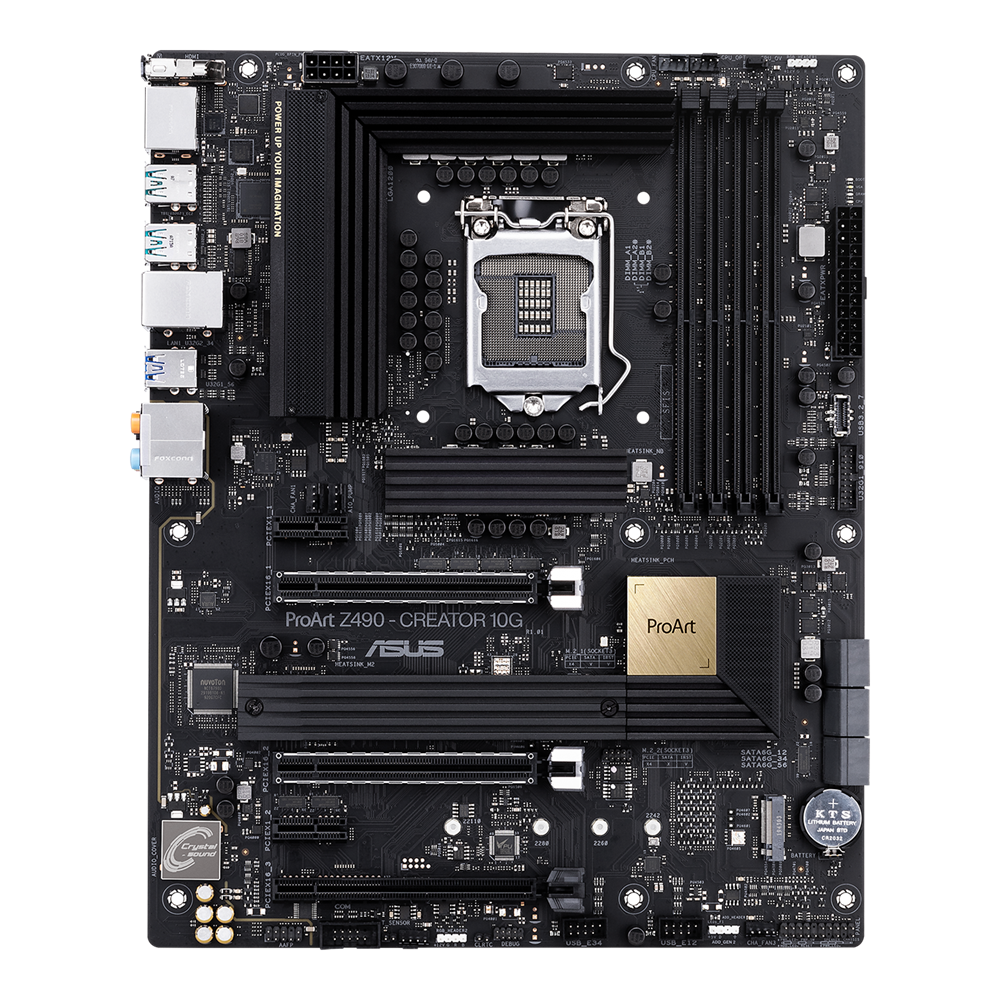

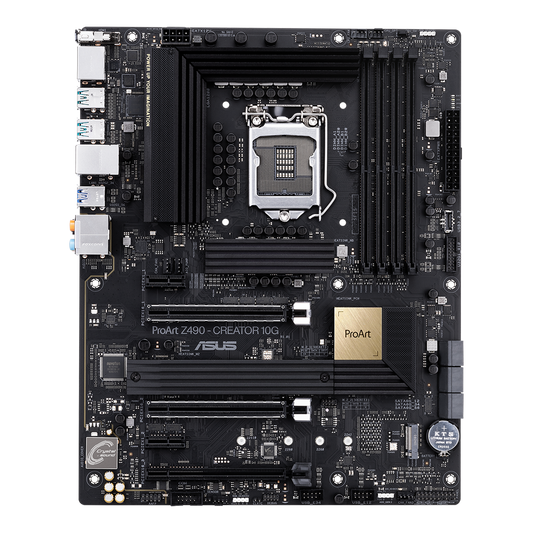

- ASUS ProArt Z490 Creator 10G DDR4 Intel Motherboard
Description
Feature of ASUS ProArt Z490 Creator 10G DDR4
-
Intel® LGA 1200 socket: ASUS PROART Z490-CREATOR Motherboard is Ready for 10th Gen Intel® Core™ processors
Ultrafast connectivity: Two Thunderbolt™ 3 Type-C ports, two M.2, HYPER 10G LAN card and onboard 2.5G Intel® LAN provide power and speed - Intelligent optimization: AI Overclocking, AI Cooling and Creation First automatically optimize CPU frequencies, fan speeds and network traffic for enhanced system performance and work efficiency
- Powerful performance: 12+2 DrMOS power stages, ASUS PROART Z490-CREATOR has multi-GPU support and improved memory frequency and stability empower creativity.
- Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with Safe Slot for durability.
- ProArt Creator Hub: Centralized software for one-stop monitoring and management of ASUS PROART Z490-CREATOR ProArt series products enables efficient content creation workflows.
Dual Thunderbolt™ 3 Type-C Ports
On ASUS PROART Z490-CREATOR Each Thunderbolt 3 port supports DisplayPort 1.4 output and can daisy-chain to up to six devices, with 15 watts of power to fast-charge devices. ASUS PROART Z490-CREATOR features two Thunderbolt 3 ports, offering a total of up to 40 Gbps of aggregate interface bandwidth, which allows numerous devices to be connected to the motherboard at once with ultrafast data transfer speeds.
HYPER 10G LAN Card
A HYPER 10G LAN card enables speeds that are up to 10 times faster than standard Gigabit Ethernet — so it’s ideal for content creators who frequently work with large files. Upload 4K video or transfer other large files quickly and with ease.
1. RJ45 connector
2. PCIE 3.0 x4 Interface : Fast transport speed
Onboard 2.5G Intel® Ethernet
ASUS ProArt Z490 Creator 10G DDR4 Onboard 2.5G Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, high-res video streaming and smoother lag-free gaming.
Dual M.2 slots
One M.2 slot supports SATA and PCIe® 3.0 x4 modes, and the other supports PCIe 3.0 x4 for NVMe, offering up to 32 Gbps data-transfer speeds and flexible M.2 interfaces.
AI Overclocking
ASUS AI Overclocking automatically tunes your system with onboard intelligence that monitors system vitals — such as temperatures, fan speeds and power draw — to estimate cooling and overclocking headroom and deliver optimal performance for content-creation workflows.
Predictive Edge
The algorithm of ASUS PROART Z490-CREATOR analyzes your CPU and cooling system and, based on what it finds, predicts optimal settings. The software then uses these settings to automatically guide the clocking process, balancing frequency and voltage.
Real-time Adjustments
The software of ASUS PROART Z490-CREATOR monitors workload, system temperature, fan speed and power draw every minute, and makes real-time adjustments to ensure ongoing optimal performance.
AI Cooling
With one click, AI Cooling function will automatically manage and control motherboard-connected fans to ensure optimal settings based on current system load and temperature.
CPU Temperature Detection
AI Cooling detects CPU temperatures and uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system and keep fan noise down.
Automated Optimization
Under stable system loads, the software then automatically lowers fan* speed to the optimal setting, decreasing fan noise without compromising performance.
Ongoing Monitoring
AI Cooling continues to monitor the system and adjust fan speed based on current load.
CreationFirst
CreationFirst network-optimization software allows you to prioritize applications in order to allocate more bandwidth to speed up essential apps and tasks.
Specifications of ASUS ProArt Z490 Creator 10G DDR4
| CPU |
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® Z490 |
| Memory |
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/ 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)
/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * |
| Thunderbolt |
2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz* * VGA resolution support depends on VGA cards' resolution. Data transfer rate up to 40 Gbps Daisy-chain up to 12 Thunderbolt devices Up to 5V/3A, 15W charging support |
| Graphic |
Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. |
| Multi-GPU Support | Supports AMD 3-Way CrossFireX™ Technology |
| Expansion Slots |
Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) *1 Intel® Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) *2 2 x PCIe 3.0 x1 |
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Z490 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready |
| LAN | Intel® I225-V 2.5Gb Ethernet |
| Audio |
Realtek® ALC S1220A 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback - High quality 120 dB SNR stereo playback output and SNR recording input Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Audio Cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| USB Ports |
Intel® Thunderbolt™ 3 Controller : 2 x USB 3.2 Gen 2 port(s) (USB Type-C®) Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 2 port(s)(4 x Type-A) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C®) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s) |
| Software Features |
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 5-Way Optimization with AI Overclocking - TPU - EPU - Digi+ VRM - EZ update - Fan Xpert 4 - Turbo app ProArt Creator Hub AI Charger Optimization tool specially for content creators WinRAR UEFI BIOS AI Optimization Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey - ASUS UEFI BIOS EZ Mode |
| Operating System Support | Windows® 10 64-bit |
| ASUS Special Features |
ASUS 5X PROTECTION III - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED - ASUS Q-Shield - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Procool - SafeSlot AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header(s) - Addressable Gen 2 RGB header |
| Back I/O Ports |
2 x Thunderbolt 3 ports TypeC™ 2 x DisplayPort IN ports for Thunderbolt™ 3 1 x HDMI 1 x LAN (2.5G) port(s) 4 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 1 x Optical S/PDIF out 5 x Audio jack(s) |
| Internal I/O Ports |
1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x COM port headerBIOS |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor |
ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
| Warranty | 3 Years |
| Note |
*1 Support PCIe bifurcation for RAID on CPU function. *2 PCIe 3.0 x4 will be switched from Thunderbolt™ 3 to PCIEX16_3 if the slot is populated; by then Thunderbolt™ 3 will have no output. *3 When M.2_1 is operating in SATA device, SATA6G_2 will be disabled. *4 M.2_2 runs at PCIe 3.0 x2 by default and shares bandwidth with SATA6G_56. When M.2_2 runs at PCIe 3.0 x4 or is populated by H10, SATA6G_56 will be disabled. *5 Please refer to the user manual for more details about DisplayPort input and Type-C output settings ***Features, Price and Specifications are subject to change without notice. |
