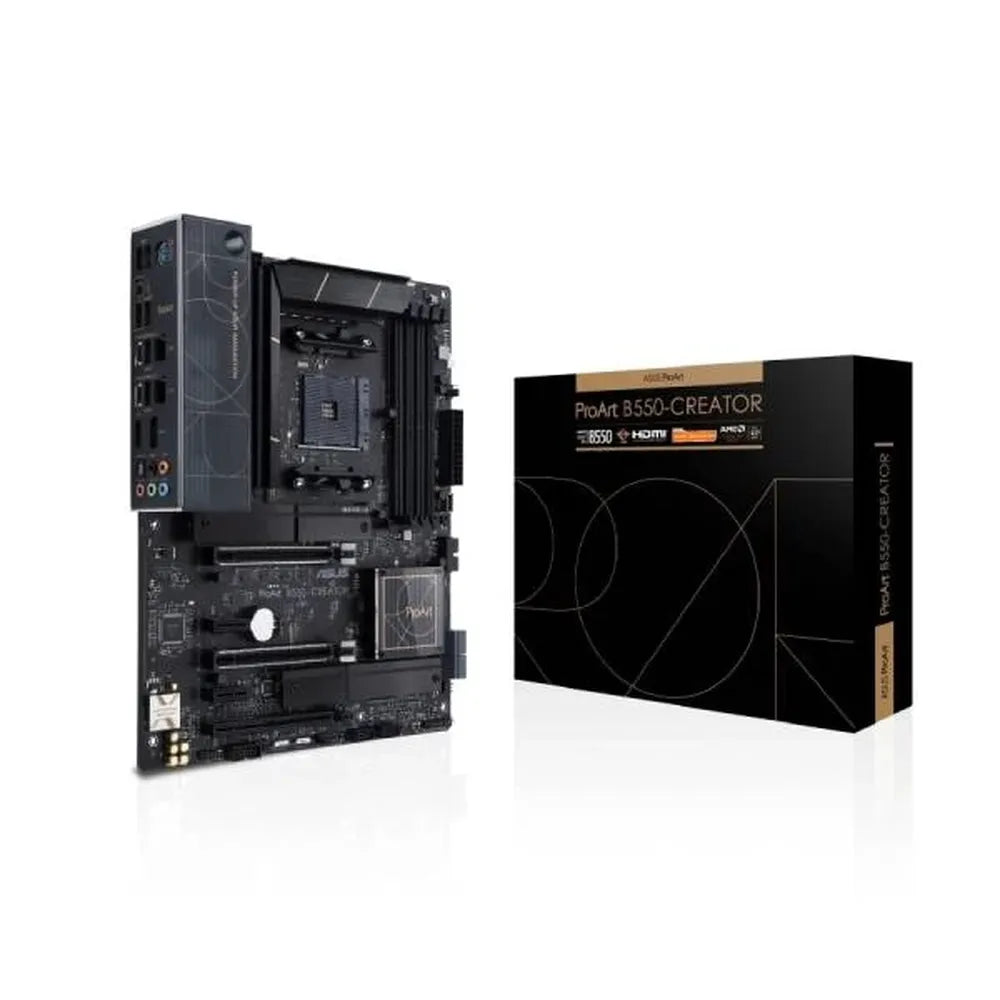

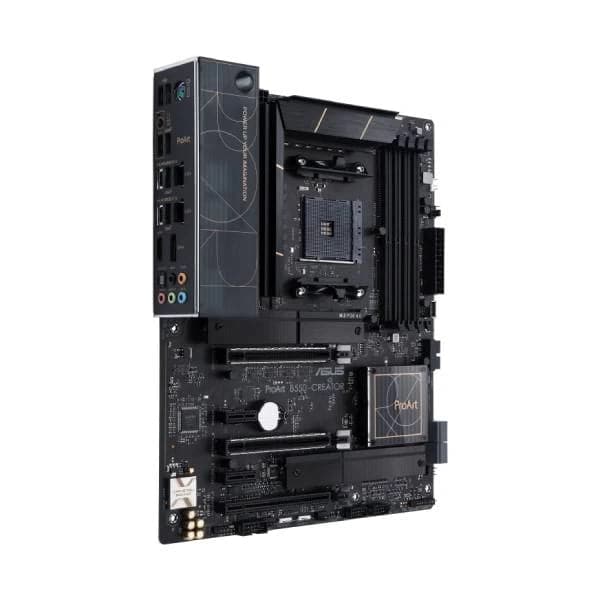

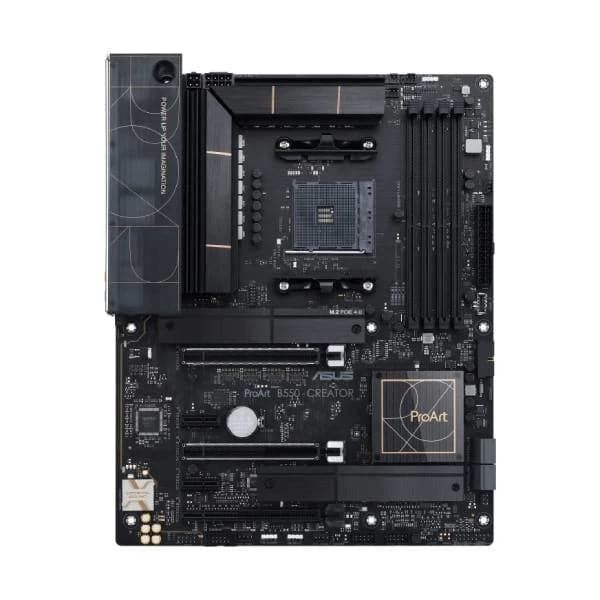

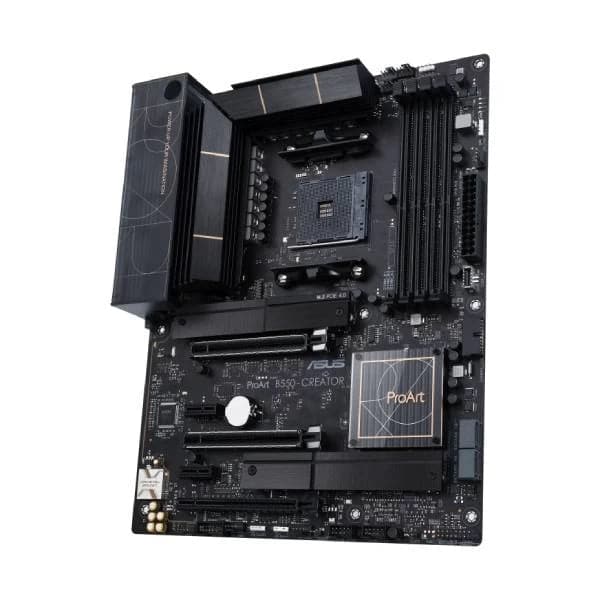

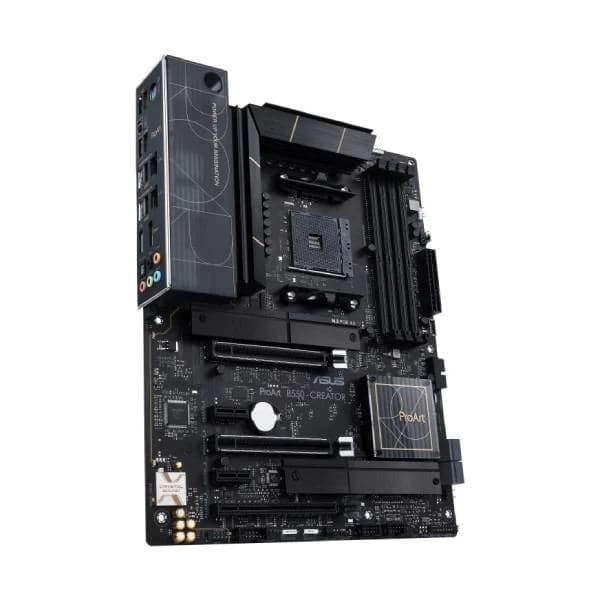

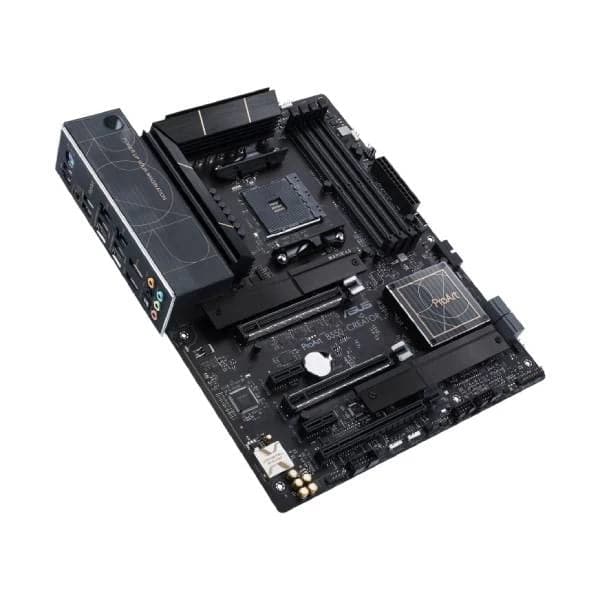

- ASUS ProArt B550 Creator DDR4 AMD Motherboard
Description
Feature of ASUS ProArt B550 Creator DDR4
- AM4 socket: Ready for AMD Ryzen™ 5000 Series / 4000 G-Series / 3000 Series desktop processors
- Powerful I/O: Dual Thunderbolt 4 Type-C ports, dual 2.5G onboard Ethernet, USB 3.2 Gen 2 plus HDMI™ 2.1 and DisplayPort™ 1.2 output
- Unthrottled Performance: PCI 4.0-ready, 12+2 power stages with high-quality alloy chokes and durable capacitors
- Advanced Security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
- ProArt Gives You More: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
- Trusted Stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot for enhanced durability
Lightning-Speed Connectivity
A comprehensive array of powerful I/O ports — including two Thunderbolt™ 4 ports, two 2.5G Ethernet and four USB 3.2 Gen 2 ports — enables quick data transfers and extensive storage options with flexible, hassle-free connectivity.
Dual Thunderbolt™ 4 Type-C®
Each Thunderbolt™ 4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps.
Dual 2.5G Ethernet
Experience faster data transfers and high-res video streaming with two Intel 2.5G Ethernet (I225-V) ports. ProArt B550-Creator also features CreationFirst, exclusive network optimization software that allocates more bandwidth to speed up essential apps for your work.
Unthrottled Performance
ASUS ProArt B550 Creator DDR4 provides robust power delivery and comprehensive cooling to handle the latest AMD Ryzen™ processors. It also supports PCIe 4.0, providing everything you need for the most demanding multithreaded tasks like 3D or video rendering and software compiling.
Robust Power Design
ProArt B550-Creator provides robust power delivery to handle the full power of latest Ryzen processors and improve overall system stability
Specifications of ASUS ProArt B550 Creator DDR4
| CPU | AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Chipset | B550 |
| Memory |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/ 4133(O.C.) /4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/ 3466(O.C.) /3333(O.C.) /3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory AMD RyzenTM 4000 G-Series Processors DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory" OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphics |
1 x HDMI™ 2.1 (4K@60Hz) 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.2/1.4 and Thunderbolt™ video outputs * * Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. Graphics specifications may vary between CPU types. ** VGA resolution support depends on processors' or graphic cards' resolution. For more details about the video input and output settings please refer to the user manual |
| Expansion Slots |
2 x PCIe 4.0/3.0 x16 (x16, x8/x8) AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8)* AMD RyzenTM 4000 G-Series Processor 2 x PCIe 3.0 x16 (x16 or dual x8)* AMD B550 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)** 2 x PCIe 3.0 x1 slots*** * Support PCIe bandwidth bifurcation for RAID on CPU function. ** PCIe 3.0 x4 will be switched from Thunderbolt™ 4 to PCIEX16_3 if the slot is populated; by then Thunderbolt™ 4 will have no output *** These PCIe x1 slots share bandwidth with M.2_2, which runs at PCIe 3.0 x4 by default. You may go to BIOS setting to set M.2_2 to PCIe 3.0 x4 or x2 at will |
| Storage |
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD RyzenTM 4000 G-Series Processor : M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Supports RAID 0, 1, 10 |
| Ethernet | 2 x Intel® I225-V 2.5Gb Ethernet |
| USB |
Rear USB:Total 8 ports 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Audio |
- Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |

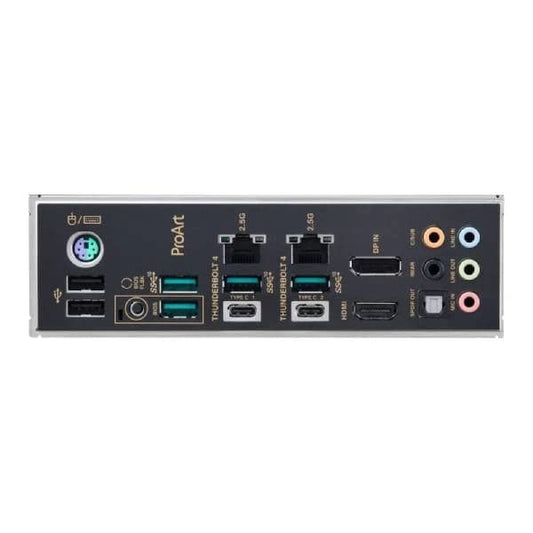

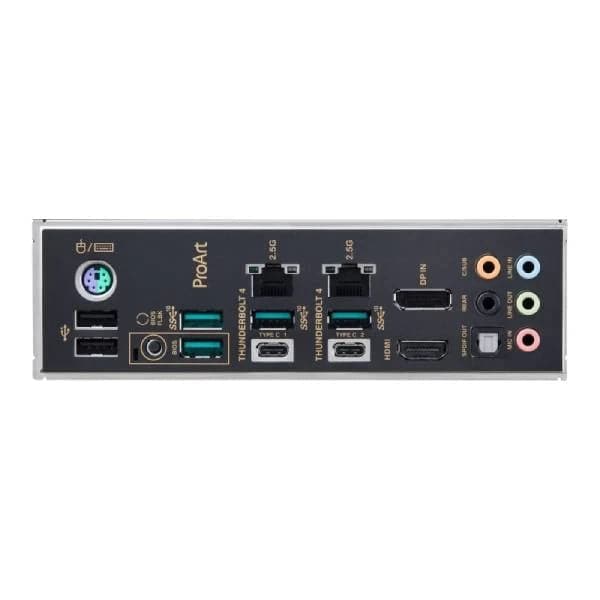

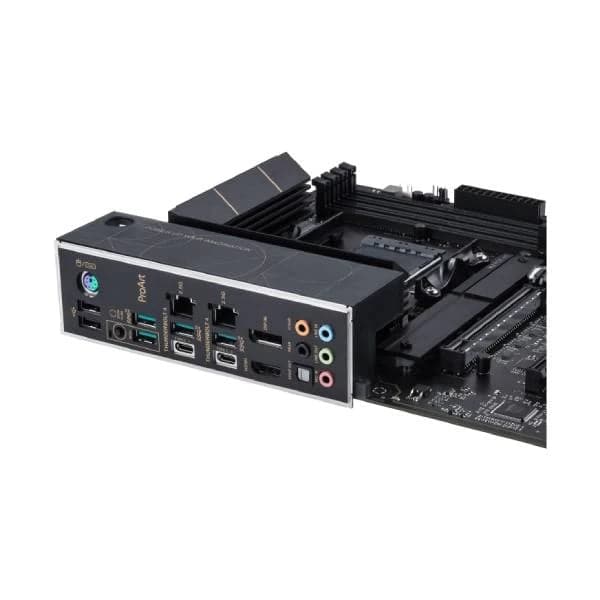

| Back Panel I/O Ports |
2 x Thunderbolt™ 4 USB Type-C® port(s) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI™ port 2 x Intel® I225-V 2.5Gb Ethernet ports 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port |
| Intrernal I/O Connectors |
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header |
| Special Features |
Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with Dr. MOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU - Q-Latch - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Box Headers - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection |
| Software Features |
ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization by Dual Intelligent Processors 5 TPU EPU Digi+ VRM Fan Xpert 4 Turbo app - EZ update ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) ProArt Creator Hub AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Accessories |
Cables 2 x SATA 6Gb/s cables 1 x DP to DP cable for Thunderbolt™ 4 Miscellaneous 1 x M.2 Rubber Package(s) Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User manual |
| Operating System | Windows® 10 64-bit |
| Form Factor |
ATX 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
