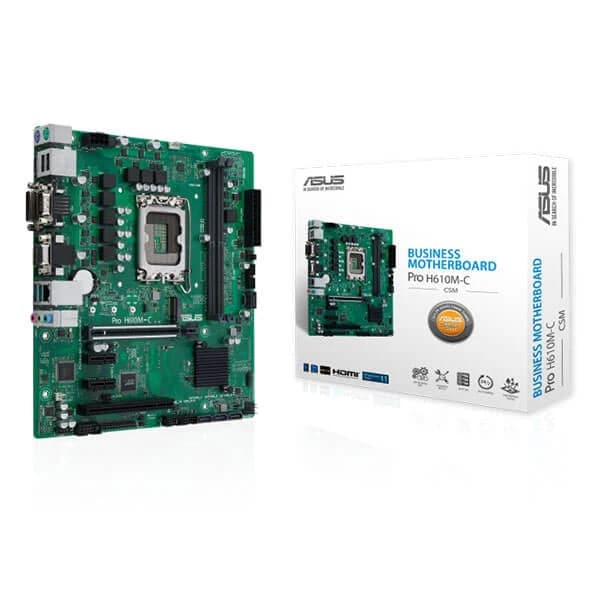

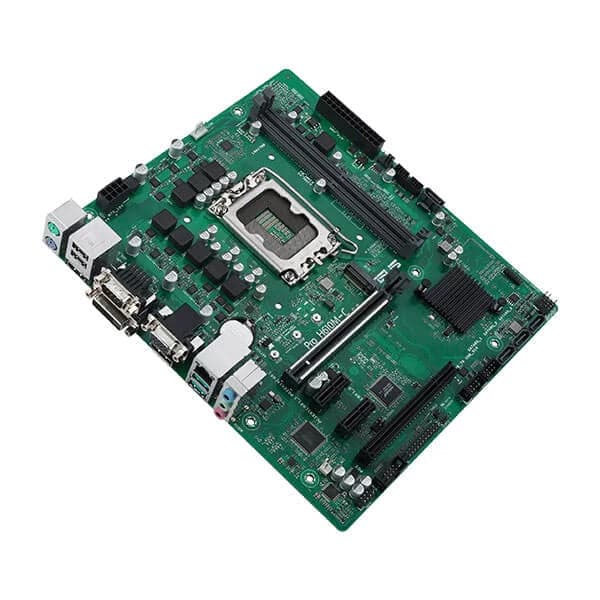

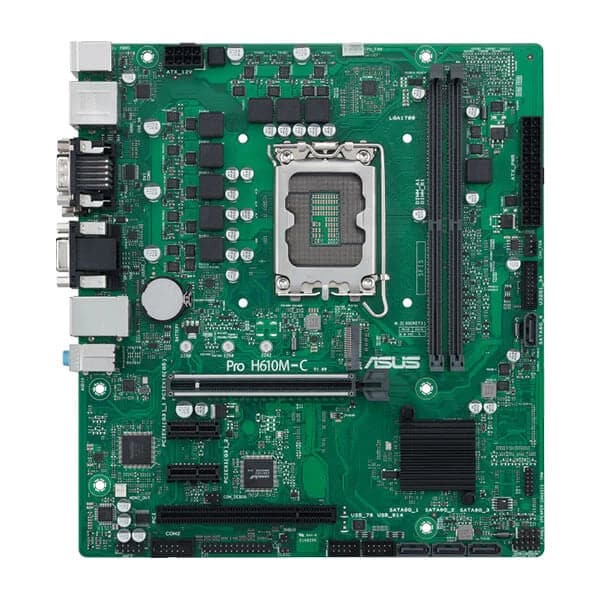

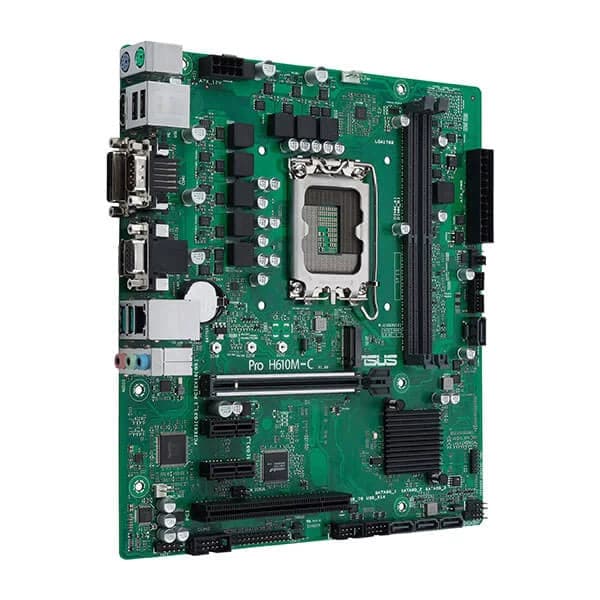

- ASUS Pro H610M-C CSM DDR4 Intel Motherboard
Description
Features of ASUS Pro H610M-C CSM DDR4 Intel Motherboard
ASUS Pro H610M-C CSM DDR4 business motherboard with enhanced security, reliability, manageability and serviceability
- Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast connectivity: PCIe 5.0, DDDR 5, USB 3.2 Gen 2
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization.
DDR5 Support
This business motherboard is a DDR5-compatible motherboard that optimizes memory module speeds and stability, while providing an advanced voltage delivery architecture for greater energy efficiency.
PCIe 5.0 slot
The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of PCI Express.
Anti-moisture Coating
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.
Specifications of ASUS Pro H610M-C CSM DDR4 Intel Motherboard
| CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list. Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset; | Intel® H610 Chipset; |
| Memory |
2 x DIMM, Max. 64GB, DDR5 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. |
| Graphics |
1 x DisplayPort 1 x D-Sub port 1 x HDMI® port 1 x DVI-D port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4 Supports 4K@60Hz as specified in HDMI 2.1 Supports up to 3 displays simultaneously. |
| Expansion Slots |
Intel® 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® H610 Chipset 2 x PCIe 3.0 x1 slots 1 x PCI |
| Storage; | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports Intel® H610 Chipset |
| Ethernet |
1 x Intel® 1Gb Ethernet ASUS LANGuard |
| USB |
Rear USB (Total 4 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC Supports Jack-detection, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

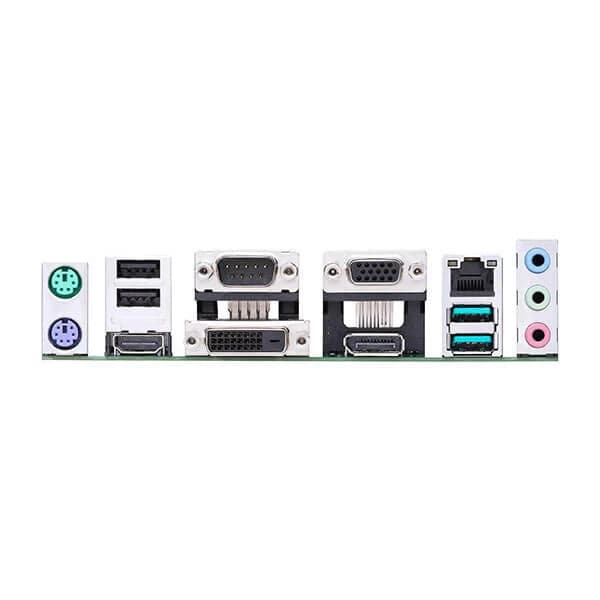

| Back Panel I/O Ports |
2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x D-Sub port 1 x DVI-D port 1 x Intel® 1Gb Ethernet 3 x Audio jacks 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port 1 x COM port |
| Internal I/O Connectors | |
| Fan and cooling related |
& 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header |
| Power related |
1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Storage related |
1 x M.2 slots (Key M) 4 x SATA 6Gb/s ports; |
| USB |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Miscellaneous |
& 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Special Features | |
| ASUS EZ DIY | Box Headers |
| Bespoke Motherboard Design & Business Focused Features |
Q-LED Core ASUS Self Recovering BIOS ASUS Event Log ASUS Commercial BIOS kit Anti-Moisture - 24/7 Reliability Overcurrent Protection |
| BIOS; | 128Mb Flash ROM; |
| Manageability; | WOL by PME, PXE; |
| Operating System ; | Windows® 11 64-bit, Windows® 10 64-bit; |
| Form Factor ; | mATX Form Factor 9.6 inch x 8.7 inch (24.4 cm x 22 cm) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
