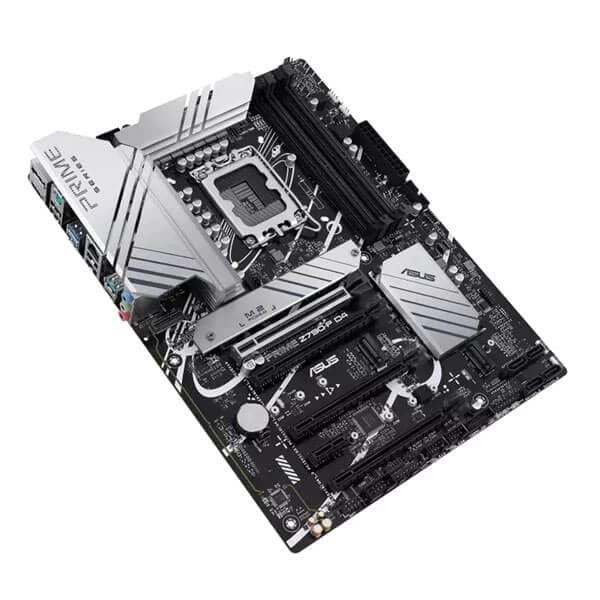

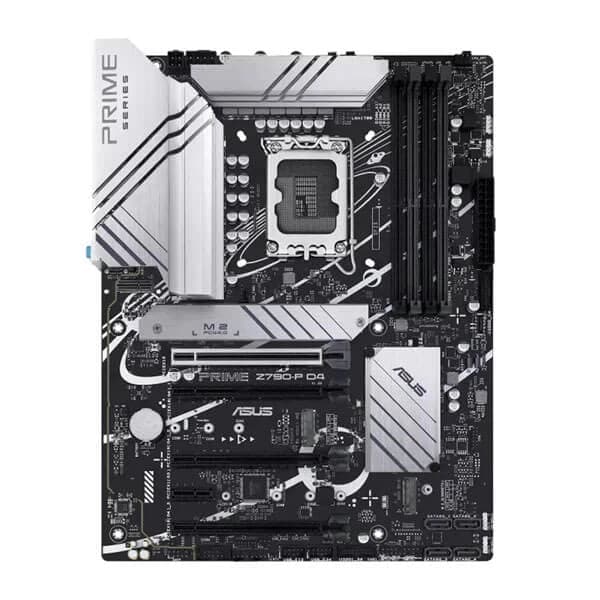

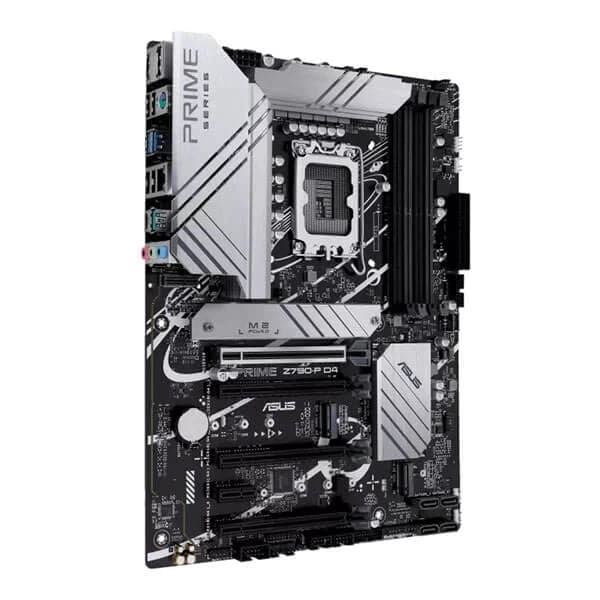

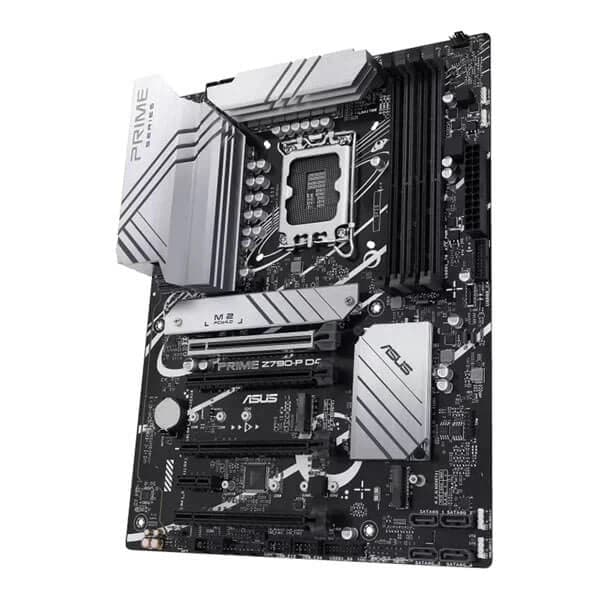

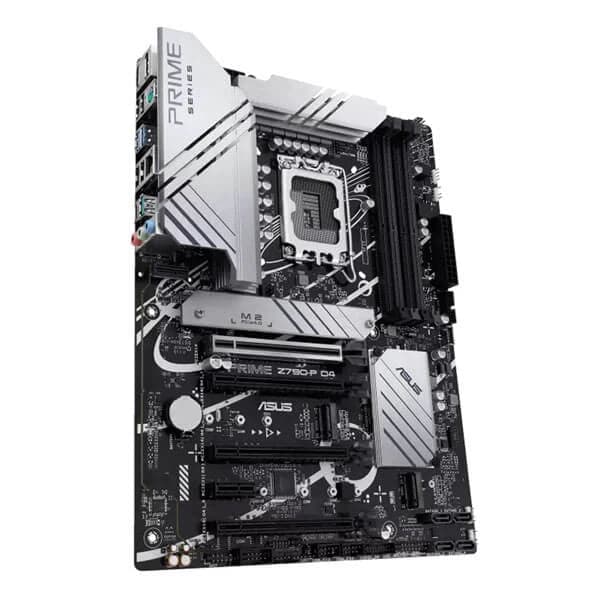

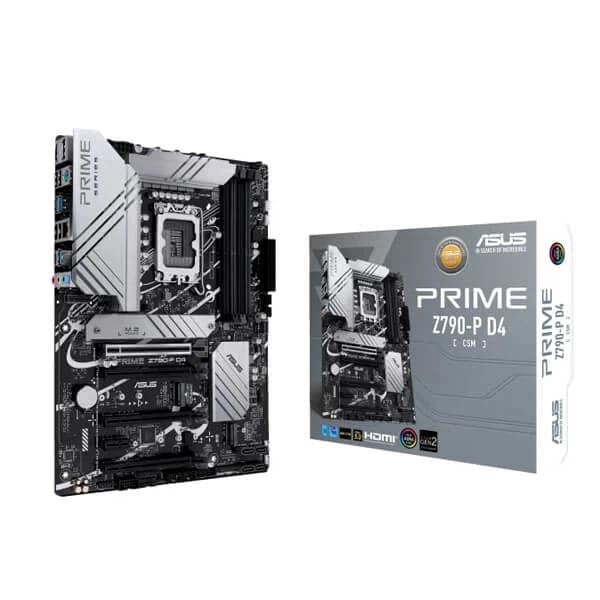

ASUS Prime Z790-P CSM DDR4 Intel Motherboard

• Intel LGA 1700 socket: Ready for 12th and 13th Gen Intel processors
• 14 + 1 power stages combine high-side and low-side MOSFETS and drivers into packages rated for 50 amperes each, delivering power, efficiency, stability and performance to latest Intel processors.
• PRIME Z790-P D4-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
• AI Cooling II balances the thermals and acoustics of any build with a single click.
• PC DIY design: PCIe Slot Q-Release, M.2 Q-Latch, Q-LED Core, and SafeSlot

AI Cooling ll

AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds

M.2 Heatsinks

An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.

VRM Heatsinks and Thermal Pads

The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.

Robust Power Design

Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790-P D4 is geared to cater to the demands of these high-core-count CPUs.

DDR4

Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

Three M.2 slots (up to 64 Gbps)

PRIME Z790-P D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
