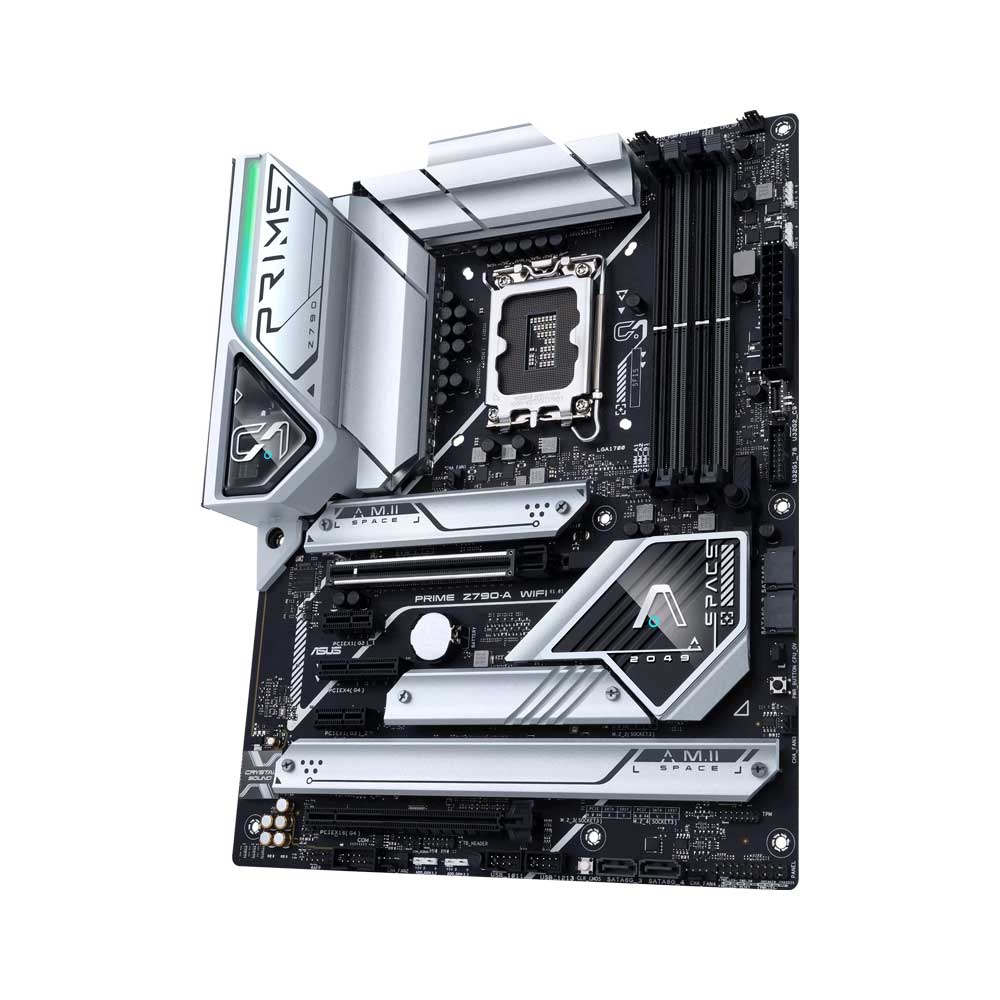

- ASUS Prime Z790-A Wifi DDR5 Intel Motherboard
Description
Feature of ASUS Prime Z790-A Wifi DDR5
ASUS Prime Z790-A Wifi DDR5, an Intel Z790 LGA 1700 ATX motherboard with PCIe® 5.0, four M.2 slots, 16+1 DrMOS, DDR5, Intel WIFI 6E, 2.5 Gb LAN, HDMI®, DP, USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®) support
- Intel® LGA 1700 socket: Ready for 12th and 13th Gen Intel® processors
- Enhanced power solution: 16+1 DrMOS, ProCool connectors, chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Large VRM heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
- Next-gen connectivity: DDR5 memory, PCIe® 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®) header support, 4 PCIe® 4.0 M.2
- Exclusive AI & Memory technology: AI Cooling II, Two-Way AI Noise-Cancelation, ASUS Enhanced Memory Profile II and ASUS OptiMem II
- PC DIY design: PCIe Slot Q-Release, M.2 Q-Latch, Q-LED Core, and SafeSlot
Lay the foundation of your next build with the robust ASUS PRIME Z790-A WIFI LGA 1700 ATX Motherboard. Designed as a jack-of-all-trades motherboard, the PRIME can perform a wide range of tasks from running your favorite games to editing videos and photos with ease.
At the heart of the PRIME is an LGA 1700 socket and Z790 chipset, allowing you to leverage a wide range of 12th and 13th Gen Intel processors. Four DDR5 Dual-Channel RAM slots allow you to install up to 128GB of memory for enhanced multitasking capabilities and complex photo and video rendering.
Four SATA III and four M.2 storage interfaces are available so you can build a large library of storage drives for your games or creative projects. A single PCIe 5.0 x16 slot is available for resource-demanding graphics cards while one PCIe 4.0 x16 (in x4 mode) and two PCIe 3.0 x1 slots support a wide range of utility cards.
Z790-A WIFI range of USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2×2 back panel ports and internal headers provide you with plenty of support for peripherals from low-powered equipment like mice, keyboards, and controllers to resource-demanding devices like external drives and storage arrays or use Bluetooth 5.2 technology for a cable-free experience. Z790-A WIFI Connect to your wireless network with Wi-Fi 6E (802.11ax) or use the integrated 2.5 Gigabit Ethernet port if you prefer a wired connection.
AI Equipped
Z790-A WIFI Leveraging Artificial Intelligence, the PRIME can boost performance with automatic AI overclocking and cooling, enhancing your games and productivity without compromising thermal capabilities. Two-way AI noise cancellation is an audio-focused utility used to reduce background sound, ensuring others can hear you clearer when engaging in team-focused titles or delivering presentations remotely.
Enhanced Power Solution
Z790-A WIFI Equipped with a 16+1 DrMOS, ProCool sockets, alloy chokes, and durable capacitors, the PRIME delivers stable power delivery throughout the entire motherboard, maintaining electrical volume whether you are performing simple tasks or operating at full power during resource-demanding processes.
Comprehensive Cooling
To ensure your system remains cool under heavy loads, the PRIME motherboard incorporates a large VRM heatsink for capacitors and chokes as well as integrated M.2 heatsinks and backplates for better thermal performance that prevents throttling. Hybrid fan headers and Fan Xpert 4 software control fans and liquid cooling elements for enhanced cooling that can be modified to your preference.
Connectivity
Between the backplate and the internal headers, the PRIME offers robust connectivity suitable for your peripherals. USB-A and USB-C 3.2 Gen 1 and Gen 2 ports deliver up to 5 and 10 Gb/s data transfer speeds, respectively, suitable for webcams, mics, and external storage drives. A USB-C 3.2 Gen 2×2 port gives you up to 20 Gb/s data transfer speed for resource-demanding devices such as storage arrays and audio interfaces. You can expand your connectivity with an internal Thunderbolt 4 header, allowing you to utilize high-speed connectivity that supports fast transfer speeds and Power Delivery technologies.
Additional Enhancements
Z790-A WIFI Several on-board enhancements help with the installation process while also providing additional support for the long-term with PCIe Slot Q-Release, M.2 Q-Latch, Q-LED Core, and SafeSlot.
Specifications of ASUS Prime Z790-A Wifi DDR5
CPU |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset | Intel® Z790 Chipset |
Memory |
4 x DIMM, Max. 128GB, DDR5 7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)
/5800(OC)/5600/5400/5200/5000/4800, Un-buffered Memory* |
Graphics |
1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports max. 8K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors’ or graphic cards’ resolution. |
Expansion Slot |
Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 3.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
Storage |
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
Ethernet |
1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
Wireless & Bluetooth |
Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
USB |
Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Audio |
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – Audio Shielding – Power pre-regulator reduces power input noise to ensure consistent performance – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |

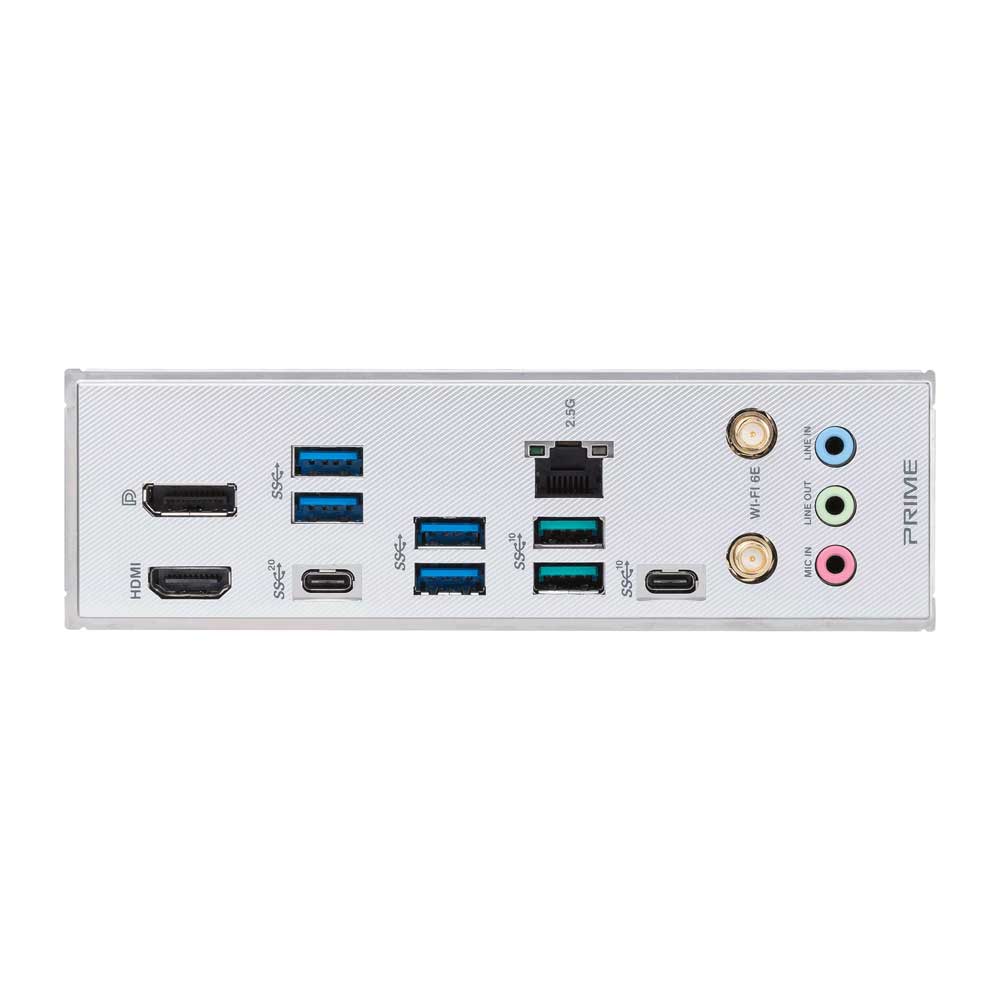

Back Panel I/O Ports |
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 3 x Audio jacks |
Internal I/O Connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Power button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header |
Special Features |
ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – LANGuard – Overvoltage Protection – Safeslot – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Connector – Q-DIMM – Q-LED (CPU – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – Box Headers – Clear CMOS button – CPU Socket lever protector – ProCool – Pre-mounted I/O shield – SafeDIMM Aura Sync – Aura RGB header – Addressable Gen 2 headers |
Software Features |
ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – TurboV EVO – DIGI+ VRM – PC Cleaner ASUS CPU-Z DTS:X® Ultra MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode MemTest86 |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Accessories |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x Q-connector 2 x M.2 Rubber Packages 1 x Screw package for M.2 SSD Documentation 1 x User guide |
Operating System | Windows® 11, Windows® 10 64-bit |
Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Warranty | 3 Years |
Note** | **Prices, Specifications & Features are subject to change without notice |
