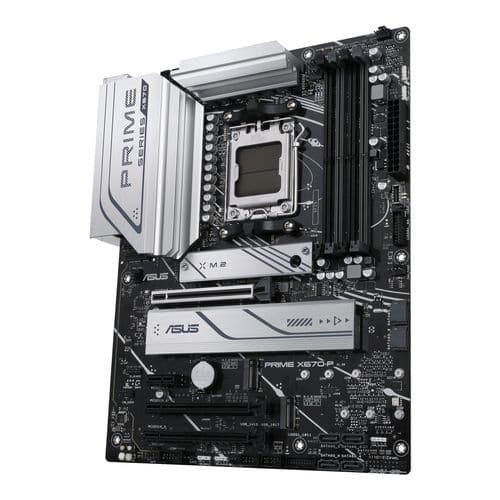

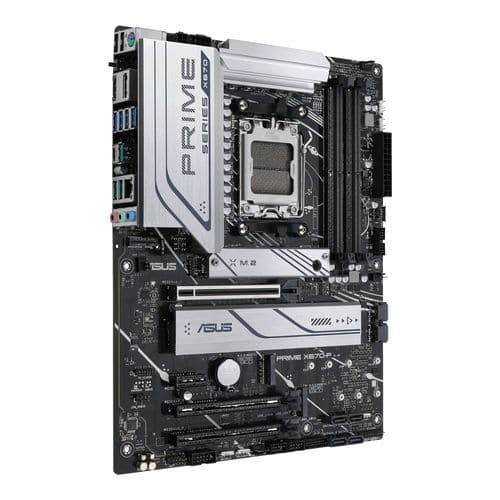

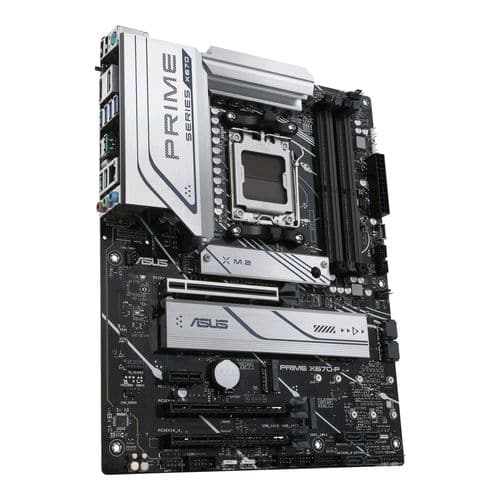

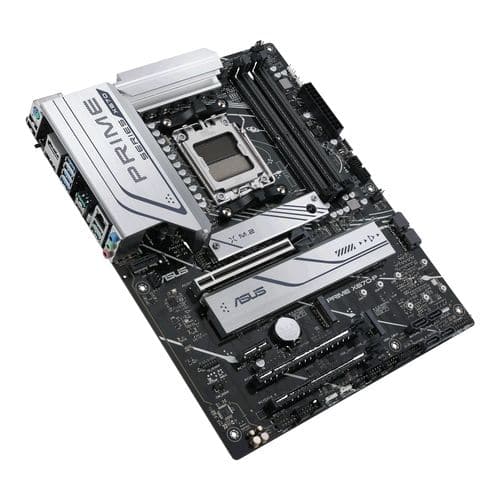

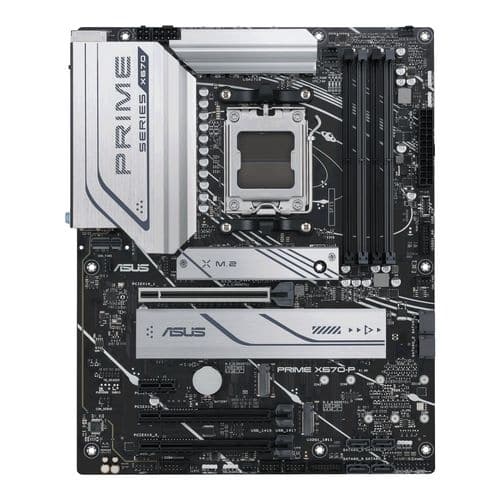

- ASUS Prime X670-P CSM DDR5 AMD Motherboard
Description
Features of ASUS Prime X670-P CSM DDR5 AMD Motherboard
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors.
Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, ASUS Prime X670-P CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
COOLING
ASUS Prime X670-P CSM DDR5 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
An M.2 heatsink takes care of the M.2 slot, warding off throttling that can occur with M.2 storage during sustained transfers.
Passive Chipset Heatsink
An aluminum passive chipset heatsink ensures optimal cooling for more stable performance. The passive heatsink approach is more durable and longer-lasting, avoiding dust and dirt build-up problems often encountered by conventional active heatsinks with dedicated fan designs.
Cooler by Design
ASUS Prime X670-P CSM DDR5 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference four thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
AIO Pump Header
A dedicated PWM/DC header for self-contained water-cooling setups.
Smart Protection
A dedicated integrated circuit protects each fan header from overheating and overcurrent.
4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.
PERFORMANCE
The ASUS Prime X670-P CSM DDR5 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS Prime X670-P CSM DDR5 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of AMD processors. The ASUS Prime X670-P CSM DDR5 is geared to cater to the demands of these high-core-count CPUs.
ProCool Connectors
Proprietary connectors augment the motherboard’s link to the PSU with 4 pin+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
Outstanding Audio
Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
Audio Shielding
Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Dedicated Audio PCB Layers
ASUS Prime X670-P CSM DDR5 has Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
Premium Audio Capacitors
ASUS Prime X670-P CSM DDR5 Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
Specifications of ASUS Prime X670-P CSM DDR5 AMD Motherboard
CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* |
* Refer to www.asus.com for CPU support list. | |
Chipset | AMD X670 Chipset |
Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* |
Dual Channel Memory Architecture | |
Supports AMD Extended Profiles for Overclocking (EXPO™) | |
OptiMem II | |
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. | |
Graphics | 1 x DisplayPort** |
1 x HDMI® port*** | |
* Graphics specifications may vary between CPU types. | |
** Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
*** Supports 4K@60Hz as specified in HDMI® 2.1. | |
Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors |
1 x PCIe 4.0 x16 slot (supports x16 mode) | |
AMD X670 Chipset | |
2 x PCIe 4.0 x16 slots (support x4 mode) | |
1 x PCIe 3.0 x1 slot** | |
* Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. | |
** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. | |
Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports* |
AMD Ryzen™ 7000 Series Desktop Processors | |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
AMD X670 Chipset | |
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
6 x SATA 6Gb/s ports** | |
* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. | |
Ethernet | 1 x Realtek 2.5Gb Ethernet |
Wireless & Bluetooth | V-M.2 slot only (Key E, PCIe)* |
* Wi-Fi module is sold separately. | |
USB | Rear USB (Total 10 ports) |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) | |
3 x USB 3.2 Gen 2 ports (3 x Type-A) | |
4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
2 x USB 2.0 ports (2 x Type-A) | |
Front USB (Total 9 ports) | |
1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
- Supports up to 24-Bit/192 kHz playback | |
Audio Features | |
- Audio Shielding | |
- Premium audio capacitors | |
- Dedicated audio PCB layers | |
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |

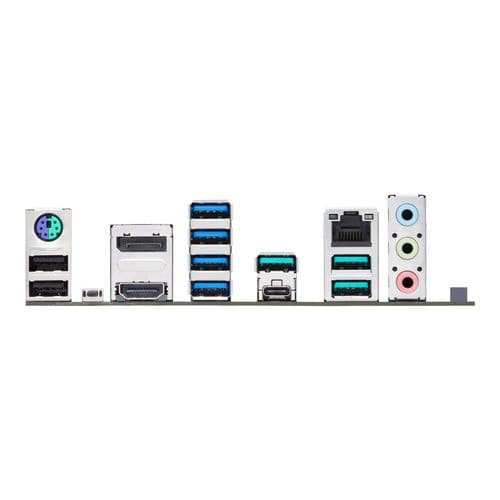

Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
3 x USB 3.2 Gen 2 ports (3 x Type-A) | |
4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
2 x USB 2.0 ports (2 x Type-A) | |
1 x DisplayPort | |
1 x HDMI® port | |
1 x V-M.2 slot (Key E) | |
1 x Realtek 2.5Gb Ethernet port | |
3 x Audio jacks | |
1 x BIOS FlashBack™ button | |
1 x PS/2 Keyboard/Mouse combo port | |
Internal I/O Connectors | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
3 x 4-pin Chassis Fan headers | |
Power related | |
1 x 24-pin Main Power connector | |
1 x 8-pin +12V Power connector | |
1 x 4-pin +12V Power connector | |
Storage related | |
3 x M.2 slots (Key M) | |
6 x SATA 6Gb/s ports | |
USB | |
1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Miscellaneous | |
3 x Addressable Gen 2 headers | |
2 x Aura RGB headers | |
1 x Clear CMOS header | |
1 x COM Port header | |
1 x Front Panel Audio header (AAFP) | |
1 x S/PDIF Out header | |
1 x SPI TPM header (14-1pin) | |
1 x 20-5 pin System Panel header | |
1 x Thunderbolt™ (USB4®) header | |
Special Features | ASUS 5X PROTECTION III |
- DIGI+ VRM (- Digital power design with DrMOS) | |
- ESD Guards | |
- LANGuard | |
- Overvoltage Protection | |
- Safeslot Core+ | |
- Stainless-Steel Back I/O | |
ASUS Q-Design | |
- M.2 Q-Latch | |
- Q-DIMM | |
- Q-LED Core | |
- Q-Slot | |
ASUS Thermal Solution | |
- M.2 heatsink | |
- VRM heatsink design | |
ASUS EZ DIY | |
- BIOS FlashBack™ button | |
- BIOS FlashBack™ LED | |
- ProCool | |
Aura Sync | |
- Aura RGB headers | |
- Addressable Gen 2 headers | |
Software Features | ASUS Exclusive Software |
Armoury Crate | |
- Aura Creator | |
- Aura Sync | |
- Fan Xpert 4 with AI Cooling II | |
- Power Saving | |
AI Suite 3 | |
- TurboV EVO | |
- DIGI+ VRM | |
- PC Cleaner | |
ASUS CPU-Z | |
IT Management software supported | |
- ASUS Control Center Express(ACCE) | |
Norton Anti-virus software (Free Trial version) | |
WinRAR | |
UEFI BIOS | |
ASUS EZ DIY | |
- ASUS CrashFree BIOS 3 | |
- ASUS EZ Flash 3 | |
- ASUS UEFI BIOS EZ Mode | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Accessories | Cables |
2 x SATA 6Gb/s cables | |
Miscellaneous | |
1 x I/O Shield | |
1 x Rubber Package for M.2 | |
2 x Screw Packages for M.2 SSD | |
Documentation | |
1 x ACC Express Activation Key Card | |
1 x User guide | |
Operating System | Windows® 11, Windows® 10 64-bit |
Form Factor | ATX Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
