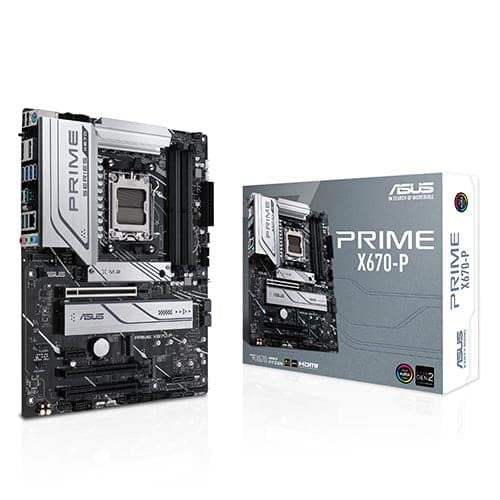

ASUS PRIME X670-P ATX Motherboard
Features
Specifications
|
CPU
|
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
|
|
* Refer to www.asus.com for CPU support list.
|
|
| Chipset |
AMD X670 Chipset
|
|
Memory
|
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory*
|
|
Dual Channel Memory Architecture
|
|
|
Supports AMD Extended Profiles for Overclocking (EXPO™)
|
|
|
OptiMem II
|
|
|
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
|
|
|
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
|
|
|
Graphics
|
1 x DisplayPort**
|
|
1 x HDMI® port***
|
|
|
* Graphics specifications may vary between CPU types.
|
|
|
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
|
|
|
*** Supports 4K@60Hz as specified in HDMI® 2.1.
|
|
|
Expansion Slots
|
AMD Ryzen™ 7000 Series Desktop Processors
|
|
1 x PCIe 4.0 x16 slot (supports x16 mode)
|
|
|
AMD X670 Chipset
|
|
|
2 x PCIe 4.0 x16 slots (support x4 mode)
|
|
|
1 x PCIe 3.0 x1 slot**
|
|
|
* Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/.
|
|
|
** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.
|
|
|
Storage
|
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
|
|
AMD Ryzen™ 7000 Series Desktop Processors
|
|
|
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
|
|
|
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
|
|
|
AMD X670 Chipset
|
|
|
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
|
|
|
6 x SATA 6Gb/s ports**
|
|
|
* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
|
|
|
** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.
|
|
| Ethernet |
1 x Realtek 2.5Gb Ethernet
|
|
Wireless & Bluetooth
|
V-M.2 slot only (Key E, PCIe)*
|
|
* Wi-Fi module is sold separately.
|
|
|
USB
|
Rear USB (Total 10 ports)
|
|
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
|
|
|
3 x USB 3.2 Gen 2 ports (3 x Type-A)
|
|
|
4 x USB 3.2 Gen 1 ports (4 x Type-A)
|
|
|
2 x USB 2.0 ports (2 x Type-A)
|
|
|
Front USB (Total 9 ports)
|
|
|
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
|
|
|
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
|
|
|
2 x USB 2.0 headers support additional 4 USB 2.0 ports
|
|
|
Audio
|
Realtek 7.1 Surround Sound High Definition Audio CODEC*
|
|
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
|
|
|
– Supports up to 24-Bit/192 kHz playback
|
|
|
Audio Features
|
|
|
– Audio Shielding
|
|
|
– Premium audio capacitors
|
|
|
– Dedicated audio PCB layers
|
|
|
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
|
|
|
Back Panel I/O Ports
|
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
|
|
3 x USB 3.2 Gen 2 ports (3 x Type-A)
|
|
|
4 x USB 3.2 Gen 1 ports (4 x Type-A)
|
|
|
2 x USB 2.0 ports (2 x Type-A)
|
|
|
1 x DisplayPort
|
|
|
1 x HDMI® port
|
|
|
1 x V-M.2 slot (Key E)
|
|
|
1 x Realtek 2.5Gb Ethernet port
|
|
|
3 x Audio jacks
|
|
|
1 x BIOS FlashBack™ button
|
|
|
1 x PS/2 Keyboard/Mouse combo port
|
|
|
Internal I/O Connectors
|
Fan and Cooling related
|
|
1 x 4-pin CPU Fan header
|
|
|
1 x 4-pin CPU OPT Fan header
|
|
|
1 x 4-pin AIO Pump header
|
|
|
3 x 4-pin Chassis Fan headers
|
|
|
Power related
|
|
|
1 x 24-pin Main Power connector
|
|
|
1 x 8-pin +12V Power connector
|
|
|
1 x 4-pin +12V Power connector
|
|
|
Storage related
|
|
|
3 x M.2 slots (Key M)
|
|
|
6 x SATA 6Gb/s ports
|
|
| USB | |
|
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
|
|
|
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
|
|
|
2 x USB 2.0 headers support additional 4 USB 2.0 ports
|
|
|
Miscellaneous
|
|
|
3 x Addressable Gen 2 headers
|
|
|
2 x Aura RGB headers
|
|
|
1 x Clear CMOS header
|
|
|
1 x COM Port header
|
|
|
1 x Front Panel Audio header (AAFP)
|
|
|
1 x S/PDIF Out header
|
|
|
1 x SPI TPM header (14-1pin)
|
|
|
1 x 20-5 pin System Panel header
|
|
|
1 x Thunderbolt™ (USB4®) header
|
|
|
Special Features
|
ASUS 5X PROTECTION III
|
|
– DIGI+ VRM (- Digital power design with DrMOS)
|
|
|
– ESD Guards
|
|
|
– LANGuard
|
|
|
– Overvoltage Protection
|
|
|
– Safeslot Core+
|
|
|
– Stainless-Steel Back I/O
|
|
|
ASUS Q-Design
|
|
|
– M.2 Q-Latch
|
|
|
– Q-DIMM
|
|
|
– Q-LED Core
|
|
| – Q-Slot | |
|
ASUS Thermal Solution
|
|
|
– M.2 heatsink
|
|
|
– VRM heatsink design
|
|
|
ASUS EZ DIY
|
|
|
– BIOS FlashBack™ button
|
|
|
– BIOS FlashBack™ LED
|
|
|
– ProCool
|
|
|
Aura Sync
|
|
|
– Aura RGB headers
|
|
|
– Addressable Gen 2 headers
|
|
|
Software Features
|
ASUS Exclusive Software
|
|
Armoury Crate
|
|
|
– Aura Creator
|
|
|
– Aura Sync
|
|
|
– Fan Xpert 4 with AI Cooling II
|
|
|
– Power Saving
|
|
| AI Suite 3 | |
|
– TurboV EVO
|
|
|
– DIGI+ VRM
|
|
|
– PC Cleaner
|
|
|
ASUS CPU-Z
|
|
|
Norton Anti-virus software (Free Trial version)
|
|
| WinRAR | |
|
UEFI BIOS
|
|
|
ASUS EZ DIY
|
|
|
– ASUS CrashFree BIOS 3
|
|
|
– ASUS EZ Flash 3
|
|
|
– ASUS UEFI BIOS EZ Mode
|
|
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS
|
| Manageability |
WOL by PME, PXE
|
|
Accessories
|
Cables |
|
2 x SATA 6Gb/s cables
|
|
|
Miscellaneous
|
|
|
1 x I/O Shield
|
|
|
1 x Rubber Package for M.2
|
|
|
2 x Screw Packages for M.2 SSD
|
|
|
Documentation
|
|
|
1 x User guide
|
|
| Operating System |
Windows® 11, Windows® 10 64-bit
|
|
Form Factor
|
ATX Form Factor
|
|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
|
| Dimension | |
| Product (mm)_ L*W*H |
305mm*244mm*45mm
|
| Color Box (mm)_ L*W*H |
338mm*273mm*68mm
|
| Weight | |
| Motherboard only | 1.204Kg |
| Full package | 1.820Kg |
|
**Features, Price and Specifications are subject to change without notice to customer.
|
|
