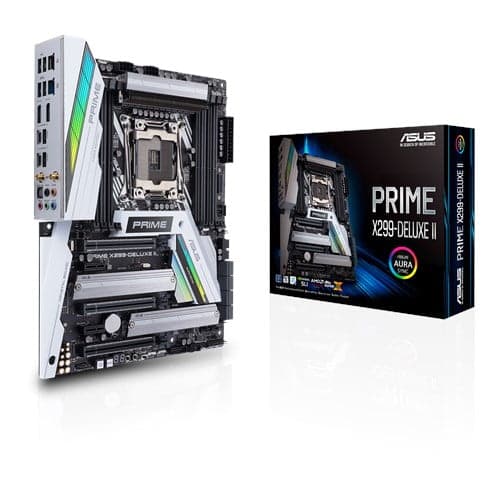

- ASUS Prime X299 Deluxe II DDR4 Intel Motherboard
Description
Feature of ASUS Prime X299 Deluxe II DDR4
- 5-Way Optimization: One-click, system-wide tuning, delivering optimized overclocking and intelligent cooling for CPU or GPU-intensive tasks
- Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI
- Optimized thermal design: Enhanced fin-design VRM heatsink & M.2 heatsink for efficient cooling and optimal performance
- Next-gen connectivity: Aquantia 5Gbps LAN, Intel Wireless-AC 9260, two Thunderbolt 3 (Type-C) with DisplayPort 1.4, three M.2 and front USB 3.1 Gen 2 connector
- LiveDash: A 2-inch customizable onboard display that shows system temperature, CPU frequency, fan speeds or custom graphics and animations
- Pre-mounted I/O shield: Capable of withstanding electrostatic discharge and pre-fitted for easier system installation
PRIME
ASUS Prime X299 Deluxe II DDR4 is the ATX motherboard that's been expertly engineered for professional content creators and power users who work hard by day and play harder by night. This powerful, innovative board puts a friendly face on advanced enthusiast controls, enabling you to maximize performance, cooling and personalization with ease. So, if you live to create, to explore, to enjoy and to push the boundaries, look no further than Prime X299-Deluxe II.
Cool to the core
Power delivery enhancements and dual ProCool connectors
With up to 18 cores, four memory channels, and 44 PCIe lanes, the latest Intel® Core™ processors demand a lot more juice than typical desktop CPUs. Prime X299-Deluxe II feeds their appetite with 12 power stages hooked up to the socket and two more for the DRAM. It also augments the motherboard's link to the PSU with dual eight-pin connectors that pass 12V power directly to the processor. These connectors are based on our ProCool design, which uses solid pins that can handle more current than conventional connectors with hollow pins.
VRM design
Higher power requirements are balanced by beefier heatsinks that carefully balance mass and surface area to maximize thermal dissipation. With a VRM-heatsink array and heatpipe positioned in the path of maximum airflow within the chassis, Prime X299-Deluxe II ensures optimal cooling and system stability for the latest Intel Core X-series processors.
M.2 Cooling
Keep your SSD chilled
Two M.2 slots sit under passive heatsinks to ward off the throttling that can occur with sustained transfers. A third pokes out from the PCB vertically near the memory slots, where connected drives benefit from ambient airflow around the CPU socket.
Cooler by design
Prime X299-Deluxe II features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS:
Multiple temperature sources
Each header can dynamically reference three thermal sensors, and via Fan Xpert 4 you can even map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks
Water pump+
A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.
AIO pump
A dedicated PWM/DC header for self-contained water-cooling setups.
4-pin PWM/DC fan
Every onboard header supports auto-detection of PWM or DC fans.
Specifications of ASUS Prime X299 Deluxe II DDR4
CPU |
Intel® Socket 2066 Core™ X-Series Processors * The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types |
Chipset | Intel® X299 |
Memory |
Intel® Core™ X-series Processors (6-core above) 8 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
Thunderbolt |
2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz* * VGA resolution support depends on VGA cards' resolution. Data transfer rate up to 40 Gbps Daisy-chain up to 12 Thunderbolt devices Up to 5V/3A, 15W charging support |
Multi-GPU Support |
Supports NVIDIA® Quad-GPU SLI™ Technology Supports NVIDIA® 3-Way SLI™ Technology Supports NVIDIA® 2-Way SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology |
Expansion Slots |
44-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 2 x PCIe 3.0/2.0 x1 *1 28-Lane CPU- 2 x PCIe 3.0/2.0 x16 (x16, x16/x8) 1 x PCIe 3.0/2.0 x16 (x2 mode) *2 2 x PCIe 3.0/2.0 x1 *1 |
Storage |
Intel® X299 Chipset : 1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)*3 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s)*1 Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Core™ X-series Processors (6-core above) : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology Enterprise supports Intel® Optane™ Memory Ready |
LAN |
Aquantia AQC111C 5G LAN Intel® I219V, 1 x Gigabit LAN ASUS Turbo LAN Utility ASUS LAN Guard |
Wireless Data Network |
Intel® Wireless-AC 9260 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed |
Bluetooth | Bluetooth® 5.0 |
Audio |
Realtek® S1220A 8-Channel High Definition Audio CODEC - Power pre-regulator reduces power input noise to ensure consistent performance - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - DTS Headphone:X - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs |
USB Ports |
Intel® Thunderbolt™ 3 Controller : 2 x USB 3.1 Gen 2 port(s) (USB Type-CTM) ASMedia® USB 3.1 Gen 2 controller : *1 1 x USB 3.1 Gen 2 front panel connector port(s) Intel® X299 Chipset : 5 x USB 3.1 Gen 1 port(s) (1 at back panel, , 4 at mid-board) Intel® X299 Chipset : 4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board) ASMedia® USB 3.1 Gen 1 Hub : 3 x USB 3.1 Gen 1 port(s) (3 at back panel, ) |
Special Features |
OC Design - ASUS PRO Clock II Technology 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection 2 ” LiveDash AURA : - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - USB BIOS Flashback® - MemOK! II - AI Suite 3 - Ai Charger - Onboard Button : Power/Reset - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN - Pre- mounted I/O shield - ASUS NODE : hardware control interface ASUS Quiet Thermal Solution : - Stylish Design Heat-pipe solution - Stylish Fanless Design with M.2 Heat-sink solution ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector DIY Friendly Design - Procool - SafeSlot Q-Installer - Auto download driver and software. Friendly for first PC builder. |
Back I/O Ports |
2 x Thunderbolt 3 ports TypeC™ 2 x DisplayPort IN ports for Thunderbolt™ 3 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 2 x USB 2.0 (one port can be switched to USB BIOS Flashback®) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0 1 x AQC-111C 5G LAN port |
Internal I/O Ports |
1 x Aura Addressable Strip Header(s) 1 x AAFP connector 2 x Aura RGB Strip Header 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin EATX 12V Power connectors 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x MemOK! II switch(es) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Node Connector(s) 1 x USB BIOS Flashback® button(s) 1 x USB 3.1 Gen 2 front panel connector 1 x Q-Code |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, F4 AURA ON/OFF and ASUS DRAM SPD (Serial Presence Detect) memory information |
Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE |
Support Disc |
Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
Operating System | Windows® 10 64-bit |
Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
