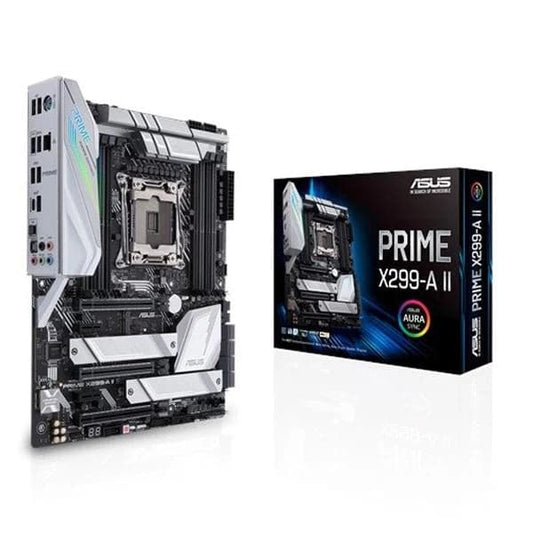

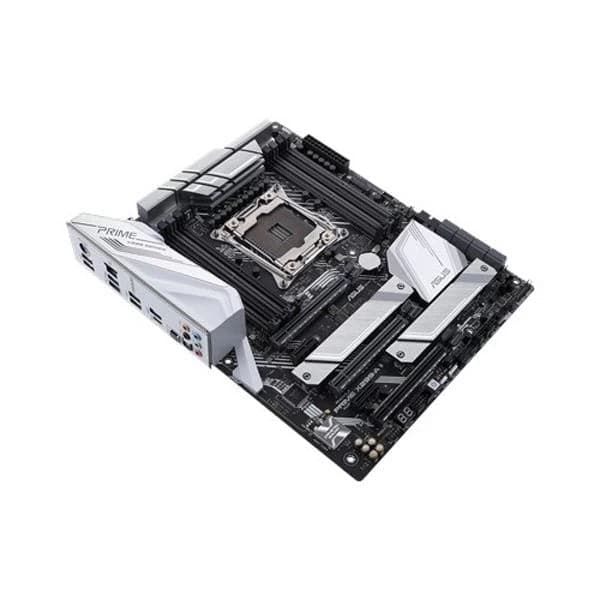

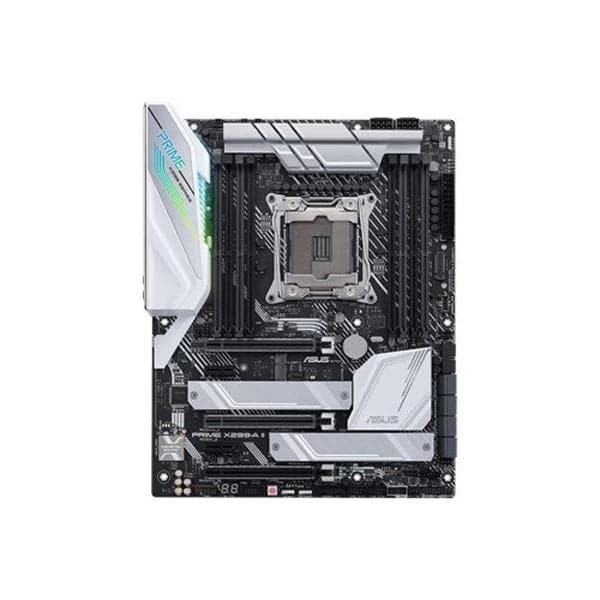

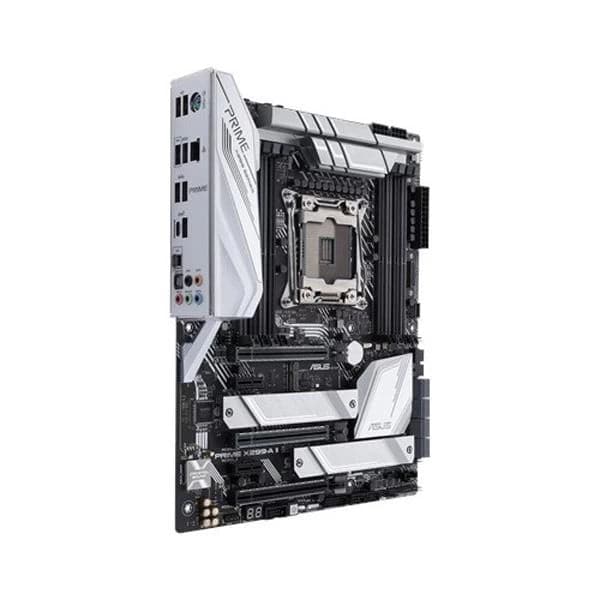

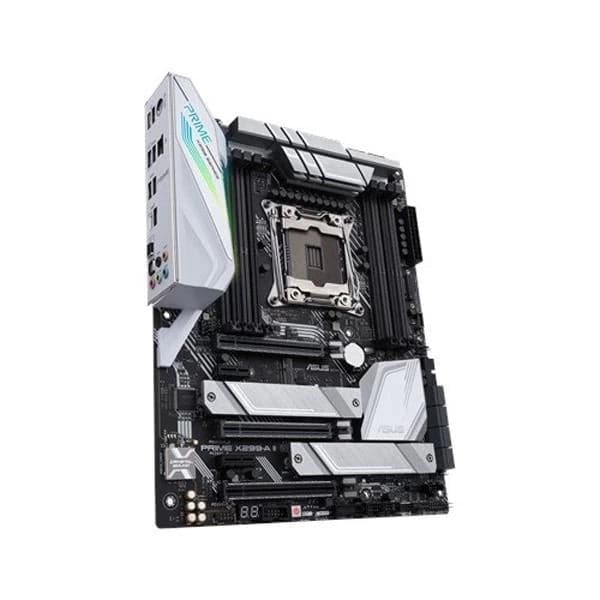

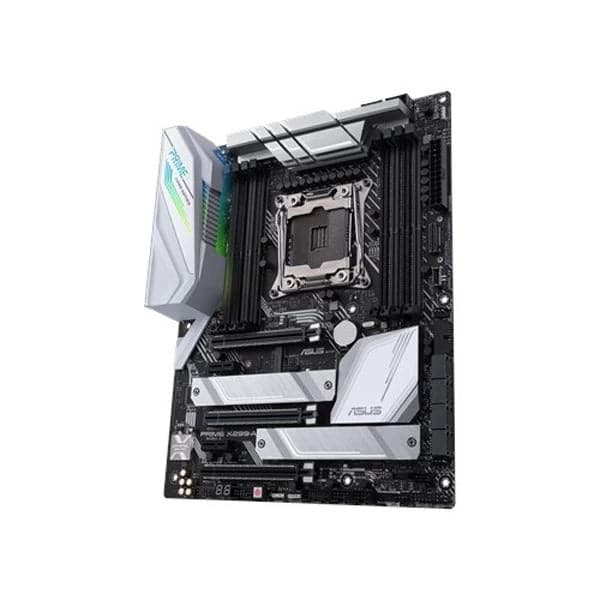

ASUS Prime X299 A-II DDR4 Intel Motherboard

Feature of ASUS Prime X299 A-II DDR4

Make your memory go faster

The ASUS Prime X299 A-II DDR4 delivers ample bandwidth on multiple fronts. Its quad-channel memory controller supports up to 256 GB of DDR4 memory across eight slots. With optimized trace layout, the Prime X299-A II can hit memory speeds up to DDR4 4266 MHz or beyond.

Multi-GPU support

Fully loaded takes on a new meaning when you have over 44 PCI Express lanes stemming from the CPU. Those lanes can be split in an x16/x16/x8 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to accelerate an increasingly diverse array of work.

M.2

Achieve speed with onboard M.2
Professional applications require fast solid-state storage, which is why the Prime X299-A II is equipped with three M.2 slots that are compatible with the latest NVMe SSDs. All slots support longer 110 mm drives, and they can be configured into bootable RAID arrays connected directly to the CPU via Intel VROC technology.

VROC

Upgrade your RAID
Use onboard M.2 slots and ASUS Hyper M.2 x16 Card V2* to take advantage of Intel's Virtual RAID on CPU (VROC)** by connecting the three M.2 drives in RAID configurations. With VROC, your RAID arrays are easily configured to be bootable, and traditional DMI bottlenecks are eliminated so that your storage is not held back by other traffic.

 USB 3.2 Gen 2 front-panel connector

Future-proof connectivity

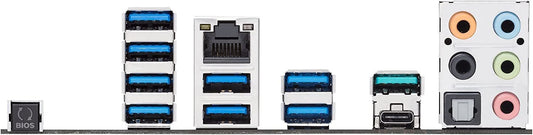

Plenty of USB ports are provided to support high-end rigs loaded with peripherals, including a front-panel header with faster USB 3.2 Gen 2 connectivity for compatible cases.

Intel Ethernet

More throughput, less CPU usage and great gaming experiences
The latest Intel I219-V Ethernet has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.

LANGuard

Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is a hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.

Turbo LAN

Network-optimization software for customizable packet prioritization
Turbo LAN with cFosSpeed traffic-shaping technology allows you to configure application priority via an intuitive interface and reduces network lag.

Cool to the core

Effective cooling is extremely important, even at stock speeds. That is why the Prime X299-A II allows consolidated cooling control of the entire system, even for the most hardcore rigs. It comes equipped with onboard heatsinks, an array of fan headers, and options for water pump or AIO headers.

M.2 Heatsinks

Two M.2 slots are covered by heatsinks to combat temperature-induced throttling that can affect performance during heavy, sustained storage loads.

Backplate

A reinforced backplate improves the stability of the board, and the included thermal pad efficiently directs heat away from the VRM and other components.

Cooler by design

Prime X299-A II features the most comprehensive cooling controls ever, configurable via FanXpert 4 or the UEFI BIOS.

Multiple temperature sources

Each header can dynamically reference three thermal sensors, and via Fan Xpert 4 you can even map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Dual pump headers

A dedicated header that supplies over 3A for high-performance PWM or DC water pumps, plus a second dedicated header for AIOs.

Smart protection

A dedicated integrated circuit that protects each fan header from overheating and overcurrent.

4-pin PWM/DC fan

Each onboard header supports auto-detection of PWM or DC fans.

Tune it your way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime X299-A II packs flexible tools to tune every aspect of your system to deliver the performance that you desire.

AI Overclocking

ASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooling to predict the optimal configuration for each individual system.

5-way Optimization

One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.

CPU performance boost

The Turbo Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

All-around energy efficiency

With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with the Away mode.

Flexible cooling controls for air or liquid

With Prime X299-A II, you have comprehensive control over fans via FanXpert 4 or UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum – keeping your system quiet as a whisper when performing light tasks.

Precise digital power control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage drop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

Optimize per-core performance for every app

The latest X-series processors from Intel feature per-core tuning, and the ASUS Turbo Core app makes use of this feature by enabling you to assign applications to specific processor cores, allowing you to prioritize compute power where it's needed the most.

UEFI BIOS

The renowned UEFI BIOS provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.

Advanced tuning for serious tweaker

When you're ready for a deeper dive into the configuration of your system, delve into the UEFI's Advanced mode and take complete control. Each section is intuitively organized, and a built-in search feature makes it easy to find the options you need. Advanced functions are coded with the intelligence to adapt to your settings, and when you're ready to take charge, parameters have the granularity to dial in performance just the way you want.

Prediction

AI Overclocking monitors system vitals such as temperature, fan speed, and power draw to estimate overclocking performance.

AI Overclocking Guide

The AI Overclocking Guide allows you to enable AI Overclocking or to view a quick guide.

Search Function

Quickly and easily find the option or setting that you're looking for.

ASUS User Profile

Port configuration settings between different BIOS versions or share them with friends.

Breeze setup with ease

Designed to simplify setup, EZ mode presents all the vital settings and stats on one single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.

AI Overclocking

Enable AI Overclocking intelligence via shortcut

Intuitive Graphical Fan Control

Fine-tune individual fans simply by dragging a curve with the mouse.

Aura On/Off mode (Stealth)

Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

Little things make a big difference

We pay careful attention to all the little details that improve your overall experience, from integrating a flashing utility directly into the UEFI to simplifying firmware updates or displaying your system vital signs. Prime X299-A II provides the tools you need to personalize your build and stay on top of things.

Pre-mounted I/O Shield

Set up without slip-ups
Form meets function in the pre-mounted I/O shield that we pioneered with the ROG series. Now available on Prime X299-A II, this feature streamlines the installation process for budding builders and savvy enthusiasts alike.
