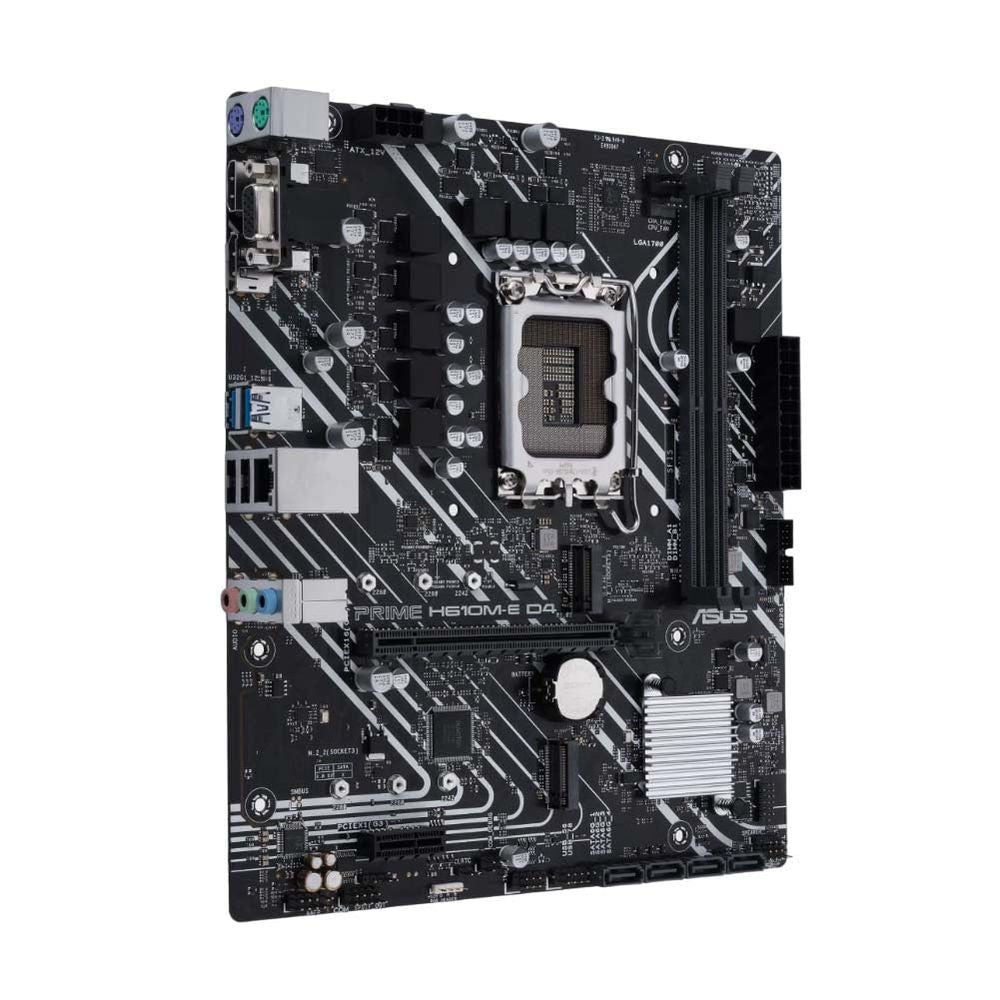

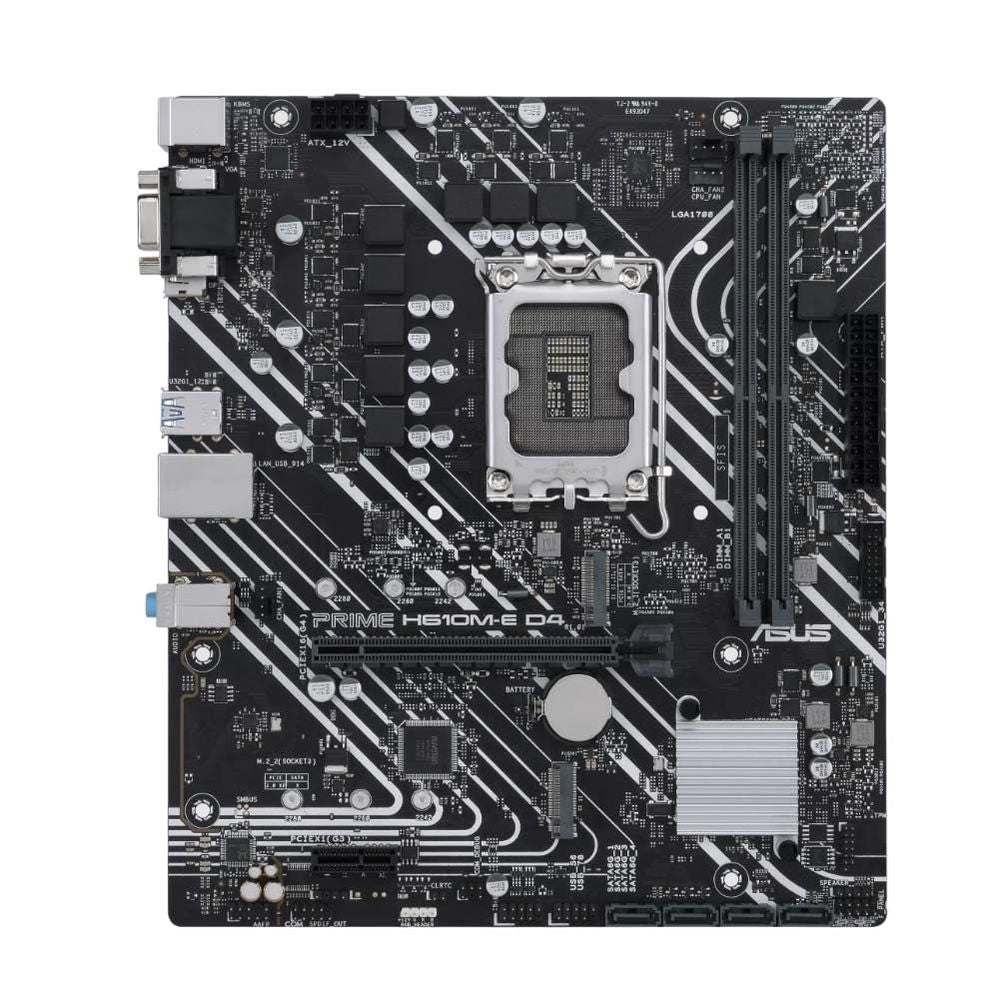

- ASUS PRIME H610M-E D4-CSM DDR4 Intel Motherboard
Description
Features of ASUS PRIME H610M-E D4-CSM DDR4
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink and Fan Xpert 2+
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- 5X Protection III: Multiple hardware safeguards for all-round protection
ASUS PRIME H610M-E D4-CSM DDR4 series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Flexible cooling controls
Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
COOLING
Prime H610 series are engineered with heatsink and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Cooler by Design
Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
PERFORMANCE
Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Dual M.2 slots (up to 32 Gbps)
PRIME H610M-E D4 offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
PCIe® 4.0
Prime H610 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
USB 3.2 Gen 1 Type-A
Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
Audio Shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Separate Layer for Left and Right Tracks
Ensures minimal crosstalk between audio paths.
Premium Audio Capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.
Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. This software even features dedicated product registration and highlight to help you stay in touch with the ASUS community.
Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
Specifications of ASUS PRIME H610M-E D4-CSM DDR4
Brand | ASUS |
Model | PRIME H610M-E D4-CSM |
Supported CPU | |
CPU Socket Type | LGA1700 |
CPU Type | 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
Supported CPU Technologies | Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
Chipsets | |
Chipset | Intel H610 |
Memory | |
Number of Memory Slots | 2 x DIMM, |
Memory Standard | DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |
Maximum Memory Supported | Max. 64GB |
Channel Supported | Dual channel memory architecture |
Expansion Slots | |
PCI Slots | Intel 13th & 12th Gen Processors : 1 x PCIe 4.0 x16 slot Intel H610 Chipset : 1 x PCIe 3.0 x1 slot |
Storage Devices | |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports |
|
Onboard Video | |
Onboard Audio | |
Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC |
Onboard LAN | |

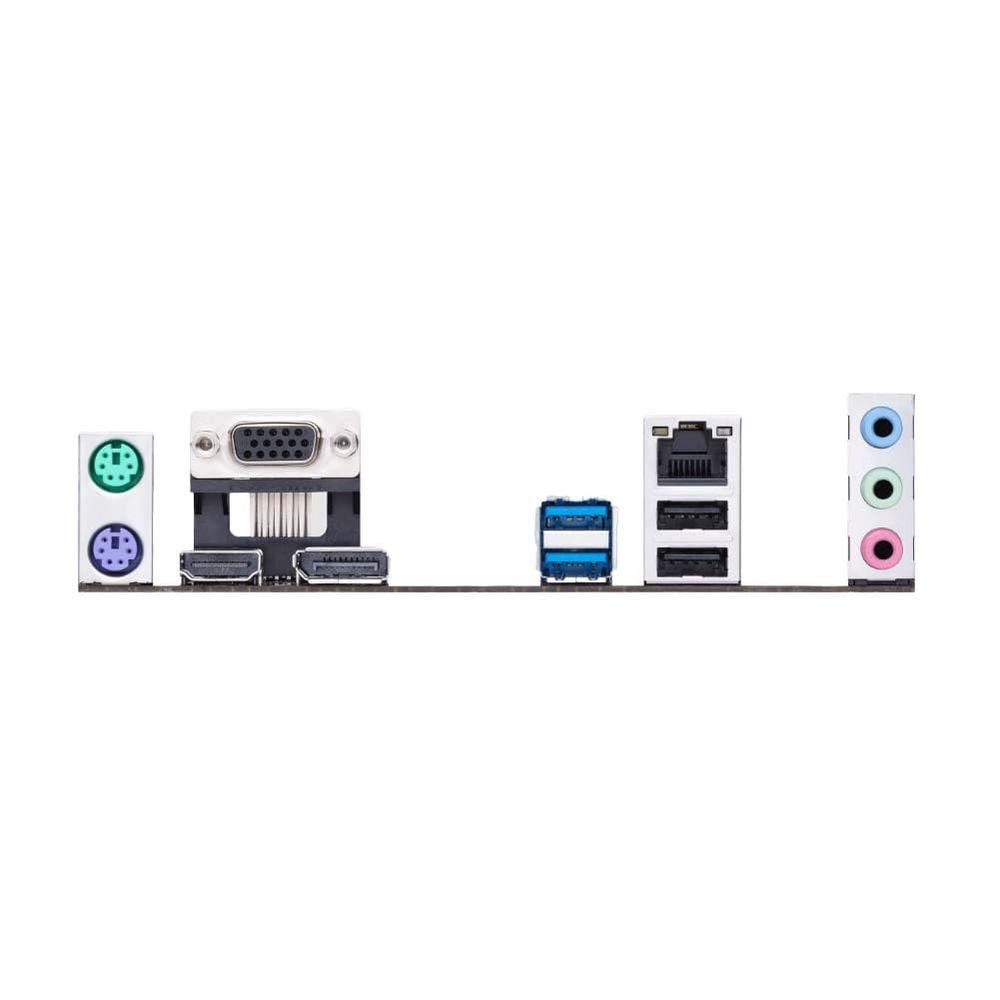

Rear Panel Ports | |
USB | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) |
IEEE 1394 | N/A |
S/PDIF Out | 1 |
Audio Ports | 3 x audio jacks |
PS/2 | 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port |
Video Ports | 1 x D-Sub port 1 x HDMI port 1 x DisplayPort |
HDMI | 1 x HDMI |
Onboard USB | |
Onboard 1394 | |
Physical Spec | |
Form Factor | mATX |
Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
Dimensions | 9.6 inch x 8.3 inch(24.4cm x 21.1cm) |
