- ASUS Prime H470 Plus DDR4 Intel Motherboard
Description
Feature of ASUS Prime H470 Plus DDR4

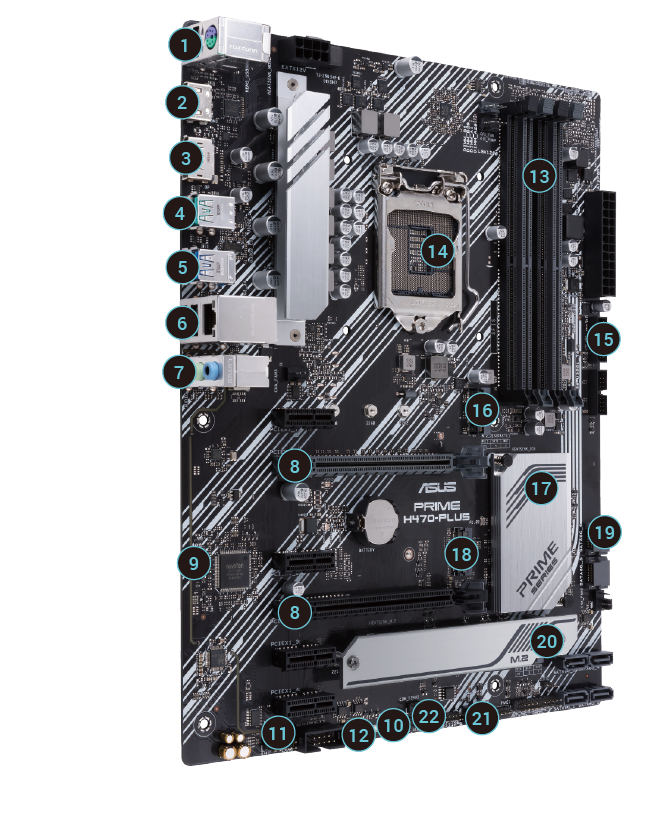

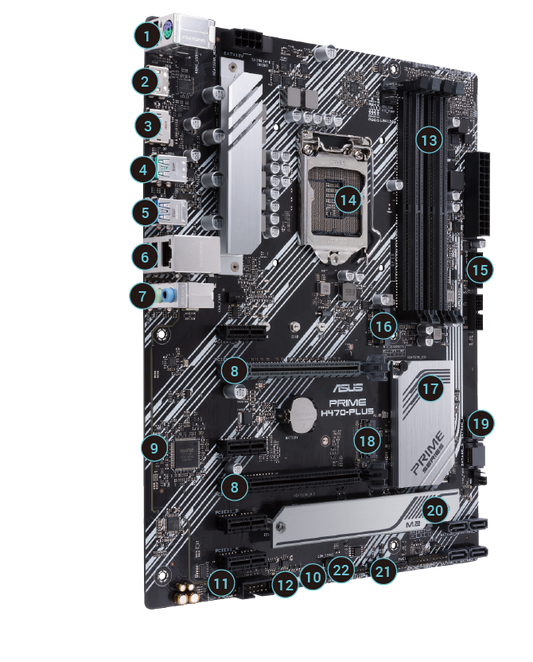

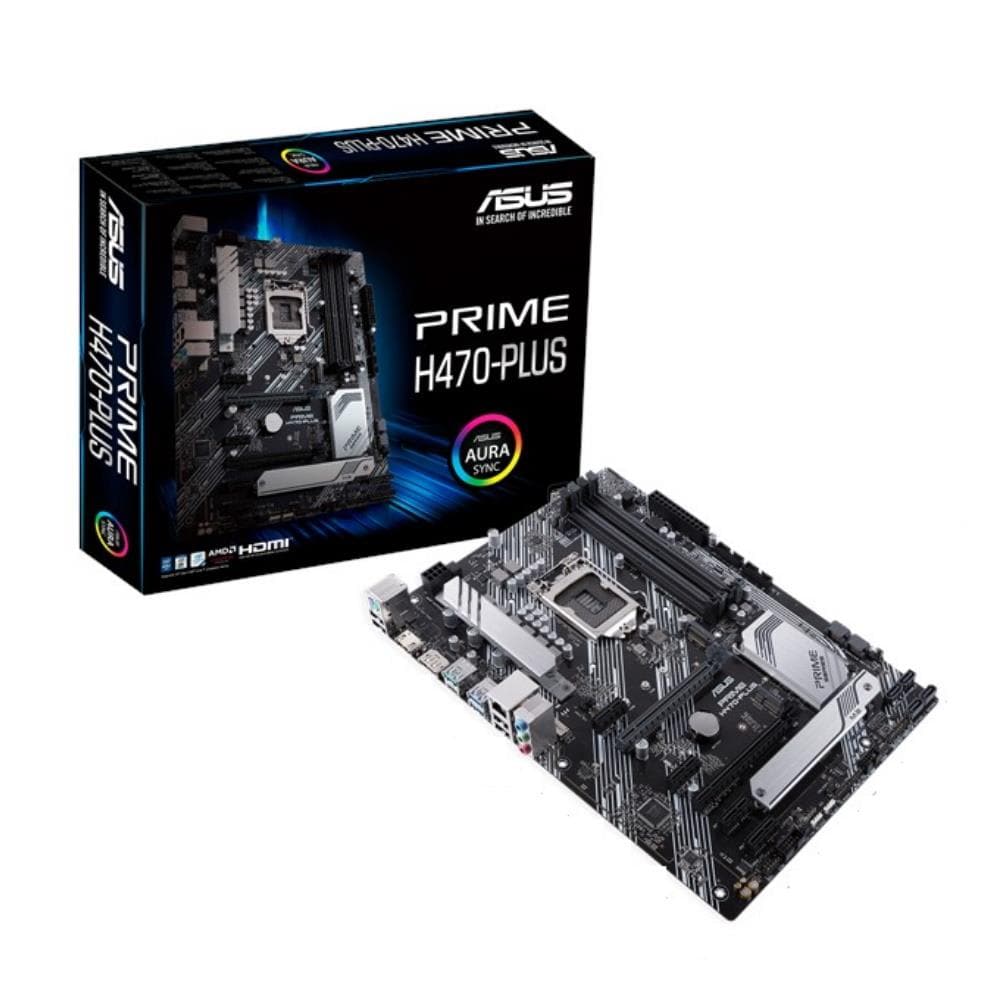

PRIME-H470-PLUS
Intel® H470 (LGA 1200) ATX motherboard with dual M.2, 8 power stages, HDMI, DisplayPort, SATA 6Gbps, 1Gb Ethernet, USB 3.2 Gen 2 Type-C®, Thunderbolt™ 3 support, and Aura Sync RGB Lighting
ASUS Prime H470 Plus DDR4 series is expertly engineered to unleash the full potential of 10th Gen Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H470 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H470 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.
Cool to the Core
Prime H470 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
VRM Heatsink and Thermal Pad
The VRM heatsink with underneath thermal pad improve heat transfer from the MOSFETs for better cooling performance.
M.2 Heatsink
An M.2 drive sits under a passive heatsink to ward off the throttling that can occur with sustained transfers. Removable captive screws reduce risk of drops or loss during heatsink removal.
Build on a Solid Foundation
Prime H470 series is built to handle the additional cores and increased bandwidth of 10th Generation Intel® Core™ processors. A H470 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of 10th Generation Intel Core processors, Prime H470 is geared to cater to the demands of these high-core count CPUs.
Little Things Make a Big Difference
Prime H470 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
Specifications of ASUS Prime H470 Plus DDR4
| CPU | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® H470 |
| Memory |
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots |
Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel® H470 Chipset 1 x PCIe 3.0 x16 (x4 mode) 4 x PCIe 3.0 x1 |
| Storage |
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® H470 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*1 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready |
| LAN | Realtek® RTL8111H |
| Audio |
Realtek® ALC887 8-Channel High Definition Audio CODEC * - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports |
Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x Type-C) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) Front USB Port ( Total 7 ) 4 x USB 3.2 Gen 1 port(s) 3 x USB 2.0 port(s) |
| Software Features |
ASUS Exclusive Software Armoury Crate - Aura Sync AI Suite 3 - Performance And Power Saving Utility EPU Digi+ VRM Fan Xpert 2+ - EZ update AI Charger WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features |
ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink - Aluminum heatsink design AURA Sync - Standard RGB header - Addressable Gen 2 RGB header |
| Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 *2 3 x Audio jack(s) |
| Internal I/O Ports |
1 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x M.2 with E key for Wi-Fi module 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
| Accessories |
User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x M.2 SSD screw package(s) 1 xM.2 Key E screw package(s) 1 x M.2 Rubber Package(s) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor |
ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
| Warranty | 3 Years |
| Note |
*1 When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used. *2 USB_E1, USB_E2, USB_E3 & USB_E4 share bandwidth.***Features, Price and Specifications are subject to change without notice. |
