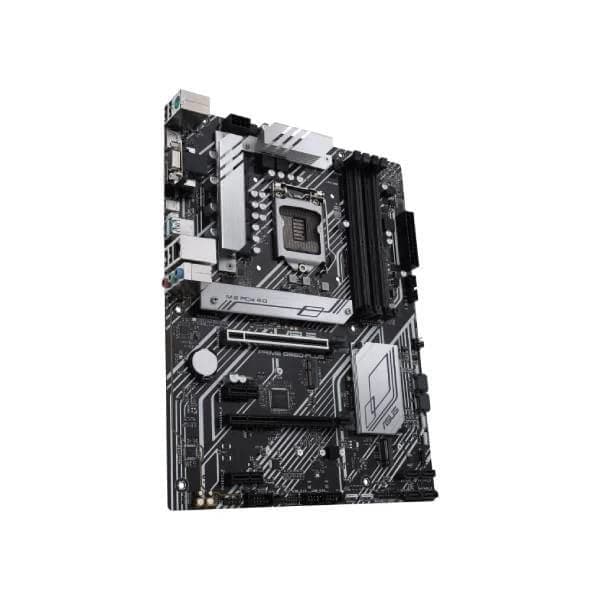

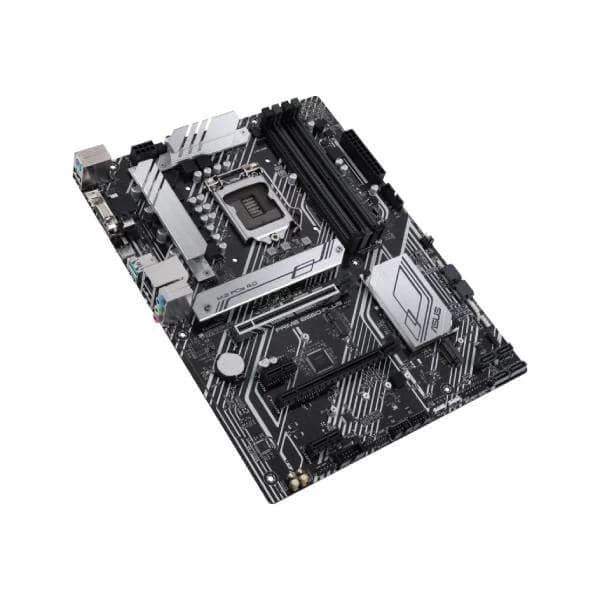

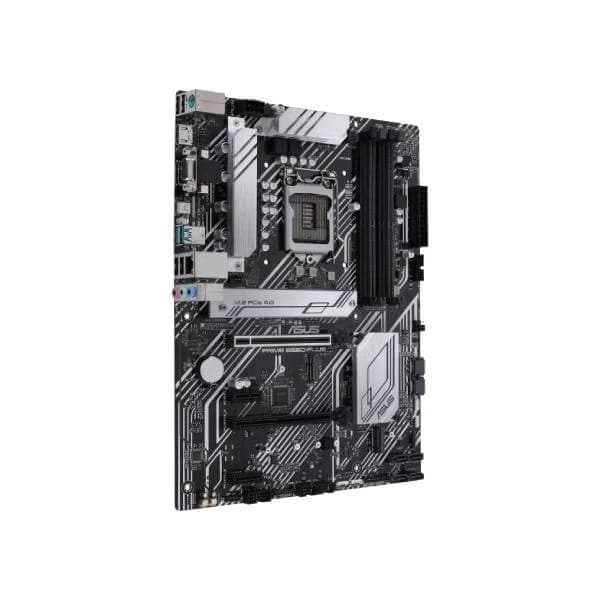

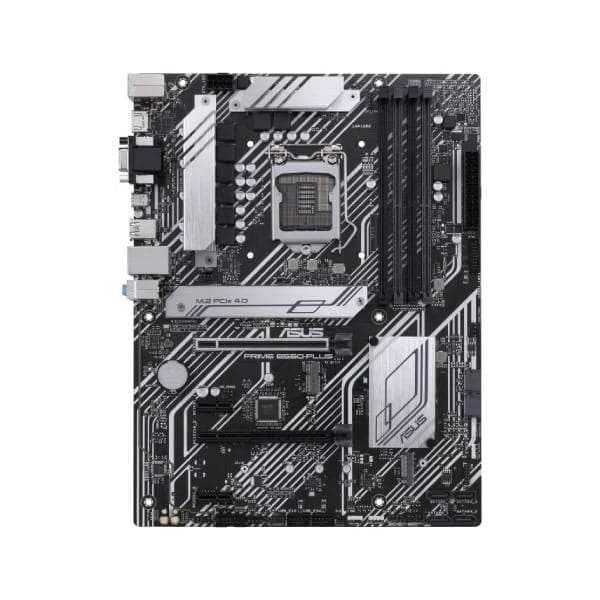

Feature of ASUS Prime B560-Plus DDR4
Intel® B560 (LGA 1200) ATX motherboard with PCIe® 4.0, two M.2 slots, 8 power stages, Intel® 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type-C®, rear USB 3.2 Gen 2, Thunderbolt™ 4 header support, Aura Sync, and Aura Sync RGB lighting
-
Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors
-
Comprehensive cooling: VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+
-
ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
-
Ultrafast connectivity: PCIe 4.0, Intel® 1 Gb Ethernet, rear USB 3.2 Gen 1 Type-C® and Thunderbolt™ 4 header support
-
5X Protection III: Multiple hardware safeguards for all-around protection.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B560-PLUS provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B560 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.
Cool to the Core
ASUS Prime B560-Plus DDR4 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot.
Build on a Solid Foundation
Prime B560 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS B560 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
ASUS OptiMem
Revisions to the motherboard’s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.
Small Details Make a Big Difference
Prime B560 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Aura Sync Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Specifications of ASUS Prime B560-Plus DDR4
| CPU |
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsSupports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
|
| Chipset |
Intel® B560 Chipset |
| Memory |
4600(OC)/4400(OC)/4266(OC)/4000(OC)/
3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)
/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
ASUS OptiMem
* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
|
| Graphics |
1 x DisplayPort 1.4
1 x D-Sub
1 x HDMI 1.4/2.0***
*Graphics specifications may vary between CPU types.
** For Intel® 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
***Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
|
| Expansion Slots |
Intel® 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot*
- Intel® 11th processors support PCIe 4.0 x16
- Intel®10th processors support PCIe 3.0 x16
Intel® B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
2 x PCIe 3.0 x1 slots
*Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.
|
| Storage |
Intel® 11th Gen Processors
- M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 )
- Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® B560 Chipset
- M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes)
- 6 x SATA 6Gb/s ports
When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.
|
| Ethernet |
1 x Intel® I219-V 1Gb Ethernet
ASUS LANGuard
|
| Wireless & Bluetooth |
M.2 slot only (Key E, CNVi & PCIe) |
| USB |
Rear USB:Total 7 ports
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x USB Type-C®)
4 x USB 2.0 ports
Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
|
| Audio |
Realtek ALC897 7.1-Channel High Definition Audio CODEC*
Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192kHz playback
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
*A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
|

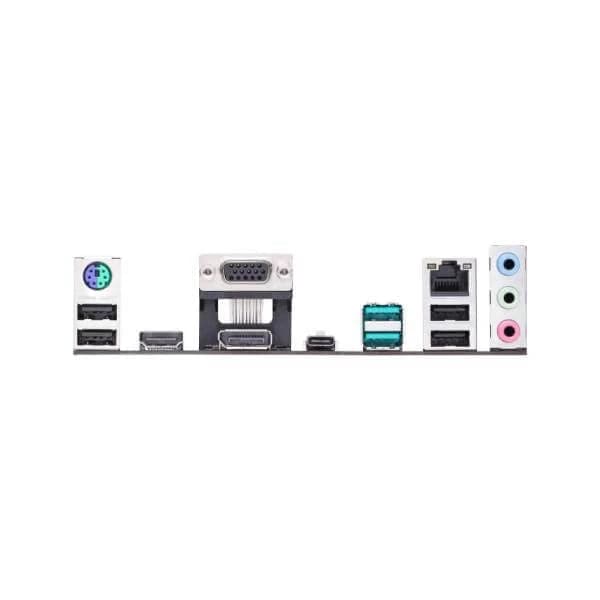

| Back Panel I/O Ports |
1 x DP port
1 x HDMI port
1 x D-Sub port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
1 x Intel® I219-V 1Gb Ethernet port
4 x USB 2.0 ports (4 x Type-A)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1x USB 3.2 Gen 1 port (1 x USB Type-C®)
|
| Intrernal I/O Connectors |
Fan and cooling-related
1 x 4-pin CPU Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS jumper
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF out header
1 x 20-3pin System Panel header with Chassis intrude function
1 x SPI TPM header (14-1 pin)
1 x M.2 slot (key E)
1 x Thunderbolt 4 header
|
| Special Features |
ASUS 5X PROTECTION III
- ASUS DIGI+VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design:
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Box Headers
AURA SYNC
- AURA RGB headers
- Addressable Gen 2 RGB headers
|
| Software Features |
ASUS Exclusive Software:
Armoury Crate
- AURA Creator
-AURA Sync
AI Suite 3
-Performance And Power Saving Utility
Turbo EVO
Digi+ VRM
EPU
Fan Xpert 2+
- EZ update
ASUS CPU-Z
DAEMON Tools
Norton Anti-virus software(Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
|
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Accessories |
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x M.2 Rubber Package
1 x IO Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
Installation Media
1 x Supporting DVD
Documentation
1 x User's manual
|
| Operating System |
Windows 10 64bit |
| Form Factor |
ATX
30.5cm x 23.4cm
|
| Warranty |
3 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice. |
