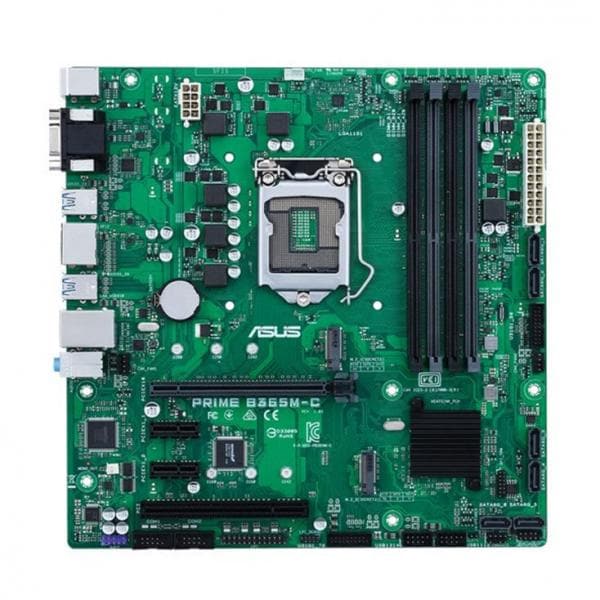

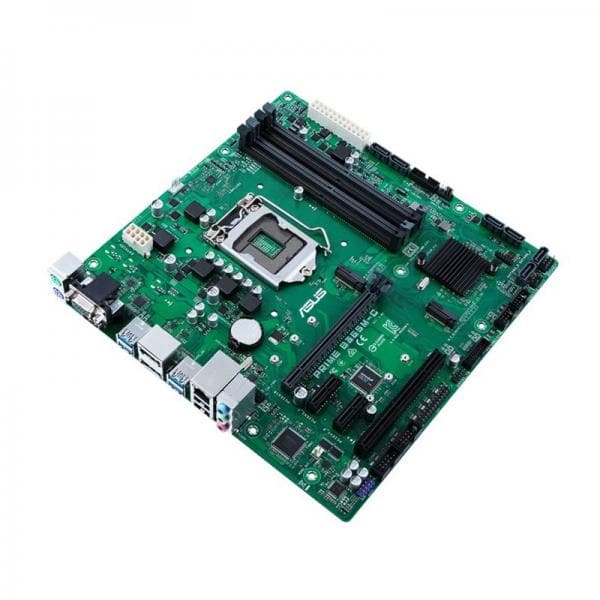

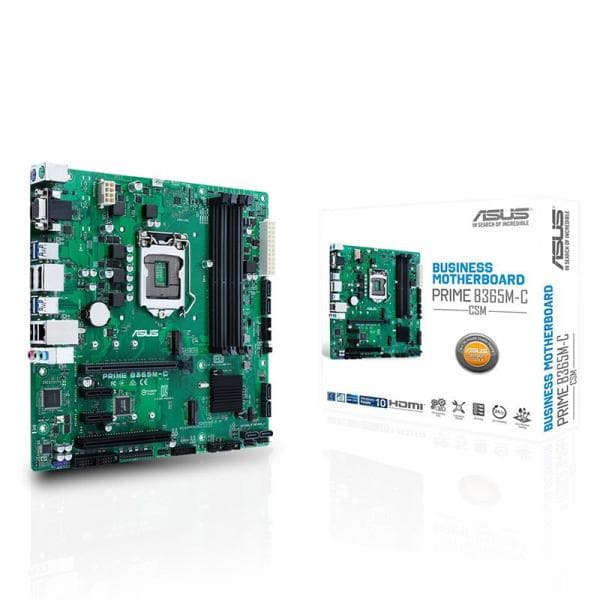

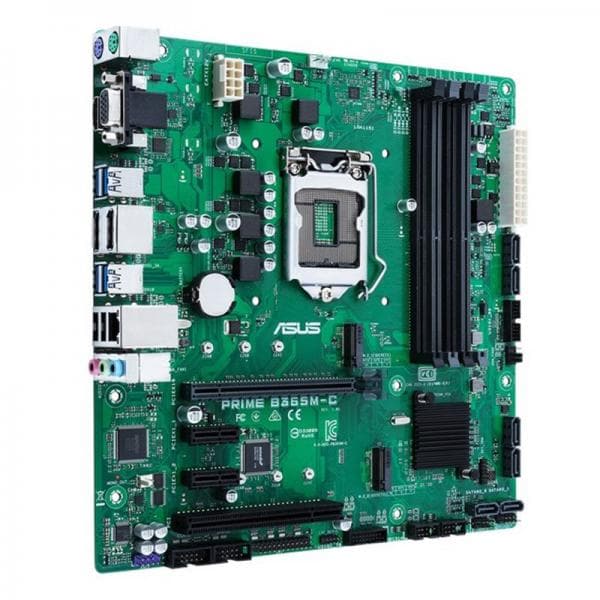

Asus Prime B365M-C/CSM Motherboard
Features:
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- Dedicated LPC header and debug card with LCD display for faster troubleshooting
- Event log for capturing and managing detailed system information
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
- Commercial BIOS kit to make customization faster and more efficient
- ASUS Control Center software to make IT endpoint management easier
Specifications:
| CPU |
Intel® for 8th Generation Core™ Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel® B365 |
| Memory |
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * The maximum memory frequency supported varies by processor. ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. |
| Graphic |
Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DisplayPort /D-Sub ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports up to 3 displays simultaneously |
| Expansion Slots |
1 x PCIe 3.0/2.0 x16 2 x PCIe 3.0/2.0 x1 1 x PCI |
| Storage |
Intel® B365 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode) Support Raid 0, 1, 5 Intel® B365 Chipset : 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready |
| LAN | Intel® I219V, 1 x Gigabit LAN Controller(s) |
| Audio |
Realtek® ALC887 8-Channel High Definition Audio CODEC *1 - Supports : Jack-detection, Front Panel Jack-retasking |
| USB Ports |
Intel® B365 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board) Intel® B365 Chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
| Special Features |
Bespoke Motherboard Design & Business Focused Features : - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen - ASUS Event Log: Record activities of system and provides information in BIOS - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design - Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard - 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment Easy Assembly Design: - Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage Digi VRM |

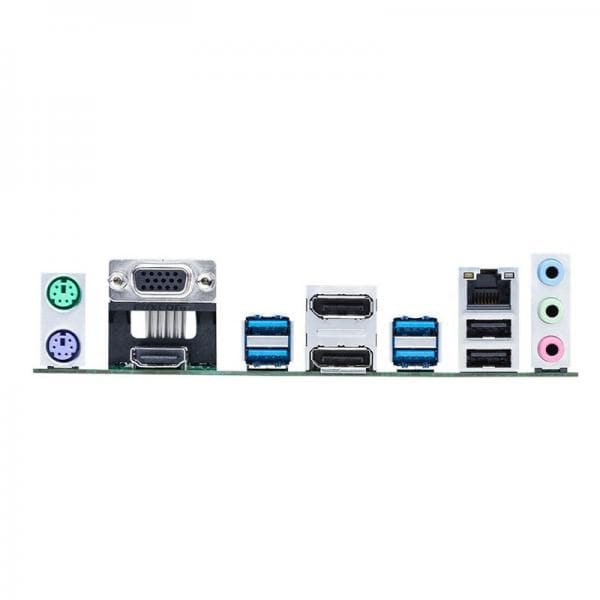

| Back I/O Ports |
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 2 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports |
1 x MONO out header *2 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 1 x LPT header 2 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x 14-1 pin TPM connector 1 x LPC Debug header |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS Self-Recovering BIOS, ASUS Event log, ASUS Commercial Kit |
| Manageability | WOL, PXE |
| Support Disc | Watch dog timer, Drivers, ASUS Commercial Kit |
| Operating System | Windows® 10 64-bit |
| Form Factor |
uATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
