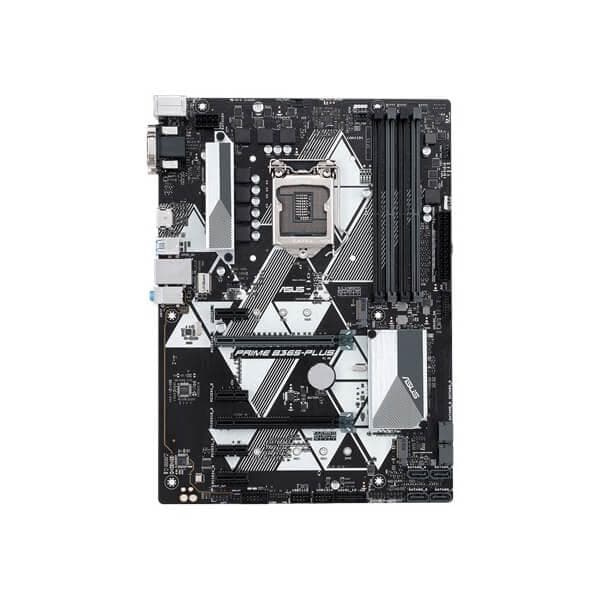

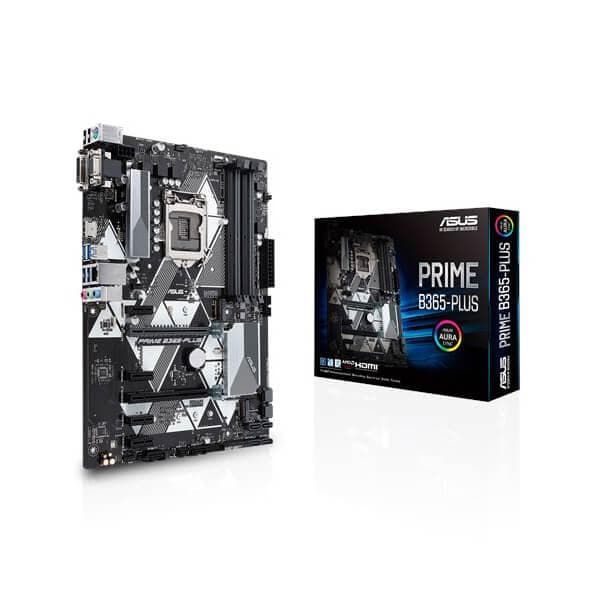

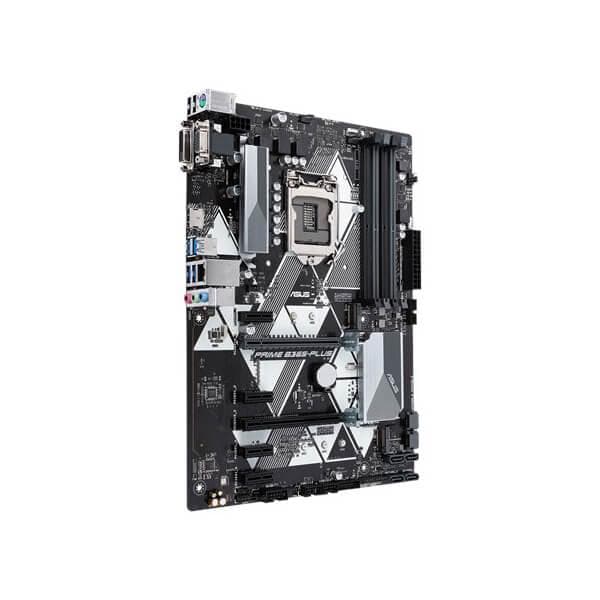

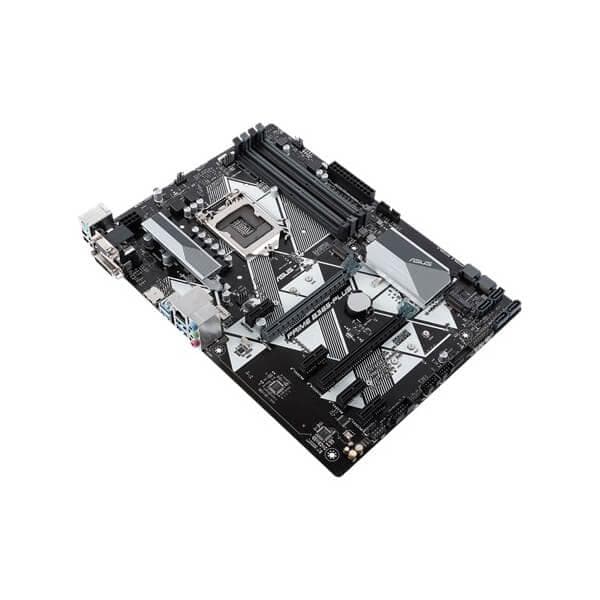

- ASUS Prime B365-Plus Intel DDR4 Motherboard
Description
Feature of ASUS Prime B365-Plus Intel DDR4
ASUS Prime B365-Plus Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into the latest processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordably.
Improved DDR4 stability
ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the Prime 300 Series to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applications
ASUS OptiMem benefits:
Improved memory stability and compatibility
Allows lower memory latencies at equivalent voltages
Improved memory frequency margin
Cooler by design
Prime 300 Series features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS.
Media-acclaimed UEFI BIOS
The UEFI BIOS is an early waypoint on any PC-building journey, and Prime 300 Series has one of the best in the business.
USB 3.1 Gen 1 front-panel connector
Future-proof connectivity
USB 3.1 Gen 1 is right where you need it, with two super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.
M.2
Speed up with onboard M.2
With x4 PCI Express® 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data.
Intel Optane memory
Intel Optane memory ready
Intel Optane™ is a revolutionary non-volatile memory technology supported by Prime 300 Series motherboards. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.
Built to Last
ASUS is the world's leading motherboard brand. Our motherboards are extensively tested for compatibility with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation — offering the peace of mind of knowing that your ASUS motherboard is fit for all environments and applications. Choosing ASUS is an assurance of trouble-free DIY experiences.
5X Protection III
Prime 300 Series motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design and exacting standards to guarantee the quality and long-term durability of your investment. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand.
1000+
Compatible devices and components
The superior compatibility of Prime 300 Series is evidenced by our extensive list of supported devices — which includes thousands of compatible components — and our Qualified Vendor List (QVL) that identifies memory compatibility. It all adds up to more choices for worry-free PC-building experiences.
8000+
VALIDATION HOURS
ASUS motherboards offer superb endurance. We verify this by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
Outstanding audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!
Audio shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Separate layer for left and right tracks
Ensures minimal crosstalk between audio paths.
Premium Japanese audio capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.
Aura Sync Outshine the competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full lighting connected via the motherboard's RGB header, with a variety of functional presets for external LED strips.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
Beyond VR ready Complete your immersion
Prime 300 series isn't just VR ready — it goes way beyond. The ASUS Beyond VR Ready marque means that Prime 300 series has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.
Specifications of ASUS Prime B365-Plus Intel DDR4
CPU | Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
Chipset | Intel® B365 |
Memory |
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile |
Graphic |
Integrated Graphics Processor- Intel® UHD Graphics support Multi-VGA output support : HDMI/DVI-D/D-Sub ports Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz |
Expansion Slots |
1 x PCIe 3.0/2.0 x16 (x16 mode) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 4 x PCIe 3.0/2.0 x1 |
Storage |
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready |
LAN |
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) ASUS LAN Guard |
Audio |
Realtek® ALC887 8-Channel High Definition Audio CODEC * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
USB Ports |
Intel® B365 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board) Intel® B365 Chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
Special Features |
ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI VRM: Premium components provide better power efficiency - ASUS ESD Guards - Enhanced ESD protection ASUS EPU : - EPU AURA : - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 2 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM |

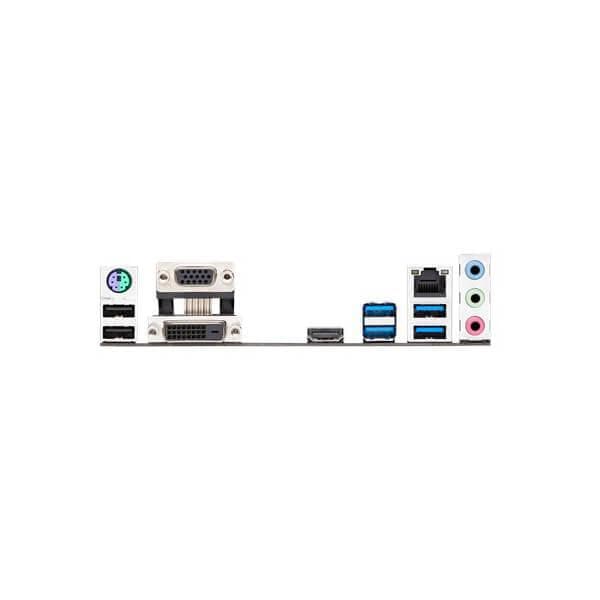

Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 (blue) up to 5Gbps 2 x USB 2.0 3 x Audio jack(s) |
Internal I/O Ports |
2 x Aura RGB Strip Header(s) 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Mono Out header |
Operating System Support | Windows® 10 64-bit |
Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
Accessories |
User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x SCD (by region) |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE |
Form Factor |
ATX Form Factor 12.0 inch x 8.7 inch ( 30.5 cm x 22.1 cm ) |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
